Product Description

Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2

RJ45 Banner

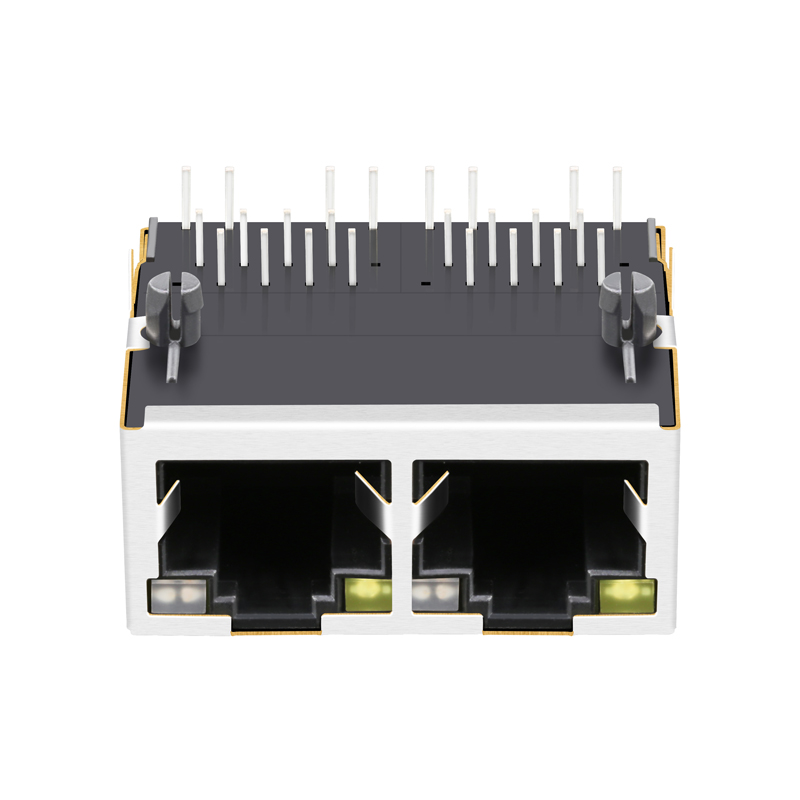

Shielded Magnetic Dual Ports RJ-45 Connector Front View

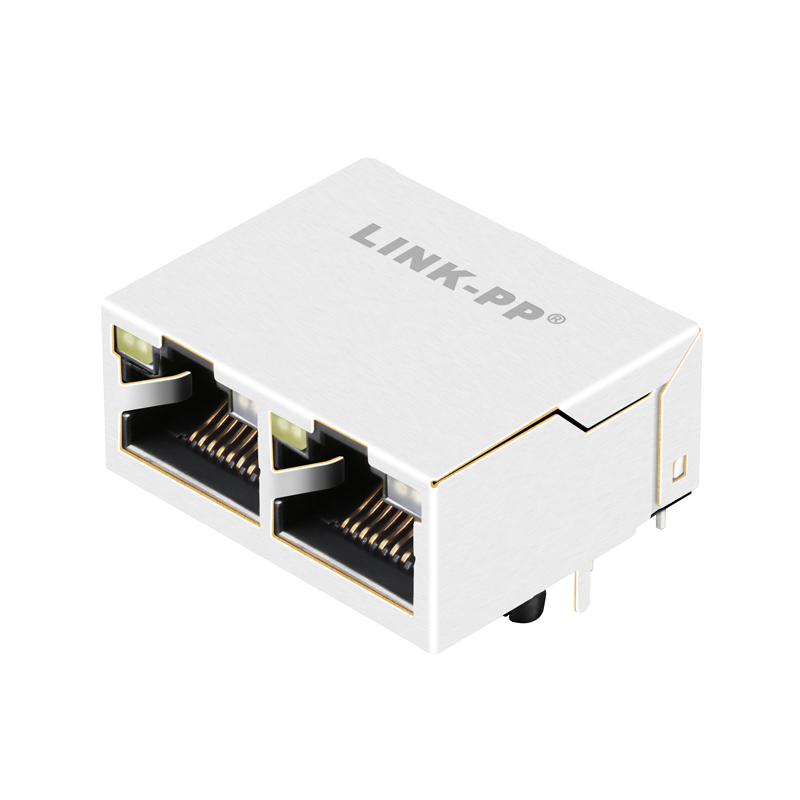

Shielded Magnetic Dual Ports RJ-45 Connector Side View
10/100Base-T Specification Banner
Part Number 1840538-3 6610128-1 1840538-4 1840538-2
Application-LAN ETHERNET (Non-PoE)
AutoMDIX YES
Bst Circuit YES
Configuration RX/TX T, C / T, C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores Per Port 6
LED Option GREEN/GREEN
Number of Ports 1x2
PCB Mount Angle SIDE ENTRY
Pin Type THT SOLDER
Speed 10/100 Base-T
Temperature Range 0℃ ~ 70℃
Turns Ratio 1CT:1
Technical Drawing

Preferred Industry Supplier: Our components are trusted and integrated into high-end boards and systems globally. You can find our logo on major development boards like the BeagleBone.

Product Quality Certification

Why Choose Us

A global leader in Integrated RJ45 Connectors and Discrete Magnetic Transformers.

Professional Certification

  • ISO 9001:2008 Certified
  • UL Certification
  • REACH Certification
  • RoHS Compliance
  • Active Environmental Policy

100% Quality Guarantee

  • Manufactured Under Strict Controls
  • 100% Tested (Not just batch tested)
  • OEM for major global brands for 9 years
  • 6 Years Quality Guarantee

Competitive Service

  • Short Delivery Time: 2-3 Weeks
  • Free Samples Available
  • Custom Design for Specific Requirements
  • Efficient Global Logistics Support
Manufacturing Facility
Quality Testing
Footer Banner
Product Dimensions
Circuit Diagram

Frequently Asked Questions

1. What is the data transfer speed of the 1840538 series? This series supports 10/100 Base-T Ethernet speeds, making it ideal for standard LAN applications.
2. Does this RJ45 connector support Power over Ethernet (PoE)? No, this specific model is designed for Non-PoE Ethernet applications as indicated in the technical specifications.
3. What are the plating options for the contact mating area? We offer multiple gold plating thicknesses including 6u", 15u", and 30u" to meet different durability and conductivity requirements.
4. Are these connectors RoHS compliant? Yes, these connectors are RoHS compliant (RoHS-5) with lead-in solder exemption where applicable.
5. What is the standard lead time for bulk orders? Our standard delivery time is approximately 2-3 weeks after the order is confirmed.
6. Can I request free samples for testing? Yes, free samples are available for qualified customers to ensure the component meets your specific design requirements.
