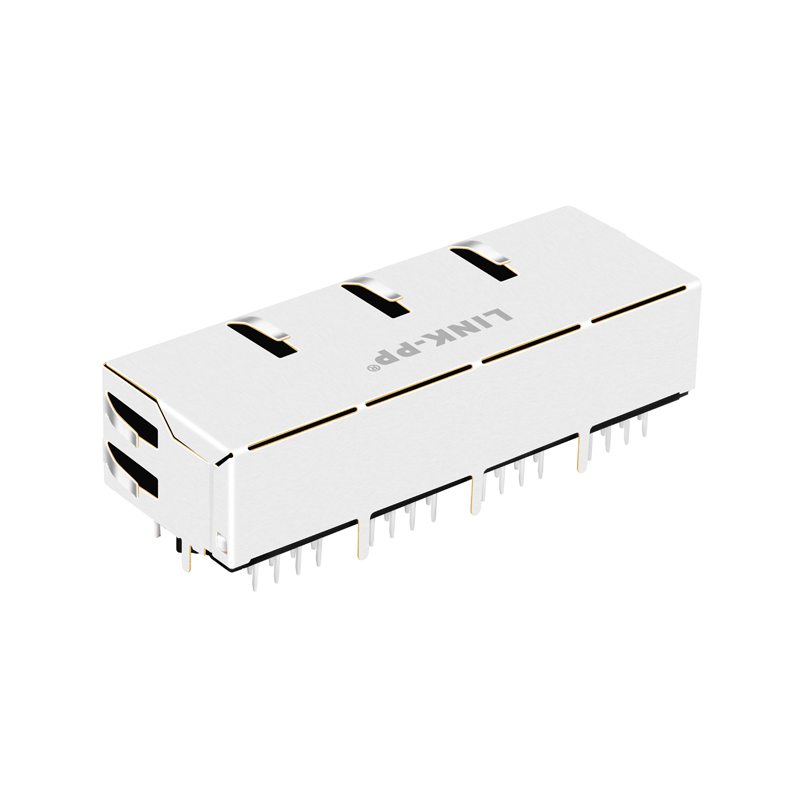

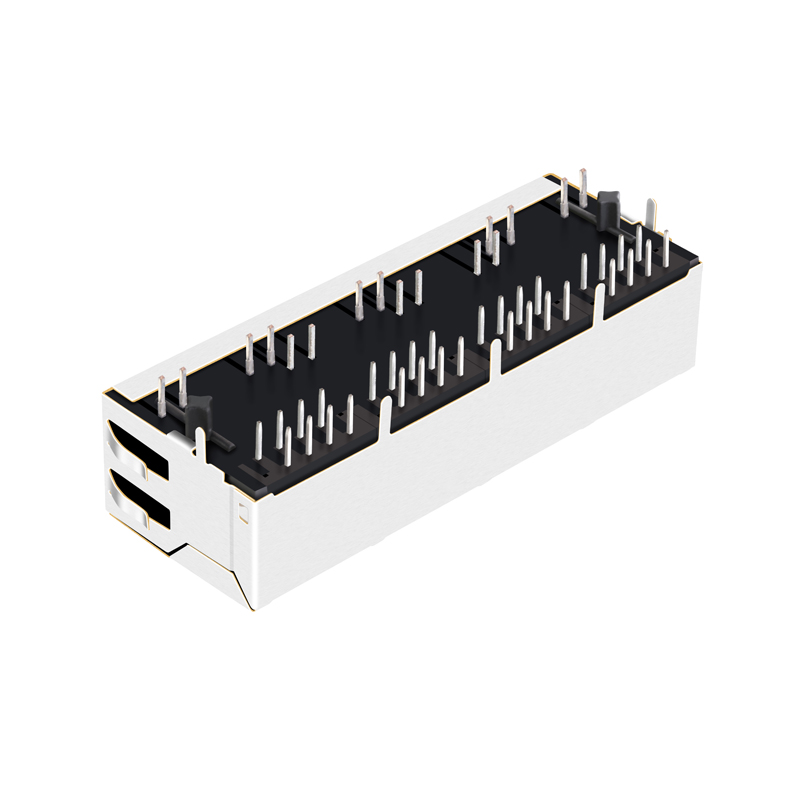

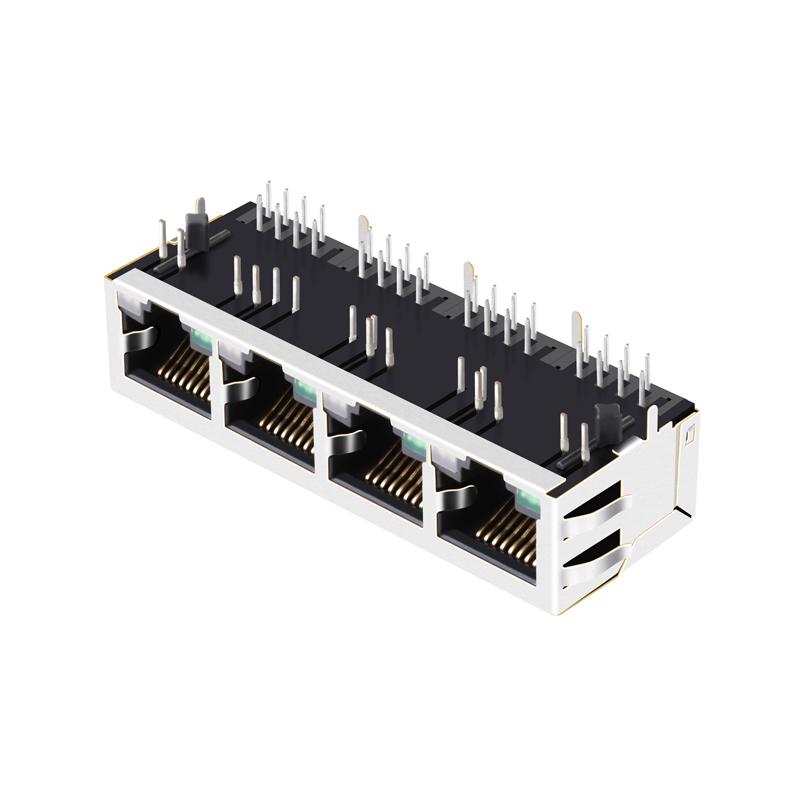

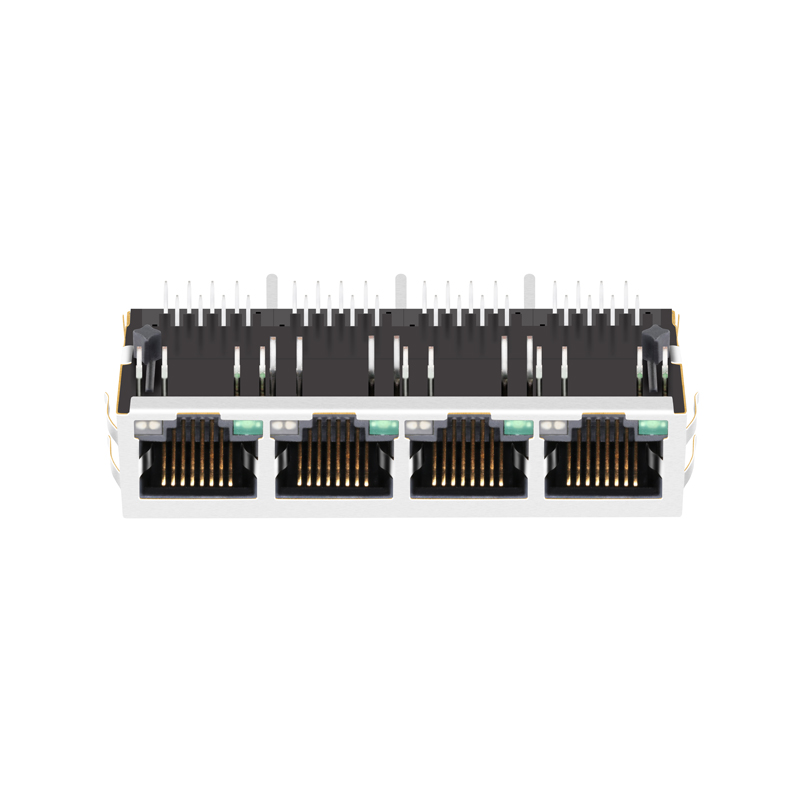

Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
1 / 5
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7

Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7

Send Inquiry

Product Description

Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7

RJ45 Connector Banner

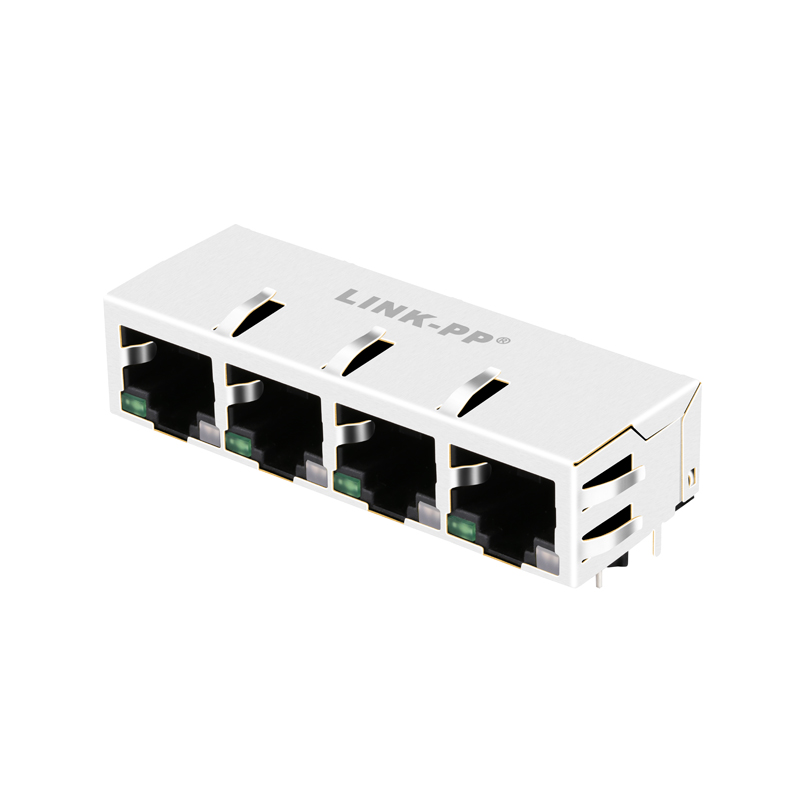

Gigabit Ethernet RJ45 Female Connector 1
Gigabit Ethernet RJ45 Female Connector 2
Specification Title Banner
Part Number 5-6610068-7
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"/50u"
Cores Per Port 4
Diodes NO DIDES41
LED Option GREEN/GREEN&ORANGE
Latch UP
Number of Ports 1X4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH OR WITHOUT
Speed 1000 BASE-T
Temperature 0 TO 70°C/-40 TO 85°C
Turns Ratio RX 1CT:1
Turns Ratio TX 1CT:1

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification
  • ISO 9001:2008
  • UL Certification
  • Reach Certification
  • RoHS Compliance
  • Active Environmental Policy
100% Guarantee Quality
  • Manufactured Under Strict Controls
  • 100% Tested (Not Just Batch Tested)
  • OEM Experience for 9 Years
  • Successful Customer partnerships: Texas Instruments, Samsung, Cisco, Siemens, and Intel…
  • Preferred Supplier status
  • Quality Guarantee: 6 Years
Competitive Price And Service
  • More Competitive Price Than Pulse, Tyco, Halo, Wurth, and Amphenol
  • Delivery Time: 2-3 Weeks After Orders
  • Free Samples Are Available
  • Provide New Design For Customer Requirements
  • 90% Off Shipping Cost By DHL, UPS, FEDEX, Or TNT
Corporate Policy
  • Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
  • Committed To Quality Performance From Every Employee
  • Standard Is Defect-Free Products And Services
Technical Drawing 1
Technical Drawing 2
Product Dimensions Internal Circuitry

Preferred Supplier Of TI, Samsung, Cisco, Siemens …

Separator
Application Image 1
Application Image 2
Frequently Asked Questions (FAQ)
1. What are the key applications for the 1X4 Gigabit RJ45 Modular Jack?
The 1X4 configuration is ideal for multi-port networking devices such as switches, routers, and high-density servers requiring Gigabit Ethernet connectivity.
2. What does the "Tab Up" latch configuration signify?
"Tab Up" indicates that the locking latch of the RJ45 cable connector will face the top of the port when inserted, which is a common requirement for specific PCB orientations.
3. Does this connector support industrial temperature ranges?
Yes, this part supports both standard (0 to 70°C) and extended industrial temperature ranges (-40 to 85°C), making it suitable for demanding environments.
4. Is the 5-6610068-7 RoHS compliant?
Yes, it is RoHS-5 compliant with lead-in-solder exemption, adhering to international environmental standards.
5. What plating options are available for the contact mating area?
We offer multiple Gold plating thickness options including 6u", 15u", 30u", and 50u" to meet different durability and conductivity requirements.
6. What is the standard lead time for this part?
The typical delivery time is 2-3 weeks after order confirmation, with free samples available for testing upon request.
