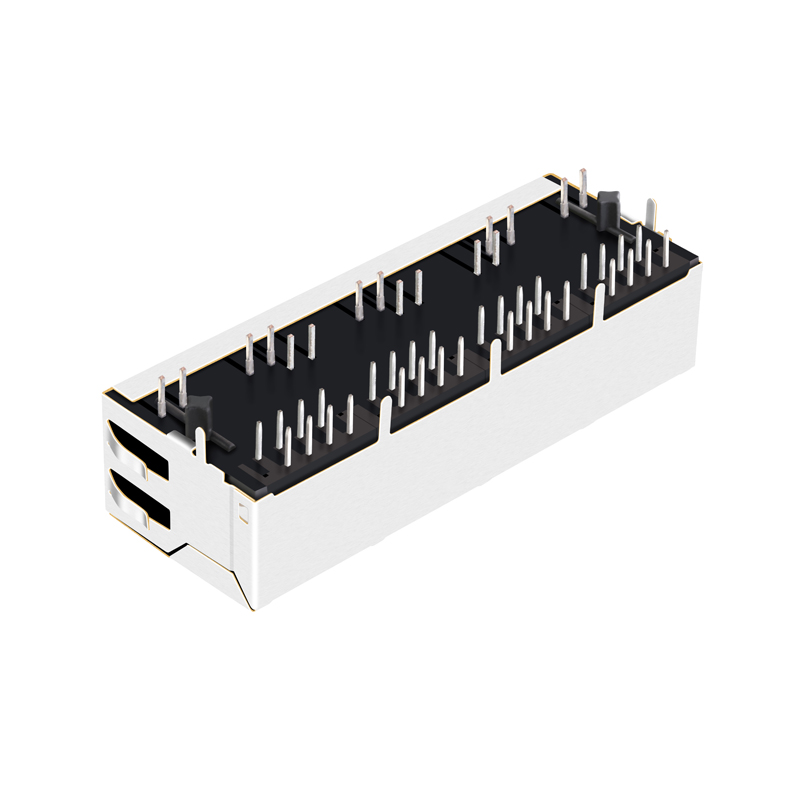

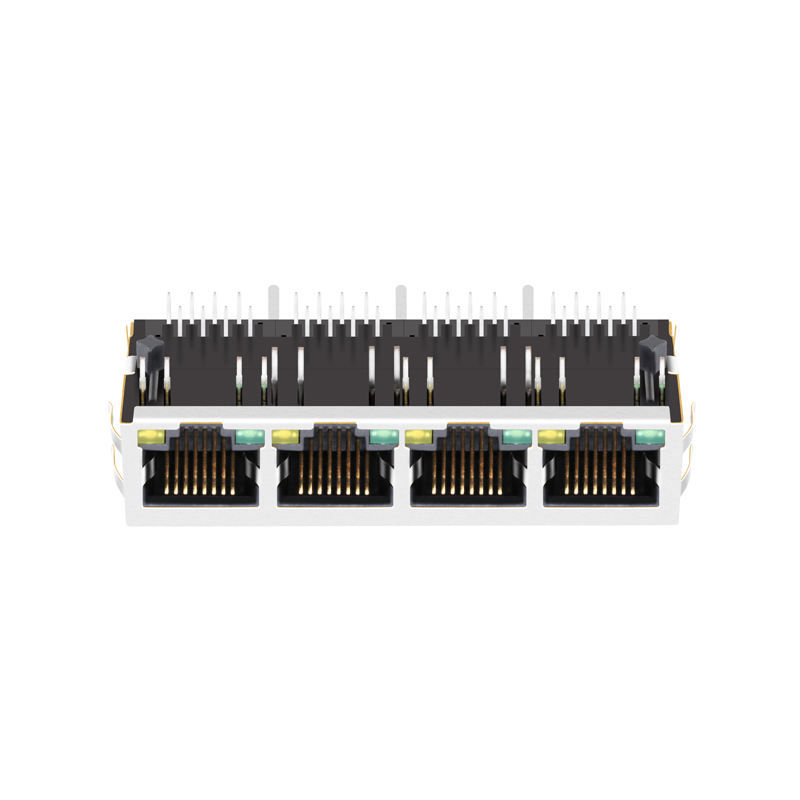

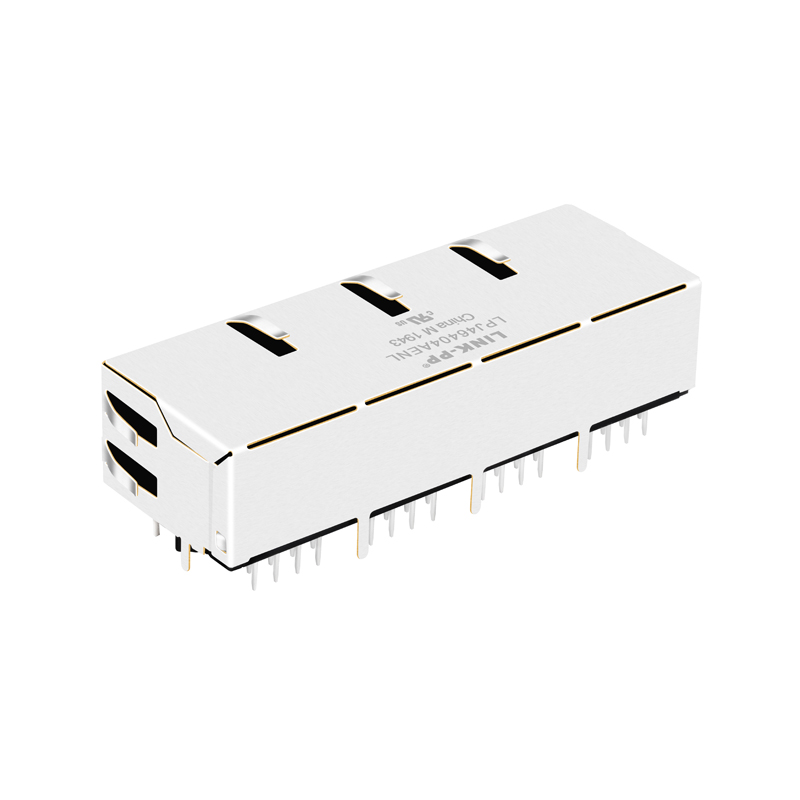

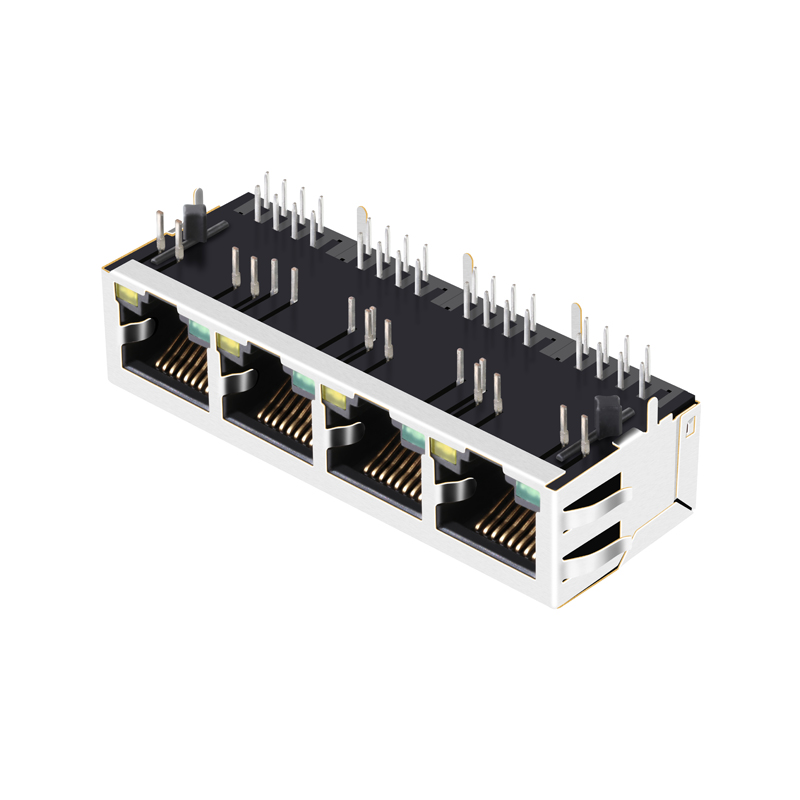

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
1 / 5
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

Send Inquiry

Product Description

Product Image 1

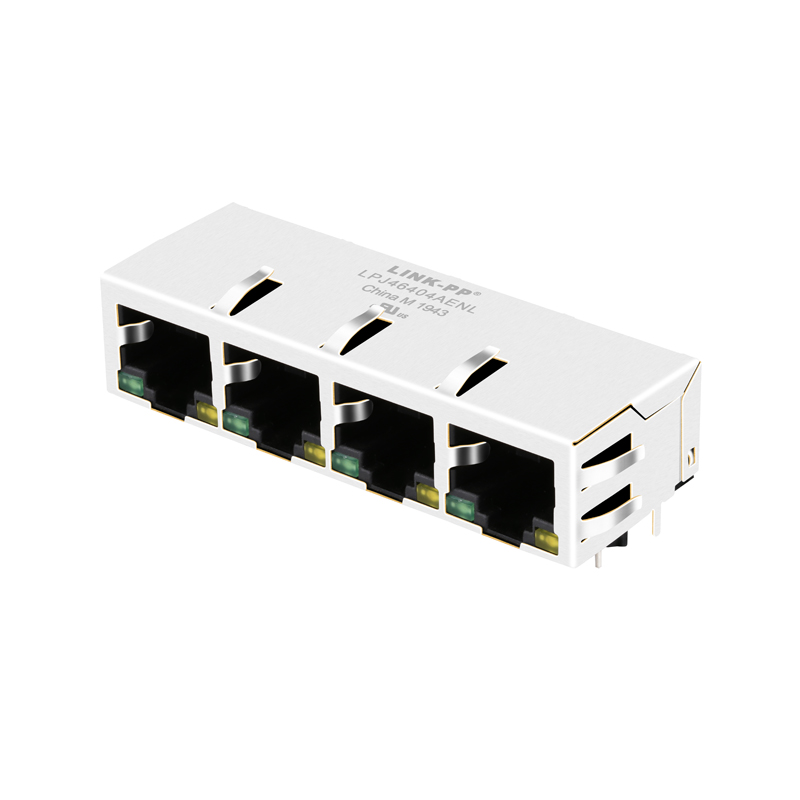

Product Image 2
Product Specification
Item Value
Part NumberLPJ46404AENL
Pulse Part NumberJXD0-4005NL / JX80-0033NL
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet(Non_PoE)
Speed10/100 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen/Yellow Led
Number of Cores per Jack4
ShieldingShielded, Emi Finger
Number of Ports1x4 Port
FeaturesBoard Guide
Tab DirectionDown
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature-40°C ~ 85°C
Mechanical Drawing
Dimension Details
Layout Analysis
Company Overview

We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we maintain a large professional staff and a robust productive capacity of 3000K per month, enabling delivery within a short lead time. We provide professional complete solutions for magnetic components and strong technical support.

Main Product Ranges
  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Production Line
Quality Control
Certifications
Factory View
Testing Equipment
Warehouse
Frequently Asked Questions
Q1Are you a manufacturer or trade company?
We are a specialized manufacturer of RJ45 connectors and LAN Transformers with over 23 years of industry experience.
Q2Can I get some samples for testing?
Yes, 3-5 pieces of free samples are available for your evaluation. Small batch orders for testing are also welcome.
Q3Is OEM/ODM service available?
Yes. We have the capability to transform your designs and ideas into real products, including laser printing your brand on the components.
Q4What is the typical lead time for orders?
Usually, we can ship orders within 30 days. For specific order details and urgent requirements, please consult with our sales team.
Q5Do your products comply with international standards?
Yes, all our products are certified by ISO9001:2000, ROSH, REACH, CE, and UL to ensure the highest quality and safety.
Q6What are the main applications for your RJ45 connectors?
Our products are widely used in networking and communication equipment such as Hubs, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.
