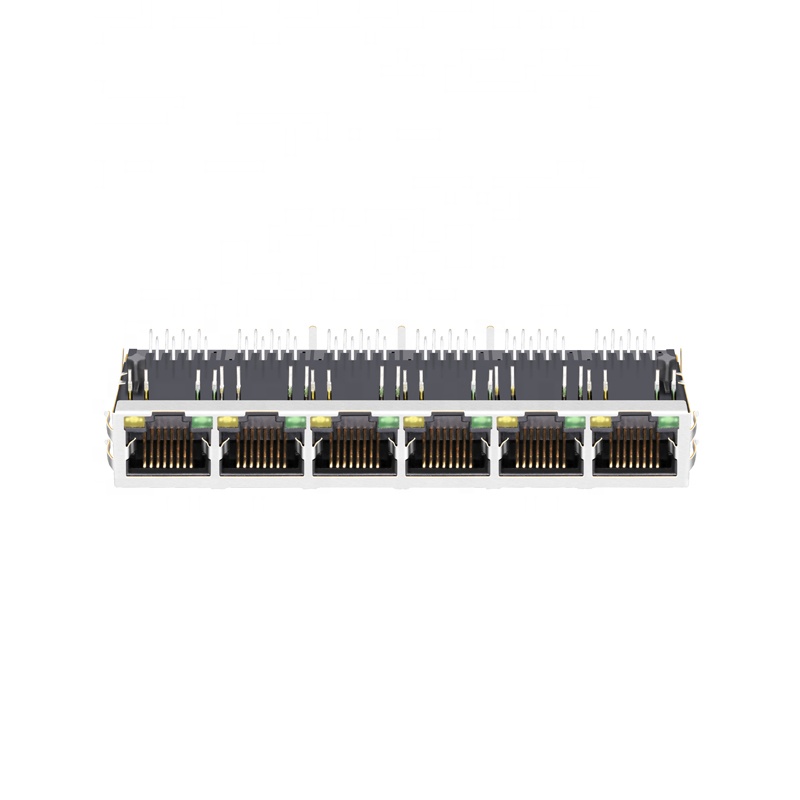

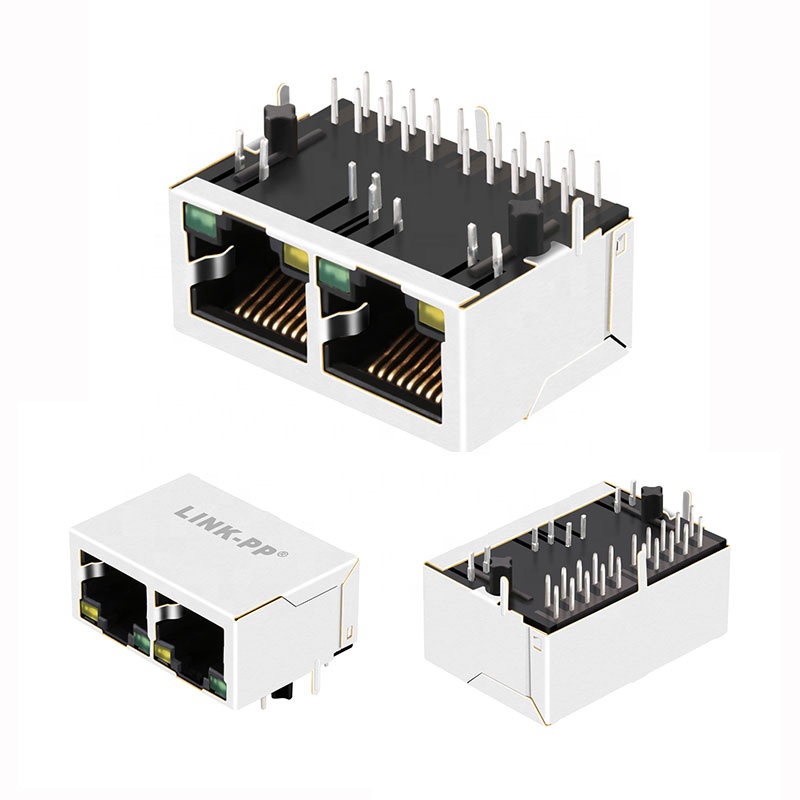

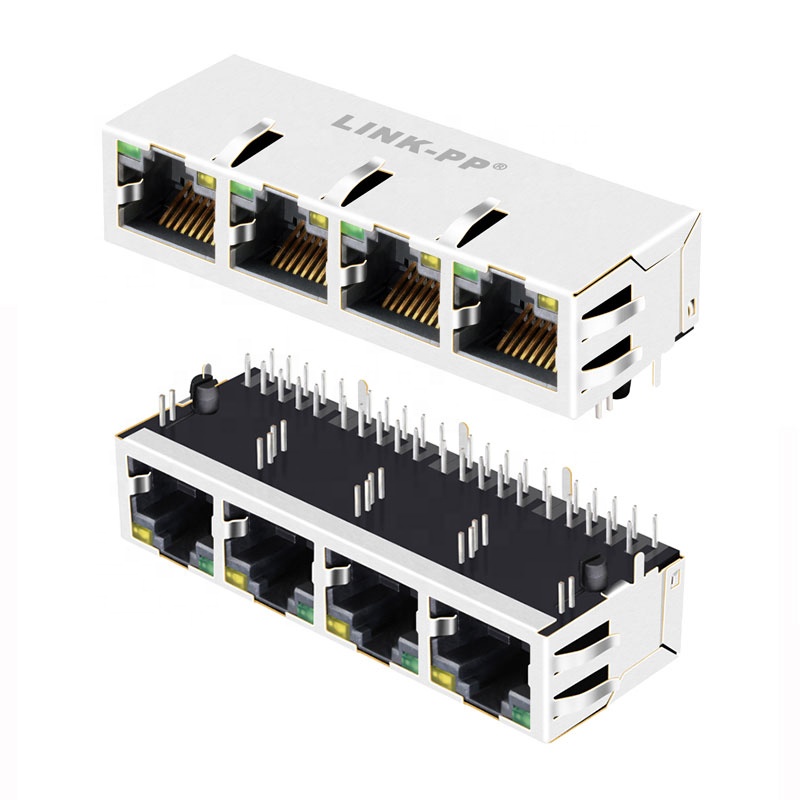

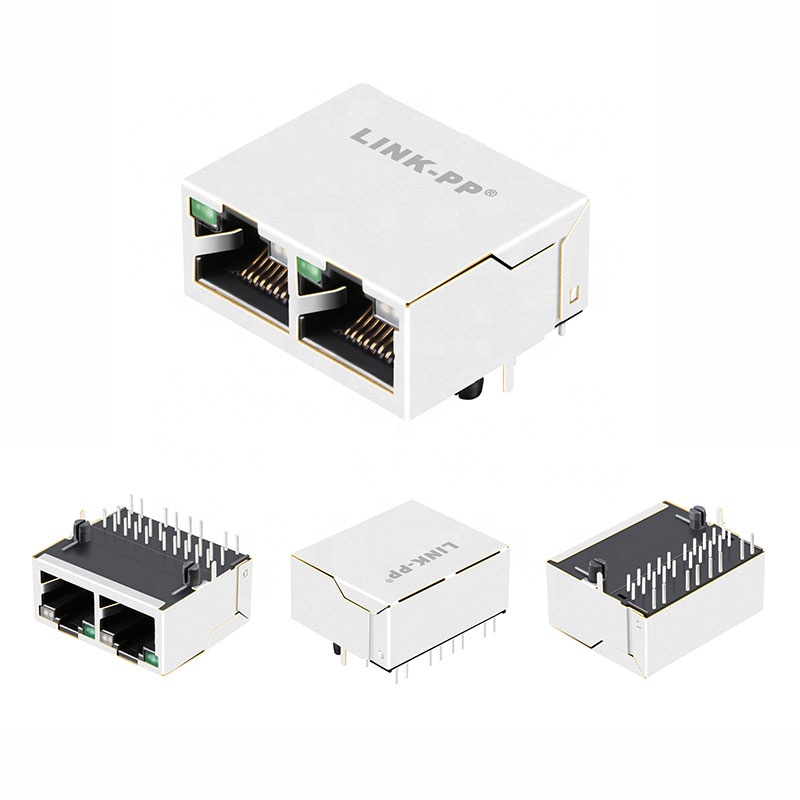

Product Description
◈
RJ45 Connector with integrated transformer / common mode choke.
◈
Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s.
◈
Available in SMT, THT and THT with USB.
◈
Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt.
◈
HPLE products: Improved Common Mode Rejection due to additional NiZn cores.
Specification
| Model Number |
Integrated Connector Modules |
| Part Status |
Active |
| Connector Type |
RJ45 |
| Applications-Lan |
Ethernet(PoE/Non_PoE) |
| Speed |
10/100/1000/2.5G/5G/10G Base-T, AutoMDIX |
| Mounting Type |
Through Hole |
| Orientation |
90° Angle (Right) |
| Termination |
Solder |
| Contact Finish Thickness |
6.00µin (0.152µm) |
| LED Color |
Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow |
| Number of Cores per Jack |
4/6/8/12 |
| Shielding |
Shielded, Emi Finger |
| Number of Ports |

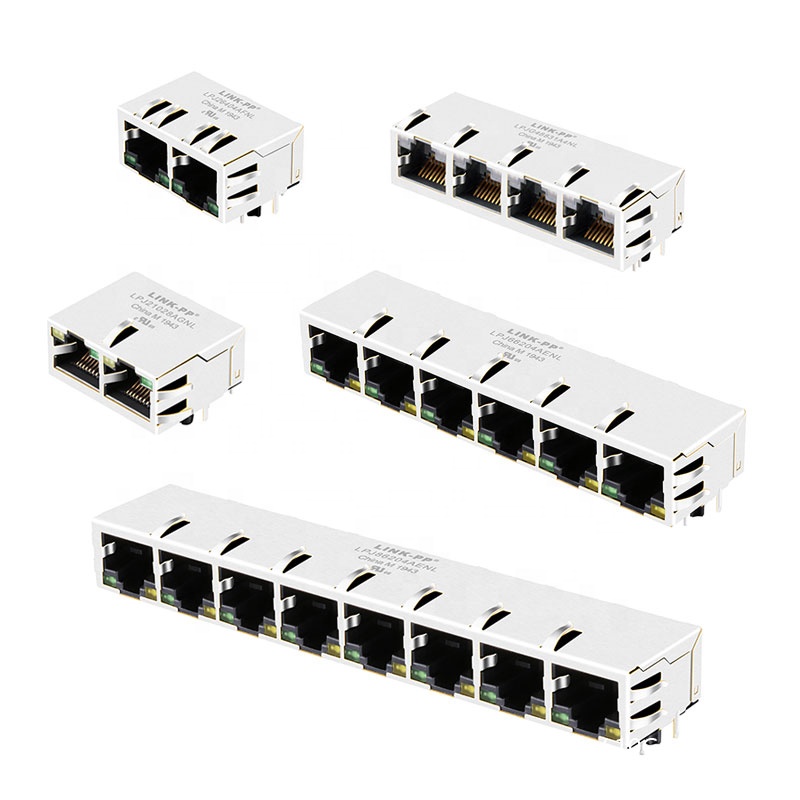

1x2 1x4 1x6 1x8 Port |
| Features |
Board Guide |
| Tab Direction |
Down/Up |
| Contact Finish |
Gold |
| Configuration RX/TX |
T,C |
| Turns Ratio RX/TX |
1CT:1CT |
| Operating Temperature |
0°C ~ 70°C / -40°C ~ +85°C |
Packing & Delivery
📦
Package Details: Tray packing in standard cartons.
📏
Carton size: 37*30*30cm
⚖️
Weight: G.W./carton: 9kg | N.W/pcs: 0.015kg
🔢
Quantity: 600pcs/carton (SPQ: 30pcs)
Manufacturing & Quality Control
Frequently Asked Questions
1. What transmission speeds do these RJ45 connectors support?
These integrated connector modules support a wide range of speeds including 10/100/1000 Base-T, as well as high-speed 2.5G, 5G, and 10G Ethernet applications.
2. Are these connectors compatible with Power over Ethernet (PoE)?
Yes, they are designed for PoE up to 50 Watts and are compliant with IEEE 802.3af, 802.3at, and the latest 802.3bt standards.
3. What are the available mounting and orientation options?
We offer through-hole mounting with a 90° right-angle orientation, featuring both Up and Down tab directions to suit different PCB layouts.
4. How is the quality of the connectors guaranteed?
Quality is ensured through a pre-production sample evaluation before mass production and a final 100% inspection before shipment. Our manufacturing is certified by ISO9001, UL, and CE.
5. Do the connectors include EMI shielding?
Yes, the connectors are fully shielded and include EMI fingers to ensure superior electromagnetic interference protection and signal integrity.
6. Can these connectors operate in extreme temperatures?
Yes, we provide options for standard commercial operating temperatures (0°C to 70°C) as well as industrial-grade ranges (-40°C to +85°C).
