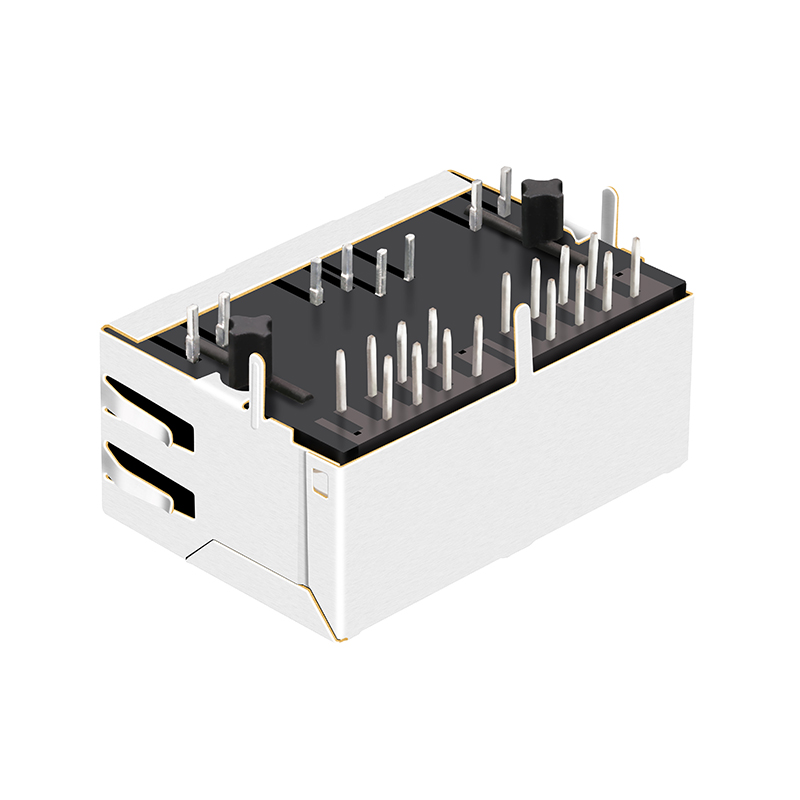

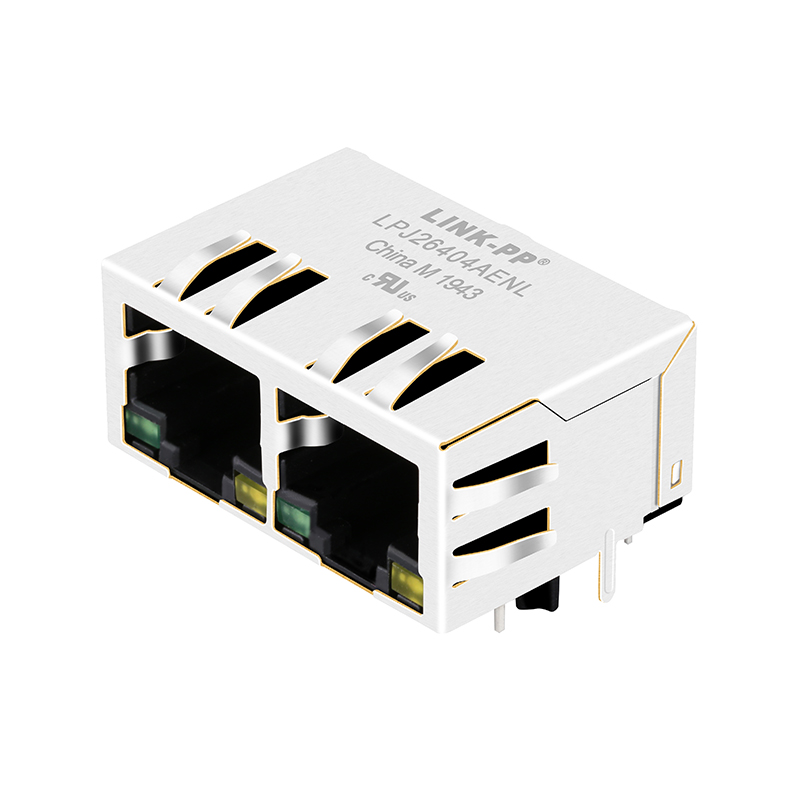

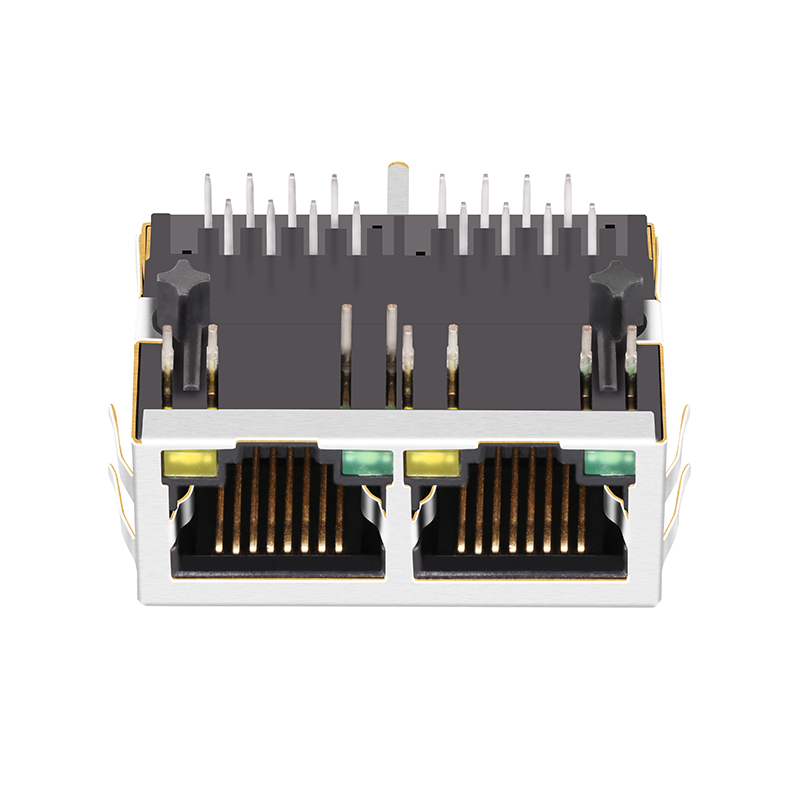

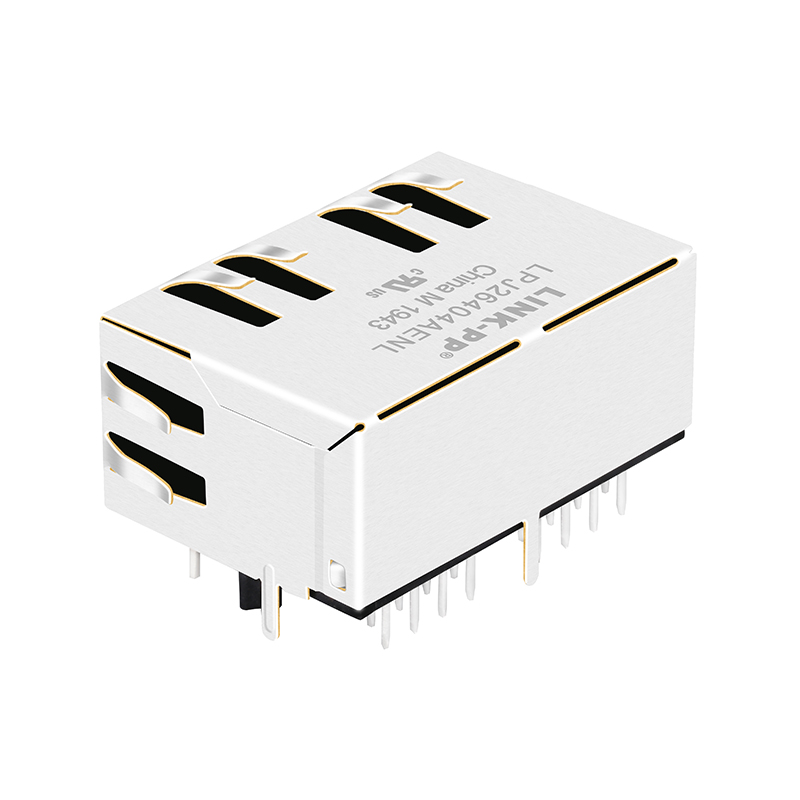

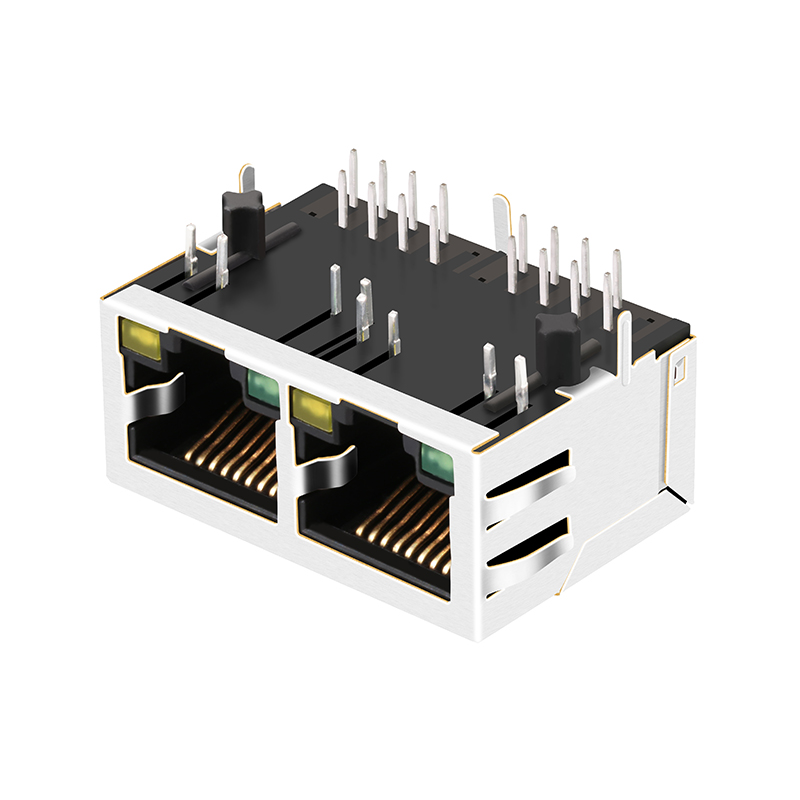

JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
1 / 5
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack

JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack

Send Inquiry

Product Description

Product View 1
Product View 2
Product Specifications
Parameter Details
Part NumberLPJ26404AENL
Cross ReferenceJXD0-2005NL / JXR8-1001NL
Connector TypeRJ45
Applications-LanEthernet (Non-PoE)
Speed10/100 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact FinishGold (6.00µin / 0.152µm)
LED ColorGreen/Yellow LED
ShieldingShielded, EMI Finger
Number of Ports1x2 Port
Turns Ratio RX/TX1CT:1CT
Operating Temp-40°C ~ 85°C
Technical Drawings & Dimensions
Professional Manufacturing

We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. Our facility features advanced manufacturing and testing equipment imported from leading global suppliers. Established in 1997, our team consists of approximately 2000 skilled professionals.

With a robust monthly production capacity of 3000K units, we ensure short lead times and provide professional complete solutions for magnetic components alongside strong technical support.

Main Product Range:

■ 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
■ RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
■ T1/E1, T3/DS3/E3/STS-1 interface line transformer
■ ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Frequently Asked Questions
Are you a manufacturer or trade company?
We are a dedicated manufacturer specialized in RJ45 connectors and LAN Transformers for over 23 years.
Can I request samples for testing?
Yes, we provide 3-5 free samples for your technical evaluation. Small batch orders are also supported.
Is OEM service available for these connectors?
Yes. We have extensive experience in transforming designs into real products and can laser-print your branding directly on the components.
What is the standard lead time for orders?
Thanks to our efficient production lines, we typically ship orders within 30 days. Please consult our sales team for specific project timelines.
Which quality certifications do your products hold?
All our products are manufactured under strict quality control and are certified by ISO9001:2000, RoHS, REACH, CE, and UL.
What applications are these RJ45 connectors suitable for?
They are widely used in networking equipment such as HUBs, PC cards, Switches, Routers, Mainboards, SDH, PDH, IP Phones, and xDSL modems.
