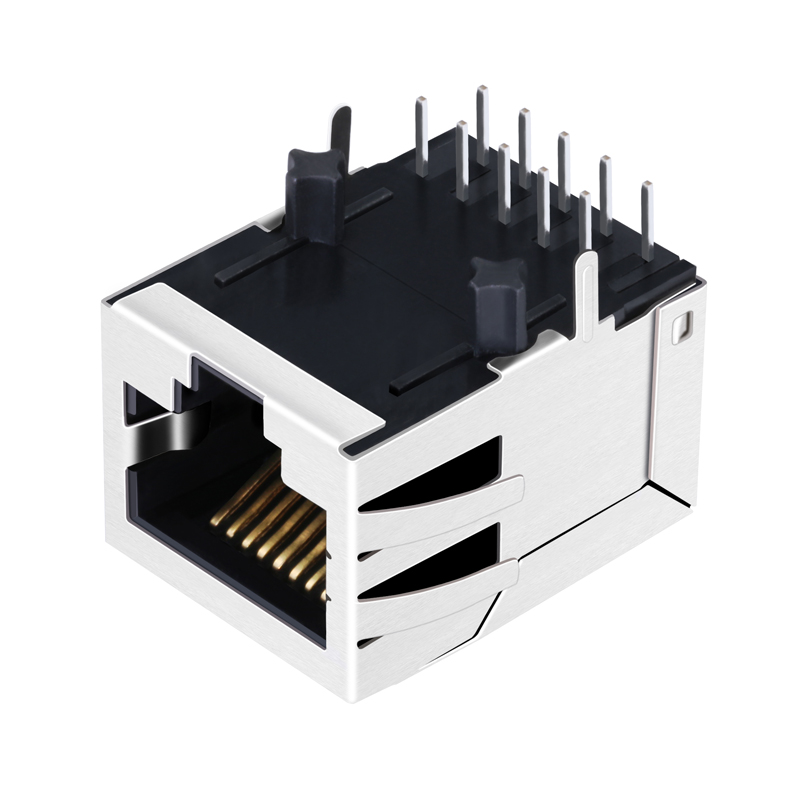

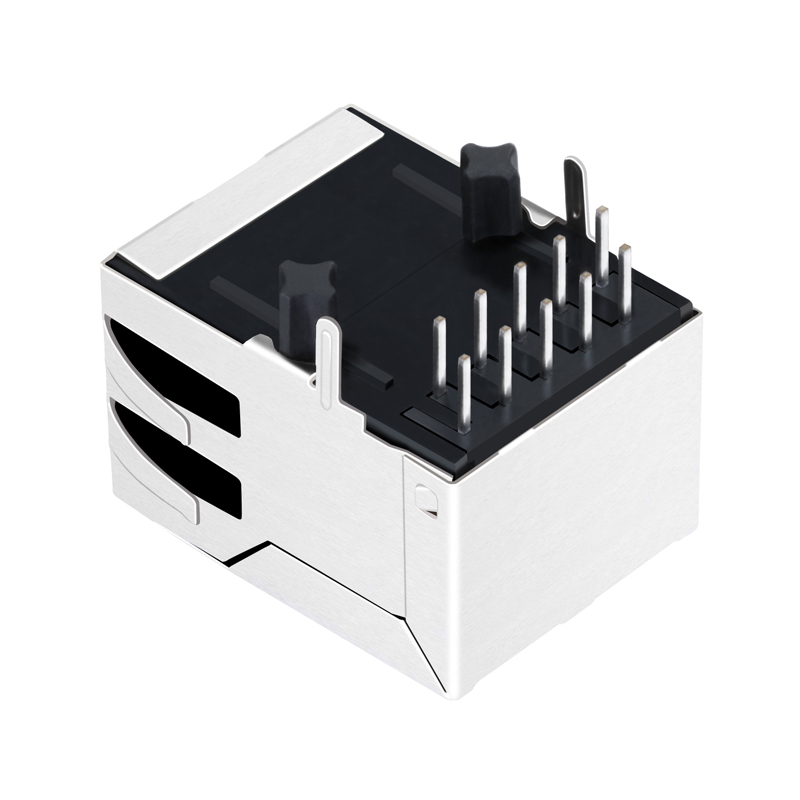

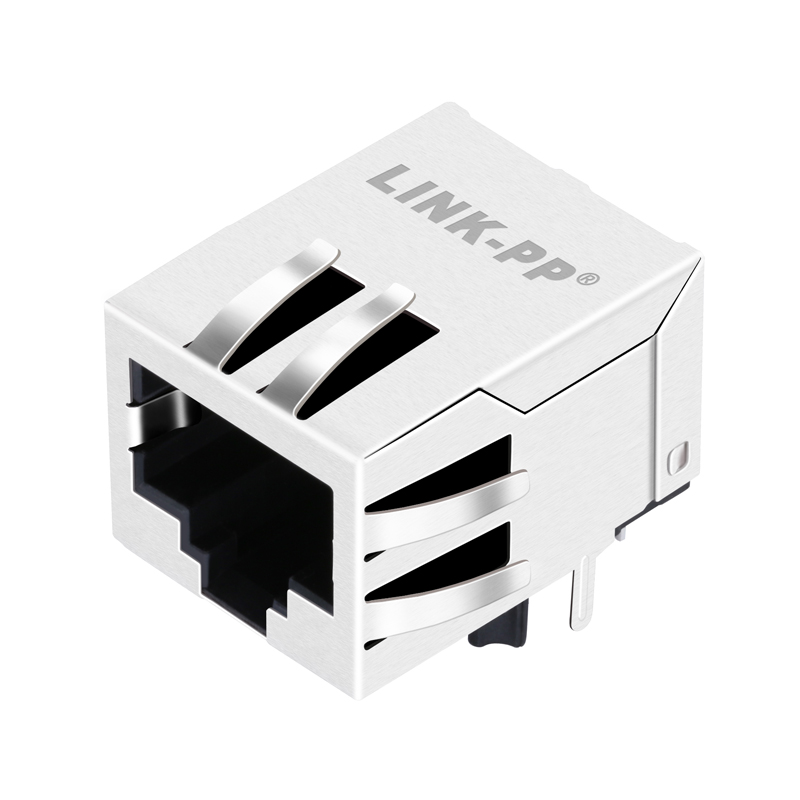

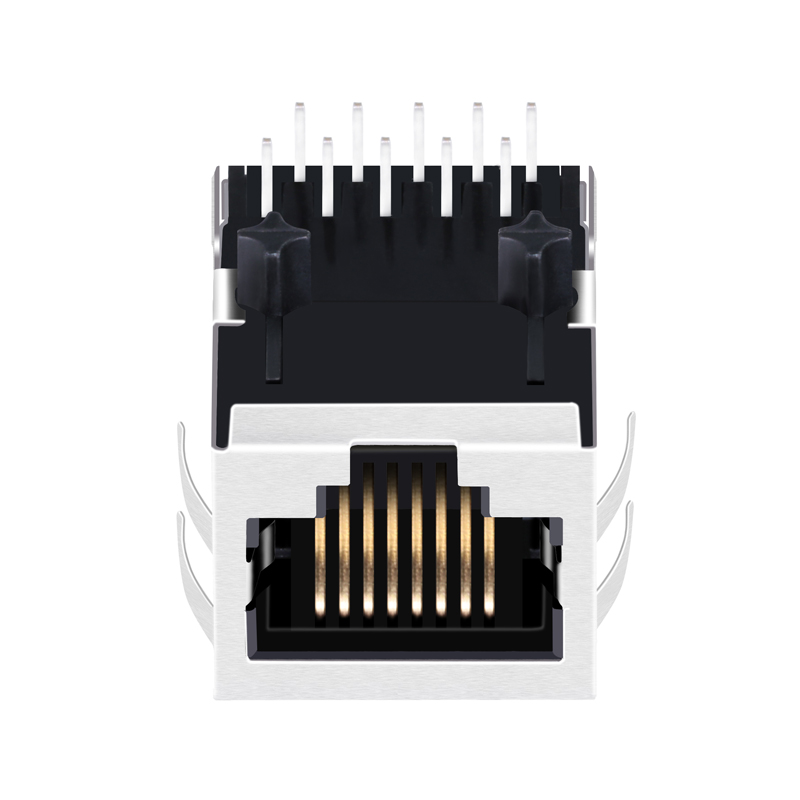

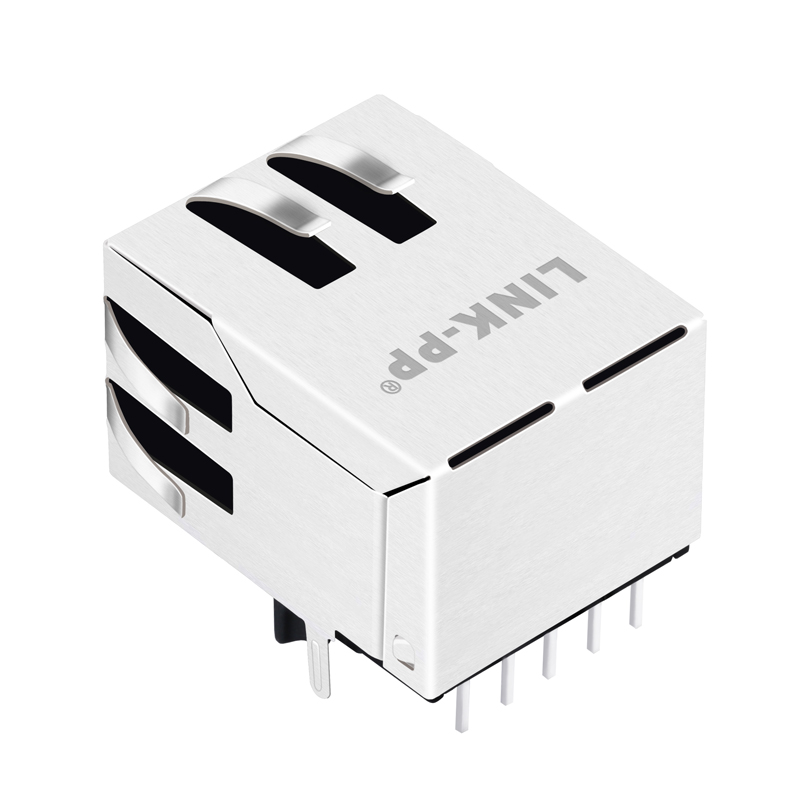

RJ-001TC1 RJP-003TC1 RJPLB-203TC1 Tab Down Without LEDs Cat5 Network RJ45 PCB Connector

Product Description

RJ-001TC1 RJP-003TC1 RJPLB-203TC1 Tab Down Without LEDs Cat5 Network RJ45 PCB Connector
Product Categories
📋 Products Description
ItemRJ45 Female Connector
Part NumberRJ-001TC1 RJP-003TC1 RJPLB-203TC1
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
LatchDown
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout
LED OptionGreen/Yellow
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
Product View 1
Product View 2
Product View 3
Product View 4
🔍 Related Components Selection
Related Products Grid
📐 Technical Specifications & Drawings
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Technical Drawing 4
Technical Drawing 5
Technical Drawing 6
🏭 Professional Capability
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading Ethernet RJ45 connector and LAN transformer provider.
Factory View 1
Factory View 2
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though shipping fees are typically covered by the customer.
What is your delivery time?
Items in stock are ready to ship immediately; mass production typically takes 15-30 days.
What after-service can you offer?
We provide a one-year guarantee period and offer technical support online 24 hours a day.
Can you accept OEM/ODM orders?
Yes, we welcome OEM/ODM inquiries. Please contact us to have a detailed discussion regarding your requirements.
What is your advantage?
We have 19 years of production experience and maintain long-term partnerships with major global technology leaders.
