Cat5 Cat5e 8 Pin Led Connector RJ45 Magjack Network Connector Female PCB Connector RJ45 Modular Jack
Cat5 Cat5e 8 Pin Led Connector RJ45 Magjack Network Connector Female PCB Connector RJ45 Modular Jack
Cat5 Cat5e 8 Pin Led Connector RJ45 Magjack Network Connector Female PCB Connector RJ45 Modular Jack
Cat5 Cat5e 8 Pin Led Connector RJ45 Magjack Network Connector Female PCB Connector RJ45 Modular Jack
Cat5 Cat5e 8 Pin Led Connector RJ45 Magjack Network Connector Female PCB Connector RJ45 Modular Jack
1 / 5
Cat5 Cat5e 8 Pin Led Connector RJ45 Magjack Network Connector Female PCB Connector RJ45 Modular Jack
Cat5 Cat5e 8 Pin Led Connector RJ45 Magjack Network Connector Female PCB Connector RJ45 Modular Jack
Cat5 Cat5e 8 Pin Led Connector RJ45 Magjack Network Connector Female PCB Connector RJ45 Modular Jack
Cat5 Cat5e 8 Pin Led Connector RJ45 Magjack Network Connector Female PCB Connector RJ45 Modular Jack
Cat5 Cat5e 8 Pin Led Connector RJ45 Magjack Network Connector Female PCB Connector RJ45 Modular Jack

Cat5 Cat5e 8 Pin Led Connector RJ45 Magjack Network Connector Female PCB Connector RJ45 Modular Jack

Send Inquiry

Product Description

Network Connector Product View

Specification

Item Value
Model Number Network connector
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(PoE/Non_PoE)
Speed 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack 4/6/8/12
Shielding Shielded, Emi Finger

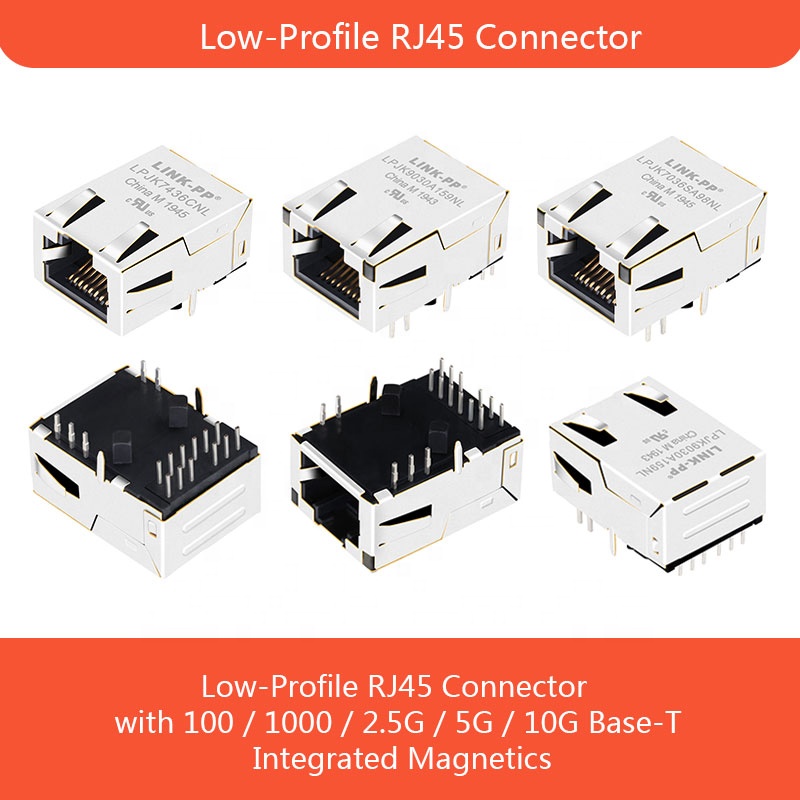

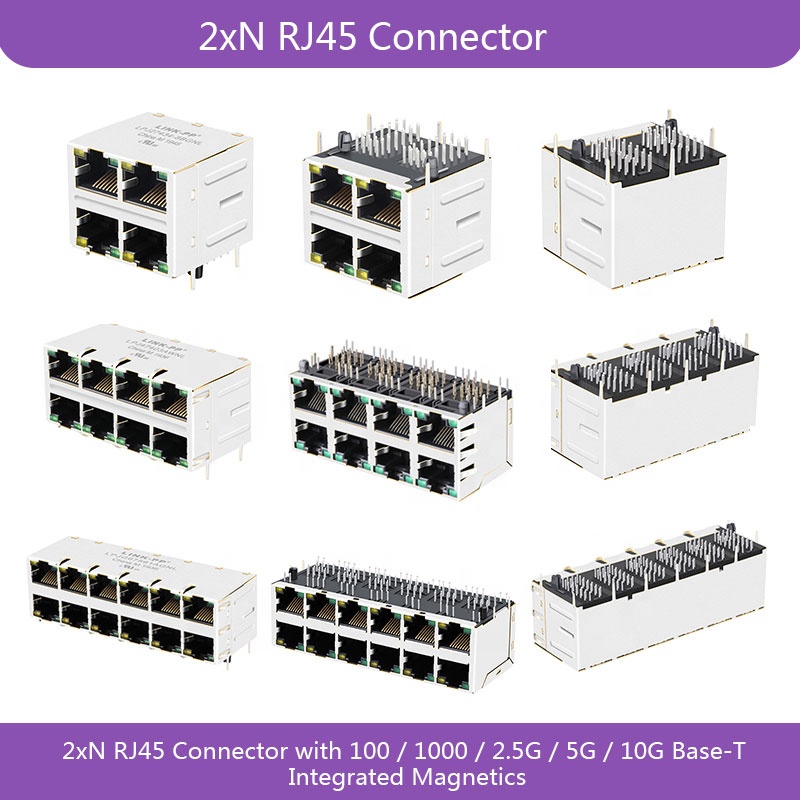

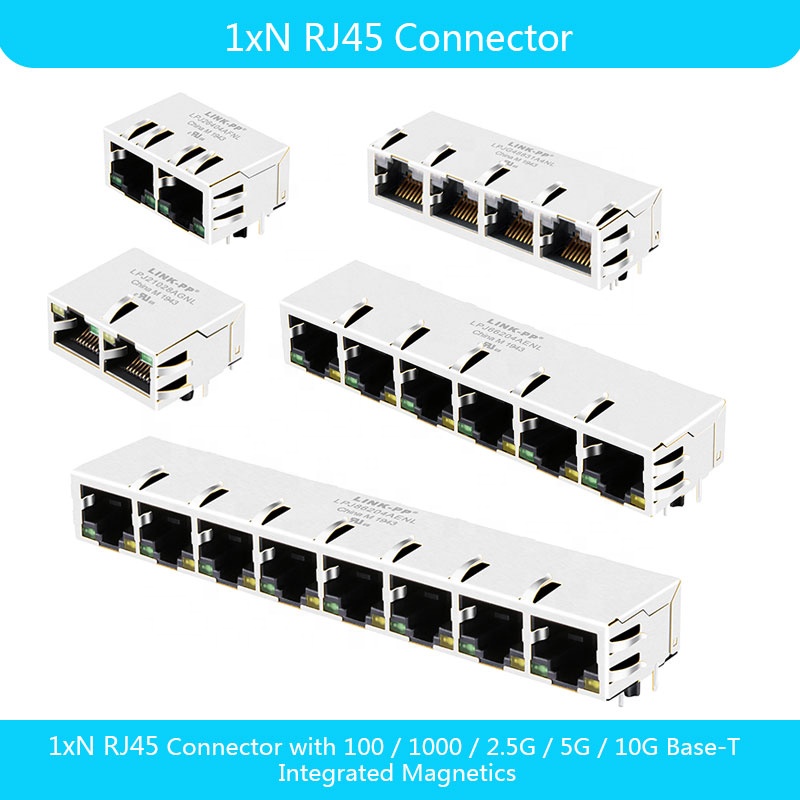

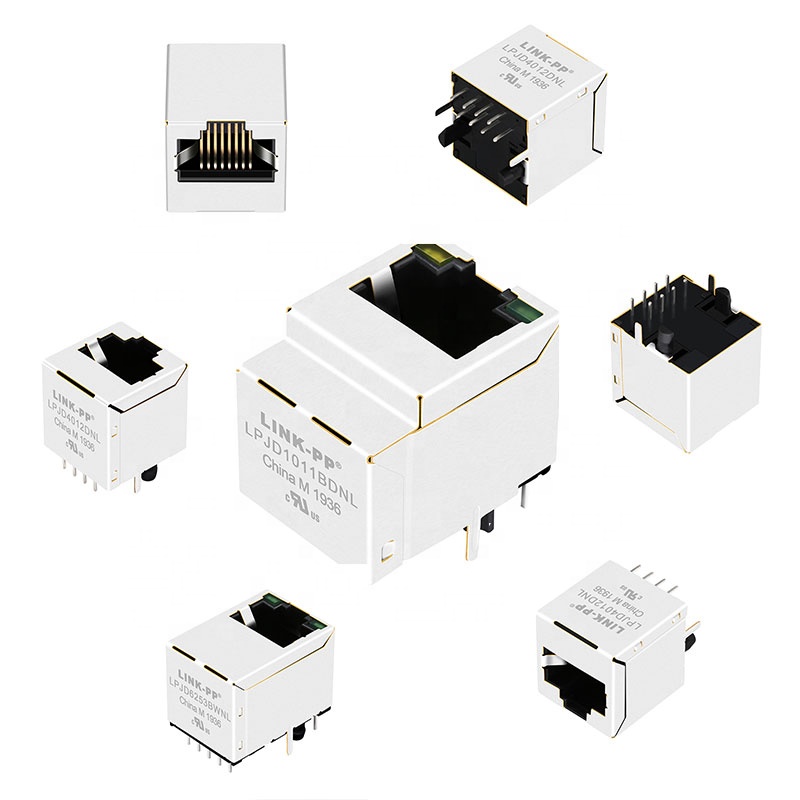

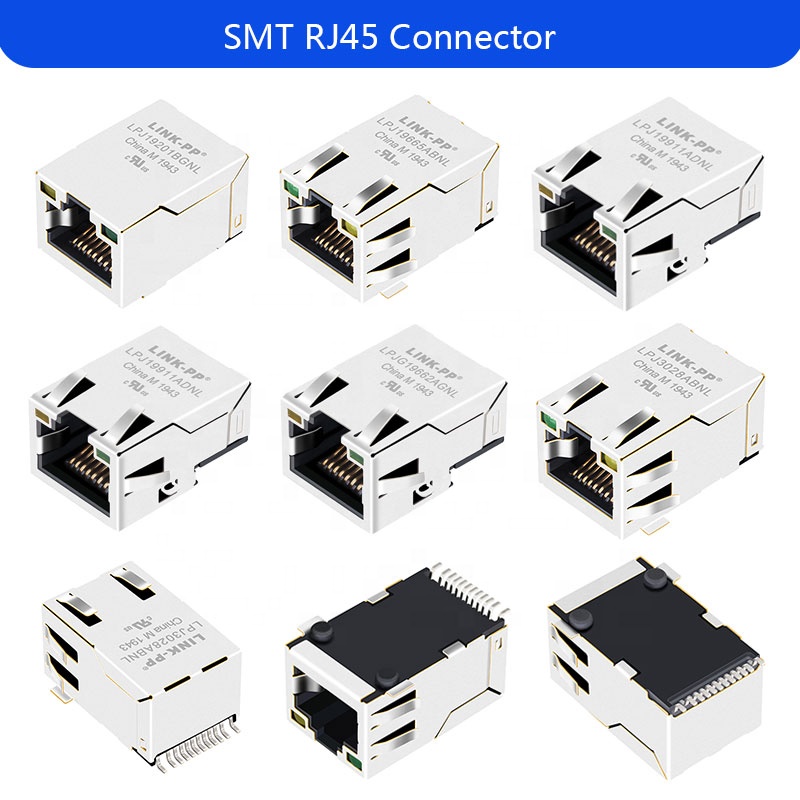

Number of Ports Multi-port rj45, stacked rj45, low profile rj45 , vertical rj45 , smt rj45
Features Board Guide
Tab Direction Down/Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C/-40°C ~ +85°C
Technical Drawing Specifications
Dimensional Diagram
Schematic Representation
Product Layout Diagram
Component Construction View
PCB Footprint Specification

Product Overview & Capabilities

As a specialized manufacturer of magnetic telecom and networking components certified by ISO9001:2000, ROSH, REACH, CE, and UL, we provide advanced manufacturing capabilities and professional solutions for magnetic components. Our products are widely designed into networking and communication equipment including HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.

Main Products

  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Alternative Layout Design
Packaging and Outline Specifications

Frequently Asked Questions

Are you a manufacturer or trade company?
We are a specialized manufacturer of RJ45 connectors and LAN Transformers with over 23 years of dedicated industry experience.
Can I request product samples?
Yes, 3-5 pieces of free samples are available for your testing. Small batches are also fully acceptable for pilot runs.
Is OEM / customization service available?
Yes. We have rich experience and deep technical capability to design customized components based on your specifications, including laser printing your brand onto the products.
What is the typical product lead time?
We maintain efficient production flows. Standard orders are typically processed and shipped within 30 days. Please reach out to our service team for specific scheduling details.
What ethernet speeds do your RJ45 connectors support?
Our RJ45 connectors with integrated magnetics support a wide transmission spectrum including 10/100/1000M, 2.5G, 5G, and 10G Base-T auto-negotiating speeds.
What configurations and shielding types are offered?
We offer configuration alternatives in RX/TX values of 1CT:1CT, featuring shielded configurations with robust EMI fingers to control electromagnetic interference.
