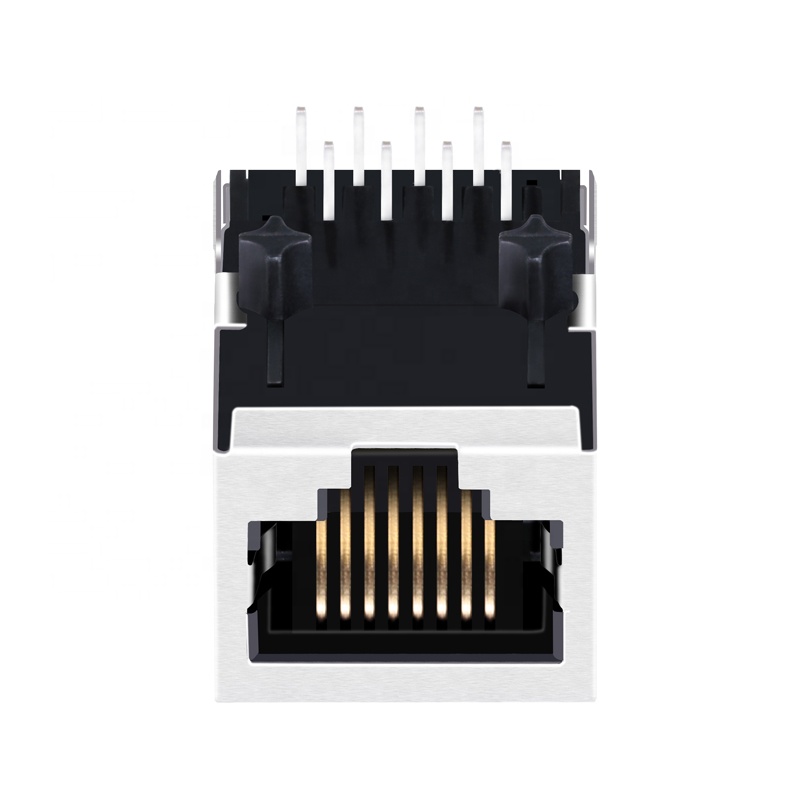

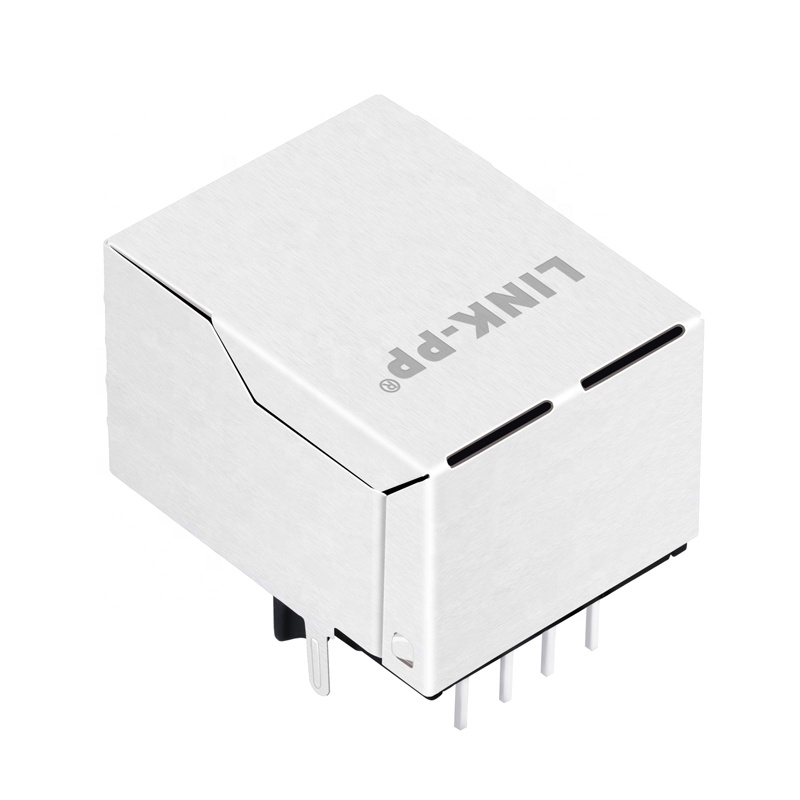

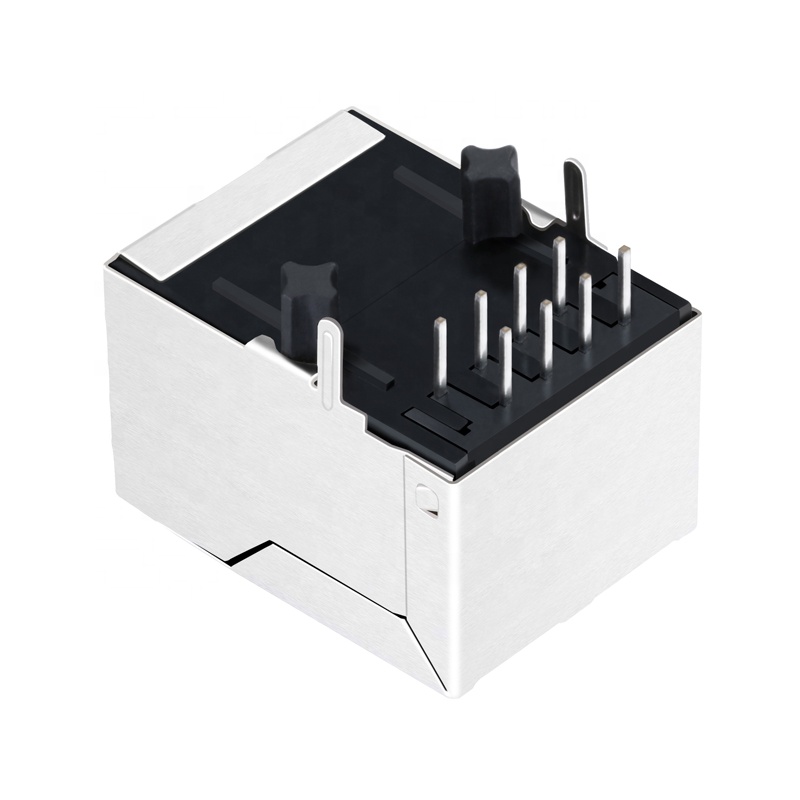

1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector

Product Description

Product Overview
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
Products Description
ItemRJ45 Female Connector
Part Number1470648-1
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
LatchDown
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout
LED OptionWithout
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C

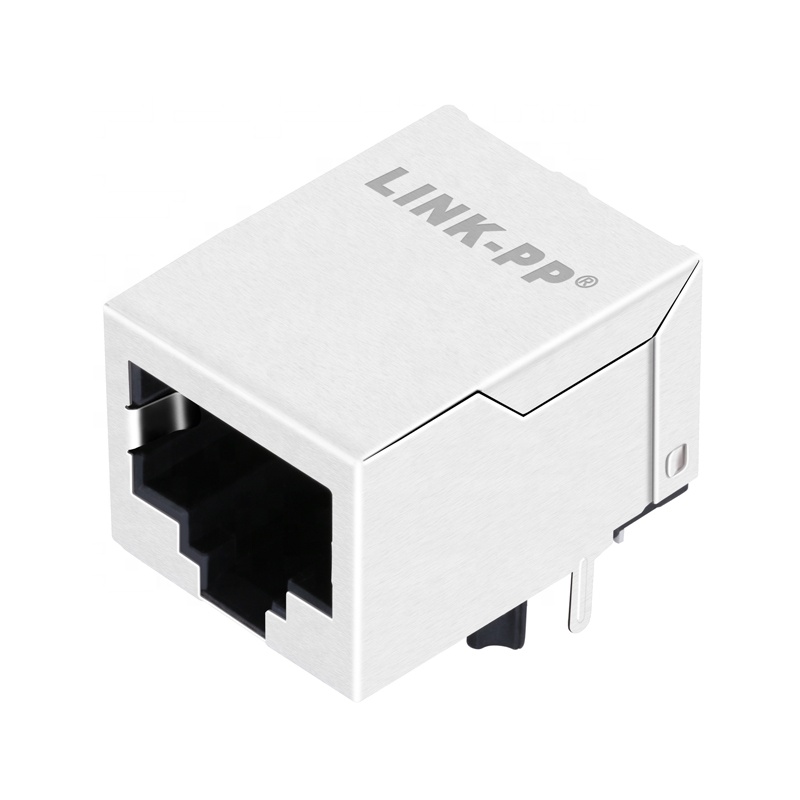

RJ45 Image 1

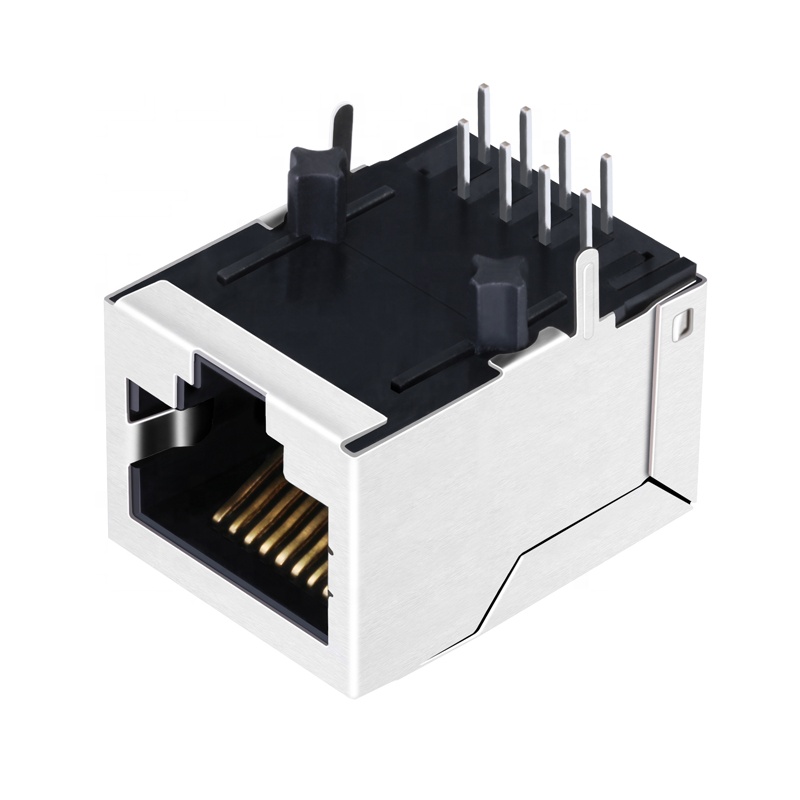

RJ45 Image 2
Detail 1
Detail 2
Detail 3
Detail 4
Product Variations & Series
Category List
Manufacturing & Quality Control
Process 1
Process 2
Quality 1
Quality 2
Storage 1
Storage 2
Company Profile
Established in 1997, the professional designer and manufacturer specializes in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, the company is a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading Ethernet RJ45 connector and LAN transformer provider.
Facility 1
Facility 2
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples for quality testing, though the shipping fee should be covered by the customer.
What is your standard delivery time?
Items in stock are ready to ship immediately. For mass production, the lead time is generally between 15 to 30 days.
What after-sales service do you provide?
We provide a one-year guarantee period and offer 24-hour online technical support to assist with any issues.
Do you accept OEM or ODM orders?
Yes, we accept both OEM and ODM orders. Please contact us with your requirements for a detailed discussion.
What are your main competitive advantages?
We have over 19 years of production experience and have maintained long-term partnerships with major global industry leaders.
