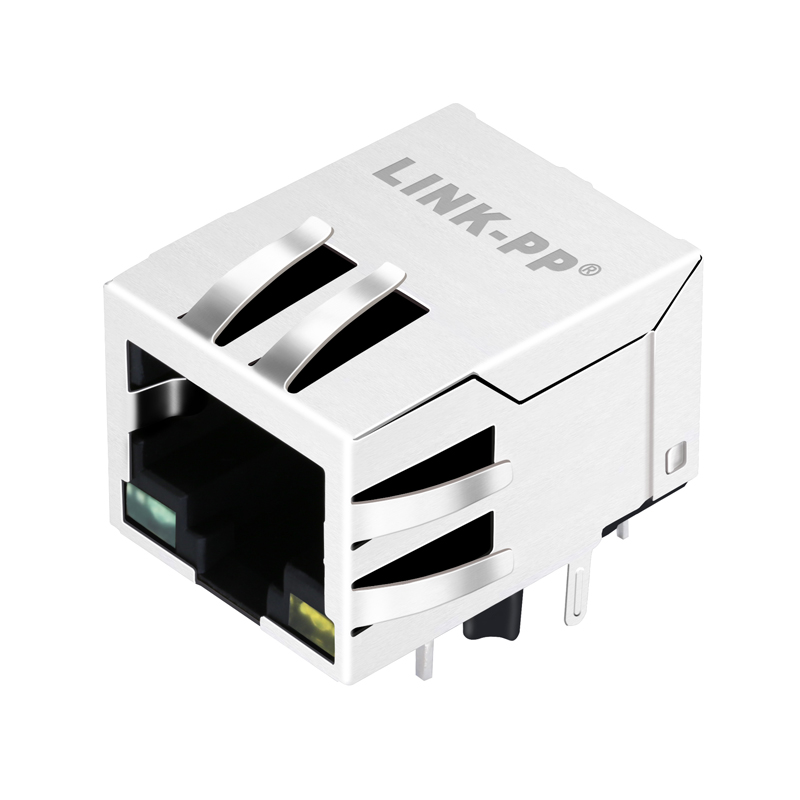

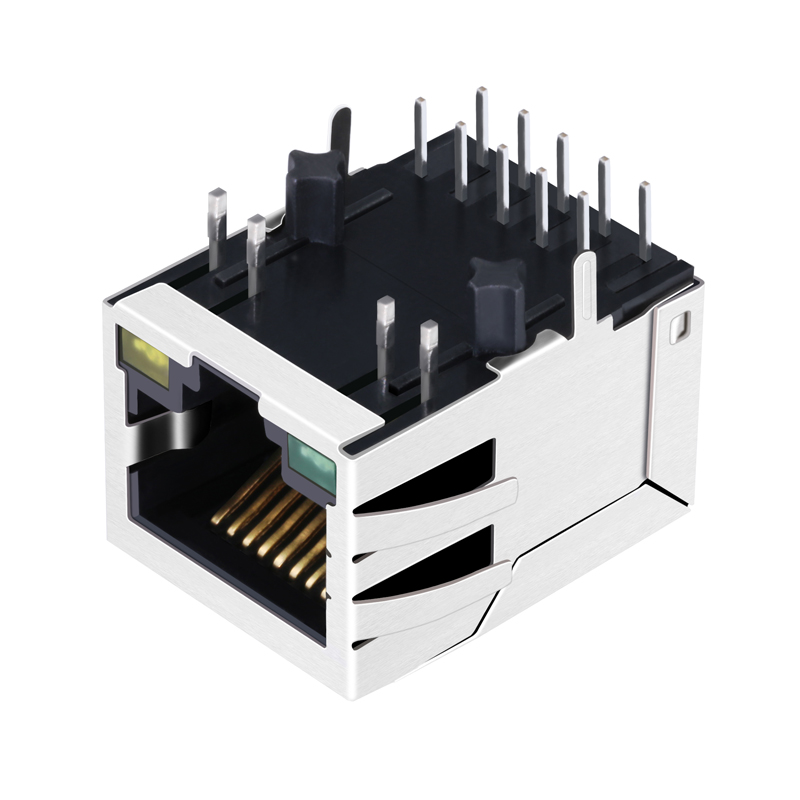

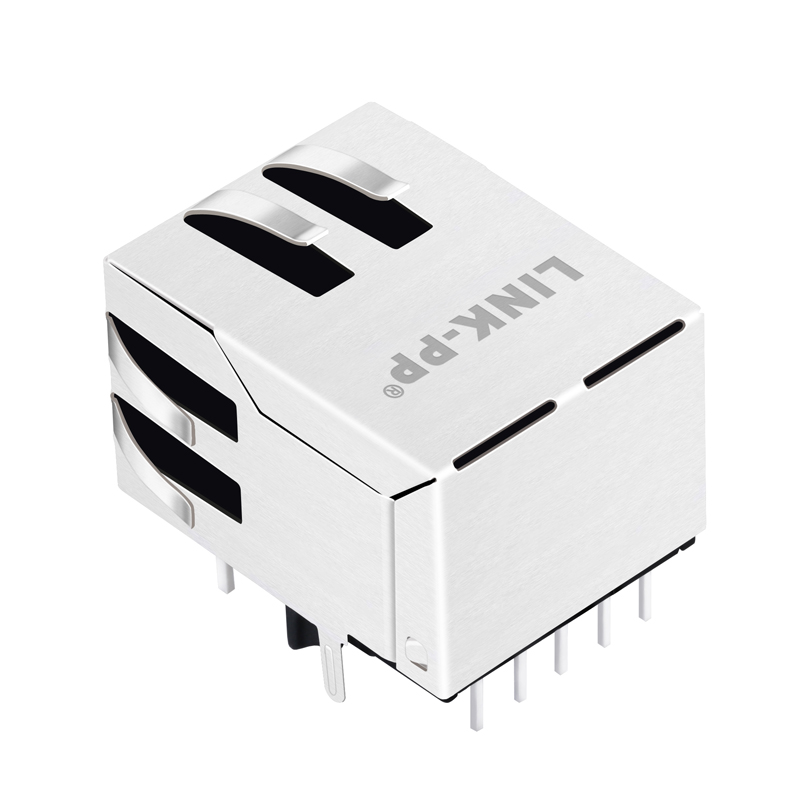

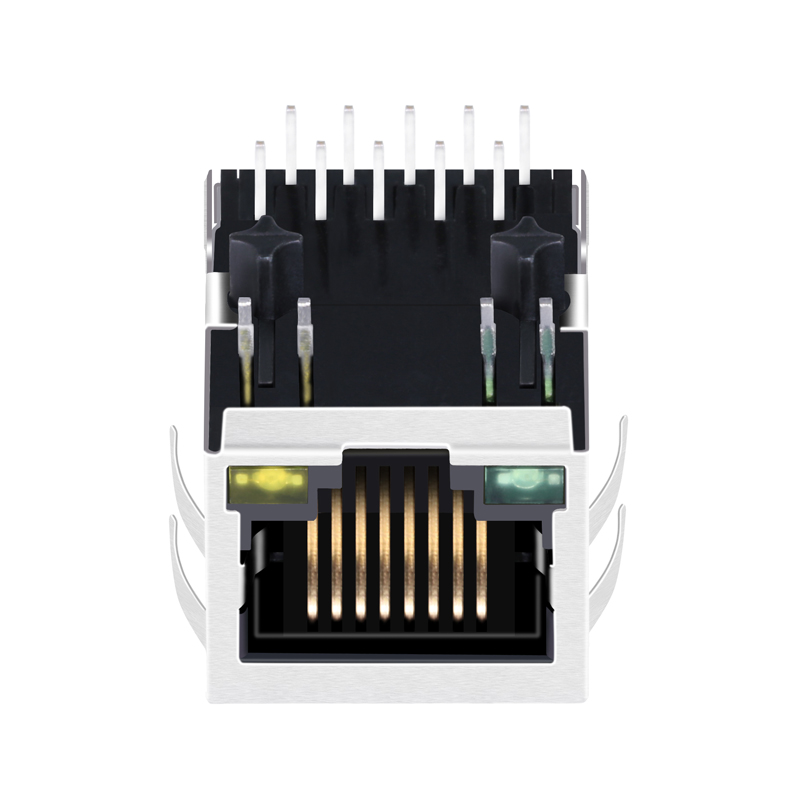

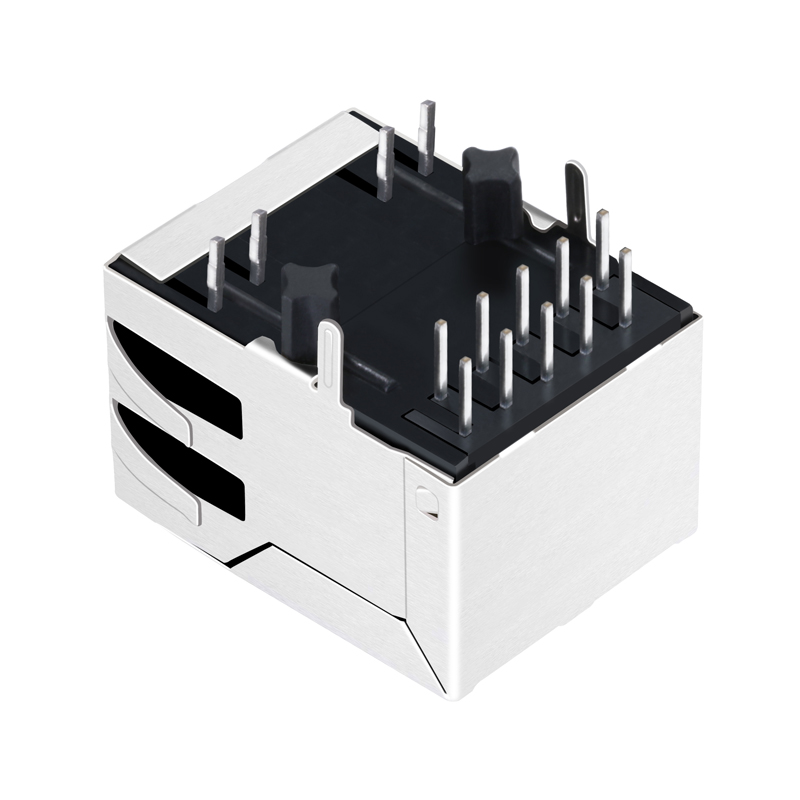

RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534 ARJ11E-MCSS
| Specification Parameter |
Details / Value |
| Part Number |
ARJ11E-MCSS |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port |
4 |
| Diodes |
NO DIDES41 |
| LED Option |
GREEN/RED |
| Latch |
UP |
| Number of Ports |
1X1 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
1000 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Guarantee Quality
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- Quality Guarantee: 6 Years
Competitive Price And Service
- More Competitive Price
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL, UPS, FEDEX Or TNT
RJ 45 Connectors with POE RJ45 Ethernet Cable 1-6605833-1 SFE-PRT-08534 ARJ11E-MCSS
Frequently Asked Questions (FAQ)
1. What is the application speed for the ARJ11E-MCSS RJ45 connector?
This connector supports high-speed network transmissions up to Gigabit Ethernet (1000 BASE-T) standards.
2. Does this RJ45 connector support Power over Ethernet (PoE)?
Yes, it is specifically designed with PoE capabilities to deliver both power and data over standard Ethernet cabling.
3. What operating temperatures can this Ethernet jack withstand?
The connector is designed to function across a standard range of 0 to 70°C, and is also suitable for harsher environments with a range of -40 to 85°C.
4. What type of plating and LED indicators does this connector use?
The contact mating area features high-quality gold plating (available in options from 6u" to 50u"). It also features Green/Red LED options for easy status visualization.
5. Is this product compliant with environmental standards?
Yes, the connector is compliant with RoHS-5 standards (with lead-in solder exemption) and is produced under strict environmental and quality management guidelines.
