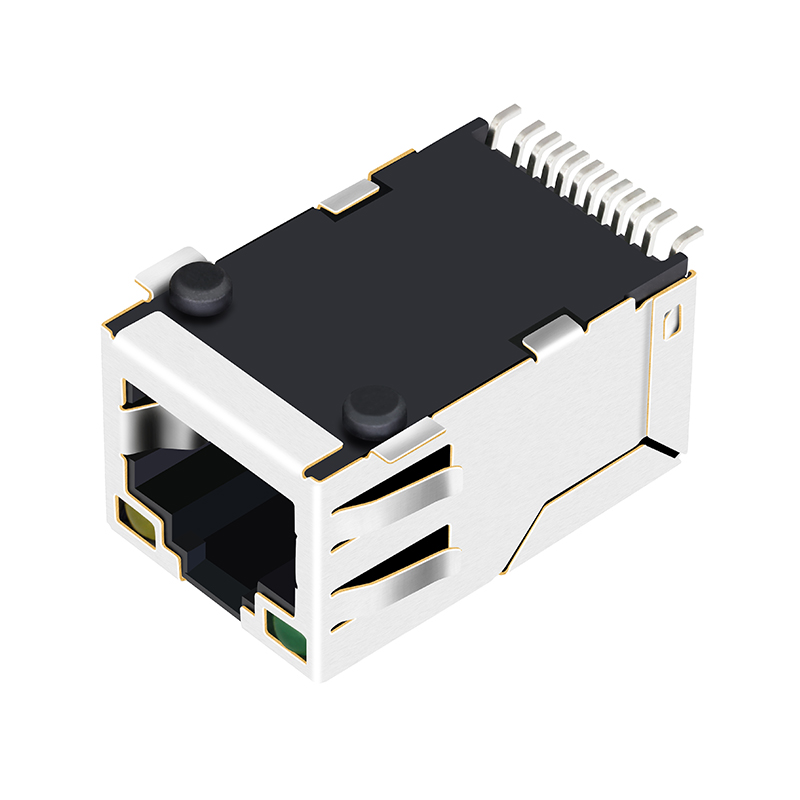

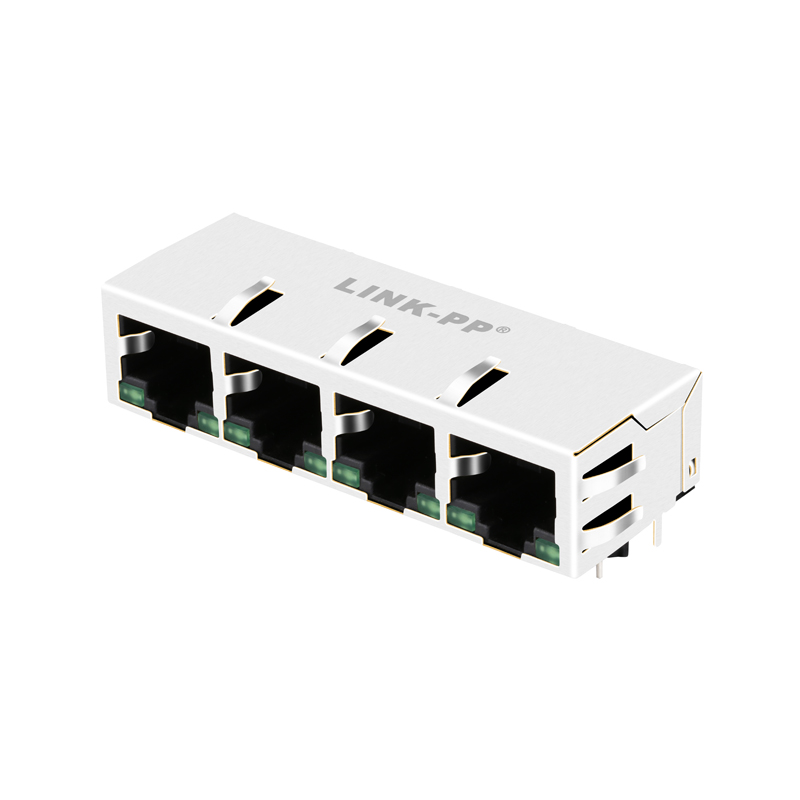

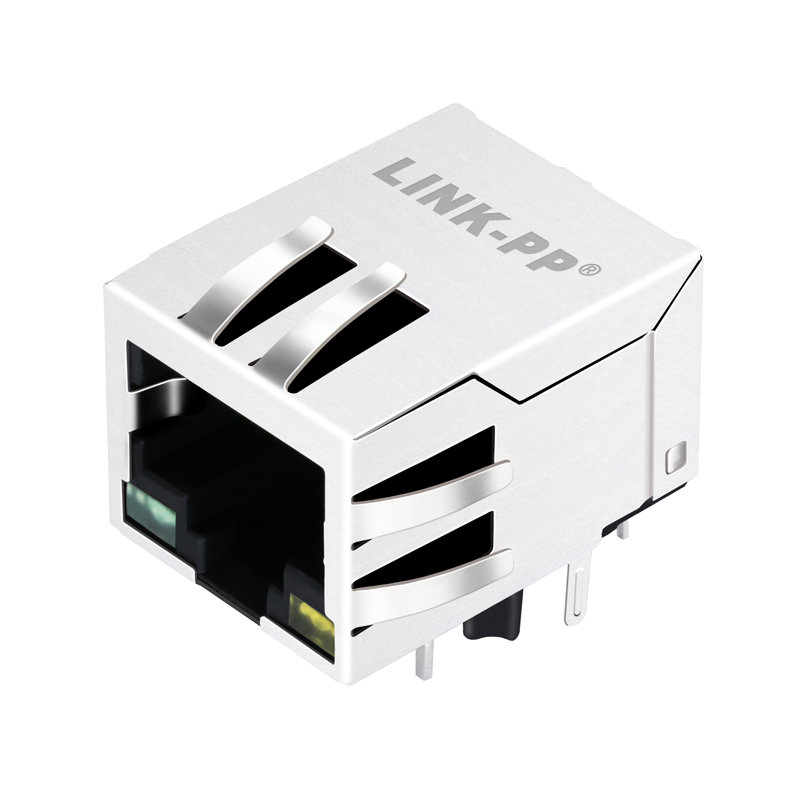

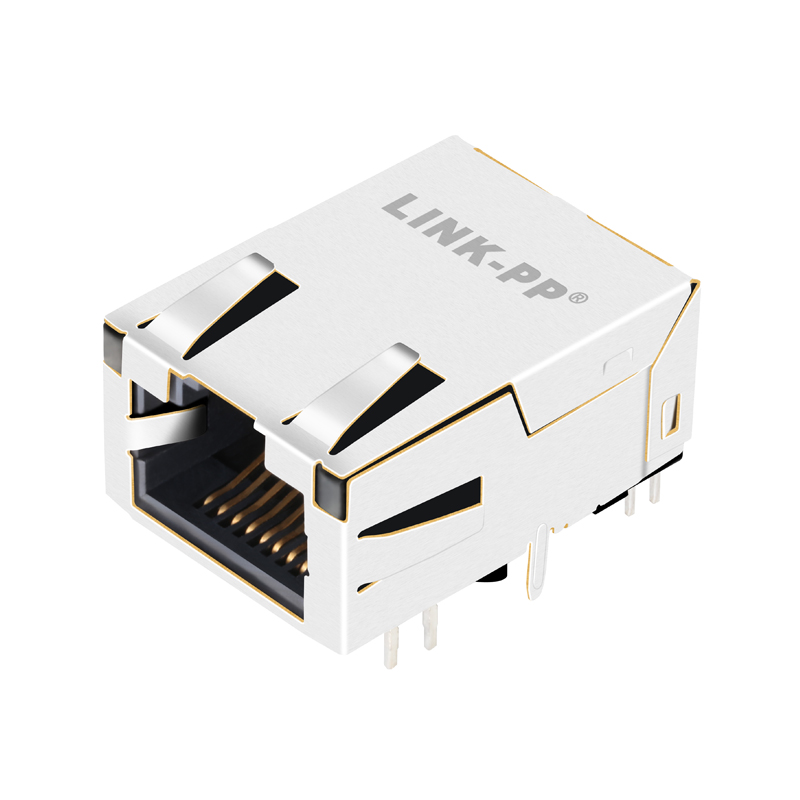

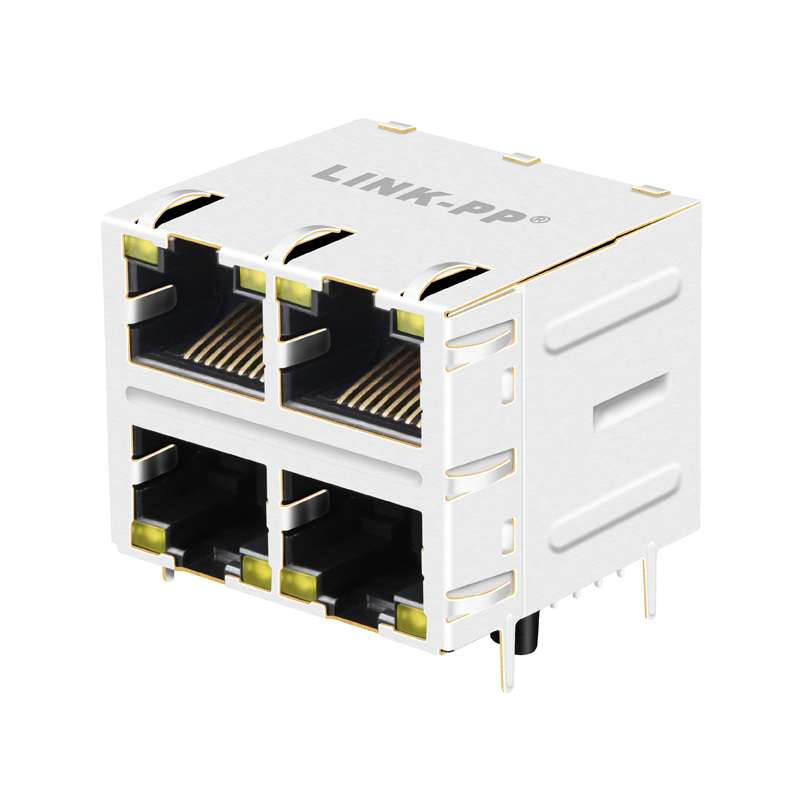

1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack
1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack
1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack
1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack
1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack
1 / 5
1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack
1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack
1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack
1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack
1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack

1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack

Send Inquiry

Product Description

Product Description
Product View
Technical Specification
Model NumberRJ45 Jacks
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet (PoE/Non_PoE)
Speed10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorYellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack4/6/8/12
ShieldingShielded, Emi Finger
Number of Ports1xN, 2xN, Low Profile, Vertical, SMT, With Usb RJ45 Jack
FeaturesBoard Guide
Tab DirectionDown/Up
Contact FinishGold
Configuration RX/TXT, C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C / -40°C ~ +85°C
Packing & Delivery
  • ✔ Package: Tray
  • ✔ Carton Size: 32*30*31cm
  • ✔ Gross Weight: 8.5kg / carton
  • ✔ Quantity: 1200pcs / carton
  • ✔ SPQ: 50pcs
  • ✔ Net Weight: 0.007kg / pcs
Packaging
Production Capability
Facility 1
Facility 2
Facility 3
Testing 1
Testing 2
Testing 3
Final Product
Frequently Asked Questions
Q1: How do you guarantee the quality of your RJ45 connectors?
We maintain strict quality control by providing a pre-production sample before mass production and conducting a final inspection before every shipment.
Q2: What types of products are available in your catalog?
Our main product range includes RJ45 Magnetic components, Lan transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
Q3: What certifications do your products and facilities hold?
We are professional manufacturers certified by SGS, ISO9001:2008, UL, REACH, and CE, ensuring international standards for all our electronic components.
Q4: What is your current production capacity?
With a dedicated workforce of over 2600 staff, we maintain a robust productive capacity of approximately 30,000K units per week.
Q5: Which delivery terms and currencies do you accept?
We accept various delivery terms including FOB, CFR, CIF, EXW, DDP, and DDU. Accepted payment currencies include USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF.
Q6: What payment methods are supported for orders?
We offer flexible payment options such as T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, and Western Union.
