Product Description
Technical Specifications

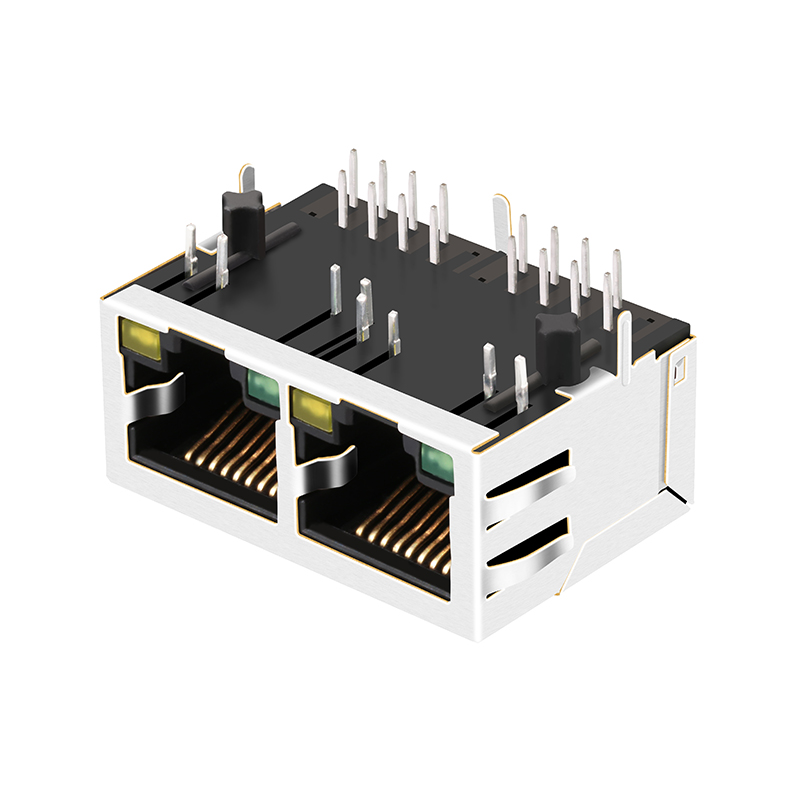

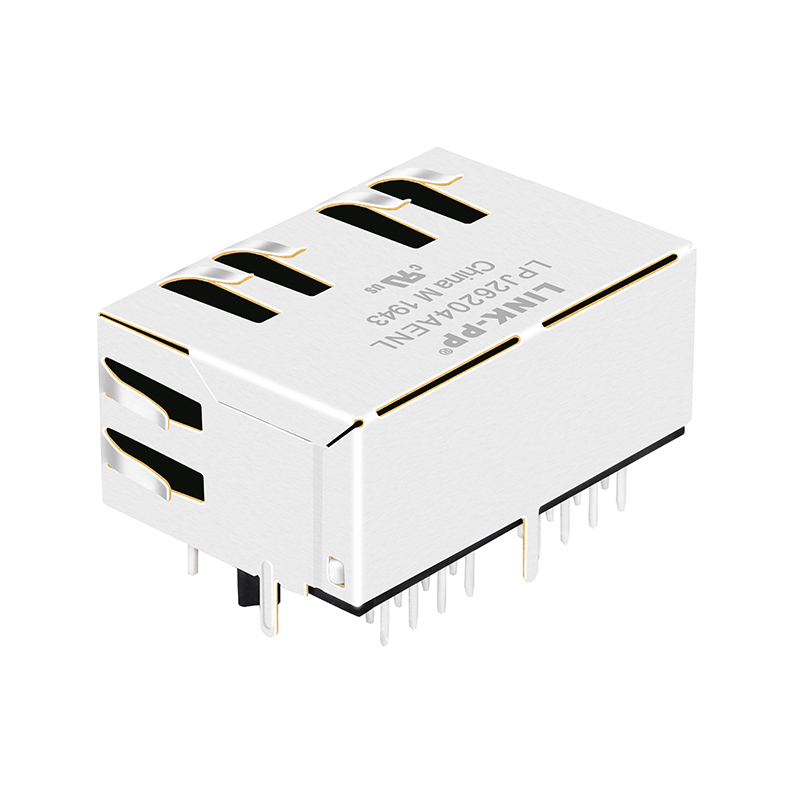

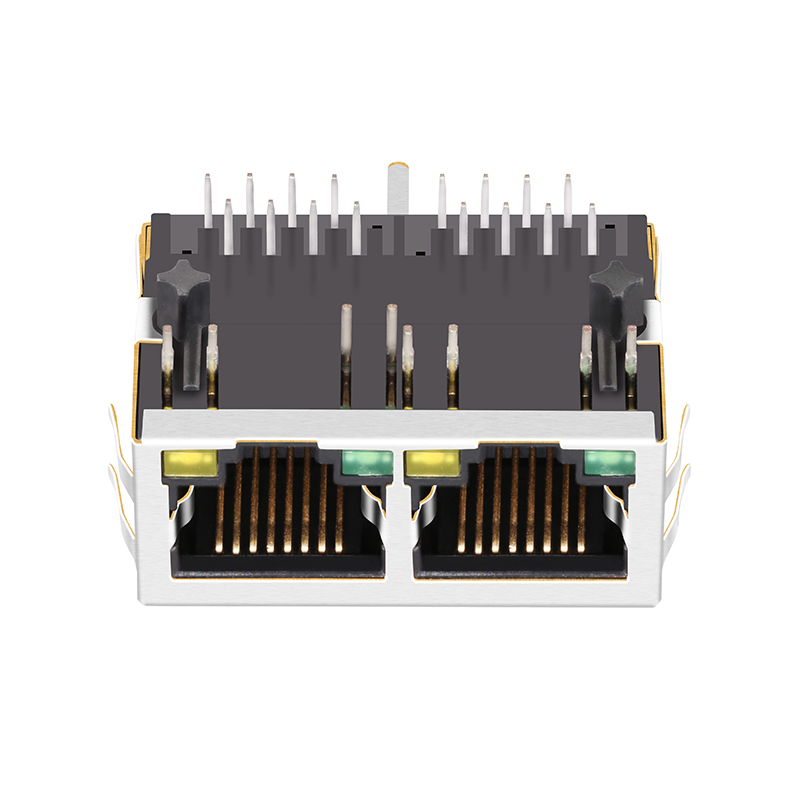

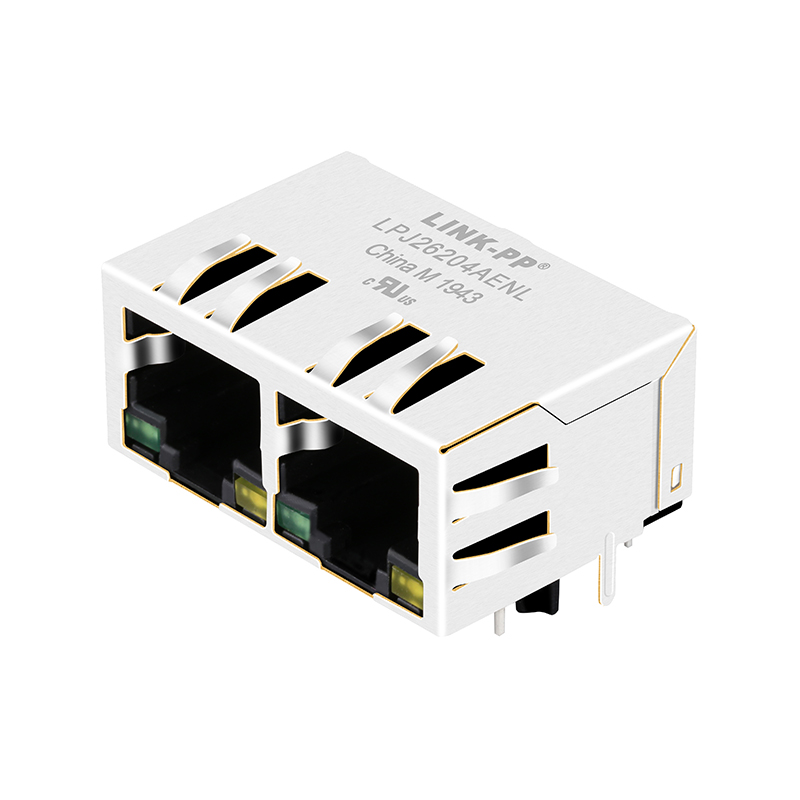

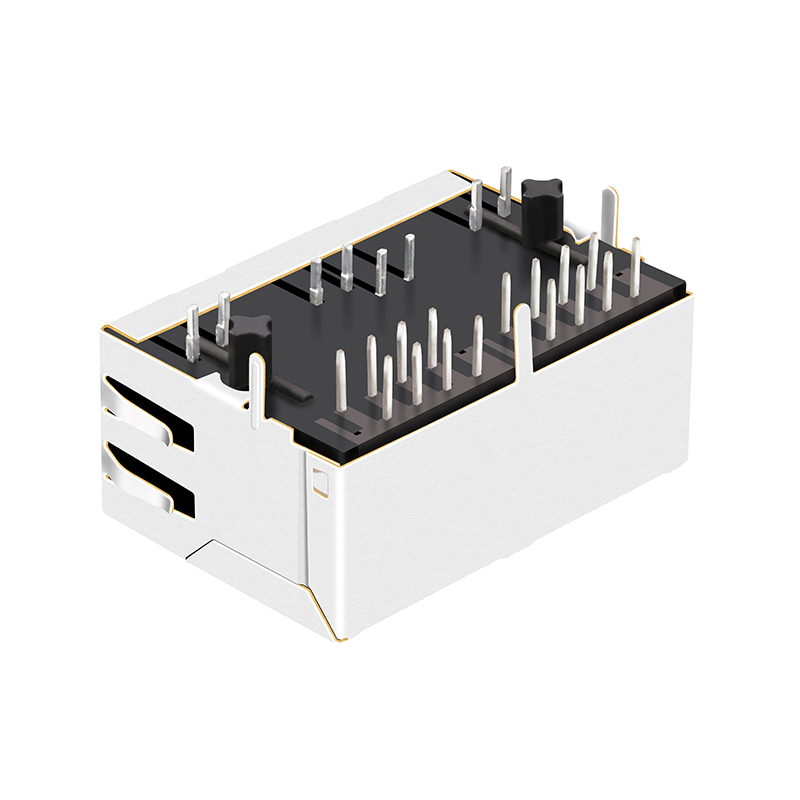

| Model Number | LPJ26204AENL |
| Part Status | Active |
| Connector Type | RJ45 |
| Applications-Lan | 10/100 Base-T, AutoMDIX |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| LED Color | Green / Yellow |
| Number of Cores per Jack | 4 |
| Shielding | Shielded, EMI Finger |
| Number of Ports | 1x2 Port |
| Features | Board Guide |
| Tab Direction | Down |
| Contact Finish | Gold |
| Configuration RX/TX | T,C |
| Turns Ratio RX/TX | 1CT:1CT |
| Operating Temperature | 0°C ~ 70°C |
Packing & Delivery
Package Details:
- Standard Tray Packaging
- Carton Size: 37*30*30cm
- Quantity: 600pcs per carton
- G.W./Carton: 9kg
- SPQ: 30pcs
- N.W./pcs: 0.015kg
Applications & Compatibility
10 / 100 / 1000 / 2.5G / 5G / 10G Base-T 1xN Port RJ45 Connector
Suitable for diverse industrial and networking environments:
- Operating Temperature: -40 °C up to +85 °C (Industrial Grade)
- Compatible with Industrial Ethernet systems like EtherCAT or Profinet
- Compliant with mainstream Ethernet ICs (Microchip, Broadcom, Marvell)
- Ideal for Hubs, Routers, Switches, IP cameras, and IoT applications
Facility & Quality Control
FAQ
1. What is the primary application of this RJ45 connector?
This 1x2 Port RJ45 connector is designed for 10/100 Base-T networking and is suitable for industrial Ethernet systems, routers, switches, and IoT devices.
2. Does this connector feature EMI shielding?
Yes, it is fully shielded with EMI fingers to ensure stable data transmission and minimize electromagnetic interference.
3. What are the available LED color configurations?
The standard configuration for this model includes Green and Yellow LEDs for status indication.
4. Can this component withstand extreme temperatures?
While the standard operating temperature is 0°C to 70°C, we also provide industrial-grade versions capable of operating from -40°C to +85°C.
5. Is the product compliant with international standards?
Yes, our manufacturing processes are certified by ISO9001, and products are compliant with RoHS, REACH, CE, and UL standards.
6. How is the product packaged for bulk shipment?
The connectors are packed in trays, with 600 pieces per standard carton, ensuring safe transportation and easy handling.
