RV1-2012QP1A RJ45 Connector Modular Jack
RV1-2012QP1A RJ45 Connector Modular Jack
RV1-2012QP1A RJ45 Connector Modular Jack
RV1-2012QP1A RJ45 Connector Modular Jack
RV1-2012QP1A RJ45 Connector Modular Jack
1 / 5
RV1-2012QP1A RJ45 Connector Modular Jack
RV1-2012QP1A RJ45 Connector Modular Jack
RV1-2012QP1A RJ45 Connector Modular Jack
RV1-2012QP1A RJ45 Connector Modular Jack
RV1-2012QP1A RJ45 Connector Modular Jack

RV1-2012QP1A RJ45 Connector Modular Jack

Send Inquiry

Product Description

RV1-2012QP1A RJ45 Connector Modular Jack
📋 Products Description
RJ45 Connector Overview
ItemRJ45 Female Connector
Part NumberRV1-2012QP1A
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet (Non PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
LatchDown
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout
LED OptionGreen/Yellow
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃
Bst CircuitYes
AutoMDIXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
RJ45 Connector Detail 1

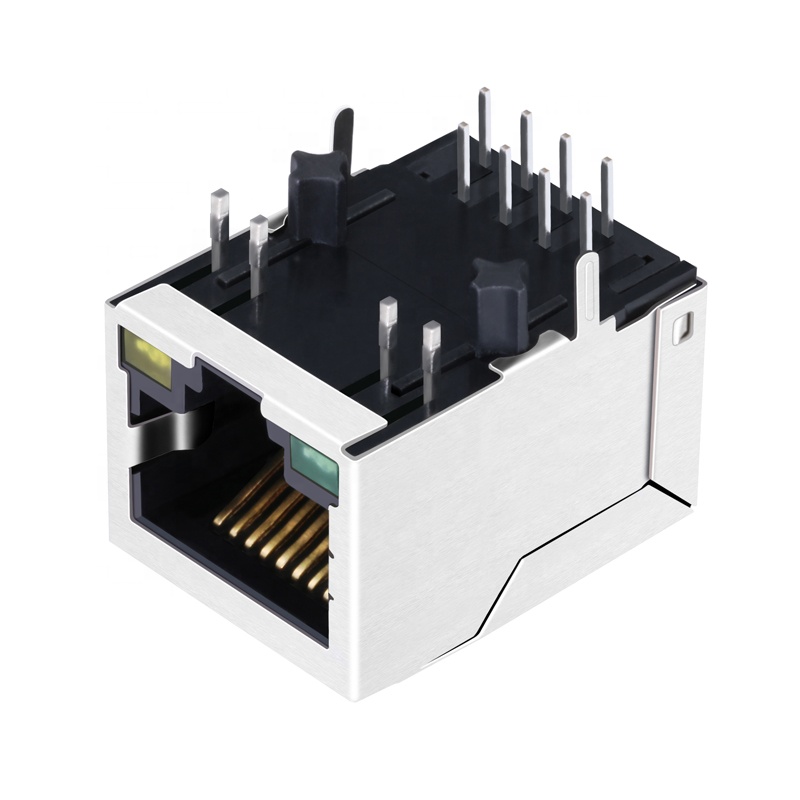

RJ45 Connector Detail 2
RJ45 Connector Side View
RJ45 Connector Bottom View
RJ45 Connector Front View
⭐ Key Product Features & More Variations
Connector Variations
📐 Technical Specifications & Drawings
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Technical Drawing 4
Technical Drawing 5
Technical Drawing 6
🏭 Production Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. By building multi-warehouse systems and continuously increasing inventory, we are committed to being a world leader in Ethernet RJ45 connectors and LAN transformers.
Factory Environment
Production Line
❓ Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though the shipping fee should be covered by the customer.
What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production orders.
What after-service can you offer?
We provide a one-year guarantee period and offer online technical support 24 hours a day.
Can you accept OEM/ODM orders?
Yes, we welcome OEM/ODM inquiries. Please contact us for a detailed discussion of your requirements.
What is your advantage?
With over 19 years of production experience, we have established long-term partnerships with leading global technology companies.
