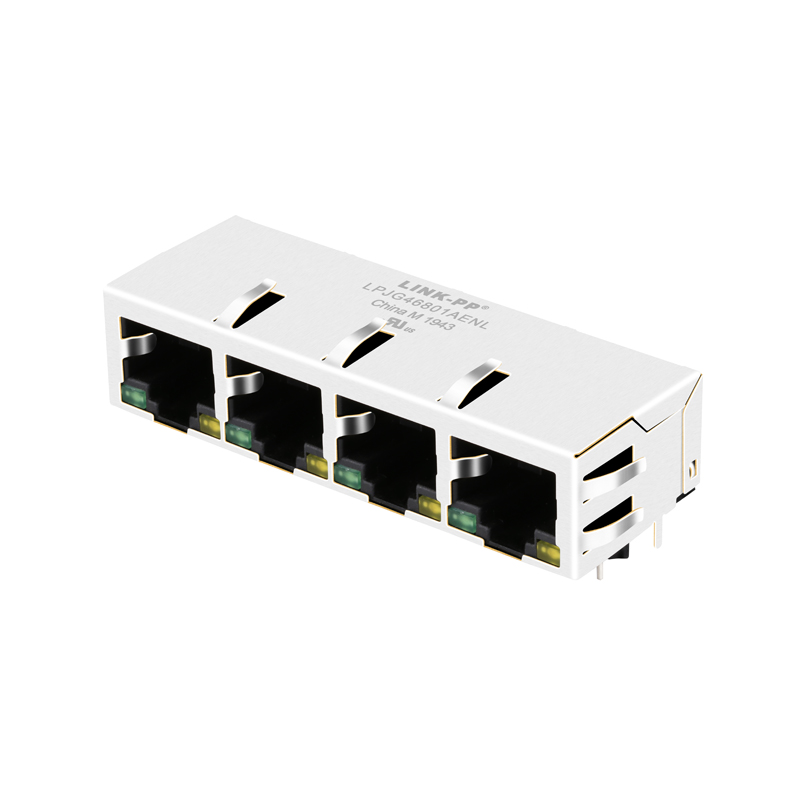

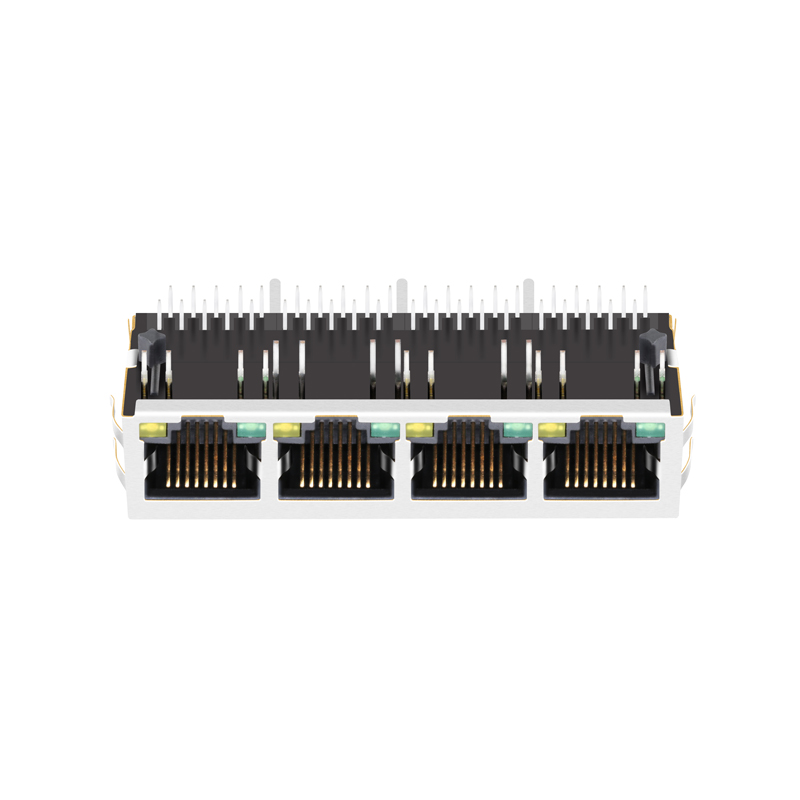

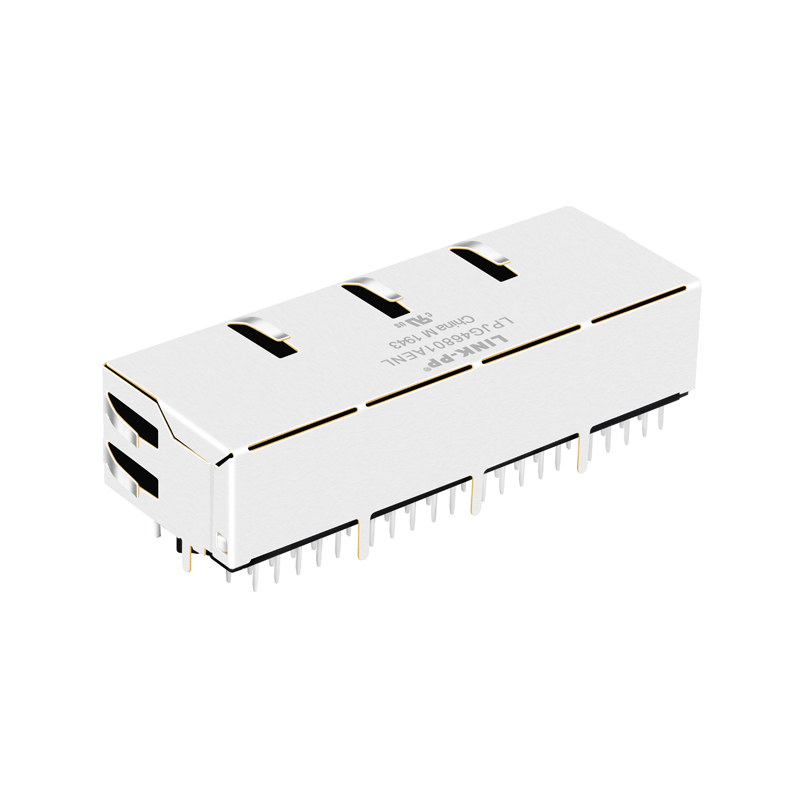

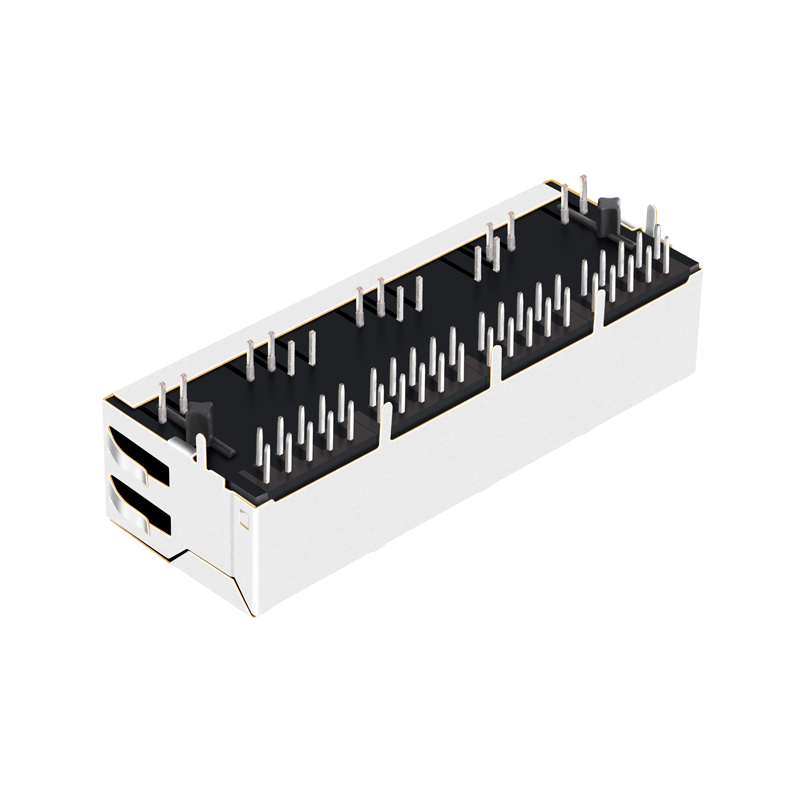

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
1 / 5
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

Send Inquiry

Product Description

Product Description
Product View 1

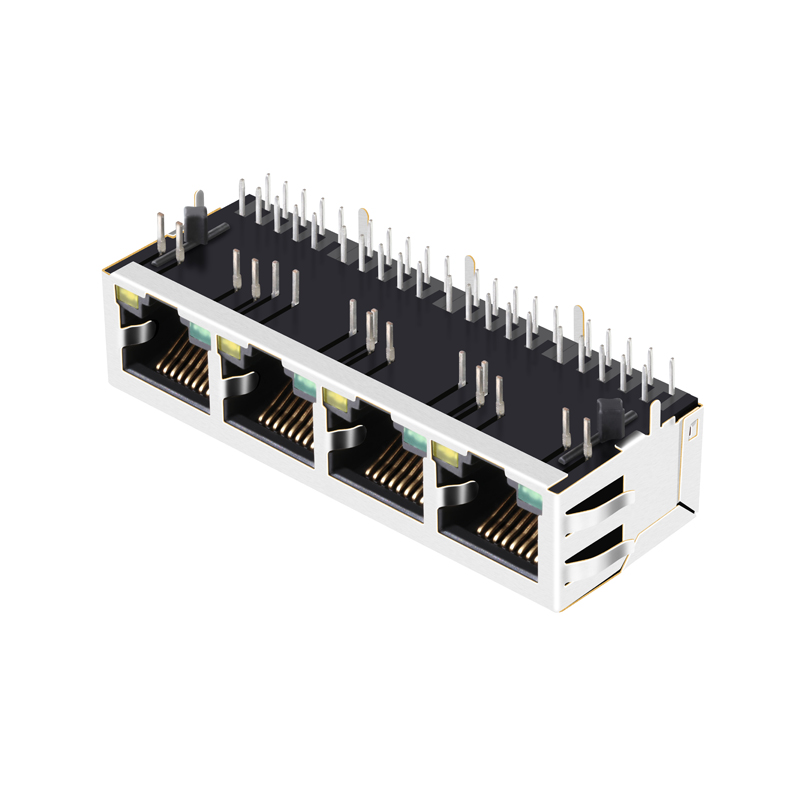

Product View 2
Technical Specifications
Model NumberLPJG46801AENL
Part StatusActive
Connector TypeRJ45
Applications10/100/1000 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen - Yellow
Number of Cores per Jack8
ShieldingShielded, EMI Finger
Number of Ports1X4 Port
FeaturesBoard Guide
Tab DirectionDown
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C
Packing & Delivery

Package Details: 20 pcs in 1 tray, 20 trays in 1 carton.

Carton Dimensions: 37 * 30 * 30 cm

Weight: 10 KGS (400 pcs) per carton

Packaging Tray
Application & Key Features

100 / 1000 / 2.5G / 5G / 10G Base-T 1xN RJ45 Connector

These high-performance connectors are suitable for a wide range of industrial and networking environments. They are engineered to ensure reliable connectivity across diverse Ethernet systems.

Industrial Ethernet
EtherCAT / Profinet
Hubs & Routers
IP Cameras
IoT Applications
Switches

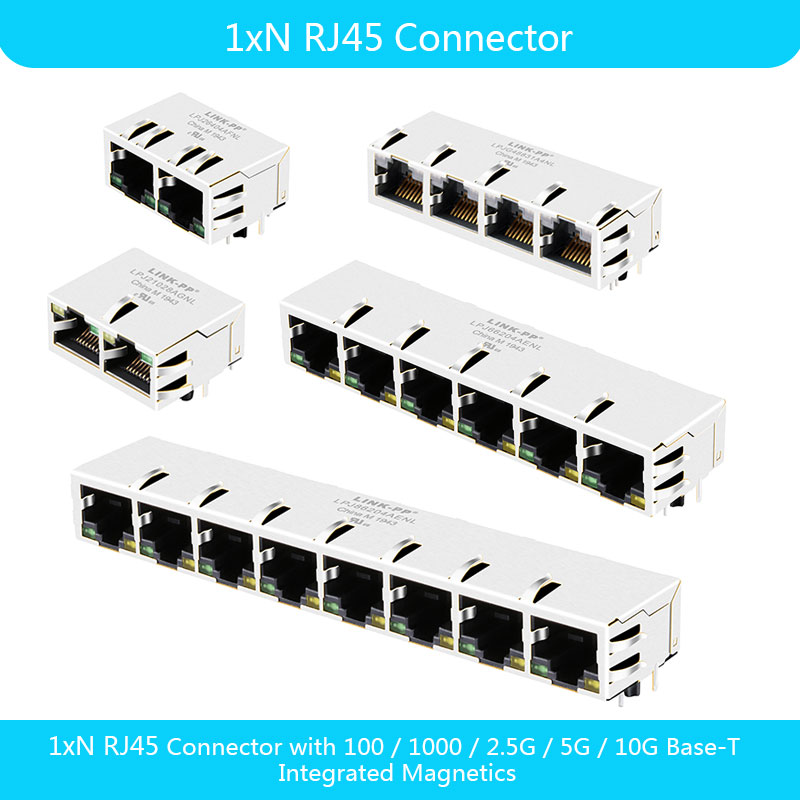

Module Detail
Design Drawing
Production View
Internal Structure

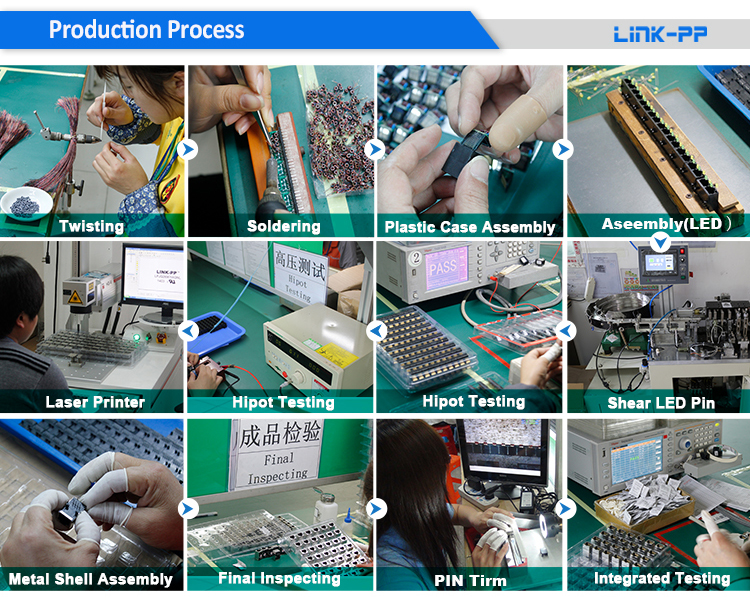

Assembly Process
Quality Test
Frequently Asked Questions
1. What are the primary applications for these RJ45 connectors? These connectors are ideal for 10/100/1000 Base-T networking and are compatible with Industrial Ethernet systems such as EtherCAT and Profinet. Common uses include Hubs, Routers, Switches, IP cameras, and various IoT applications.
2. How is the quality of the magnetic components guaranteed? Quality is maintained through a rigorous process including a pre-production sample check before mass production and a final inspection of all units before shipment.
3. What technical features do these connectors offer for EMI protection? The LPJG46801AENL model is fully shielded and equipped with EMI Fingers to ensure superior electromagnetic interference protection and stable signal transmission.
4. Can these connectors withstand industrial temperatures? While the standard operating temperature for this model is 0°C ~ 70°C, the product line includes options suitable for industrial temperatures ranging from –40 °C up to +85 °C.
5. What range of products are available besides RJ45 connectors? We offer a complete solution for magnetic components, including RJ45 Magnetics, Lan transformers, Modular Jacks, and RJ11 Connectors.
6. What is the standard packaging and lead time capacity? Products are typically packed with 20 pieces per tray and 400 pieces per carton. With high monthly production capacity, we ensure reliable delivery within short timeframes for high-volume orders.
