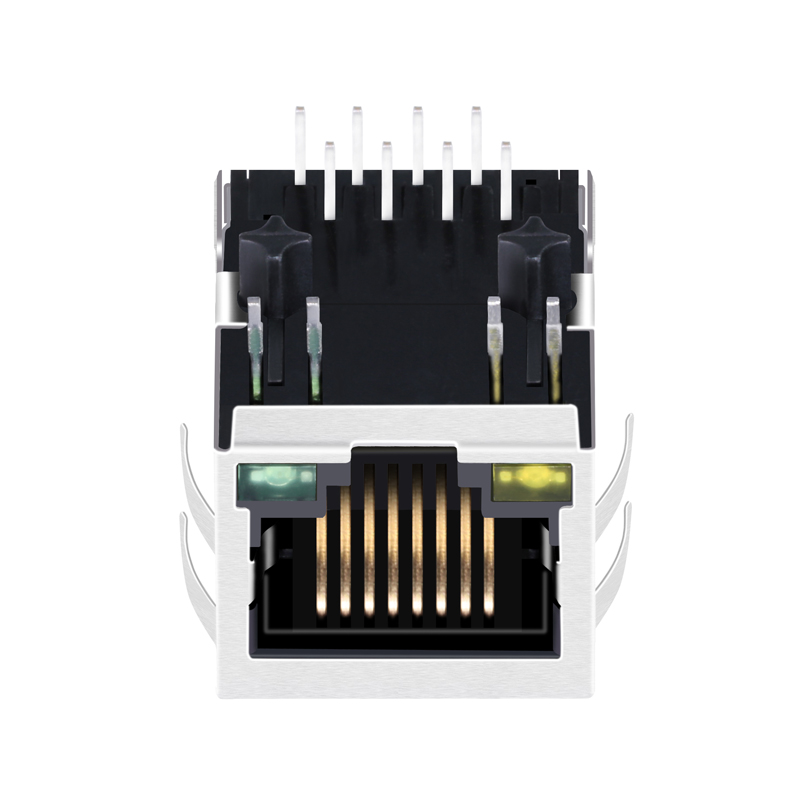

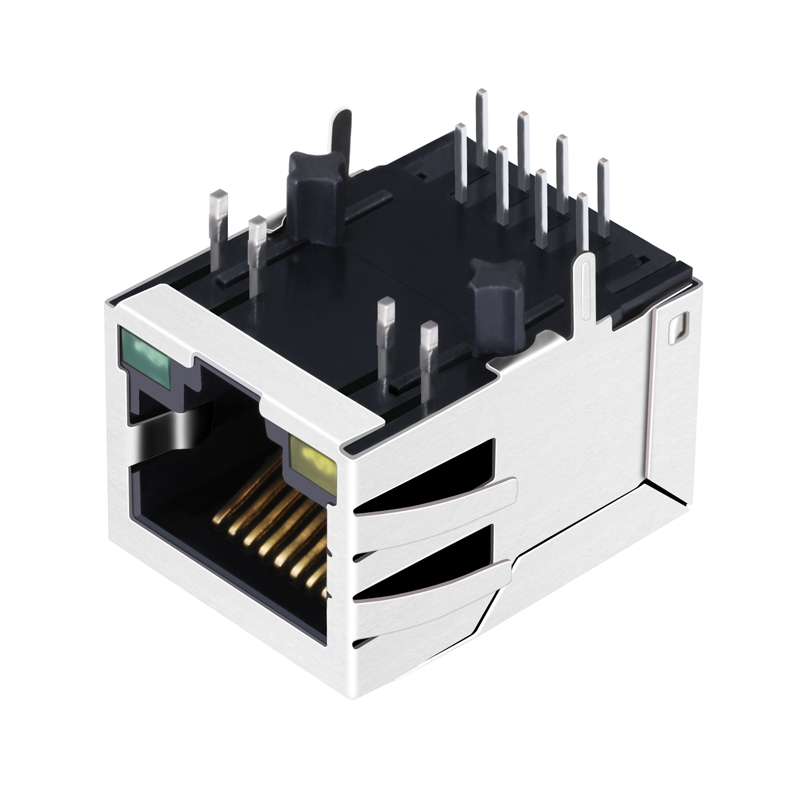

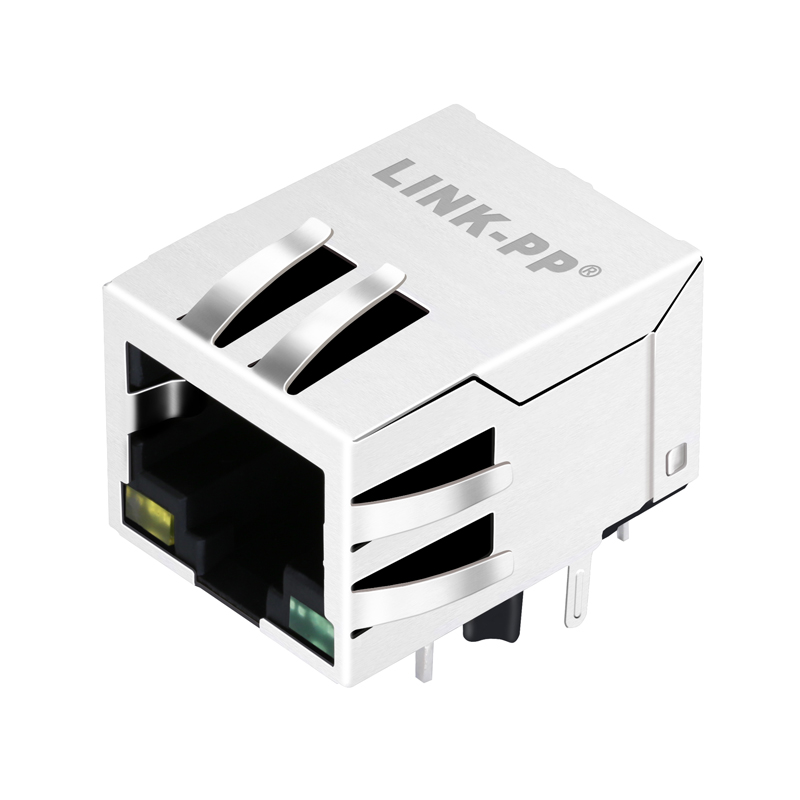

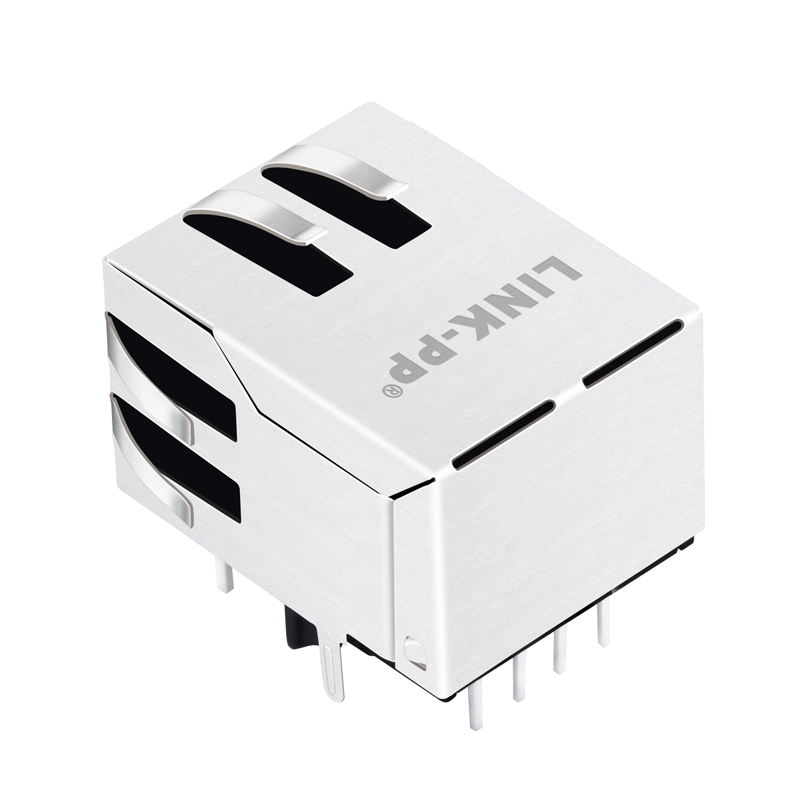

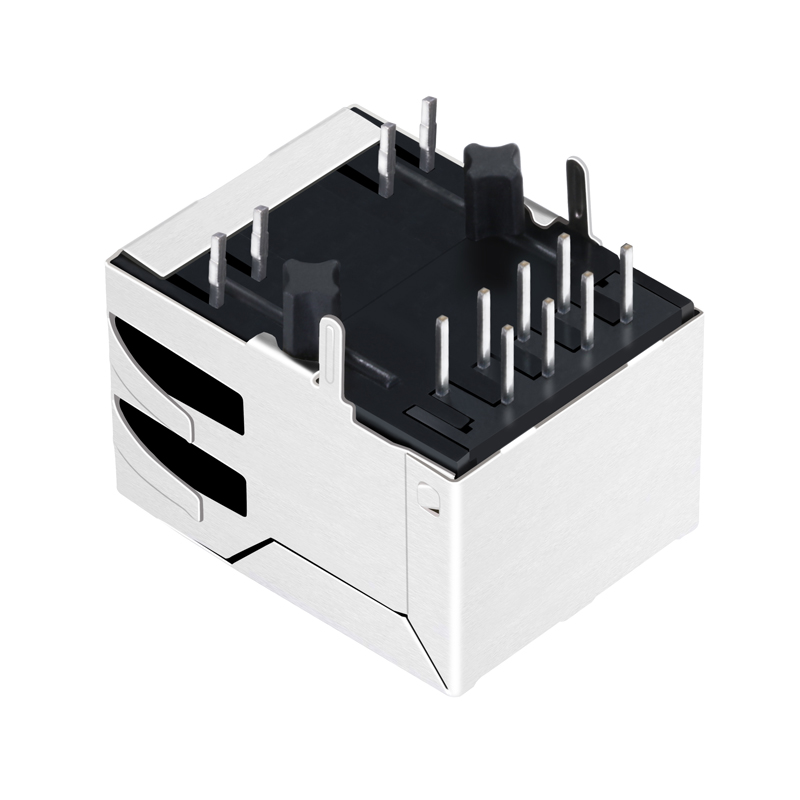

Female RJ45 for Internet Modular Plug TIC-L003-11
| Part Number | TIC-L003-11 |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | 4 |
| Diodes | NO DIODES |
| LED Option | WithOUT LEDS |
| Latch | DOWN |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 With LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | With OR WithOUT |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
World Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Guarantee Quality
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- Quality Guarantee: 6 Years
- Successful global customer applications
Competitive Price & Service
- More Competitive Prices
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Available
- Provide New Design For Customer Requirements
- Cost-efficient global shipping options
Frequently Asked Questions
Q1: What is the primary speed rating for the TIC-L003-11 connector?
A: The TIC-L003-11 supports 10/100 BASE-T network speeds, making it ideal for standard Ethernet applications.
Q2: Does this RJ45 connector include integrated LEDs?
A: No, the TIC-L003-11 model is designed without integrated LEDs for a more compact and streamlined interface.
Q3: What are the plating options for the contact mating area?
A: We offer gold plating options in 6u", 15u", or 30u" to suit different durability and conductivity requirements.
Q4: Can this connector operate in extreme temperature environments?
A: Yes, it is available in standard (0 to 70°C) and industrial (-40 to 85°C) temperature ranges.
Q5: Is the TIC-L003-11 RoHS compliant?
A: Yes, it is RoHS-5 compliant with lead-in-solder exemption, meeting essential environmental standards.
Q6: What is the lead time for mass production orders?
A: Typically, the delivery time is 2-3 weeks after order confirmation, depending on the quantity.
