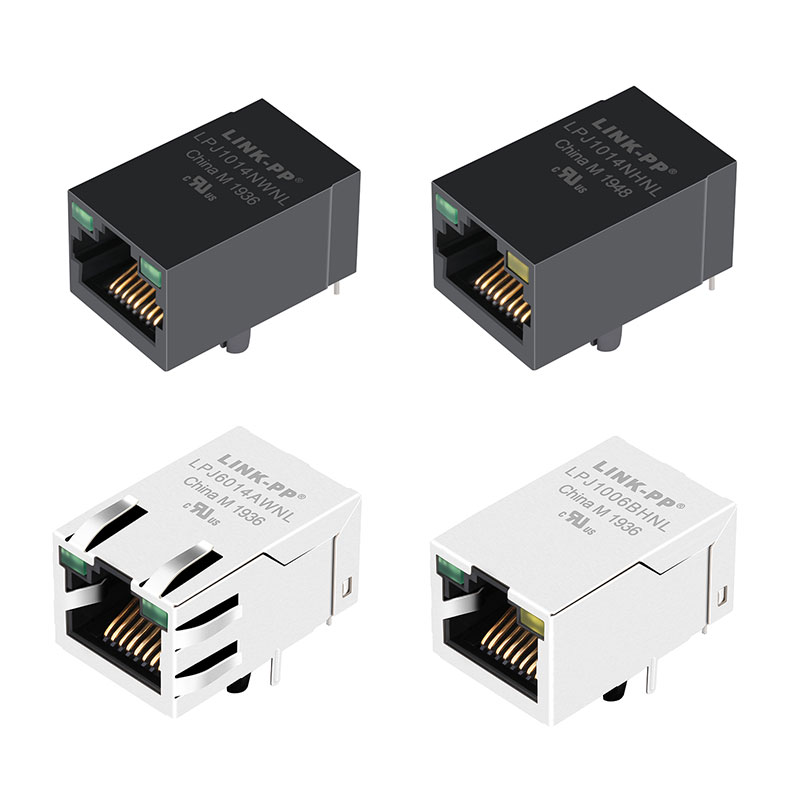

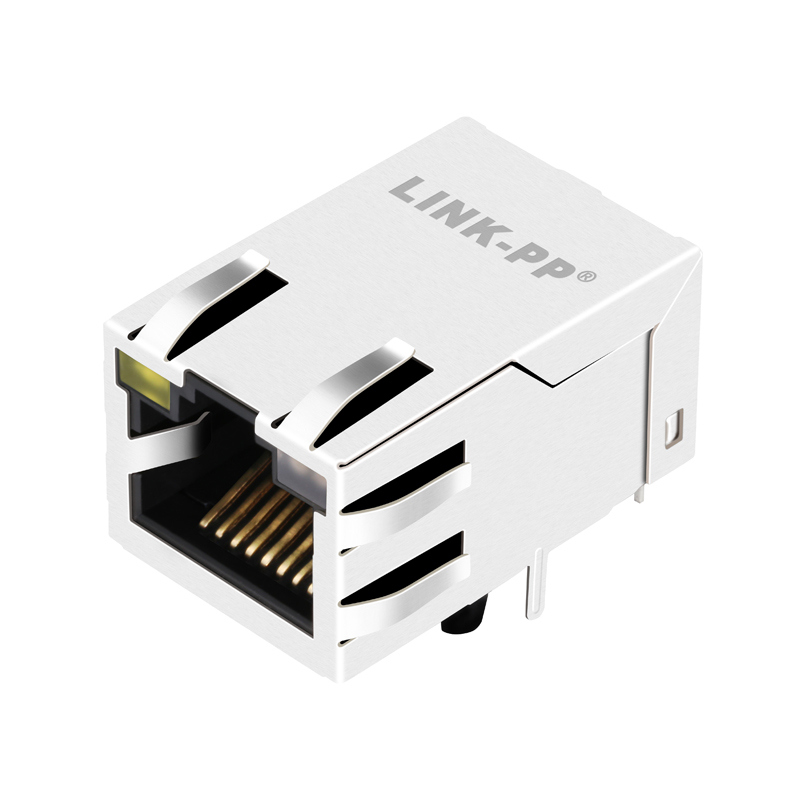

Shielded With EMI Fingers RJ45 Modular Connector RJ000002
Shielded With EMI Fingers RJ45 Modular Connector RJ000002
Shielded With EMI Fingers RJ45 Modular Connector RJ000002
Shielded With EMI Fingers RJ45 Modular Connector RJ000002
Shielded With EMI Fingers RJ45 Modular Connector RJ000002
1 / 5
Shielded With EMI Fingers RJ45 Modular Connector RJ000002
Shielded With EMI Fingers RJ45 Modular Connector RJ000002
Shielded With EMI Fingers RJ45 Modular Connector RJ000002
Shielded With EMI Fingers RJ45 Modular Connector RJ000002
Shielded With EMI Fingers RJ45 Modular Connector RJ000002

Shielded With EMI Fingers RJ45 Modular Connector RJ000002

Send Inquiry

Product Description

Shielded with EMI Fingers RJ45 Modular Connector RJ000002
RJ45 Connector Overview
Products Description
ItemRJ45 Female Connector
Replaceable Part NumberRJ000002
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100/1000 Base-T
LatchDown/Up
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout/With
LED OptionGreen/Yellow
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃ / -40℃ TO 85℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
Technical Drawing
Detail 1
Detail 2
Detail 3
Detail 4

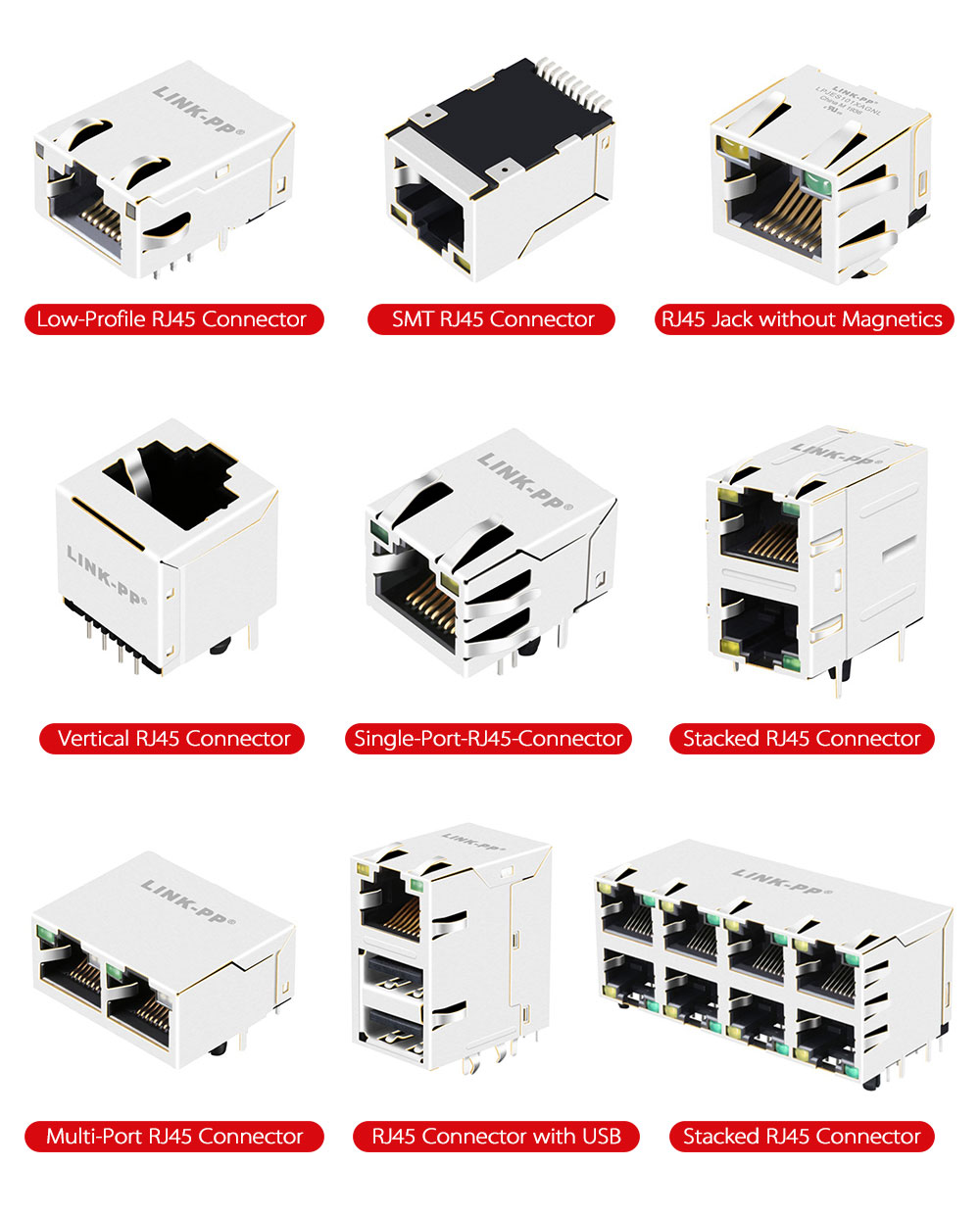

Product Categories
Product Range
Manufacturing & Quality Control
Production Process
Testing Equipment
Warehouse
Quality Assurance
Certifications
Packaging
About Our Expertise
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve as a global supplier to OEMs, contract manufacturers, and CEMs, supporting over 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a world leader in Ethernet RJ45 connectors and LAN transformer solutions.
Factory View
Production Line
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples for quality testing, although the shipping fee is covered by the customer.
What is your delivery time?
Items in stock are ready to ship immediately. For mass production, the lead time is typically 15-30 days.
What after-sales service do you provide?
We provide a one-year guarantee period and offer 24-hour online technical support.
Do you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us for a detailed discussion regarding your specific requirements.
What are your main advantages?
With over 19 years of production experience, we have established long-term partnerships with leading global technology and manufacturing firms.
