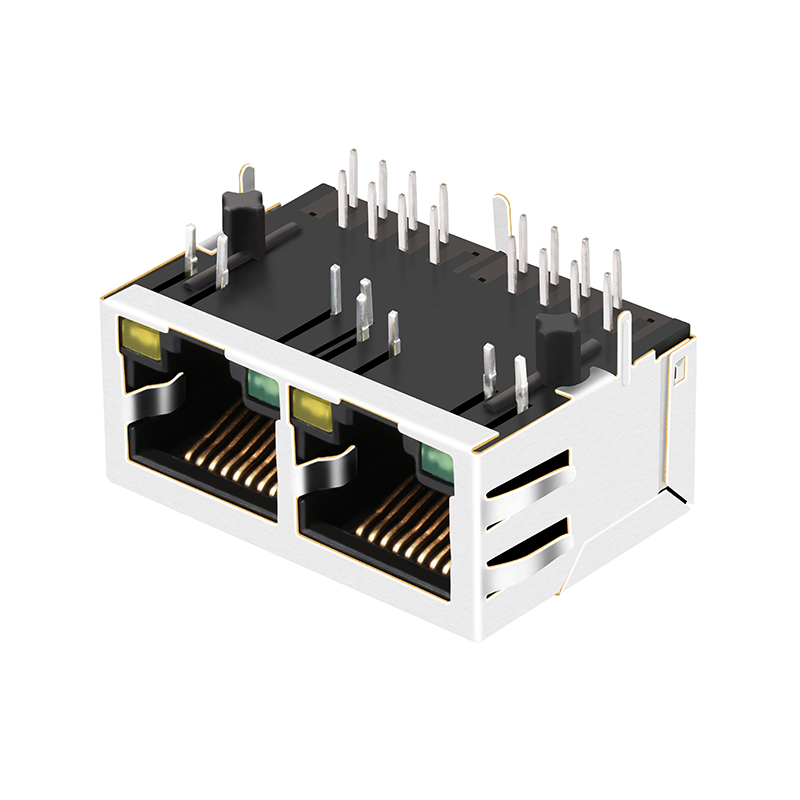

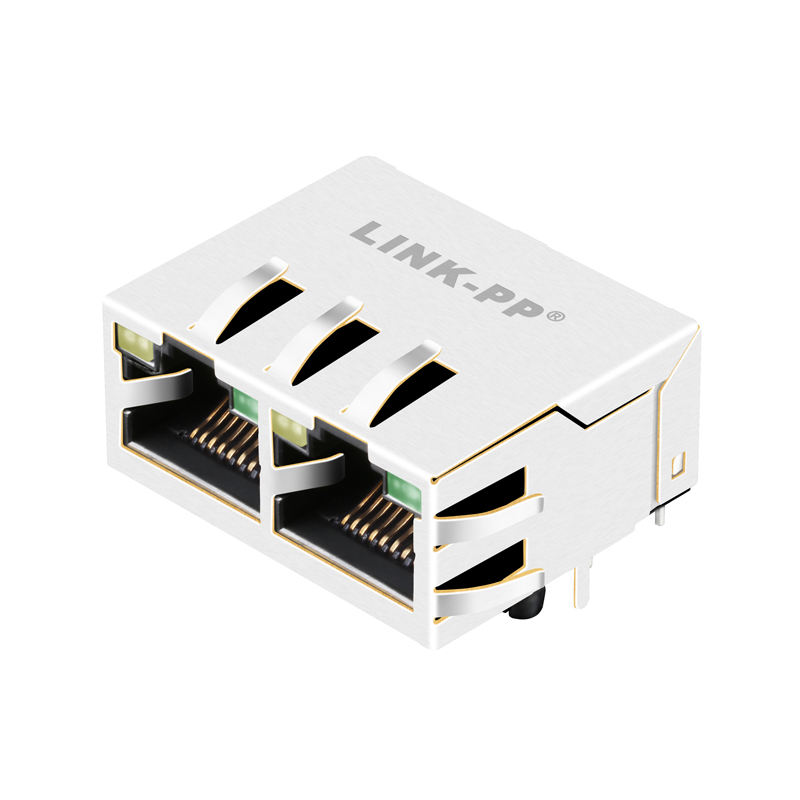

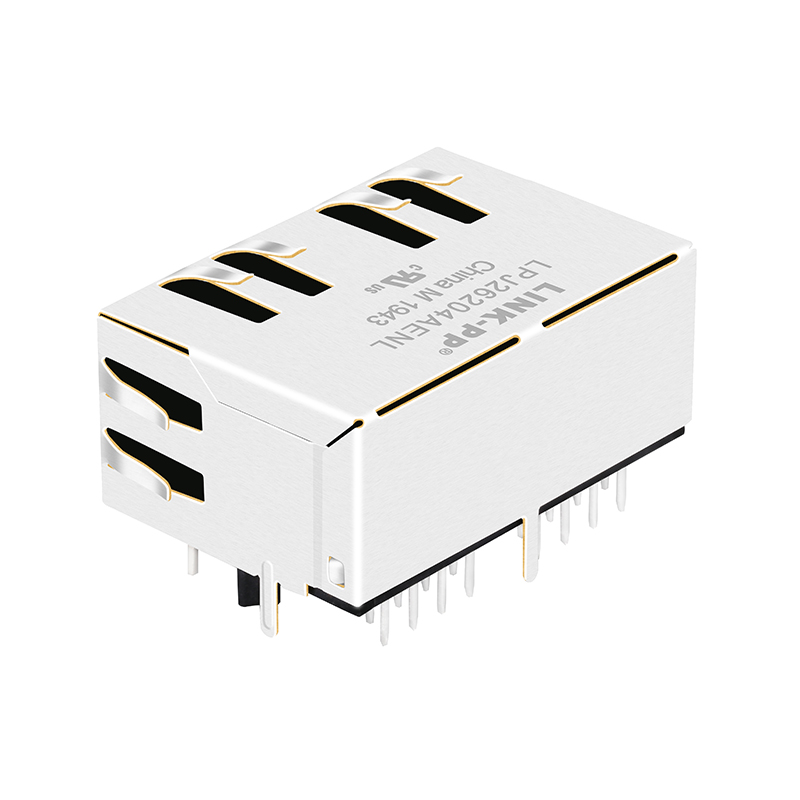

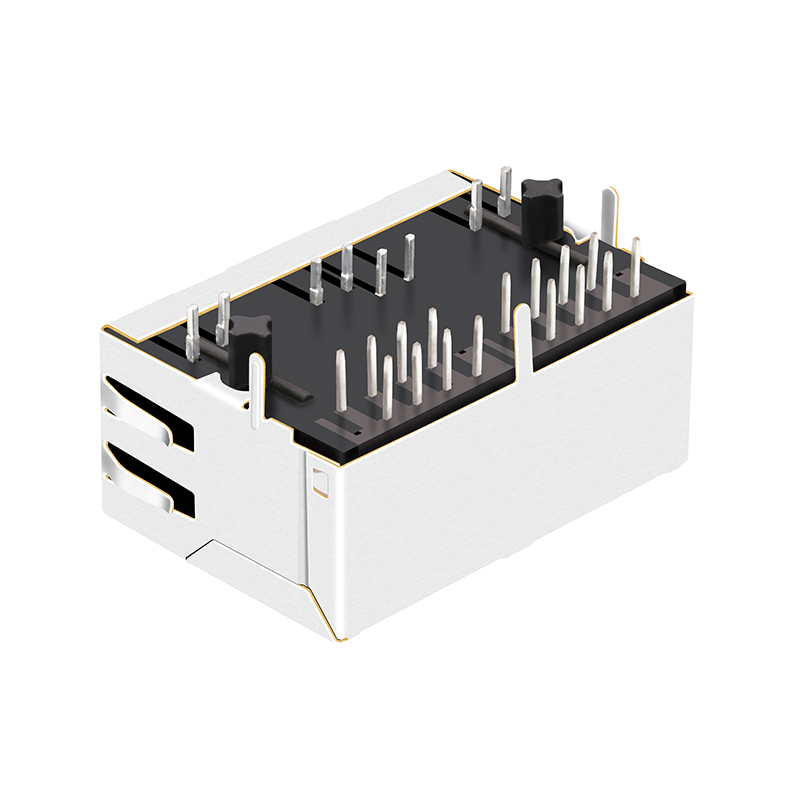

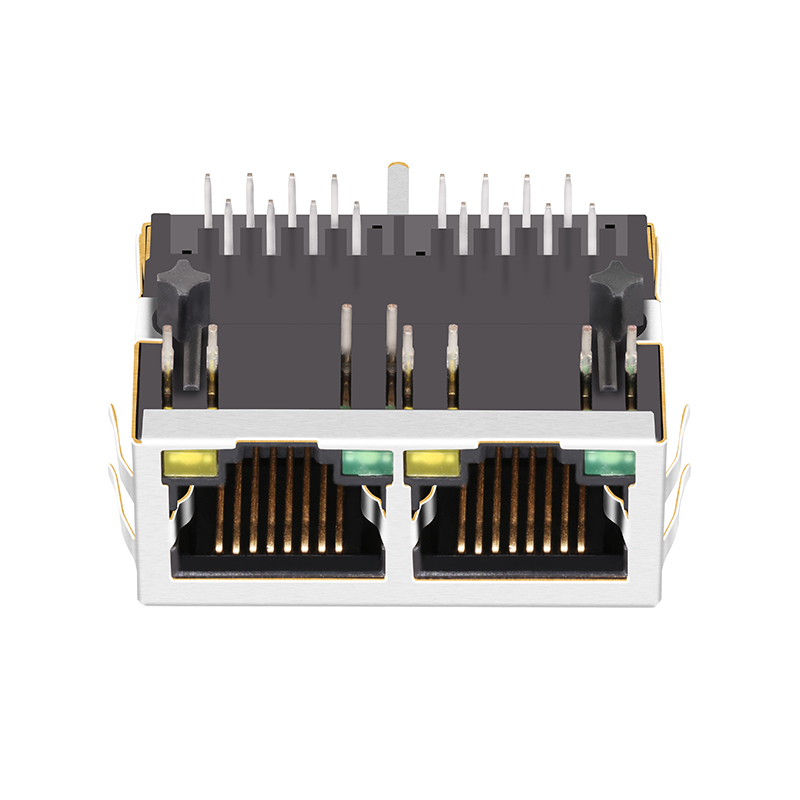

Tab Up Magnetic Female RJ45 Jack 10G Base-t POE 30W 1x2 Ports RJ45 Connector With Led
Tab Up Magnetic Female RJ45 Jack 10G Base-t POE 30W 1x2 Ports RJ45 Connector With Led
Tab Up Magnetic Female RJ45 Jack 10G Base-t POE 30W 1x2 Ports RJ45 Connector With Led
Tab Up Magnetic Female RJ45 Jack 10G Base-t POE 30W 1x2 Ports RJ45 Connector With Led
Tab Up Magnetic Female RJ45 Jack 10G Base-t POE 30W 1x2 Ports RJ45 Connector With Led
1 / 5
Tab Up Magnetic Female RJ45 Jack 10G Base-t POE 30W 1x2 Ports RJ45 Connector With Led
Tab Up Magnetic Female RJ45 Jack 10G Base-t POE 30W 1x2 Ports RJ45 Connector With Led
Tab Up Magnetic Female RJ45 Jack 10G Base-t POE 30W 1x2 Ports RJ45 Connector With Led
Tab Up Magnetic Female RJ45 Jack 10G Base-t POE 30W 1x2 Ports RJ45 Connector With Led
Tab Up Magnetic Female RJ45 Jack 10G Base-t POE 30W 1x2 Ports RJ45 Connector With Led

Tab Up Magnetic Female RJ45 Jack 10G Base-t POE 30W 1x2 Ports RJ45 Connector With Led

Send Inquiry

Product Description

Tab Up Magnetic Female RJ45 Jack 10G Base-t POE 30W 1x2 Ports RJ45 Connector With Led
RJ45 Jack Connector
Product Specifications
ItemRJ45 Connector
Model NumberLPJKM22100AHNL
Part StatusActive
Connector TypeRJ45 With Poe 30W
Applications-Lan10G Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen / Yellow
Number of Cores per Jack4
ShieldingShielded, EMI Finger
Number of Ports1x2 Port
FeaturesBoard Guide
Tab DirectionUp
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C
Technical Drawings & Dimensions
Connector Detail
Product Diagram
Schematic 1
Schematic 2
Schematic 3
Manufacturing Excellence
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve as a global supplier for OEMs and contract manufacturers across 200 countries. By maintaining multi-warehouse systems and increasing inventory, we are committed to being a leader in Ethernet RJ45 connectors and LAN transformer solutions.
Workshop
Quality Control
Production Line
Frequently Asked Questions
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples for quality testing; however, shipping costs are the responsibility of the customer.
What is your typical delivery time?
Items in stock are ready to ship immediately. For mass production, the delivery time is generally between 15 to 30 days.
What kind of after-sales service do you offer?
We provide a one-year warranty period and offer 24-hour online technical support to assist with any inquiries.
Do you accept OEM/ODM orders?
Yes, we welcome OEM and ODM orders. Please contact us with your specific requirements for a detailed discussion.
What are your core advantages?
With over 19 years of professional production experience, we have established long-term partnerships with leading global technology firms, ensuring high-quality standards.
