NS0013BLF 10/100 Base-T SMD Lan Filter Module Magnetic Transformer

Product Description

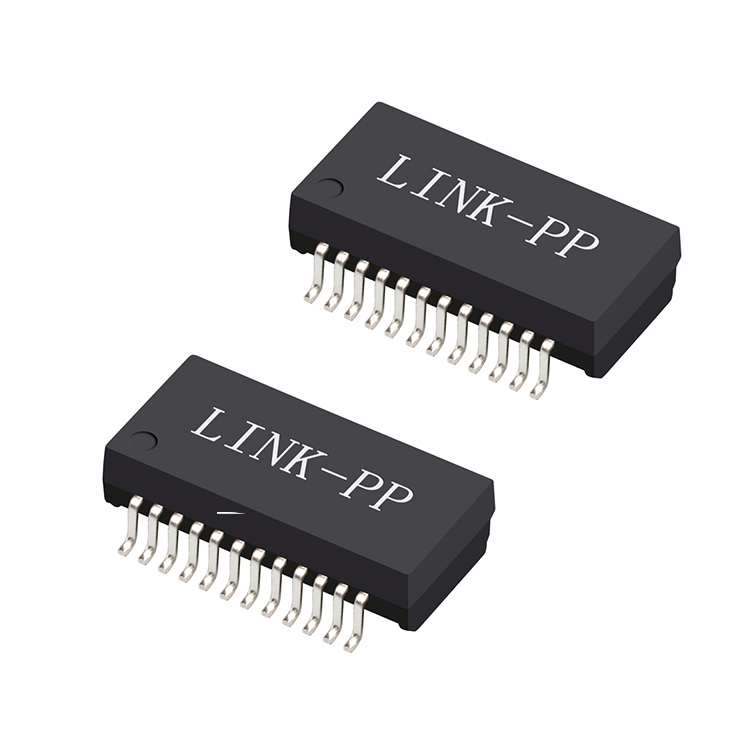

NS0013BLF 10/100 Base-T SMD Lan Filter Module Magnetic Transformer
Magnetic Transformer Overview
📋 Products Description
Item Lan Transformer
Replaceable Model NS0013BLF
Part Status Active
Construction Open frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports Single / Dual / Quad
Speed 10 / 100 / 1000 Base-T
Cores per Port 4 / 8 / 12
Pin Number 10 Pin / 12 Pin / 24 Pin / 48 Pin
Mounting Type Dip / Smt
Temperature 0℃ To 70℃ / -40℃ To 85℃
AutoMDIX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C, S
Package Tape & Reel
Technical Drawing
Circuit Diagram
Why Choose Us
High-quality production standards with ISO9001:2000, ROSH, REACH, CE, and UL certifications.
Advanced manufacturing facilities and imported test equipment.
Large production capacity of 3000K per month for short lead times.
🏢 Profile & Capabilities
Our company is a specialized manufacturer of magnetic telecom and networking components. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity, we are able to deliver the goods within the short time. Moreover, we provide professional complete solutions for magnetic components and strong technical support.

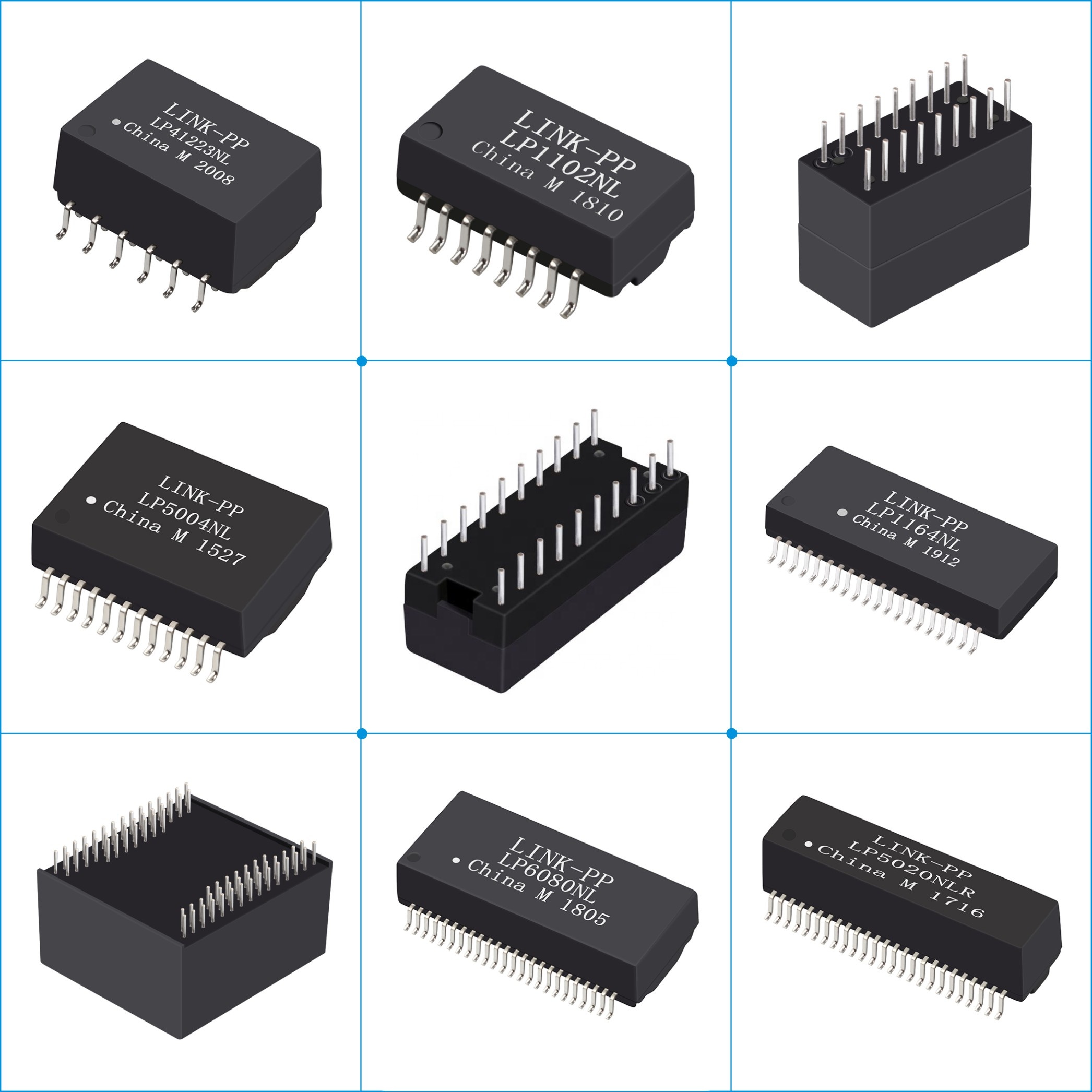

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem.

We have exported our products to more than 30 countries and regions, including Germany, France, England, USA, Singapore, Korea, Canada and Japan. Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for unique requirements.
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though shipping fees are typically covered by the customer.
What is your delivery time?
Stock items are ready to ship immediately; mass production typically takes 15-30 days.
What after-service can you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we specialize in custom solutions. Please contact us for a detailed discussion regarding your unique requirements.
What is your advantage?
We have 19 years of production experience and have served as a trusted partner for major global technology firms for many years.
