In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
1 / 5
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

Send Inquiry

Product Description

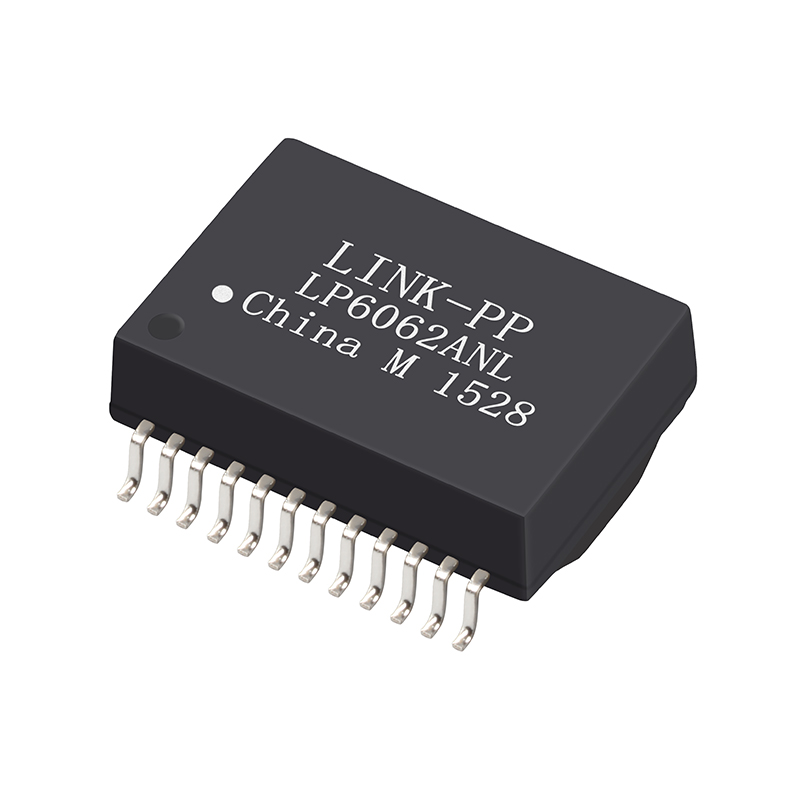

Product Display

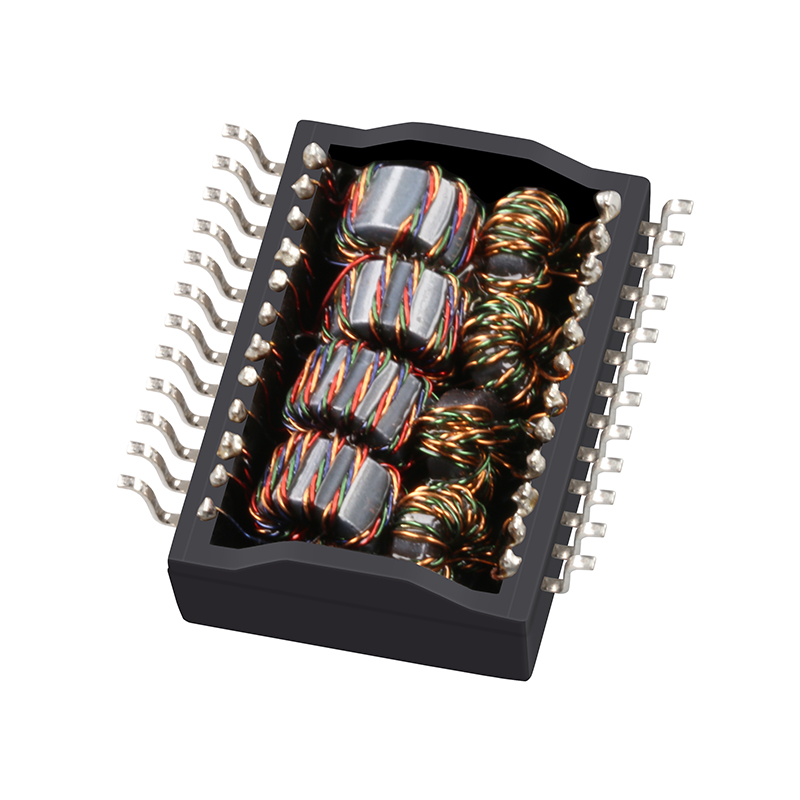

Product Detail 1

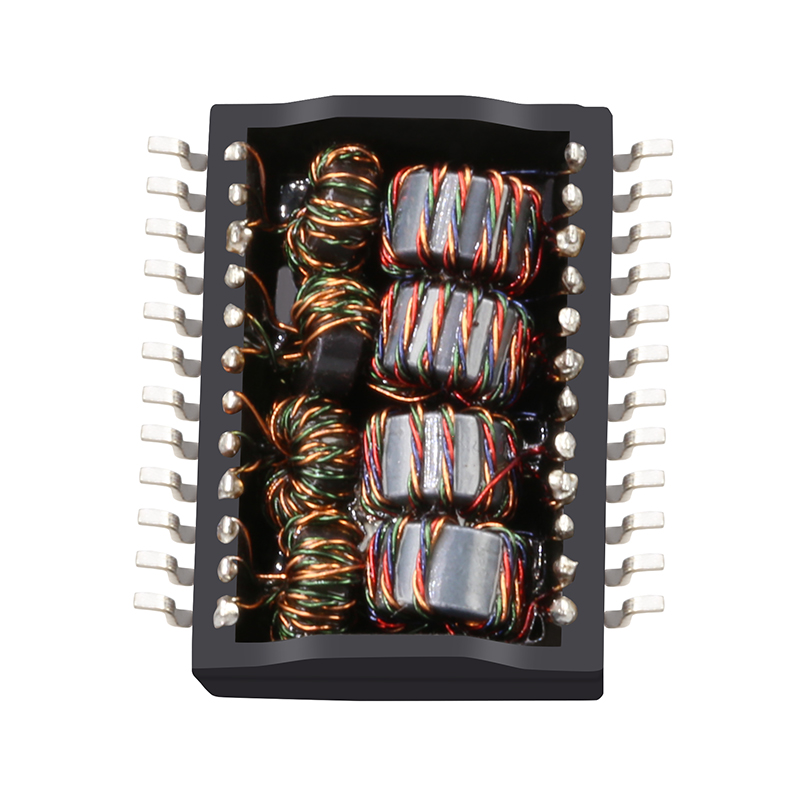

Product Detail 2
Product Diagram

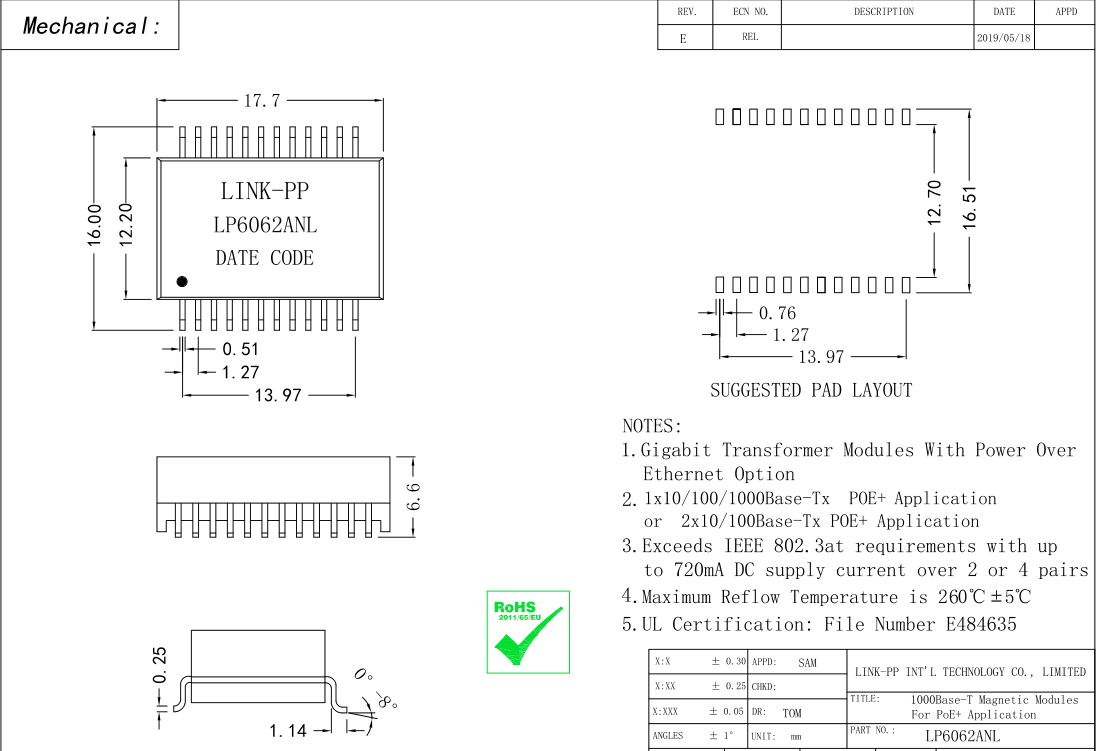

Technical View
Item Value
Place of Origin China
Part Number Reference LP6062ANL
Cross-Reference Part TG1G-S012NZRL
Transformer Type Lan Transformer
Application-Lan Ethernet(PoE+)
Number of Ports Single Port
Speed 10/100/1000 Base-T
Package Tape & Reel
Cores per Port 8
PIN number 24 Pin
Mounting Type Surface Mount
Temperature -40℃ TO +85℃
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Component Feature
📦 Packaging Details

N.W/pcs: 0.004kg | Package: Reel | SPQ: 400pcs | Qty/carton: 1600pcs

Carton size: 37*37*25cm | G.W/carton: 5.8kg

Packaging View 1
Packaging View 2
Application View
Installation Detail
Dimension Image
Testing View
Final Certification View
Frequently Asked Questions
1. What are the primary applications for this LAN transformer?
This transformer is specifically designed for 10/100/1000 Base-T Ethernet applications with PoE+ (Power over Ethernet) support.
2. What is the operating temperature range?
The component is rated for industrial-grade temperatures ranging from -40°C to +85°C.
3. How is the product packaged for shipping?
It is supplied in Tape & Reel packaging, with 400 pieces per reel and 1600 pieces per master carton.
4. Does this component support Surface Mount Technology (SMT)?
Yes, it features a 24-pin Surface Mount (SMD) mounting type for automated assembly.
5. What is the turns ratio for this transformer?
The turns ratio for both RX and TX is 1CT:1CT, ensuring stable signal transmission.
6. Can I use this as a direct replacement for other brands?
Yes, this part is cross-compatible with several industry-standard part numbers like TG1G-S012NZRL. Please verify the technical specs for your specific design.
