Product Description

📋   Product Description

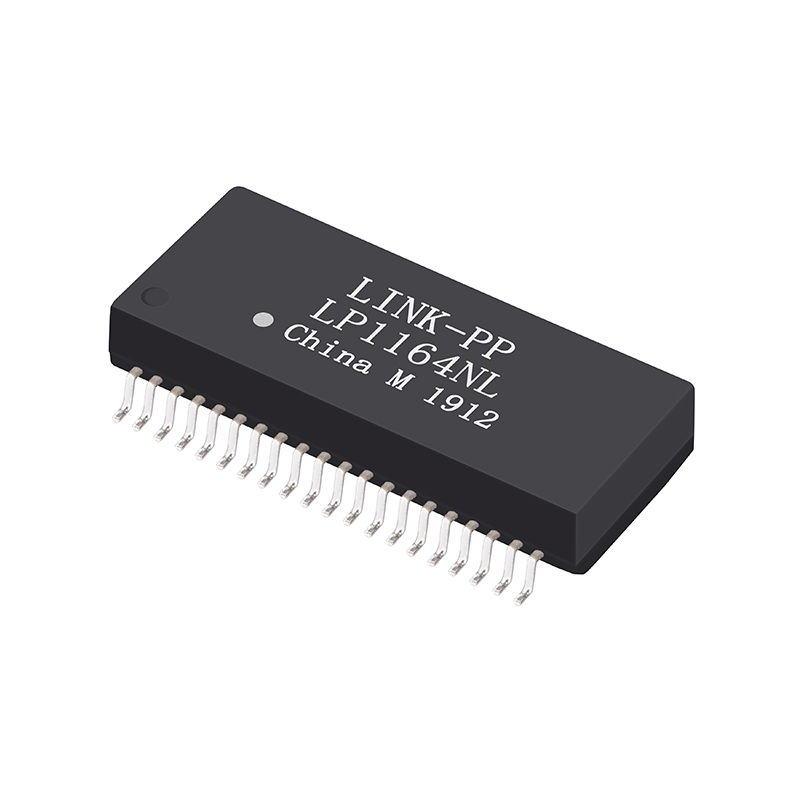

Product Image 1

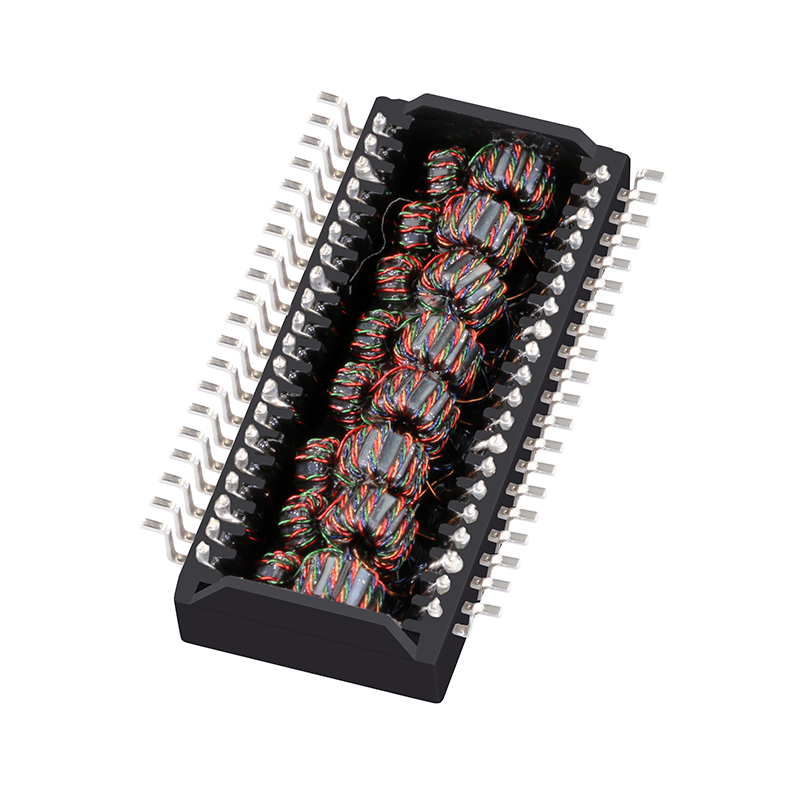

Product Image 2
⚙   Specification
ItemValue
Place of OriginChina
Part NumberLP1164NL
Pulse EquivalentH1164NLT
Transformer TypeLan Transformer
Application-LanEthernet (Non-PoE)
Number of PortsQuad Port
Speed10/100 Base-T
PackageTape & Reel
Cores per Port16
PIN number40
Mounting TypeSurface Mount
Temperature0℃ TO +70℃
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C,S
📦   Packing & Delivery
Packing Image
Package Details:
N.W/pcs: 0.005kg | Package: Reel | SPQ: 400pcs | Qty/carton: 1600pcs | Carton size: 36*35.5*23cm | G.W/carton: 7.5kg
🏭   Manufacturing Excellence
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. Our facility owns advanced manufacturing and test equipment. Established in 1997, we have a large-scale workforce and an abundant productive capacity of 3000K per month, ensuring short delivery times and professional technical support.

Main Product Range:
  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Our products are widely utilized in networking and communication equipment such as HUBs, PC cards, switches, routers, mainboards, SDH, PDH, IP Phones, and xDSL modems. We export to more than 30 countries across Europe, North America, and Asia.
Frequently Asked Questions
What is the application for the LP1164NL transformer?
It is designed for Ethernet (Non-PoE) applications with a speed of 10/100 Base-T.
What is the operating temperature range for this component?
The standard operating temperature range is from 0℃ to +70℃.
How is the product packaged for shipment?
The product is supplied in Tape & Reel format, with 400 pieces per reel and 1600 pieces per carton.
Is this transformer compatible with surface mount technology (SMT)?
Yes, it features a Surface Mount mounting type with 40 pins.
What is the turns ratio for this LAN transformer?
The turns ratio for both RX and TX is 1CT:1CT.
Are your products compliant with international standards?
Yes, our manufacturing process is certified by ISO9001:2000, and products meet RoHS, REACH, CE, and UL standards.
