10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
1 / 5
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002

10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002

Send Inquiry

Product Description

📦 Product Description

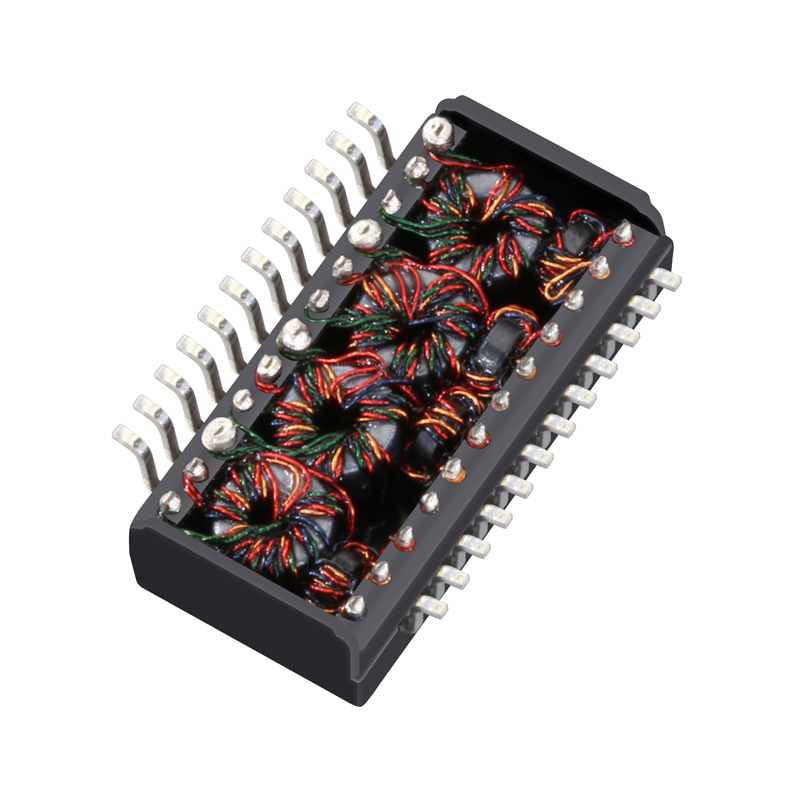

Product Image 1

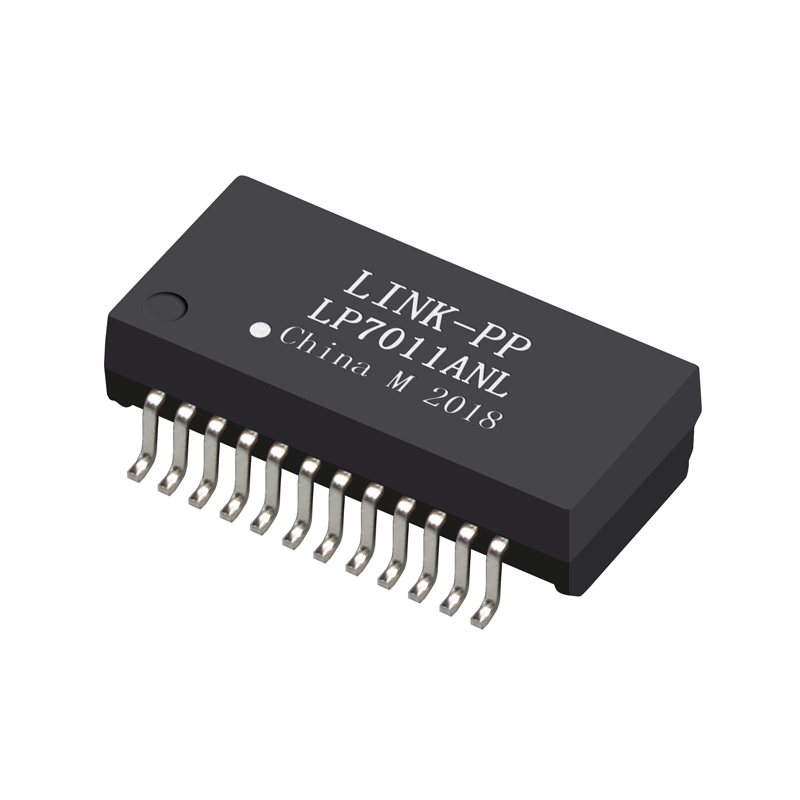

Product Image 2
📋 Technical Specifications
Parameter Value Details
Part NumberLP7011ANL
Pulse Part NumberXF-GH-002
Transformer TypeLan Transformer
Application-LanEthernet(PoE)
Number of PortsSingle Port
Speed10G Base-T
PackageTape & Reel
Cores per Port8
PIN number24
Mounting TypeSurface Mount
Temperature Range-40℃ TO +85℃
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C,S
OriginChina
🚚 Packing & Delivery

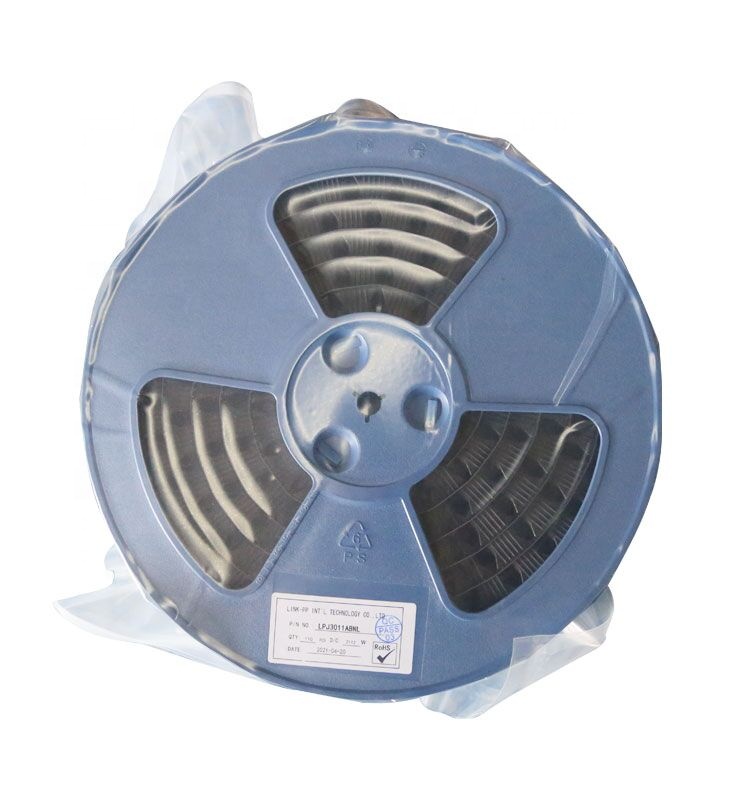

Packing Image
N.W/pcs: 0.004kg
Package Type: Reel
SPQ: 400pcs
Qty/Carton: 1600pcs
Carton Size: 36*35.5*23cm
G.W/Carton: 5.9kg
🔍 Product Display & Quality
💡 Frequently Asked Questions
1. What is the maximum data speed supported by the LP7011ANL transformer?
This transformer is designed for high-speed networking, supporting up to 10G Base-T Ethernet applications.
2. Can this component be used in Power over Ethernet (PoE) applications?
Yes, it is specifically optimized for Ethernet (PoE) applications, providing both data transmission and power support.
3. What is the operating temperature range for this LAN transformer?
It is built for durability with an industrial-grade operating temperature range of -40℃ to +85℃.
4. What is the standard packaging for bulk orders?
The product is supplied in Tape & Reel format, with 400pcs per reel and 1600pcs per master carton.
5. Is the LP7011ANL compatible with Surface Mount Technology (SMT)?
Yes, it features a Surface Mount (SMD) mounting type with 24 pins, making it ideal for automated PCB assembly.
6. What certifications do these magnetic components typically carry?
Our networking components are manufactured to meet high standards, including compliance with ISO9001, RoHS, REACH, CE, and UL requirements.
