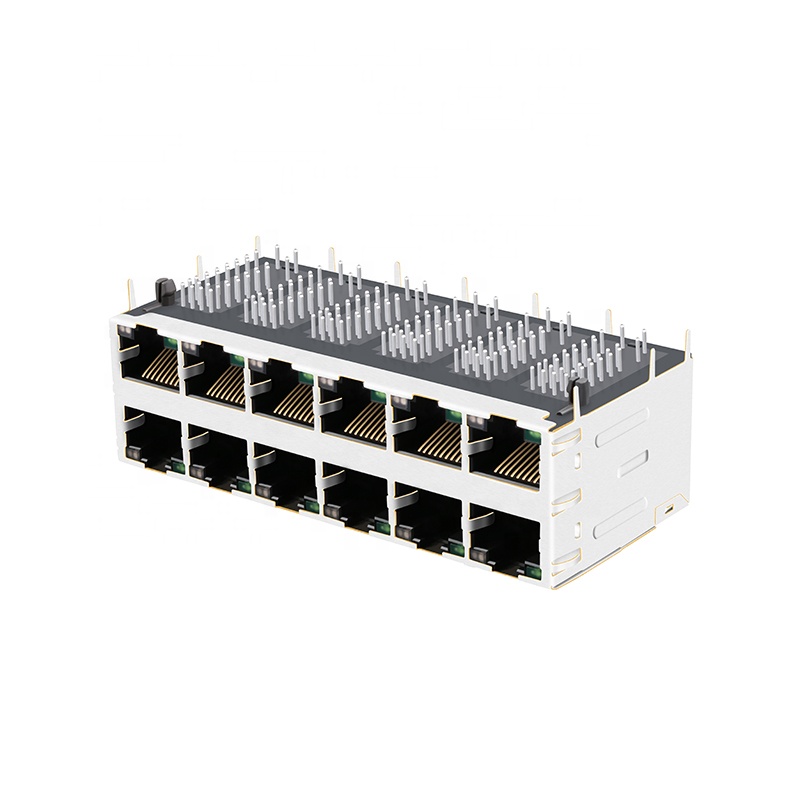

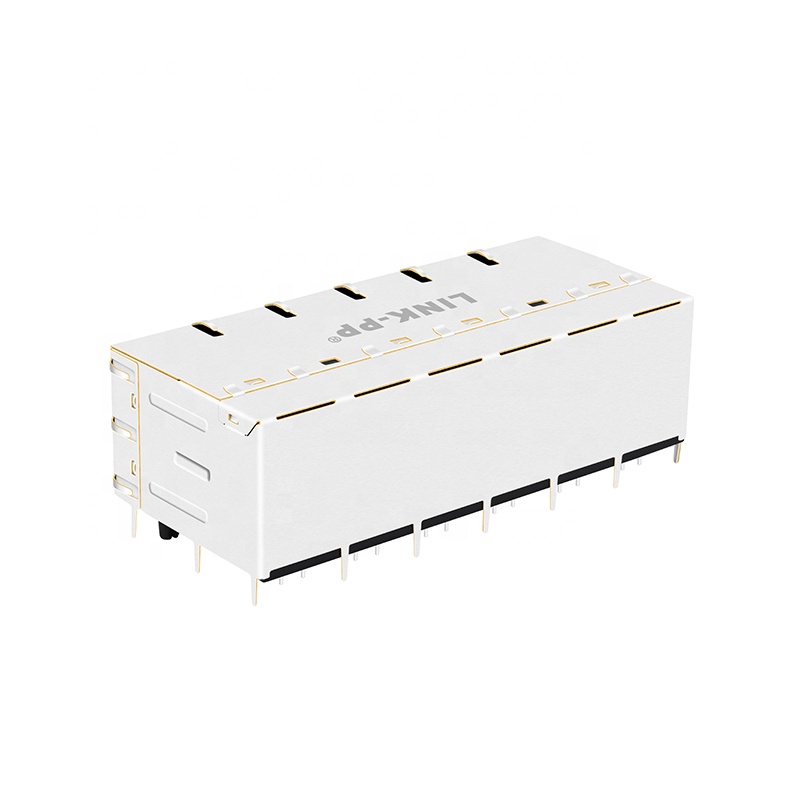

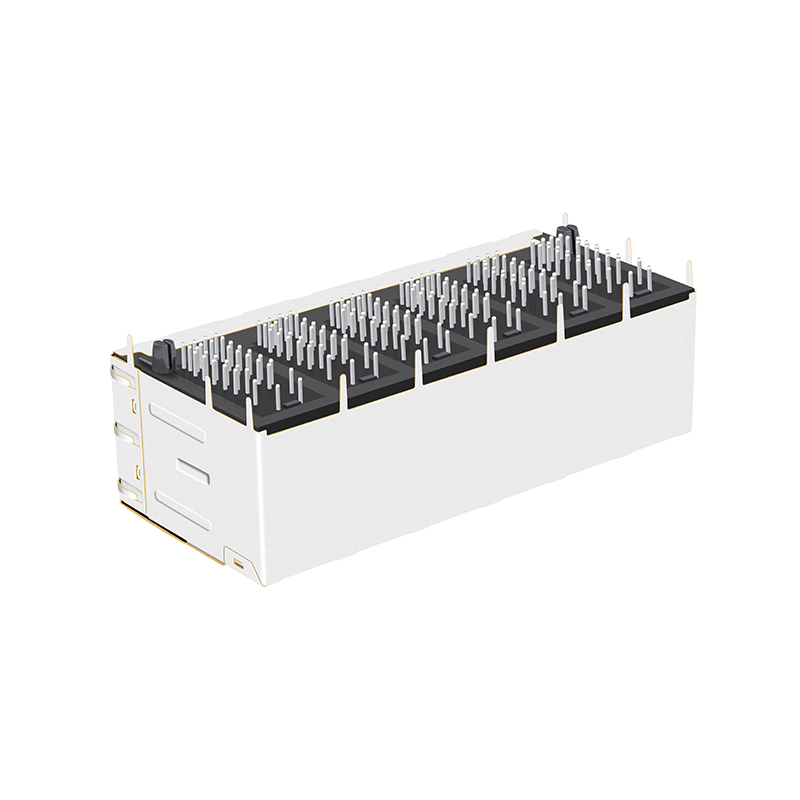

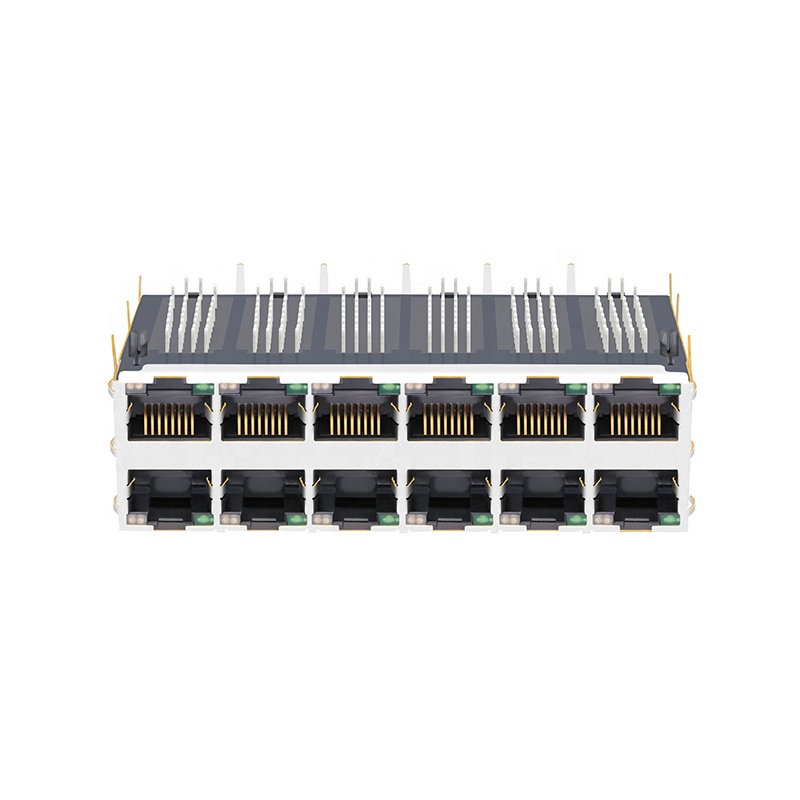

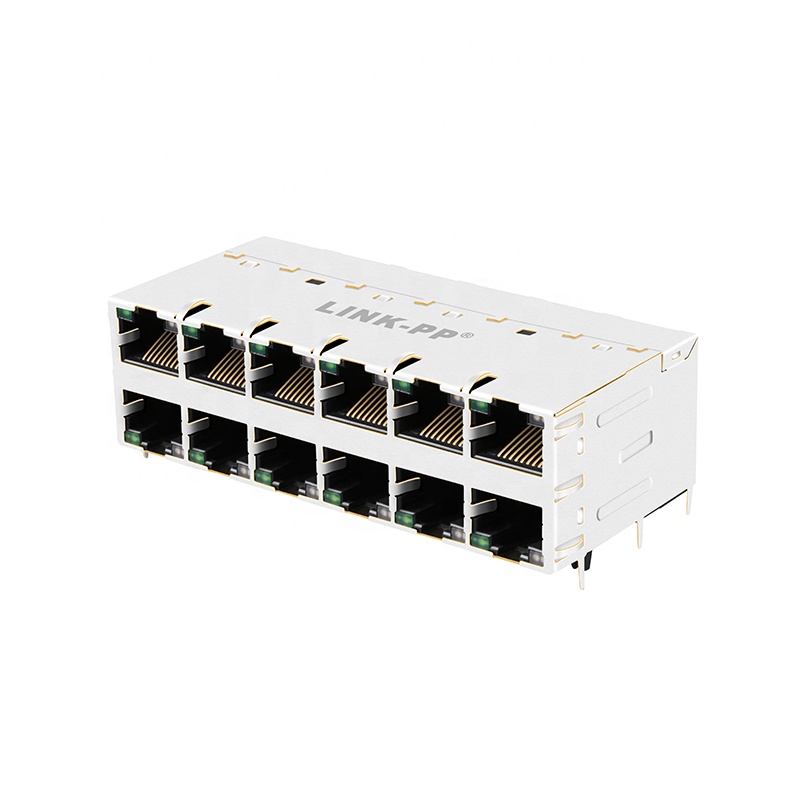

XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector

1 / 5

XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector

Send Inquiry

Product Description

XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector

Product Specifications

Item	RJ45 Female Connector
Compatible With	XFATM8-STACK12-4
Part Status	Active
Connector Type	Jack
Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet (Non-PoE)
Number of Ports	2x6 Port
Speed	10/100/1000 Base-T
Latch	Down/Up
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without/With
LED Option	Green/Yellow
PCB Material	FR4
PCB Retaining Post	T POST
Temperature Range	0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit	Yes
AutoMDIX	YES
Contact Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C

Manufacturing Excellence

Professional Magnetic Components Manufacturer

Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across 200 countries.

By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a world leader in Ethernet RJ45 connectors and LAN transformer solutions.

Frequently Asked Questions

Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer free samples to test quality, though shipping fees are generally covered by the customer.

What is your delivery time?

Items in stock are ready to ship immediately. For mass production, the typical lead time is 15-30 days.

What after-service do you offer?

We provide a one-year guarantee period and offer technical support online 24 hours a day.

Can you accept OEM/ODM orders?

Yes, we welcome OEM and ODM inquiries. Please contact us to discuss your specific requirements in detail.

What is your manufacturing advantage?

With over 19 years of production experience, we have established long-term partnerships with major industry leaders and focus on high-reliability networking solutions.
