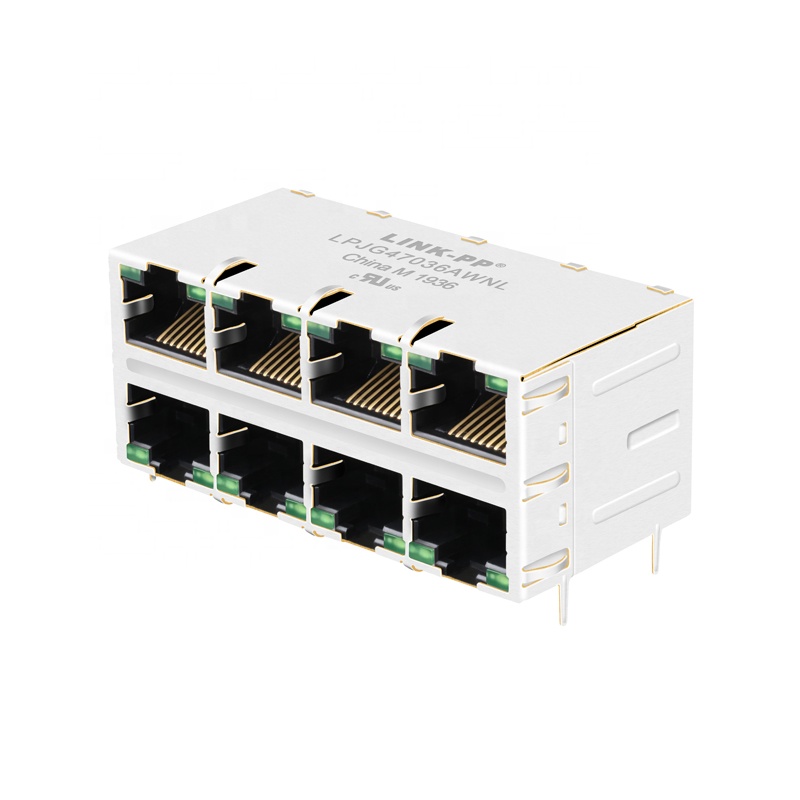

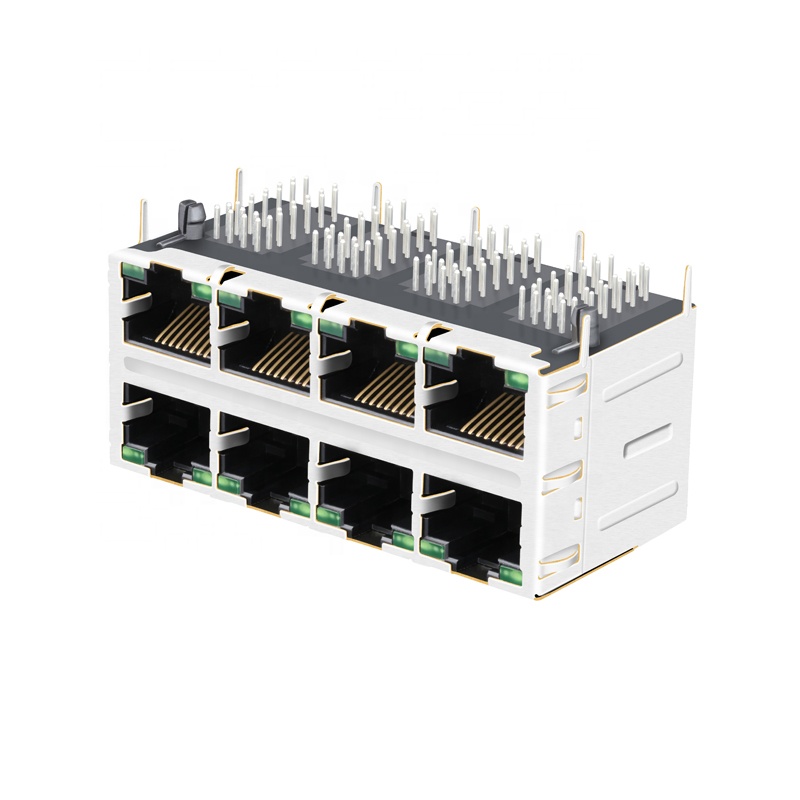

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector
| Part Number |
LPJG47036AWNL |
| Application-LAN |
ETHERNET (POE) |
| AutoMDIX |
YES |
| Bst Circuit |
YES |
| Configuration RX/TX |
T, C / T, C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port |
8 |
| LED Option |
GREEN / GREEN |
| Latch |
UP/DOWN |
| Number of Ports |
2X4 |
| PCB Mount Angle |
SIDE ENTRY |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Shielding |
Shielded with EMI Tabs |
| Speed |
2.5G BASE-T |
| Temperature Range |
-20°C to +70°C |
◈
Preferred Supplier for leading global electronics and networking corporations.
◈
Integrated solutions featured on prominent development boards.
Why Choose Us
World Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
✓ ISO 9001:2008 Certified
✓ UL Certification
✓ Reach & RoHS Compliance
✓ Active Environmental Policy
100% Guaranteed Quality
✓ Manufactured Under Strict Controls
✓ 100% Tested (Not Just Batch Tested)
✓ OEM Services for Major International Brands for 9 Years
✓ Quality Guarantee: 6 Years
Competitive Price And Service
✓ More Competitive Price Than Major Market Competitors
✓ Delivery Time: 2-3 Weeks After Orders
✓ Free Samples Available
✓ Custom Design Solutions for Specific Requirements
Frequently Asked Questions
1. What is the maximum data rate supported by this RJ45 connector?
This connector supports high-speed 2.5G Base-T Ethernet applications, suitable for modern networking requirements.
2. Does this connector support Power over Ethernet (PoE)?
Yes, it is specifically designed for PoE applications, allowing both data and power to be transmitted through a single Cat5e cable.
3. What is the operating temperature range?
The connector is rated for industrial environments with an operating temperature range of -20°C to +70°C.

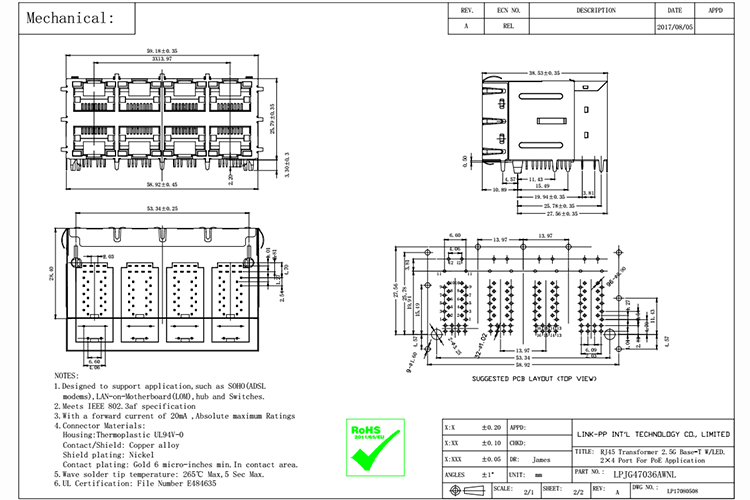

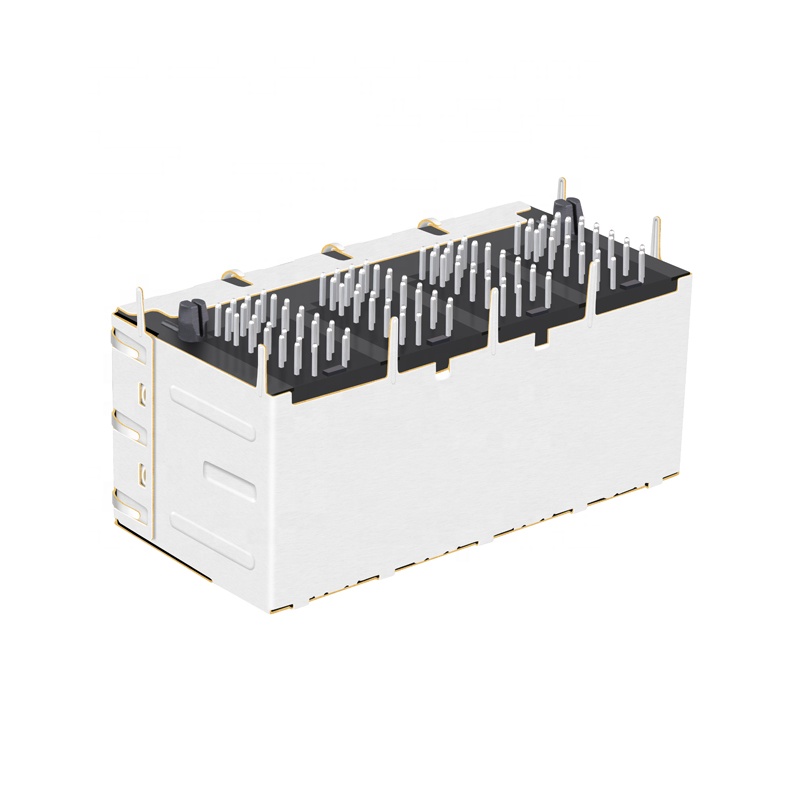

4. How is the connector mounted to the PCB?
It uses Through-Hole Technology (THT) soldering with a side-entry (right angle) mount configuration.
5. Is the product compliant with environmental standards?
Yes, it is RoHS compliant and meets international environmental and safety standards including UL certification.

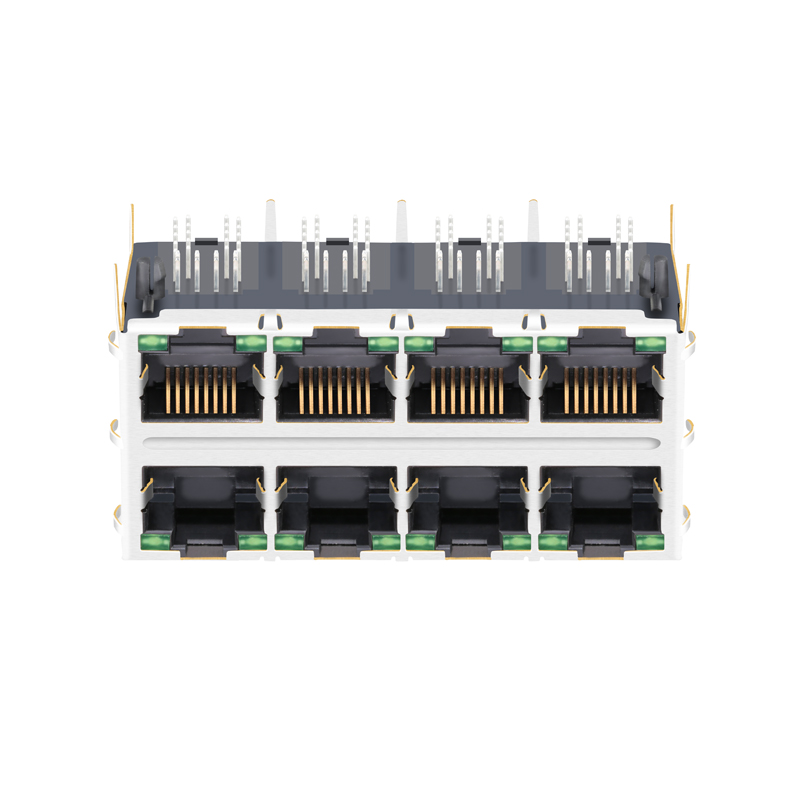

6. What is the configuration of the ports?
This specific model features a 2x4 port layout (two rows of four ports) in a single integrated housing.
