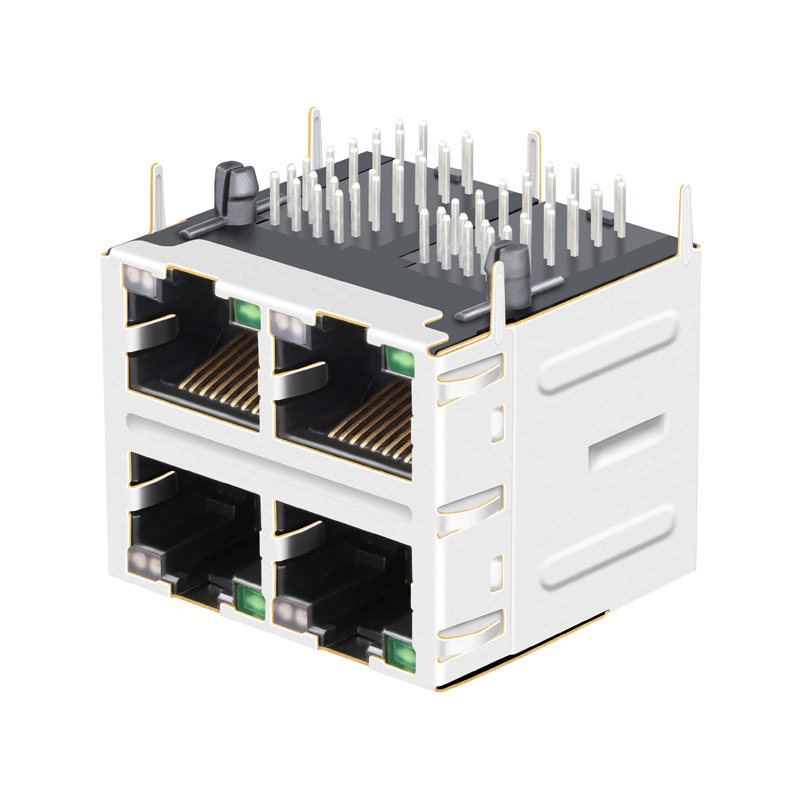

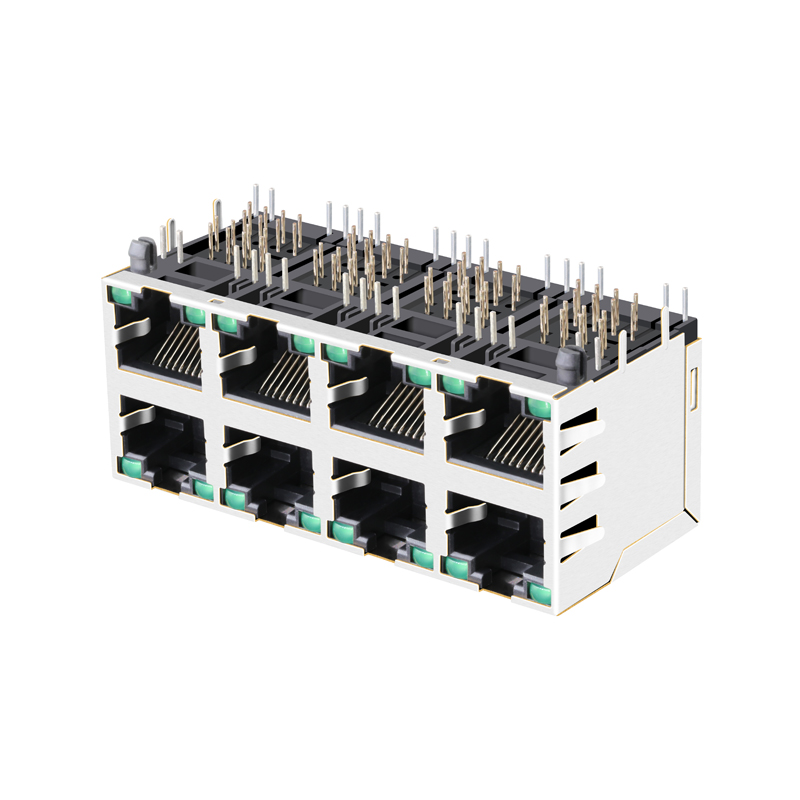

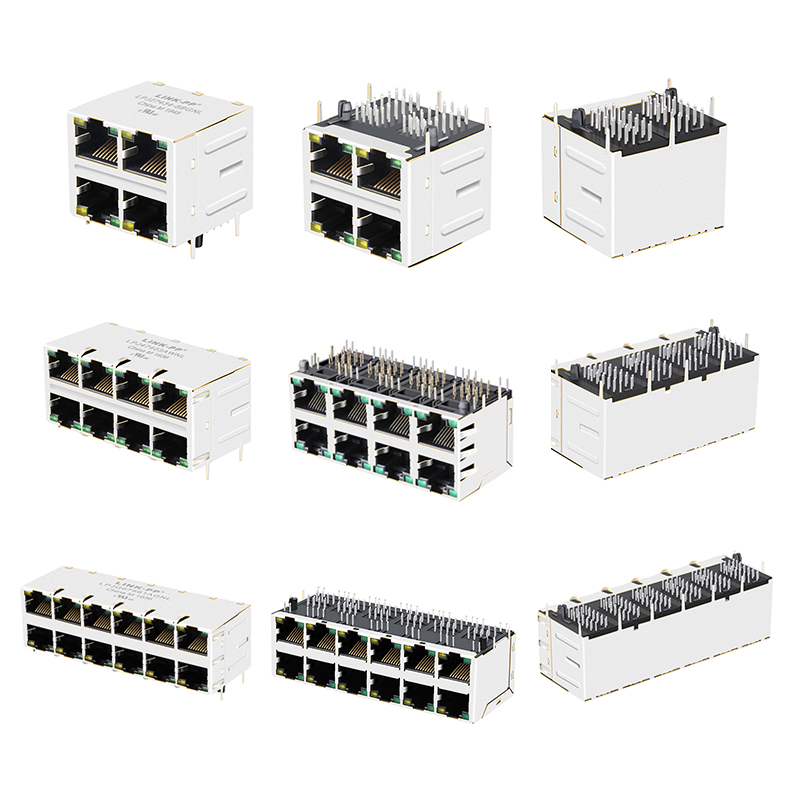

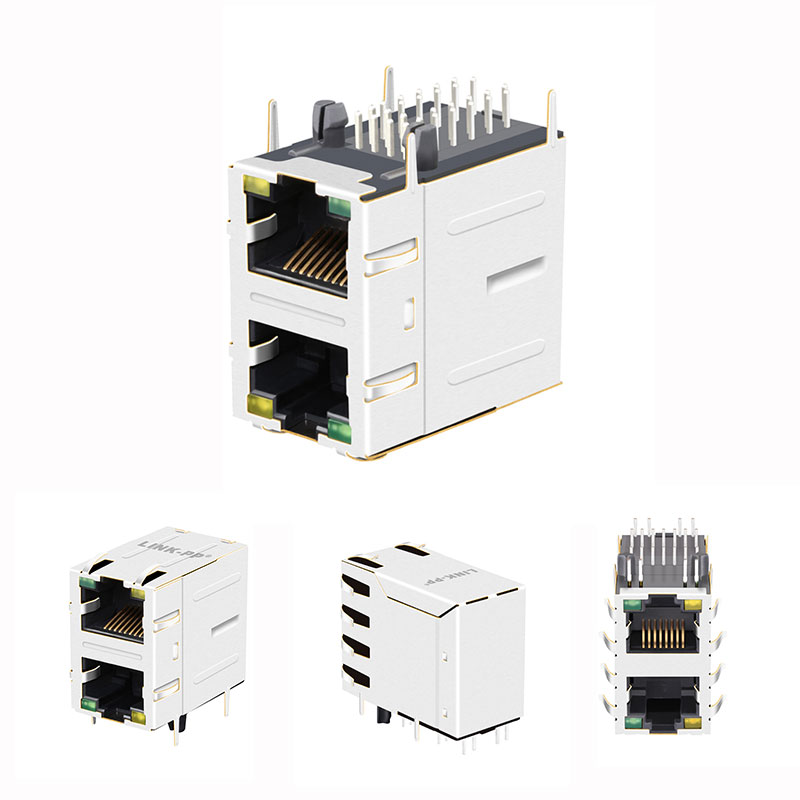

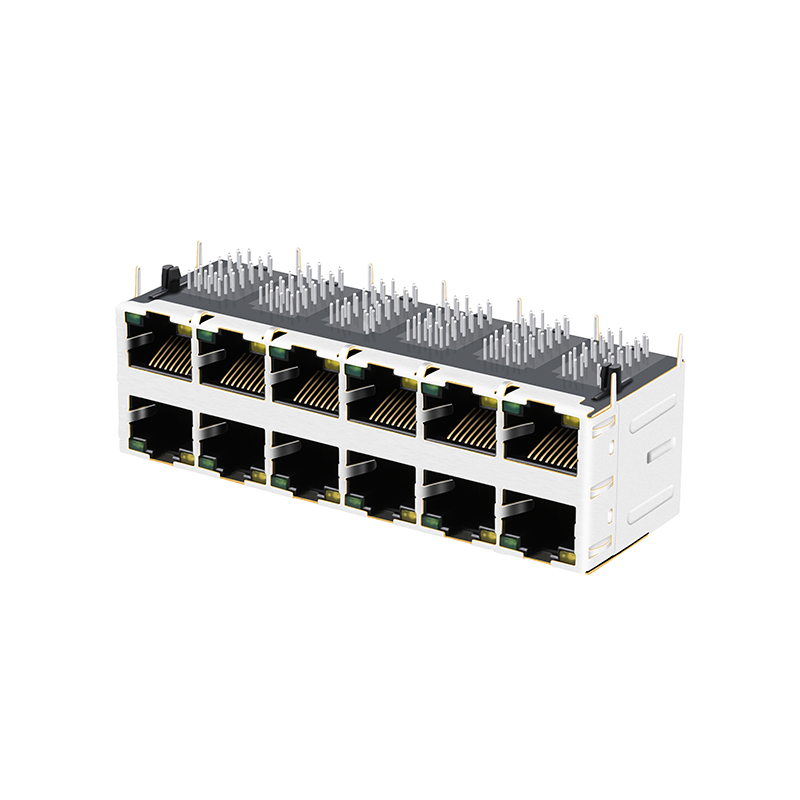

2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
1 / 5
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack

2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack

Send Inquiry

Product Description

Product Description

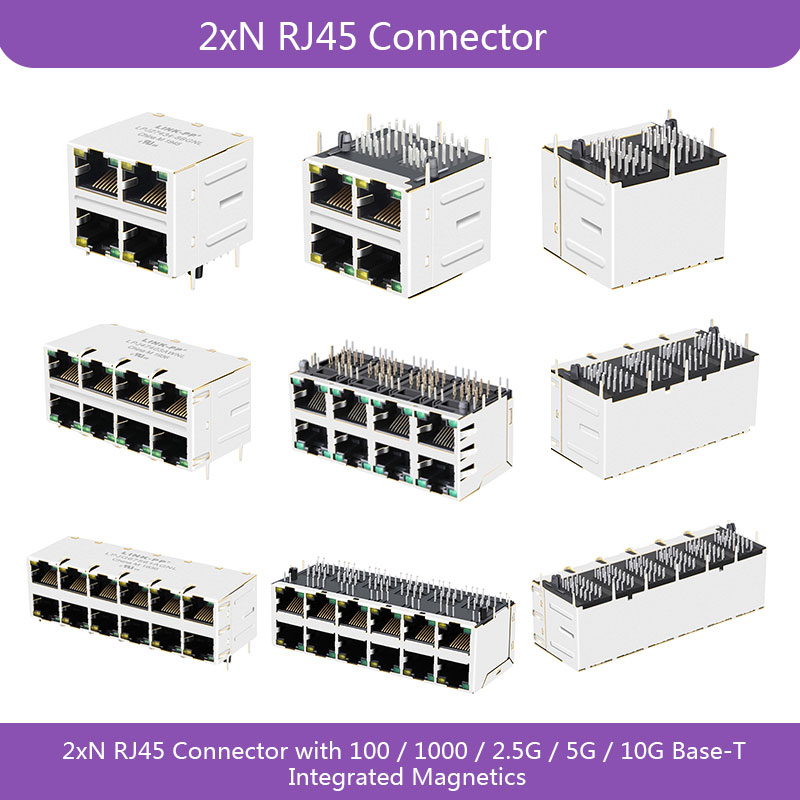

RJ45 Connector Characteristics
Key Characteristics
✔ RJ45 Connector with integrated transformer / common mode choke.
✔ Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s.
✔ Available in SMT, THT and THT with USB.
✔ Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt.
✔ HPLE products: Improved Common Mode Rejection due to additional NiZn cores.
Technical Specifications
Model NumberRJ45 Filtered Connectors
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet(PoE/Non_PoE)
Speed10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorYellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack4/6/8/12
ShieldingShielded, Emi Finger
Number of Ports2x1 2x2 2x4 2x6 2x8 Port
FeaturesBoard Guide
Tab DirectionDown/Up
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C / -40°C ~ +85°C
Packing & Delivery
Standard Packaging: Tray Information
Carton Size: 32*30*31cm
G.W./Carton: 8.5kg
Qty/Carton: 1200pcs
SPQ: 50pcs
N.W/pcs: 0.007kg
Packing details
Product & Facility Gallery
Frequently Asked Questions
Q1 How do you guarantee the quality of your RJ45 connectors?
We maintain strict quality control through a pre-production sample before mass production and a final comprehensive inspection before every shipment to ensure all products meet our high standards.
Q2 What specific products can we purchase from your range?
Our core product line includes RJ45 Magnetic connectors, LAN transformers, RJ11 Connectors, standard RJ45 Connectors, and SFP modules for high-speed networking.
Q3 What are your manufacturing capabilities?
We have extensive experience in manufacturing RJ45 connectors and LAN transformers. Our production capacity is highly scalable, supported by a large professional staff to handle high-volume global demands.
Q4 Which international standards do your products comply with?
Our products are fully compliant with major international standards including SGS, ISO9001:2008, UL, REACH, and CE, ensuring safety and performance across global markets.
Q5 What delivery terms and payment methods are accepted?
We offer flexible shipping terms including FOB, CFR, CIF, EXW, DDP, and DDU. We accept a wide range of payment currencies (USD, EUR, JPY, CNY, etc.) via T/T, L/C, Credit Card, and PayPal.
Q6 Can you support Power over Ethernet (PoE) applications?
Yes, our integrated RJ45 connectors support Power over Ethernet (PoE) up to 50 Watt and are designed to handle speeds up to 10 Gbit/s, meeting IEEE 802.3af/at/bt standards.
