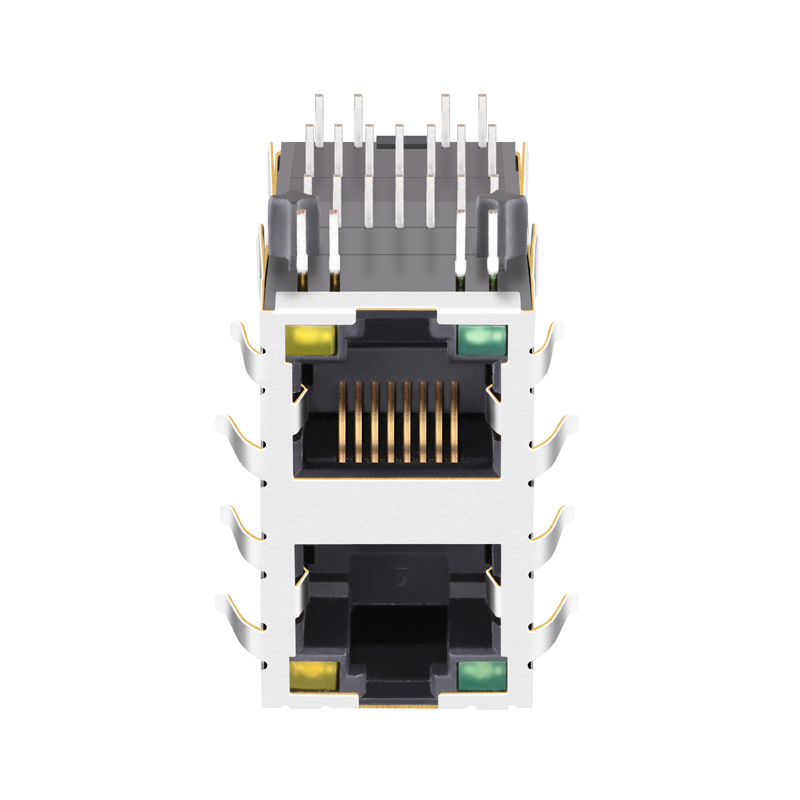

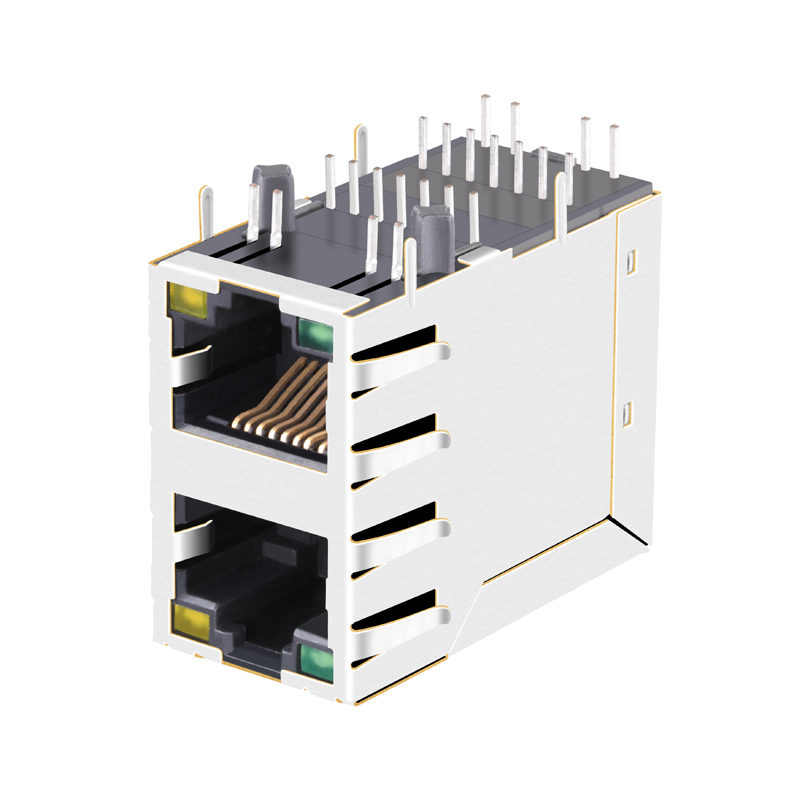

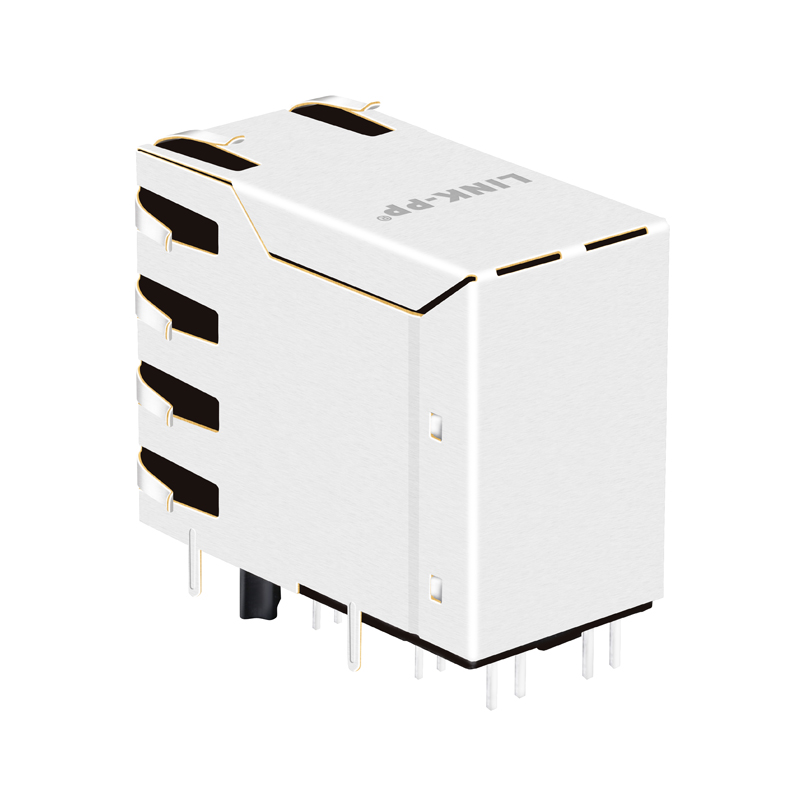

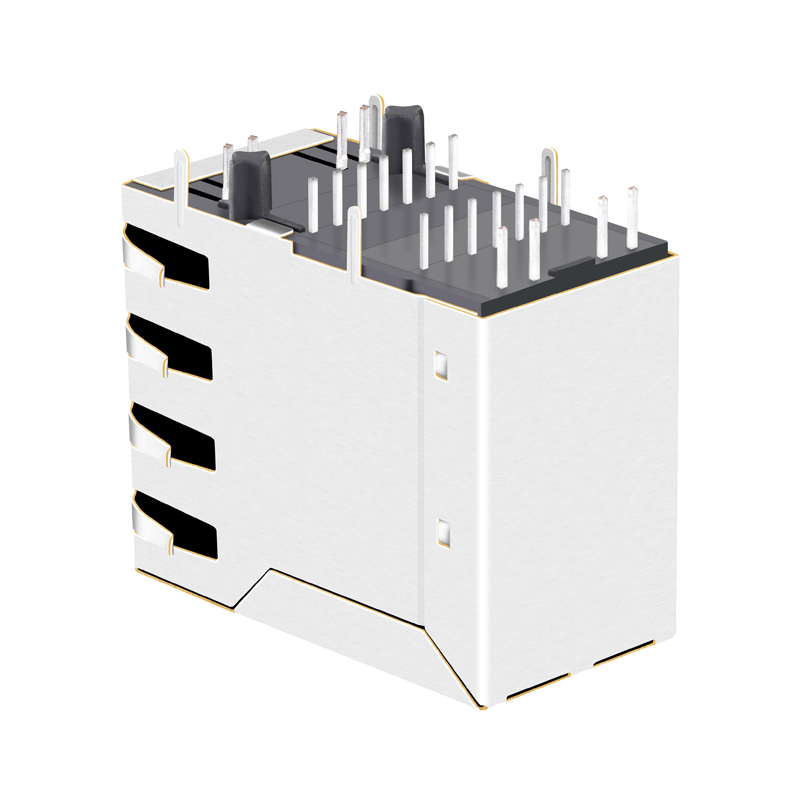

China Manufactures 2x1 Port Shielded RJ45 Modular Jack

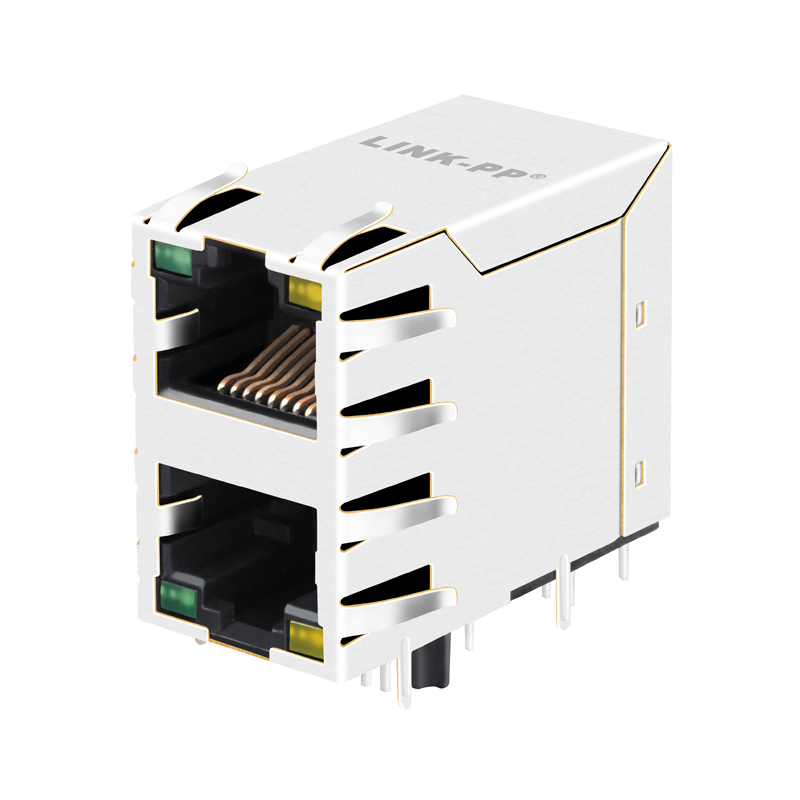

| 2x1 Port RJ45 Connector 10/100 Base-t Integrated Magnetics |
| Part Number | LPJ17202CNL |
| Cross Reference | MIC24A10-0101W-LF3 / 7499051002 |
| Application-Lan | ETHERNET (Non PoE) |
| AutoMDIX | YES |
| Speed | 10/100 Base-T |
| Temperature Range | -40℃ TO 85℃ |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| LED Option | Without LED |
| Latch Direction | TAB DOWN / Up |
| PCB Mount Angle | SIDE ENTRY |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES |
| Shield EMI Tabs | With Tabs |
| Turns Ratio RX/TX | 1CT:1CT |
Why Choose Our RJ45 Solutions
Professional Certification
- ISO 9001:2008 Certified
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Quality Guarantee
- Manufactured Under Strict Controls
- 100% Fully Tested (Not Just Batch Tested)
- Preferred Supplier for Top Tier Tech Companies
- Long-term OEM Experience
- Quality Guarantee: 6 Years
Competitive Service
- More Competitive Pricing than Major Brands
- Fast Delivery Time: 2-3 Weeks
- Free Samples Available for Testing
- Custom Design for Unique Requirements
- Efficient Global Logistics
Frequently Asked Questions (FAQ)
What is a 2x1 Port Shielded RJ45 Modular Jack?
It is a dual-port connector designed for Ethernet applications, featuring two stacked or adjacent ports in a single housing with metal shielding to prevent electromagnetic interference (EMI).
Does this connector include integrated magnetics?
Yes, this model features 10/100 Base-T integrated magnetics, which simplifies PCB design by incorporating the necessary transformers and filters directly into the jack.
Is this product compatible with high-temperature environments?
Absolutely. It is designed to operate reliably within a wide temperature range from -40°C to 85°C, making it suitable for industrial applications.
What are the benefits of the EMI shielding tabs?
The EMI tabs provide a secure grounding connection between the connector and the chassis, significantly reducing noise and improving signal integrity for high-speed data transmission.
Can I request a custom gold plating thickness?
Yes, we offer multiple plating options including 6u", 15u", and 30u" gold plating on the contact mating area to meet different durability and conductivity requirements.
Is the connector RoHS compliant?
Yes, all our 2x1 Port RJ45 Modular Jacks are fully RoHS compliant, adhering to international environmental standards for hazardous substances.
