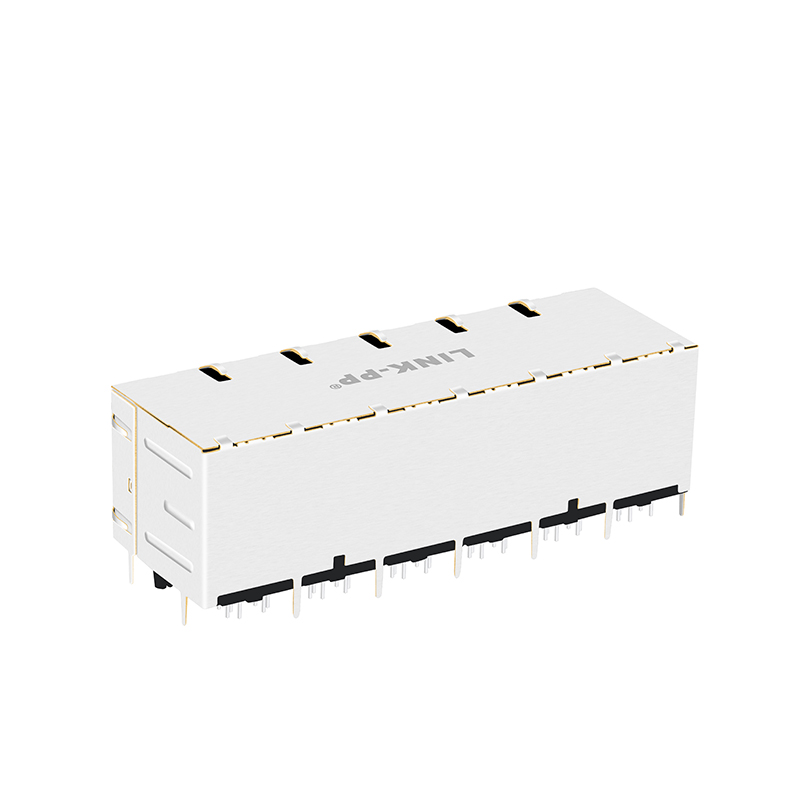

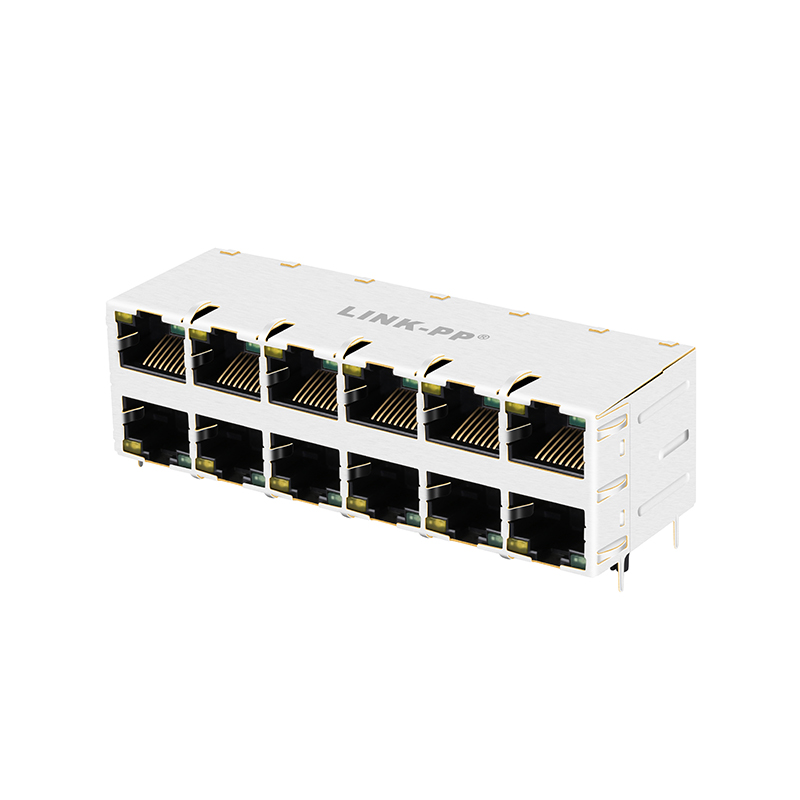

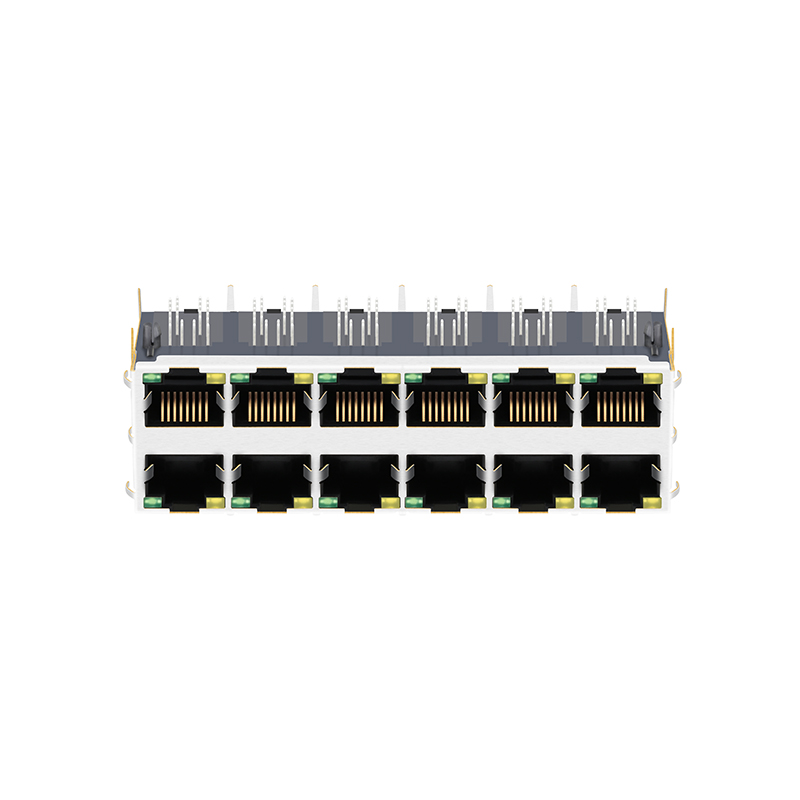

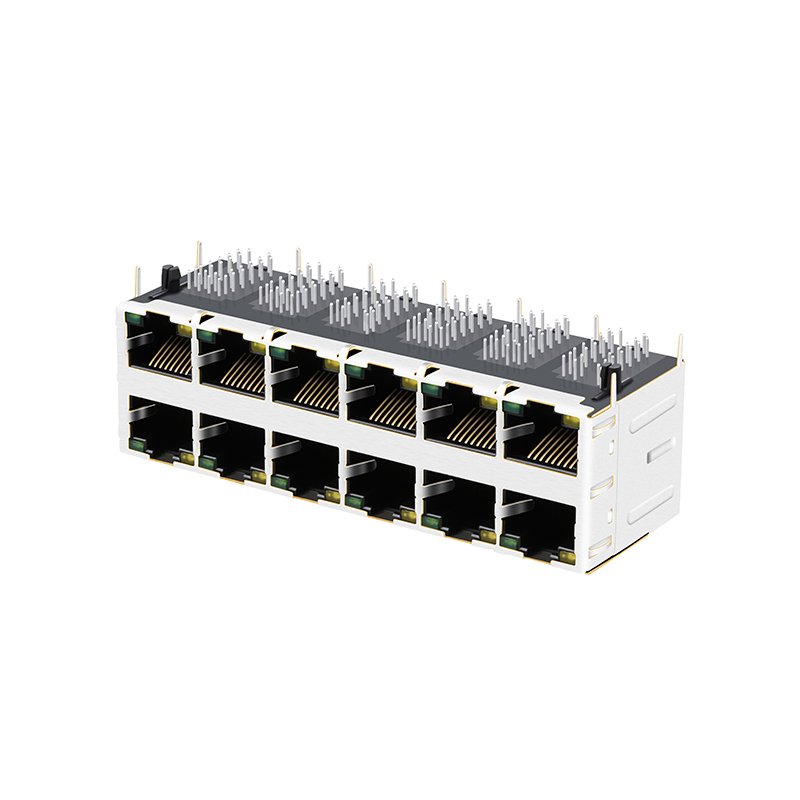

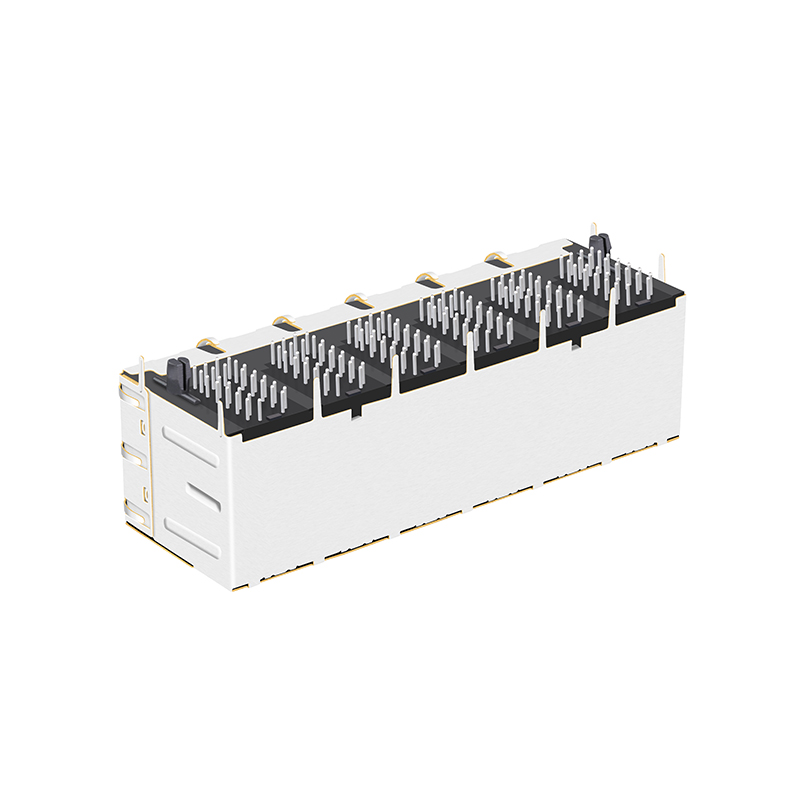

10/100/1000 Base-T RJ45 Stacked Jack 2x6 port RJ45 Jack RJGE-12M6170DJP

Send Inquiry

Product Description

Part Number	RJGE-12M6170DJP
Application-LAN	ETHERNET (NON POE)
AutoMDIX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	WITH/WITHOUT LEDS
Latch	UP/DOWN
Number of Ports	2X6
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES (RoHS-5 WITH LEAD IN SOLDER EXEMPTION)
Search	YES
Shield EMI Tabs	WITH OR WITHOUT
Speed	10/100/1000/10G BASE-T
Temperature	0 TO 70°C / -40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Why Choose Our Solutions

Leading Global Supplier of Integrated RJ45 Connectors and Discrete Magnetic Transformers

📜Professional Certification

🛡️100% Quality Guarantee

💰Competitive Price & Service

Preferred Supplier for Industry-Leading Technology Corporations

Frequently Asked Questions

Q1 What is the maximum data transfer speed supported by this RJ45 jack?

This RJ45 stacked jack supports multiple speeds including 10/100/1000 Base-T and is compatible with up to 10G Base-T applications.

Q2 Is this connector compatible with Power over Ethernet (PoE) applications?

No, the RJGE-12M6170DJP is designed for non-PoE Ethernet applications.

Q3 What are the operating temperature options for this component?

The component is available in two temperature ranges: standard 0 to 70°C and industrial grade -40 to 85°C.

Q4 What gold plating thicknesses are available for the contact mating area?

We offer multiple plating options including Gold 6u", 15u", or 30u" to meet different durability and conductivity requirements.

Q5 Does the jack come with integrated LEDs?

This model offers flexibility and can be ordered either with or without integrated LEDs based on your PCB design requirements.

Q6 Are these RJ45 jacks RoHS compliant?

Yes, they are RoHS compliant (RoHS-5) with lead in solder exemption, ensuring environmental standards are met.
