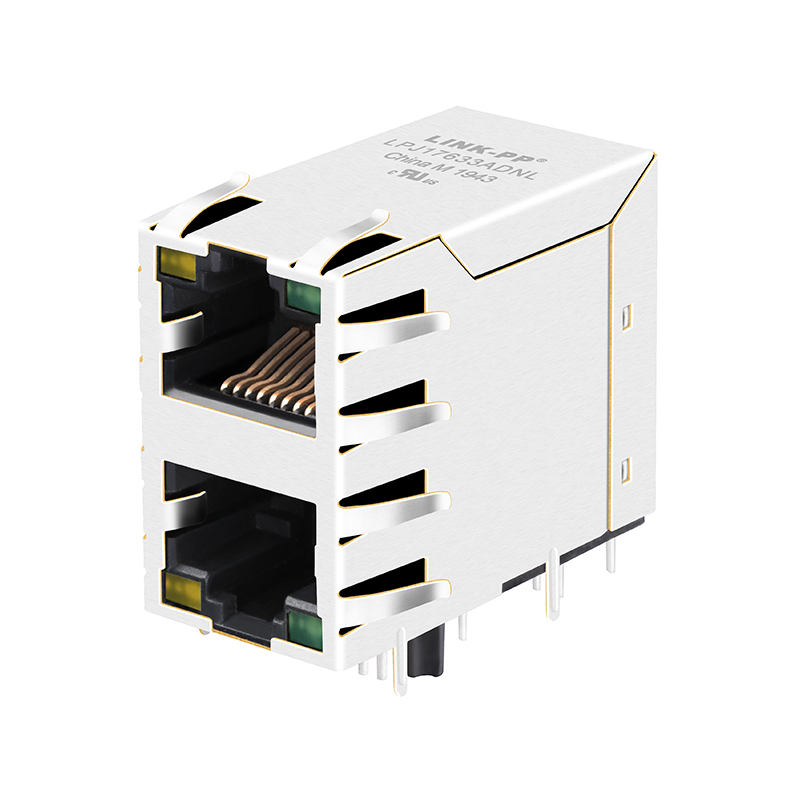

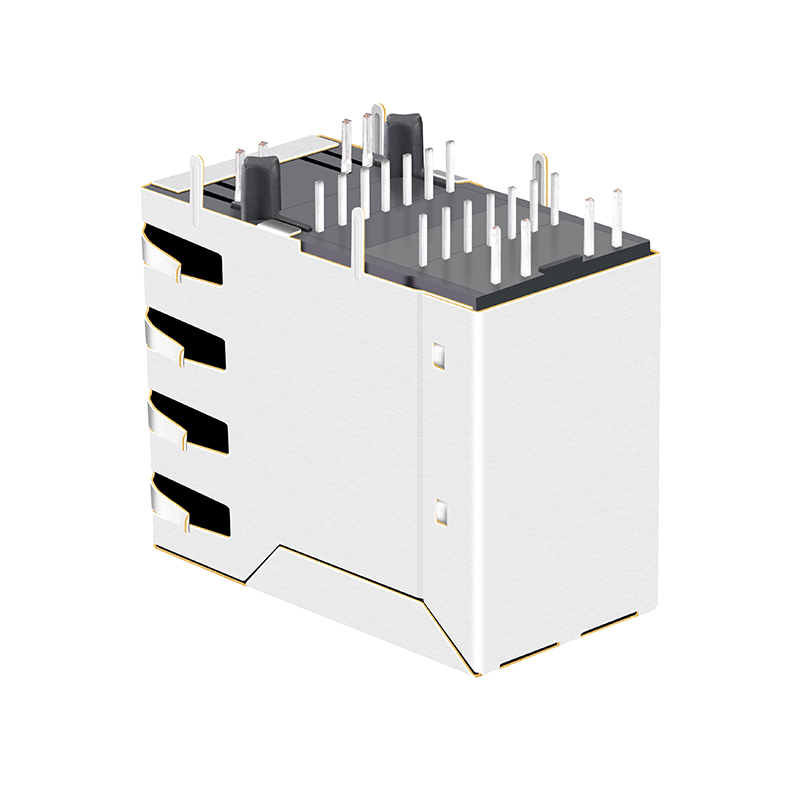

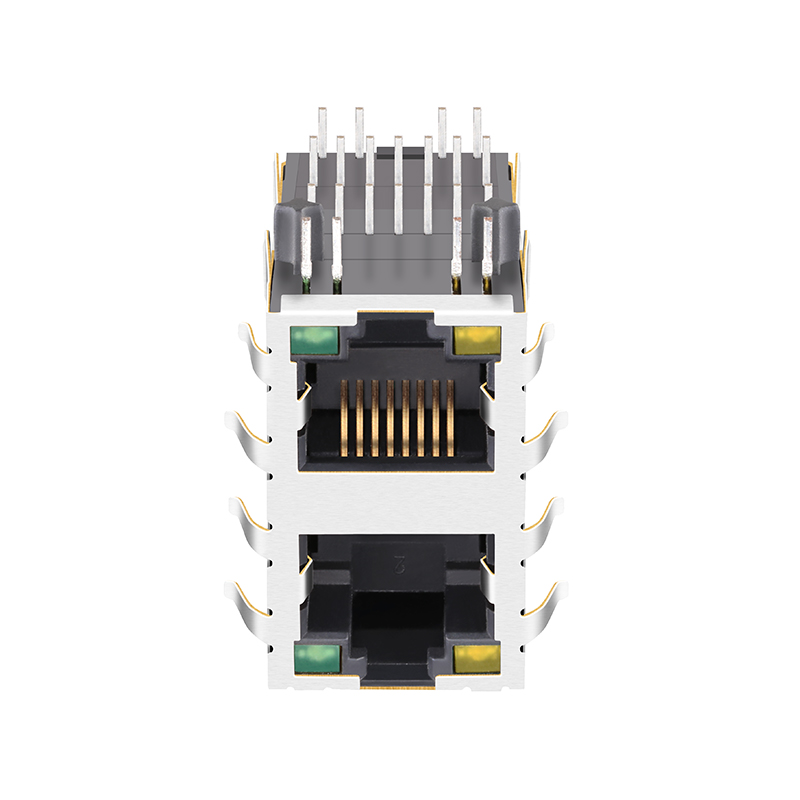

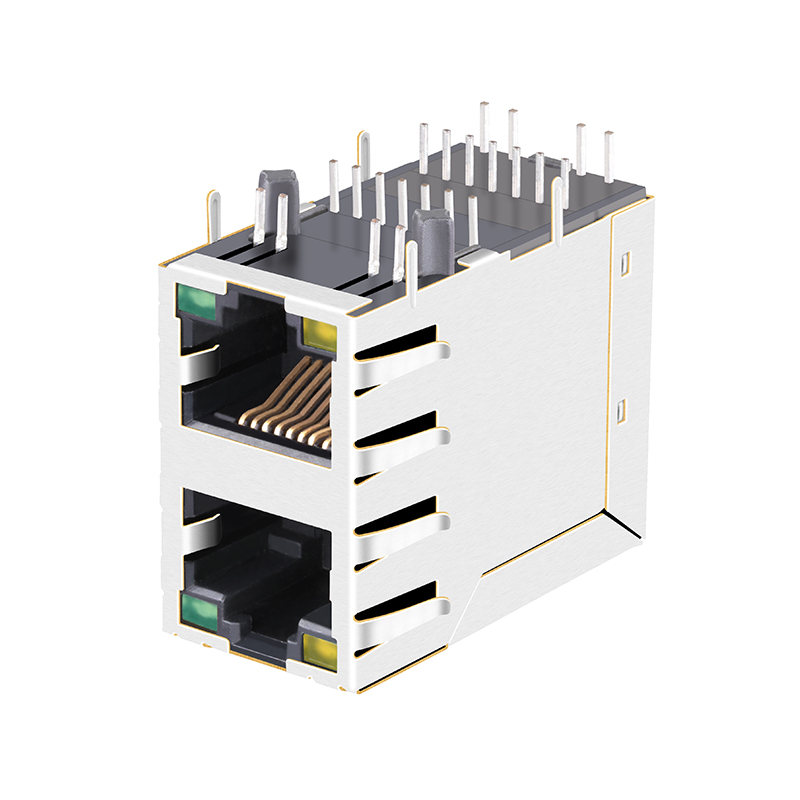

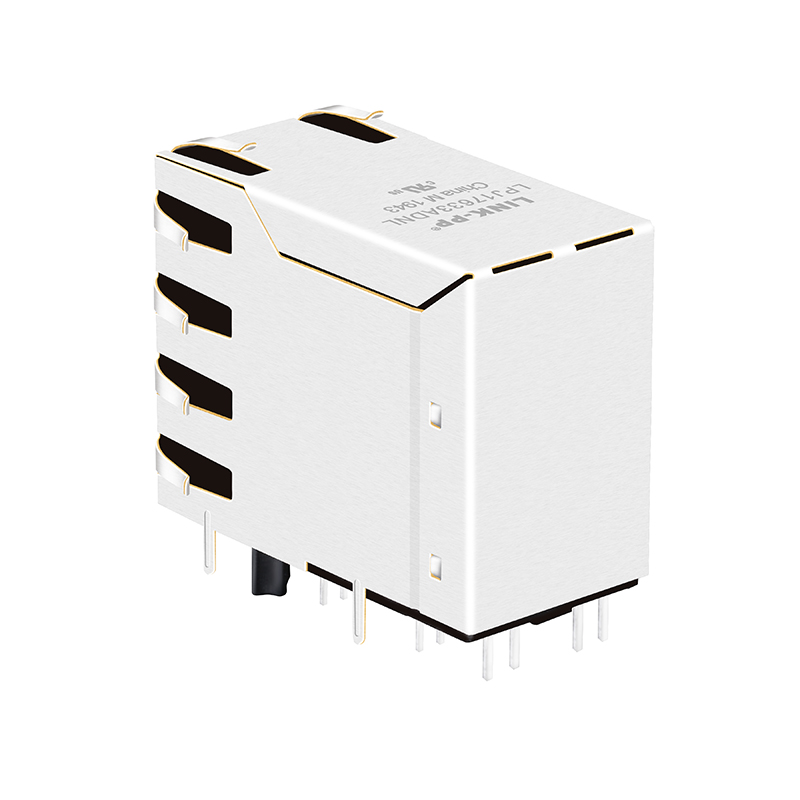

0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack

Send Inquiry

Product Description

Part Number	0845-2D1T-H5 / 0845-2D1T-S4 / RM3-ZZ-0020
Application-LAN	ETHERNET (NON PoE)
AutoMDIX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	Yellow/Green LEDS
Latch	UP/Down
Number of Ports	2x1 Port
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Shield EMI Tabs	With
Speed	10/100 Base-T Magnetics
Temperature	-40 TO 85°C / 0 TO 70°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Why Choose Us

Frequently Asked Questions

1. What is the transmission speed of this RJ45 modular jack?

This connector supports 10/100 Base-T Magnetics, suitable for standard Ethernet applications.

2. Does this part support Power over Ethernet (PoE)?

No, this specific part is designed for non-PoE Ethernet applications.

3. What color are the integrated LEDs?

The modular jack comes with integrated Yellow and Green LEDs for status indication.

4. What is the operating temperature range for this connector?

The connector is designed to operate in temperatures ranging from -40 to 85°C or 0 to 70°C, depending on the specific environment.

5. Is the product RoHS compliant?

Yes, it is RoHS-5 compliant with lead in solder exemption, following active environmental policies.

6. What is the contact plating material used?

The contact mating area features high-quality Gold plating available in 6u", 15u", or 30u" thicknesses.
