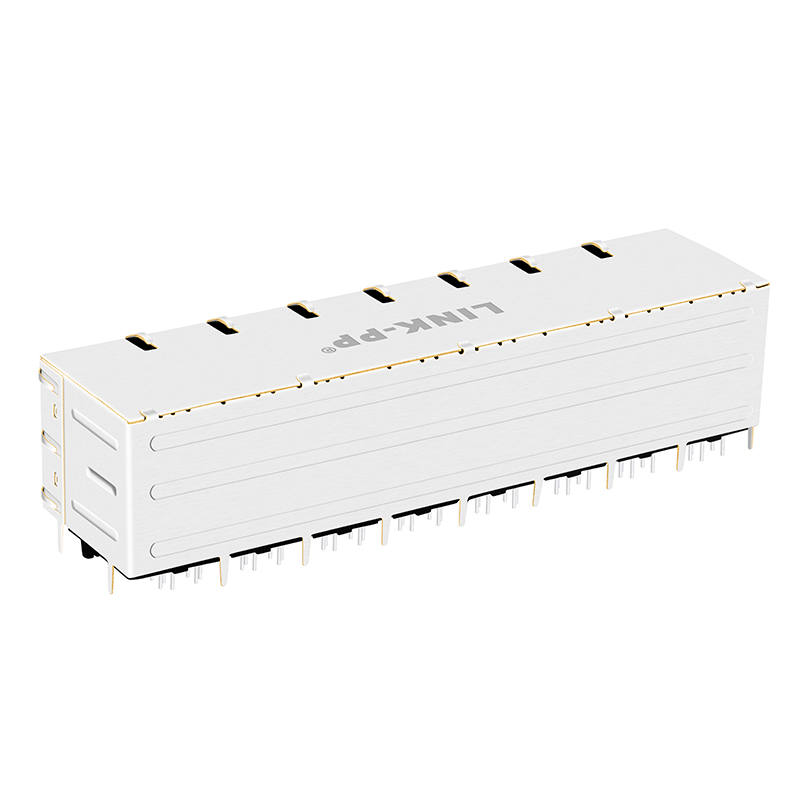

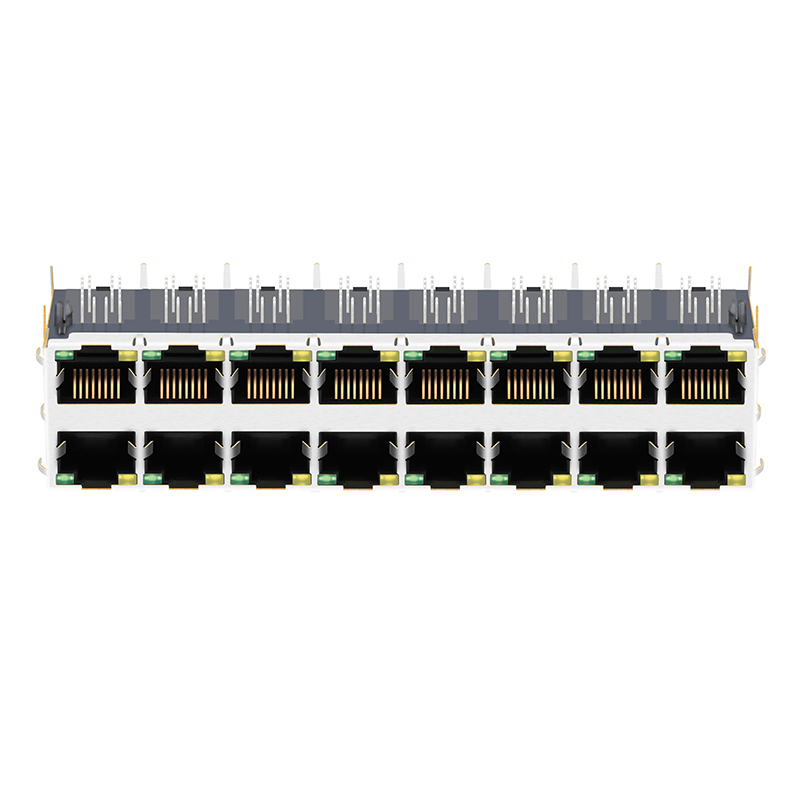

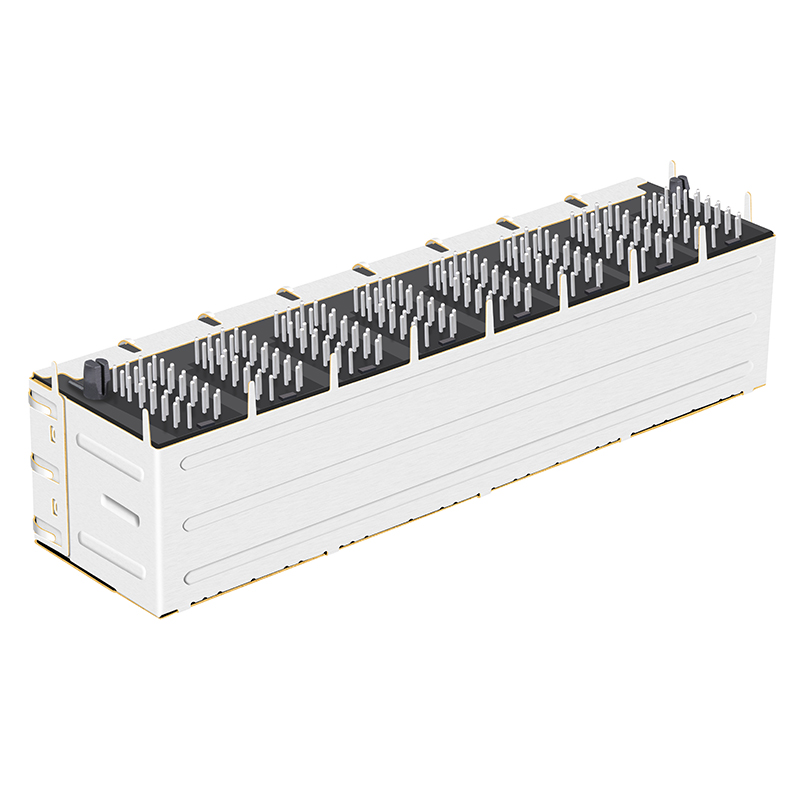

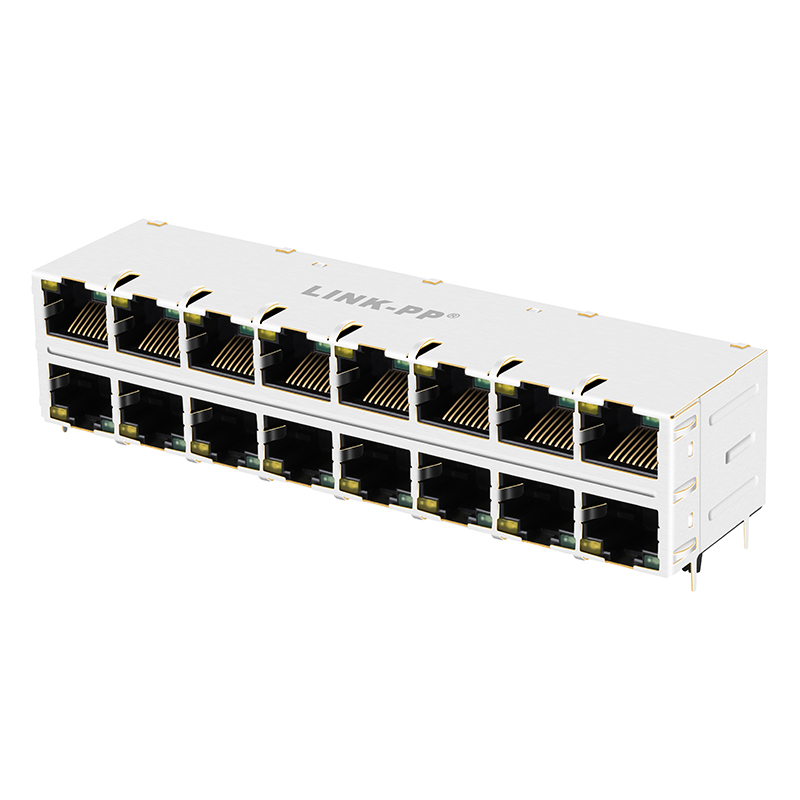

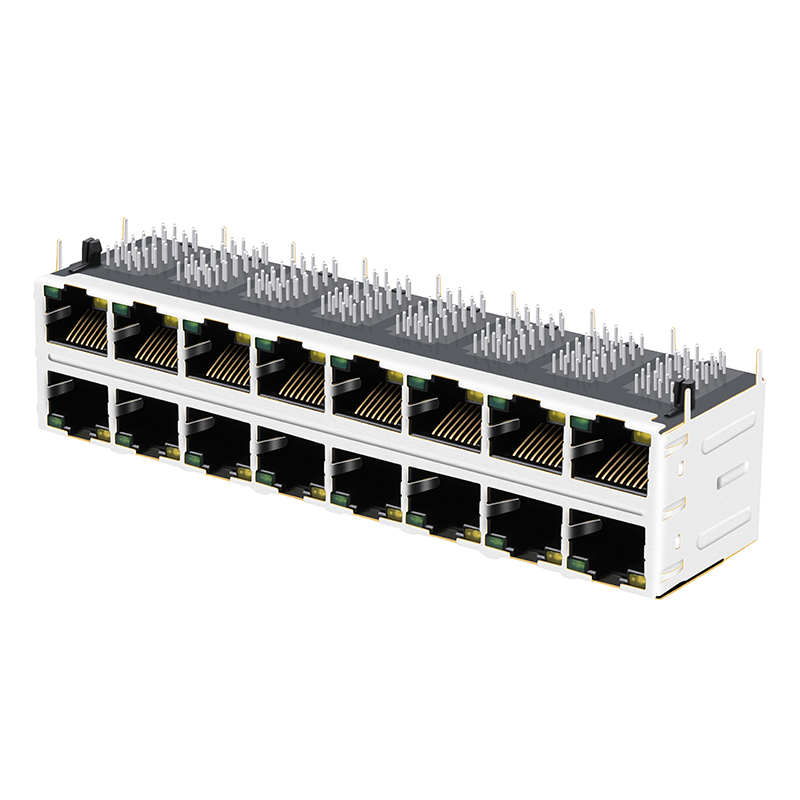

Multiple Port RJ45 Modular Jacks 0854-2X8R-GK-F
🔹 Products Description
| Item | RJ45 Female Connector |
| Compatible With | 0854-2X8R-GK-F |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 2x8 Port |
| Speed | 10/100/1000 Base-T |
| Latch | Down/Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without/With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ / -40℃ TO 85℃ |
| Bst Circuit | Yes |
| AutoMDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
⚙️ Technical Specifications & Dimensions
🏢 Company Profile
Established in 1997, the company is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading Ethernet RJ45 connector and LAN transformer company.
❓ Frequently Asked Questions
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we offer free samples for quality testing. The customer is responsible for the shipping fees.
What is your typical delivery time?
Stock items are ready to ship immediately. For mass production, the delivery time ranges from 15 to 30 days.
What after-sales service and support do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Do you accept customized OEM/ODM orders?
Yes, we accept OEM/ODM orders. Please contact us to discuss your specific technical requirements.
What are your core advantages in this industry?
With over 19 years of production experience, we have established long-term partnerships with global industry leaders and maintain high quality standards.
