Dynafiber
Dynafiber

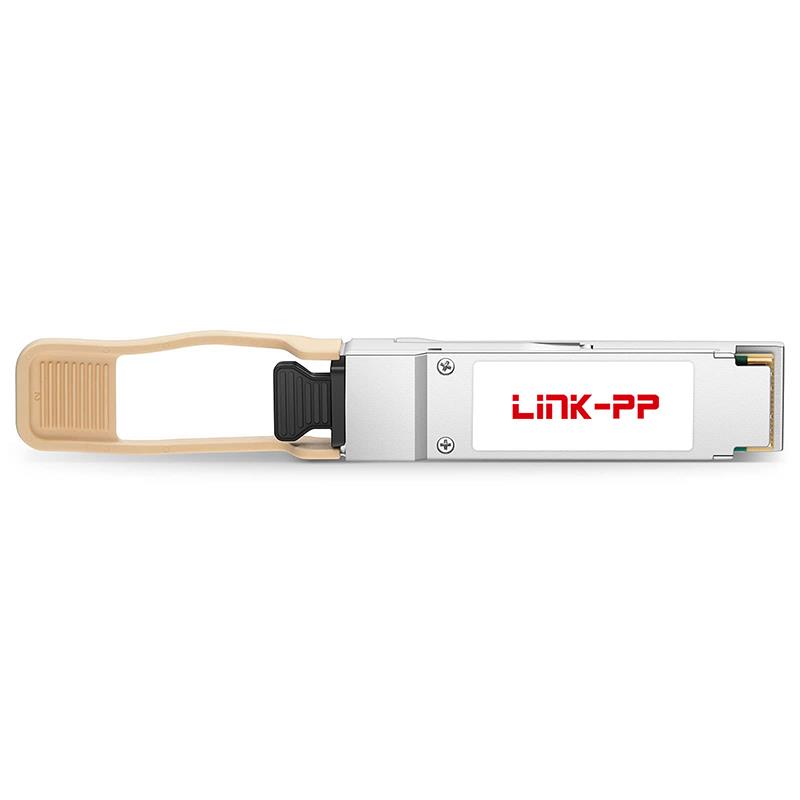

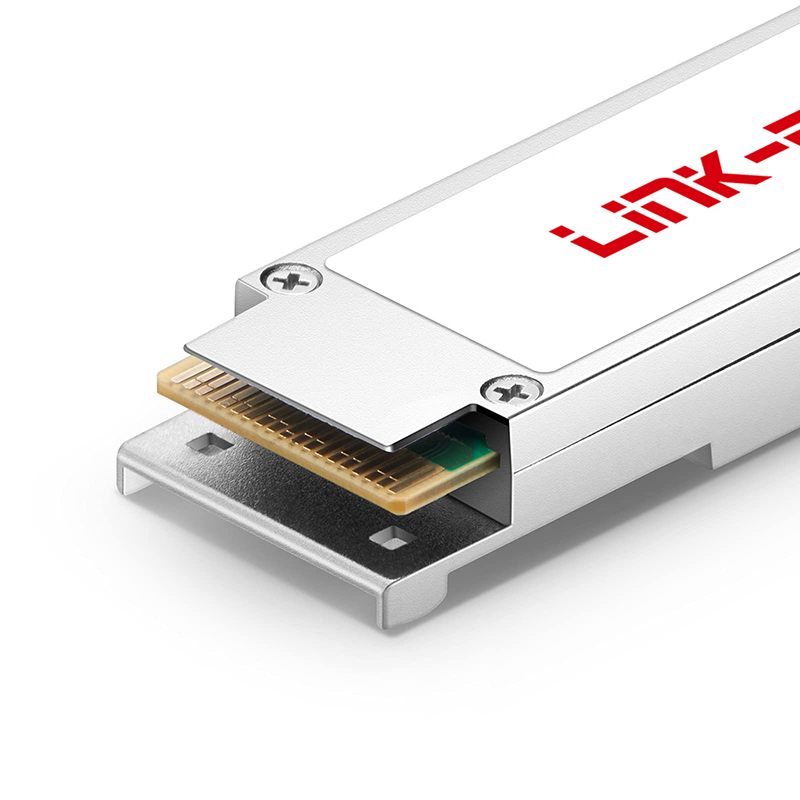

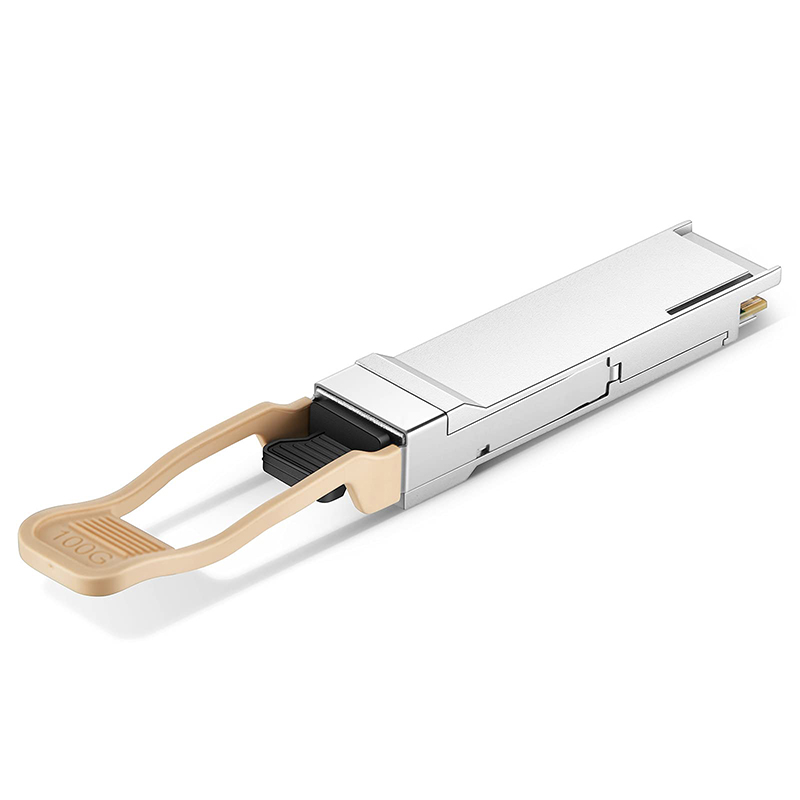

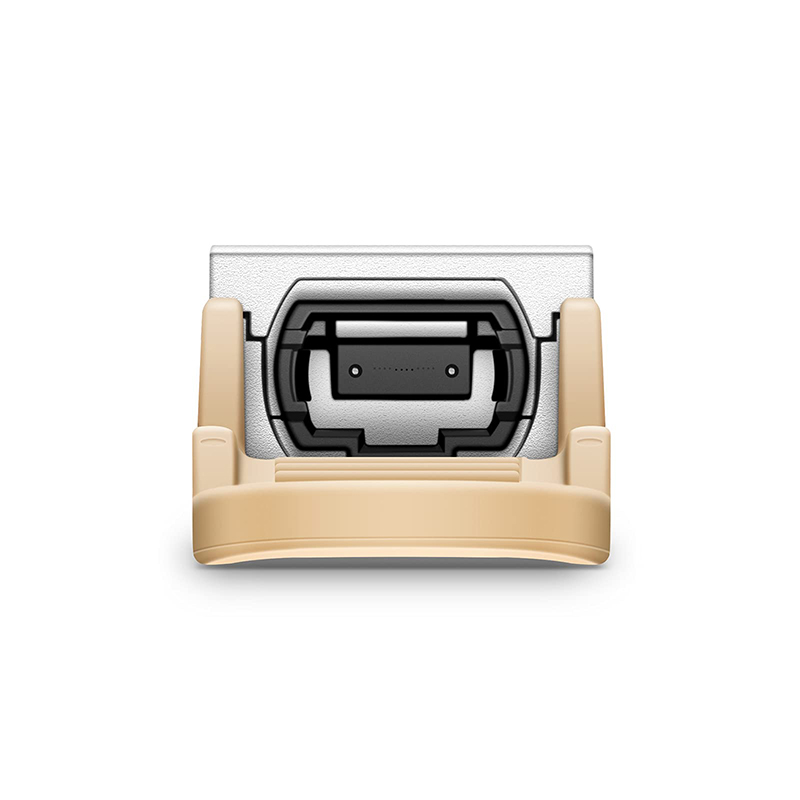

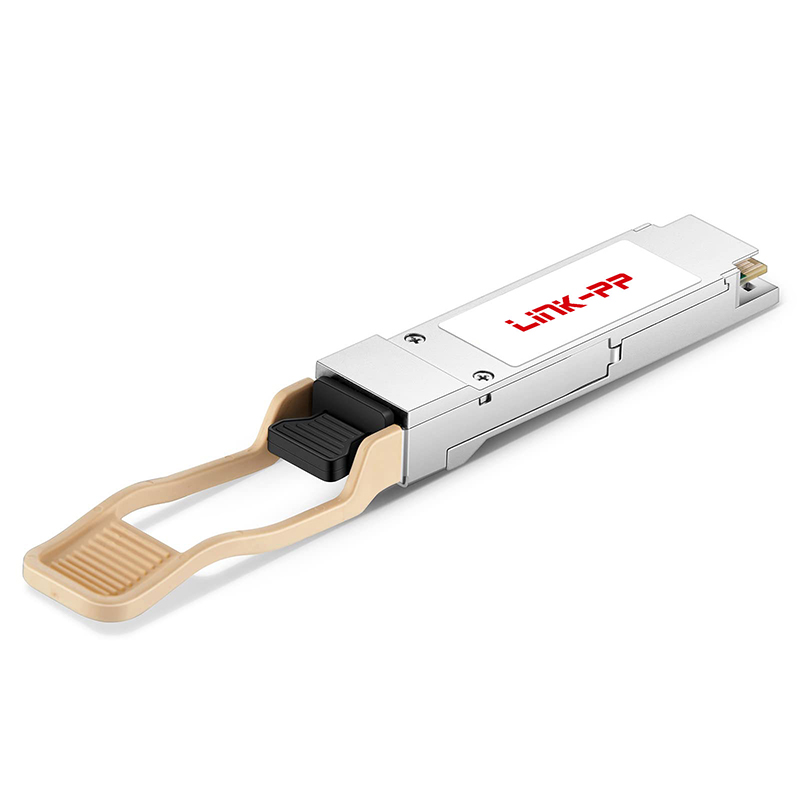

200GBASE-SR4 Optical Transceiver Module MTP/MPO-12 MMF Multimode 850nm 200G QSFP56 100m
| Item | Fiber Optical Modules |
| Part Status | Active |
| Form Factor | QSFP56 |
| Max Data Rate | 200Gbps |
| Max Cable Distance | 70m@OM3/100m@OM4 |
| Wavelength | 850nm |
| Connector | MTP/MPO-12 UPC |
| Media | MMF |
| Optical Component | VCSEL/PIN |
| TX Power | -3~3dBm |
| Receiver Sensitivity | -6.5dBm |
| Powerbudget | 3.5dB |
| Receiver Overload | 5dBm |
| Power Consumption | ≤5W |
| Extinction Ratio | 3dB |
| DDM/DOM | DDM Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Warranty | 5 Years |
| Sample | Available |
| Protocols | 200G Ethernet, Data centers Interconnect, High performance computing |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
