| Item | Fiber Optical Modules |
| Part Status | Active |
| Form Factor | QSFP28 |
| Max Data Rate | 103.125G |
| Max Cable Distance | 70m@OM3/100m@OM4 |
| Wavelength | 850nm |
| Connector | MTP/MPO-12 |
| Media | MMF |
| Optical Component | VCSEL/PIN |
| TX Power | -8.4~2.4dBm |
| Minimum Receiver Power | -10.3dBm |
| Powerbudget | 1.9dB |
| Receiver Overload | 2.4dBm |
| Power Consumption | ≤2.5W |
| Extinction Ratio | ＞3dB |
| DDM/DOM | DDM Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Warranty | 5 Years |
| Sample | Available |
| Protocols | IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, RoHS, CPRI, eCPRI |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.

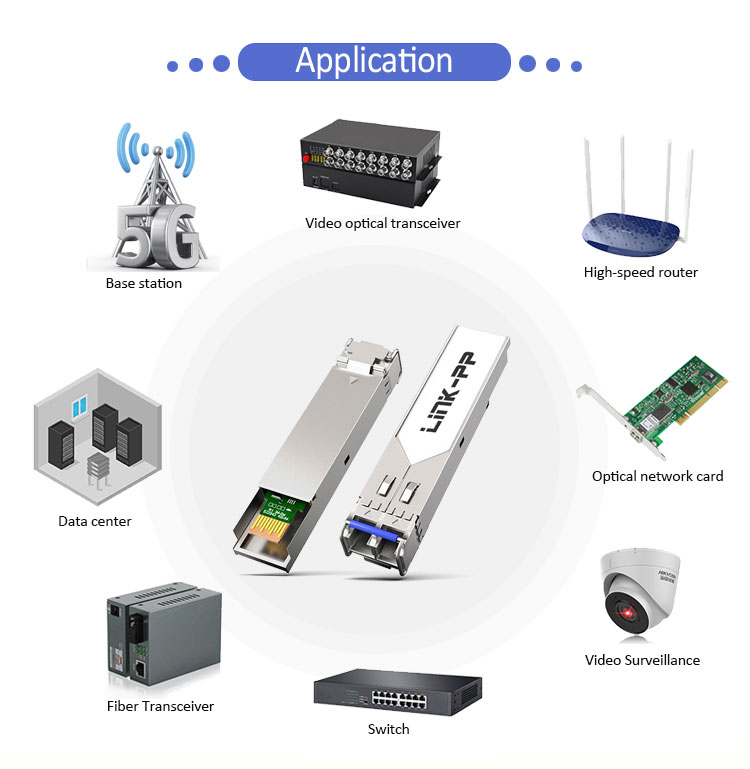

Our solutions provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
As a specialized manufacturer of magnetic telecom and networking components, we are certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, we currently have around 2000 staff. With an abundant productive capacity of 3000K per month, we are able to deliver products within a short time.
Our company provides a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
