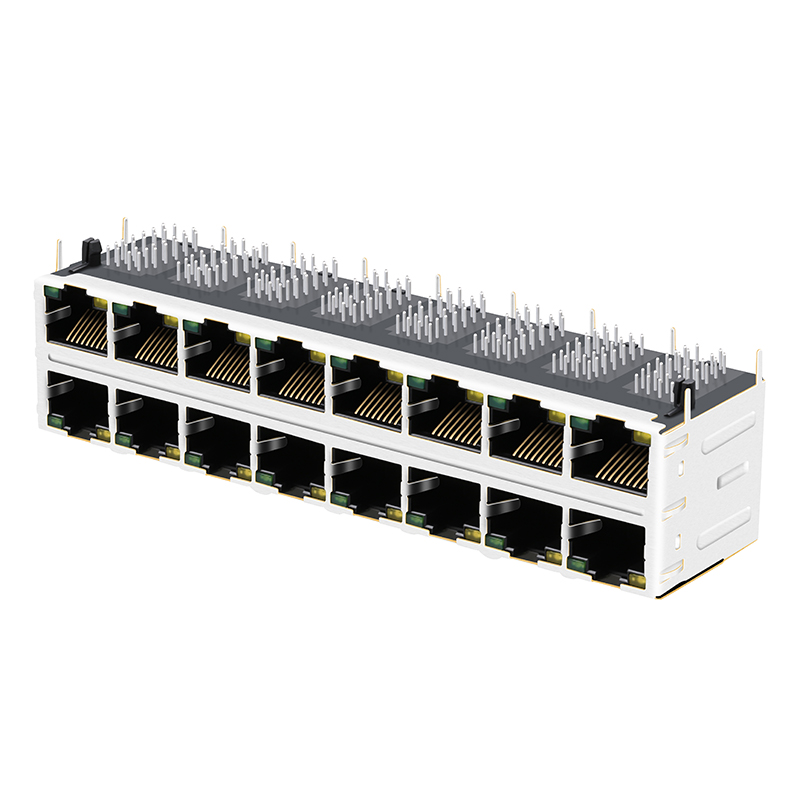

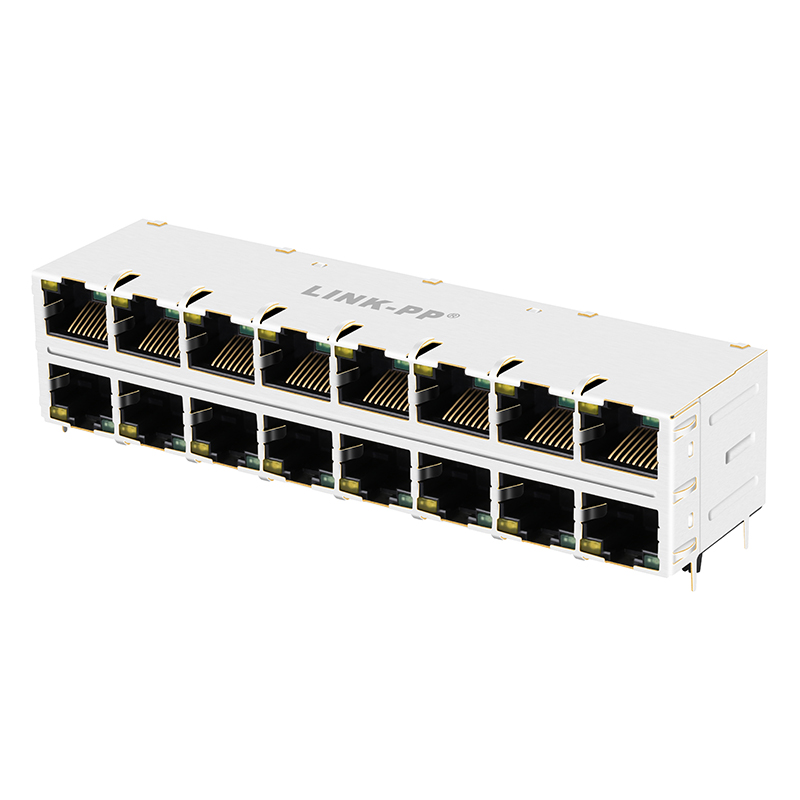

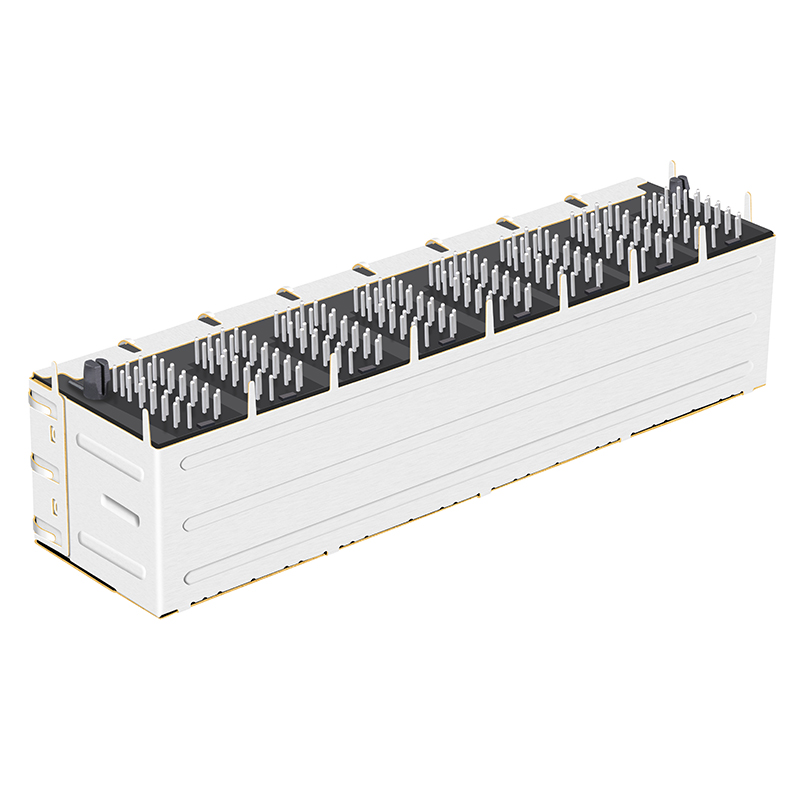

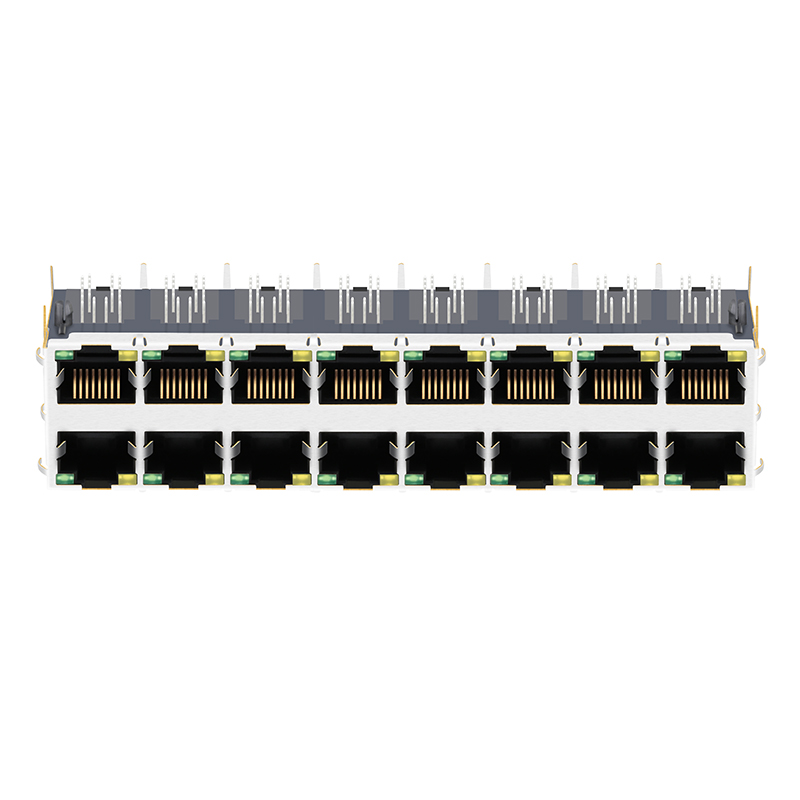

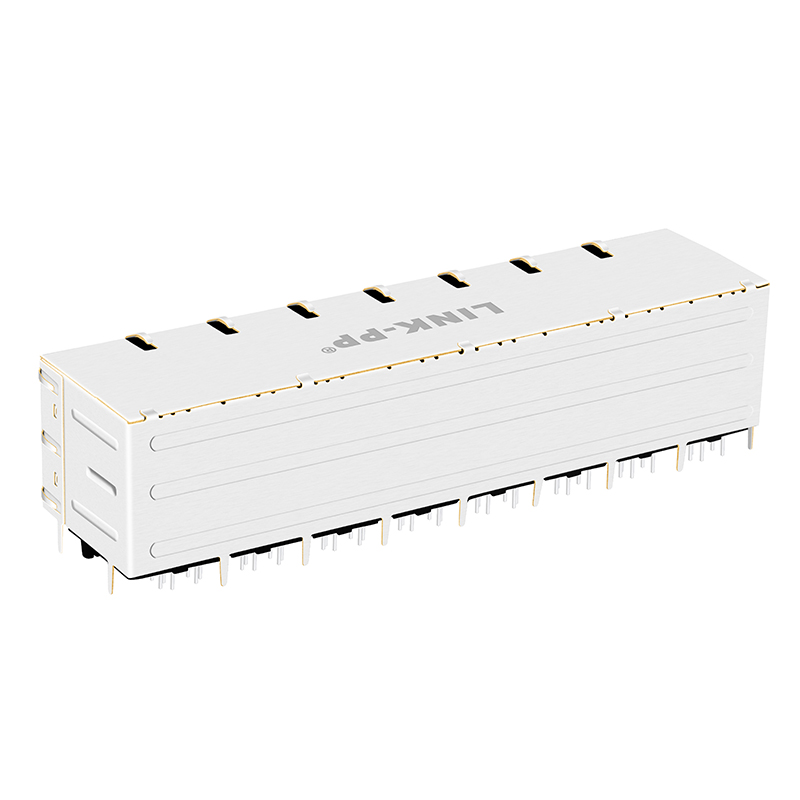

2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69

Send Inquiry

Product Description

Part Number	RJ45 connector
Application-LAN	ETHERNET (NON POE)
AutoMDIX	YES
Bst Circuit	YES
Configuration RX	T, C
Configuration TX	T, C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	8
Diodes	NO DIODES
LED Option	WITH LEDS
Latch	Up/Down
Number of Ports	2x8
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	Shield, EMI Finger
Speed	10/100/1000 Base-T
Temperature	-40°C ~ 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Preferred Supplier of Integrated RJ45 Connectors and Discrete Magnetic Transformers

Why Choose Us

Professional Certification

100% Quality Guarantee

Competitive Price and Service

Frequently Asked Questions (FAQ)

1. What is the configuration of this RJ45 jack?

This is a 2x8 port (16-port) shielded RJ45 connector designed for high-density network applications.

2. What transmission speeds does this connector support?

It supports 10/100/1000 Base-T Gigabit Ethernet speeds, making it suitable for high-speed data transfer.

3. Does the connector include LED indicators?

Yes, this specific model comes with integrated LEDs for link and activity status monitoring.

4. What is the operating temperature range?

The connector is designed to operate reliably in temperatures ranging from -40°C to +85°C.

5. Is this product RoHS compliant?

Yes, it is RoHS compliant, meeting international standards for environmental safety and lead-free manufacturing.

6. What type of mounting does this RJ45 jack use?

It features a Side Entry PCB mount angle and uses THT (Through-Hole Technology) solder for secure board attachment.
