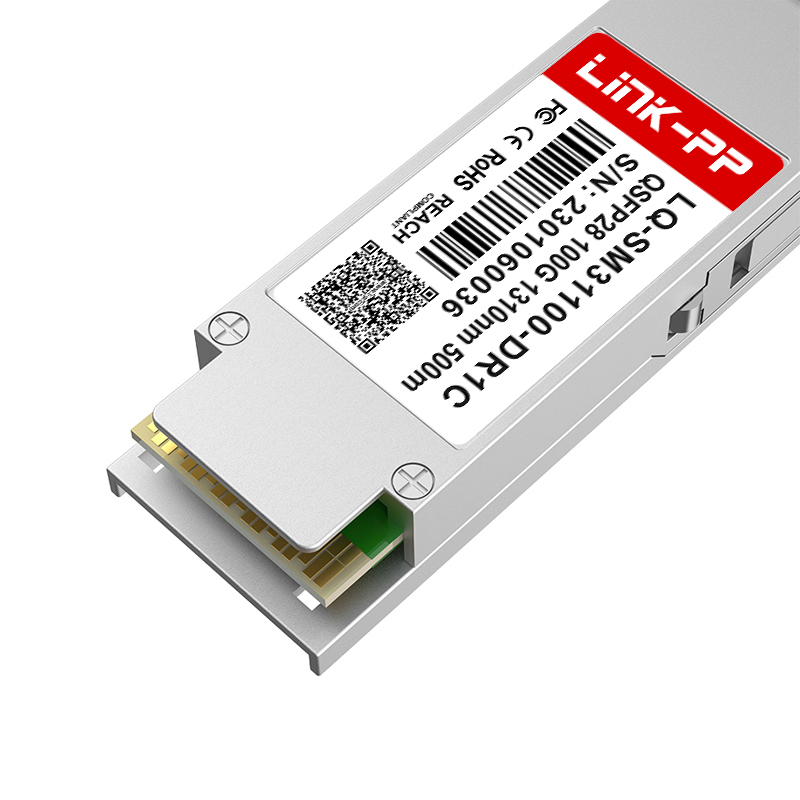

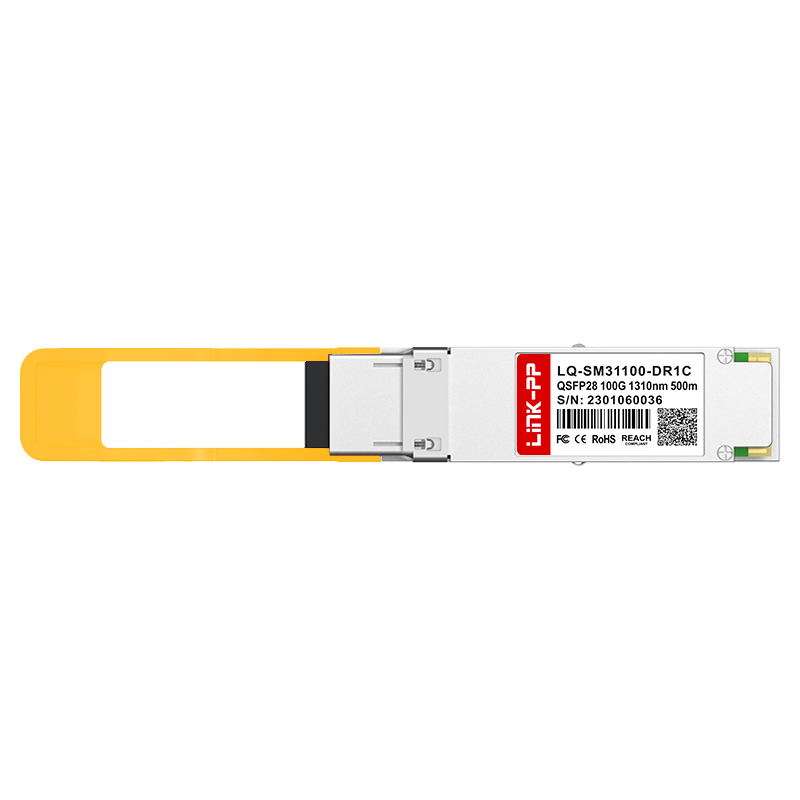

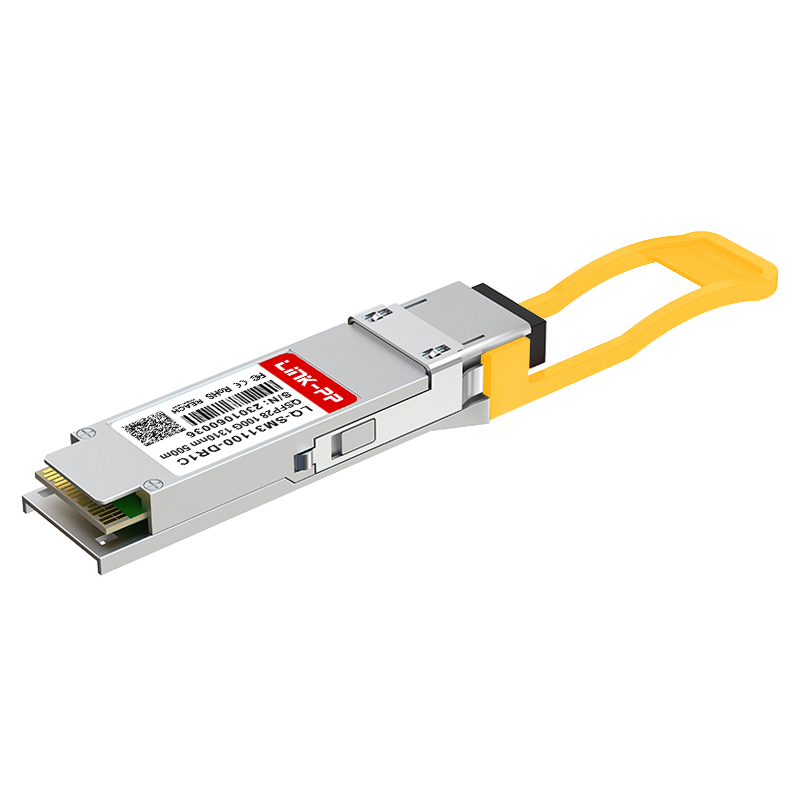

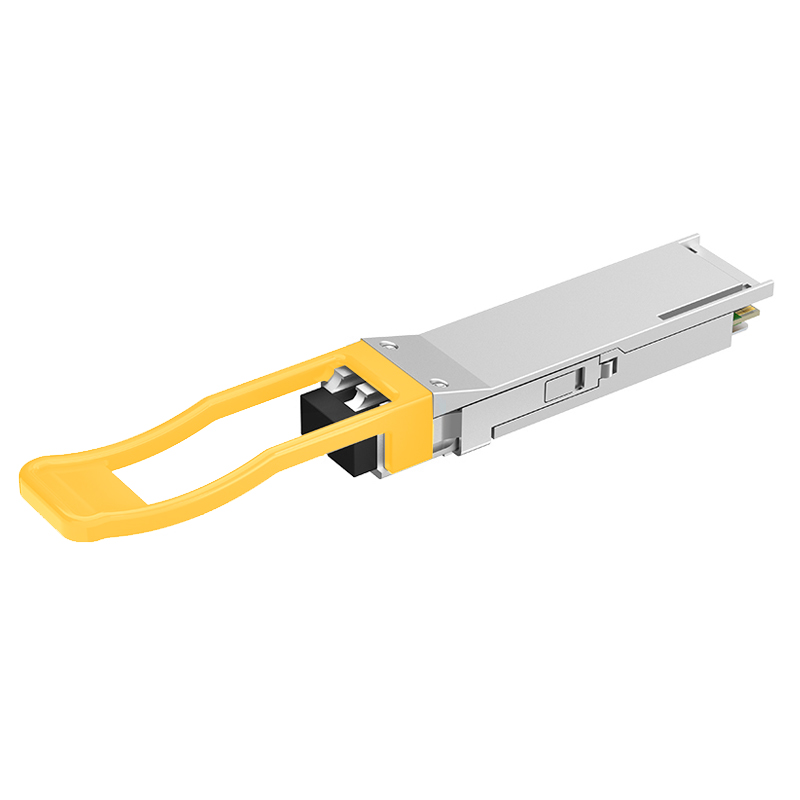

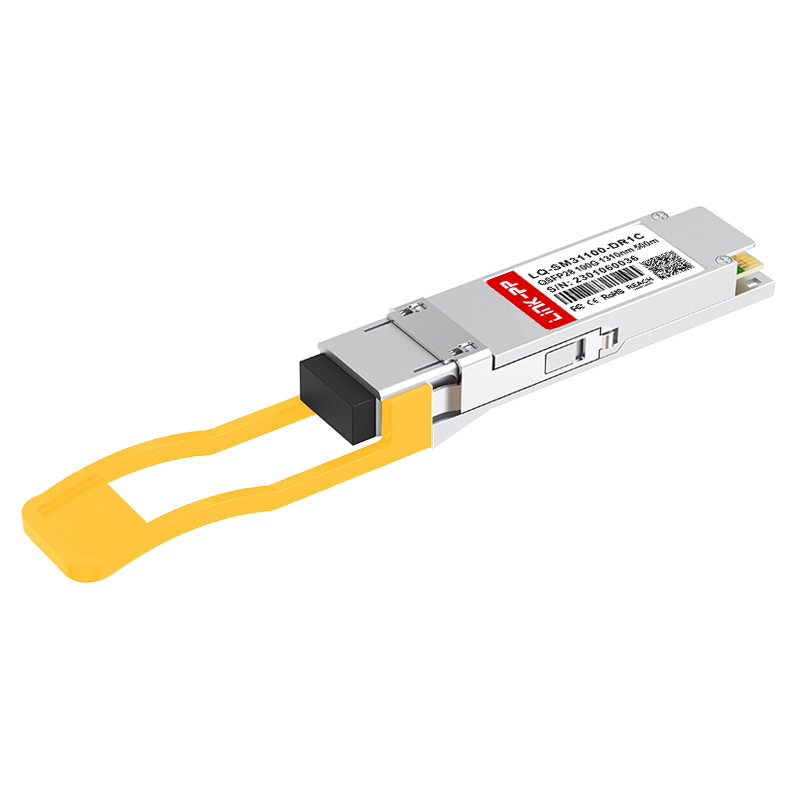

| Product Type | QSFP28 Optical Transceiver |
| Model No. | LQ-SM31100-DR1C |
| Max Data Rate | 100Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 500m |
| Connector | Duplex LC |
| Media Type | Single-Mode Fiber (SMF) |
| Transmitter Type | EML |
| Receiver Type | PIN |
| EMC Supported | Yes |
| DDM/DOM | Supported |
| Protocols | IEEE 802.3cd 100GBASE-DR compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample Availability | Available |
Drawing on over 10 years of experience in chips and modules, we integrate fast speeds, small size, power savings, and high performance into every optical transceiver. Our solutions cover a full series of modules for fixed access, wireless access, carrier Ethernet, and data communication networks.
Optical Transport: End-to-end DWDM and active modules including EDFA, ROADM, and OTDR.
Wireless: High reliability solutions for 4G/5G systems, covering Mid-haul and Back-haul.
Utilizing advanced manufacturing and testing equipment, we specialize in magnetic telecom and network components. Our facilities are certified by ISO9001, RoHS, REACH, CE, and UL. With significant monthly production capacity, we ensure short delivery times for high-speed interconnect solutions and optical modules worldwide.
