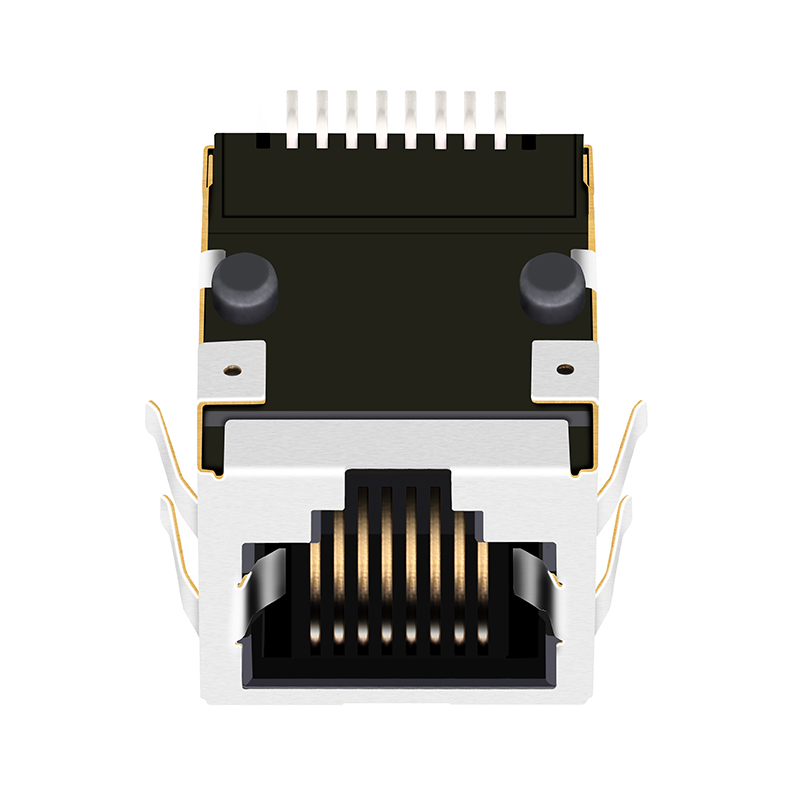

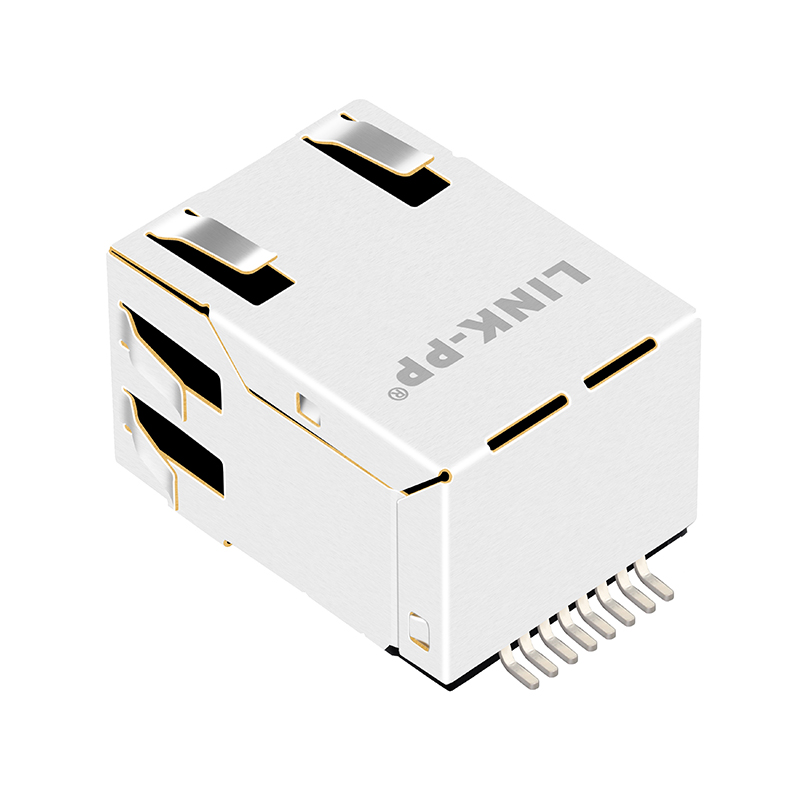

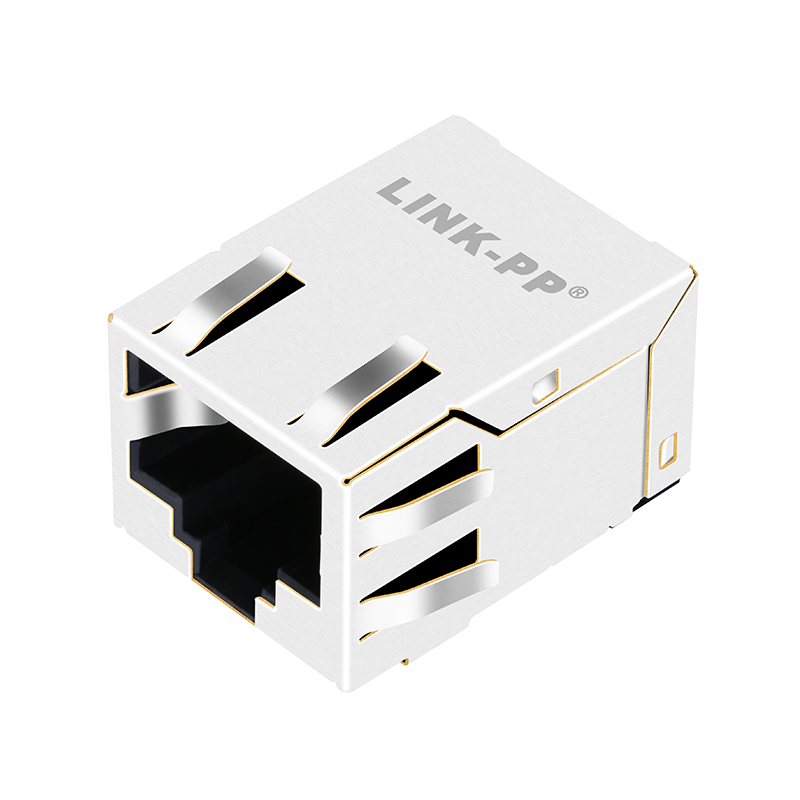

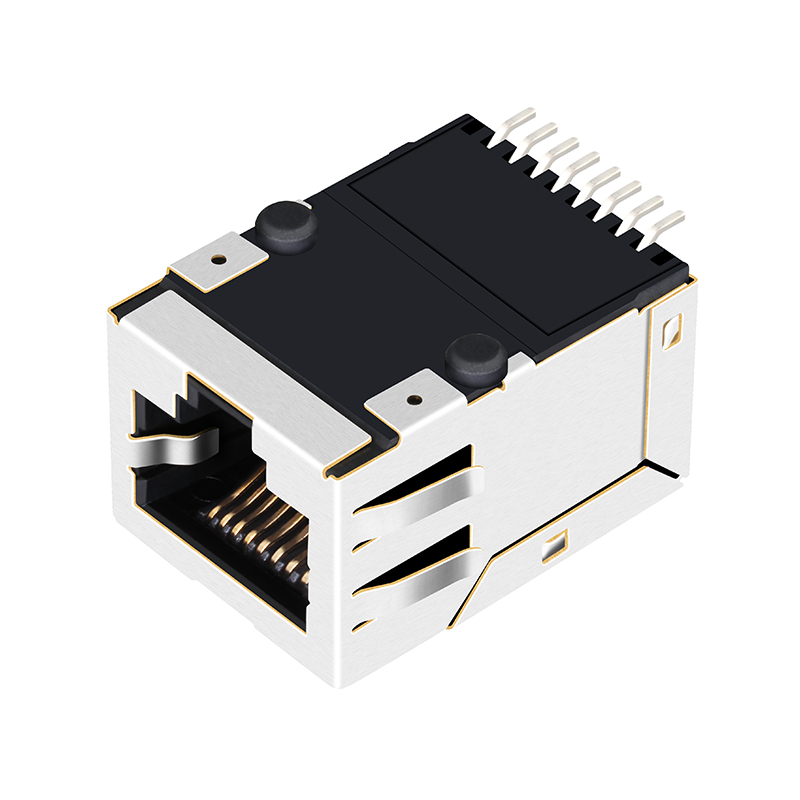

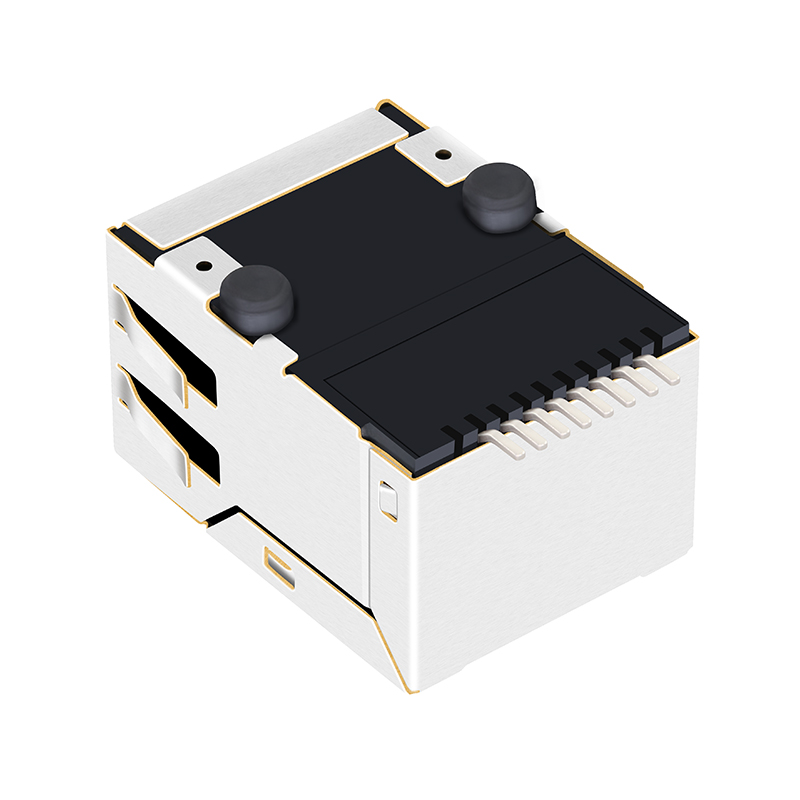

xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
1 / 5
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector

xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector

Send Inquiry

Product Description

Product Categories
xmh-trjk2064aonl Single Port SMT RJ45 Modular Jack Connector
Product Description
ItemRJ45 Female Connector
Part Numberxmh-trjk2064aonl
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100/1000 Base-T
LatchDown/Up
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout/With
LED OptionGreen/Yellow
PCB MaterialFR4
PCB Retaining PostT POST
Operating Temperature0℃ TO 70℃
Bst CircuitYes
AutoMDIXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
RJ45 Front View
RJ45 Side View
Detail 1
Detail 2
Detail 3
⚙
Technical Versatility
Engineered for high-speed Gigabit Ethernet applications with multi-option plating and LED configurations to meet diverse networking requirements.
Product Overview & Variants
Product Range
Technical Specifications
Drawing 1
Drawing 2
Drawing 3
Drawing 4
Drawing 5
Drawing 6
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, and SFP modules.
Can I request a sample before placing a mass production order?
Yes, we provide free samples for quality testing. Customers are responsible for the shipping fees.
What is the standard delivery time?
In-stock items are ready to ship immediately. For mass production, the typical lead time is 15 to 30 days.
What kind of after-sales service and warranty do you provide?
We offer a one-year guarantee period along with 24-hour online technical support.
Do you accept OEM or ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us with your specific requirements for a detailed discussion.
What are your core advantages in this industry?
With over 19 years of production experience, we have established long-term partnerships with global industry leaders.
