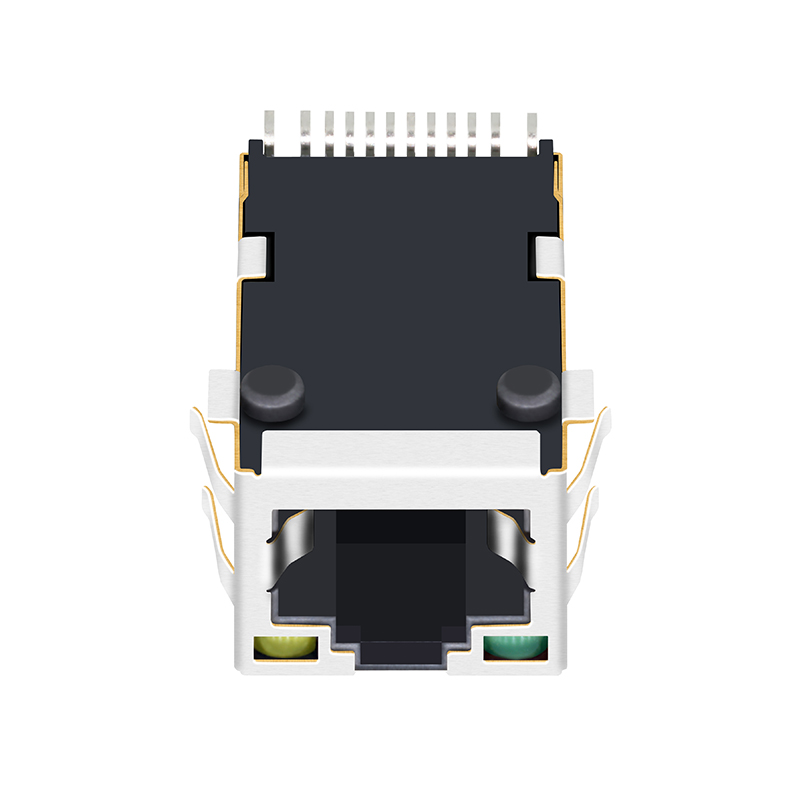

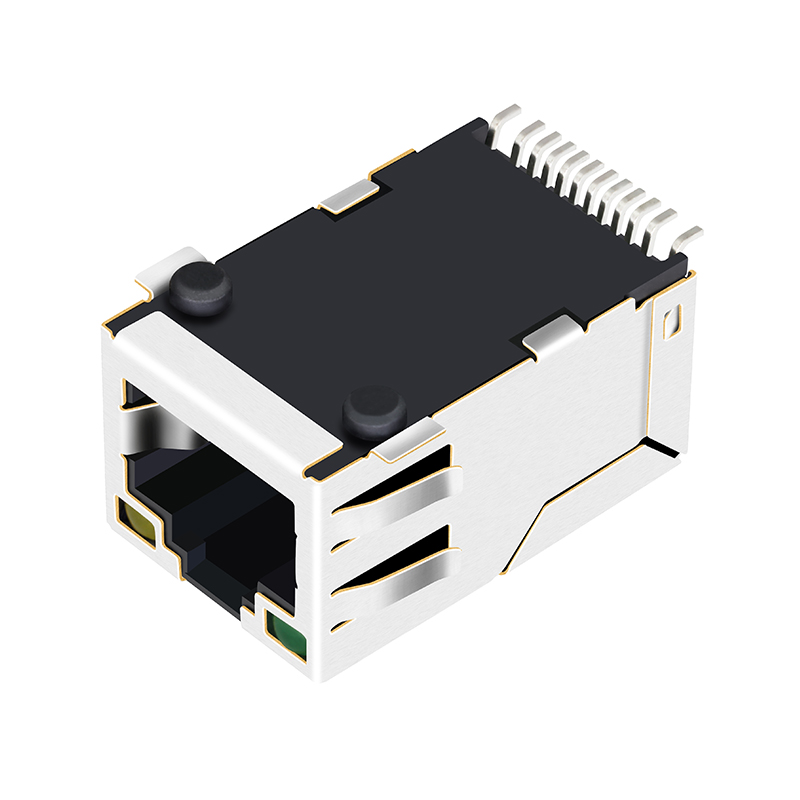

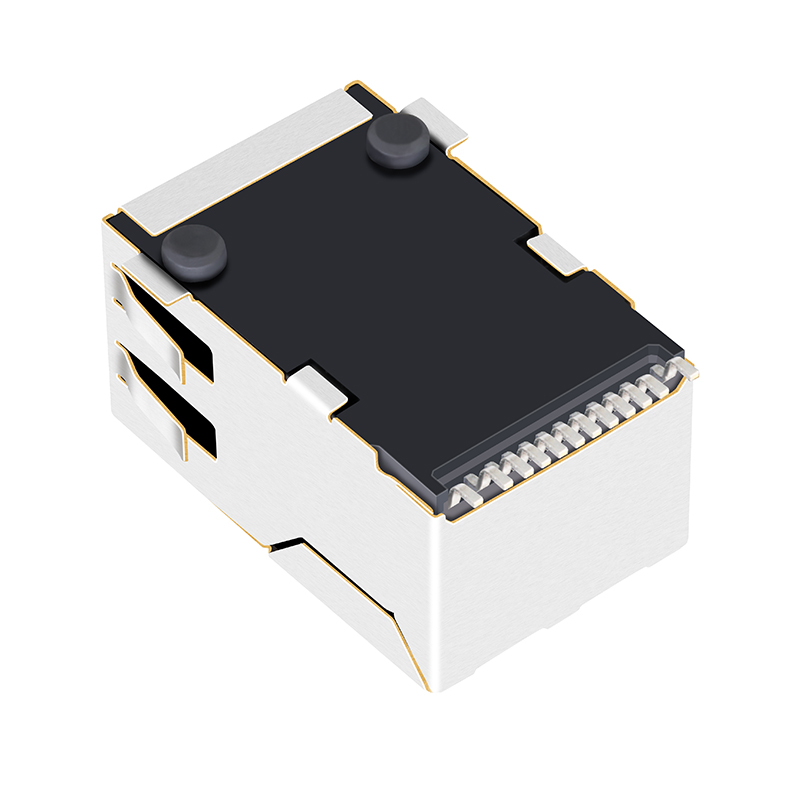

RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
1 / 5
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot

RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot

Send Inquiry

Product Description

RJ45 Connector Female HR961160C With Shield Boot
RJ45 Connector Series
📋Products Description
ItemRJ45 Female Connector
Bothhand Part NumberHR961160C
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet (Non PoE)
Number of Ports1x1 Port
Speed10/100/1000 Base-T
LatchUp
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWith
LED OptionGreen/Yellow
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃
Bst CircuitYes
AutoMDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
🖼️Product Display

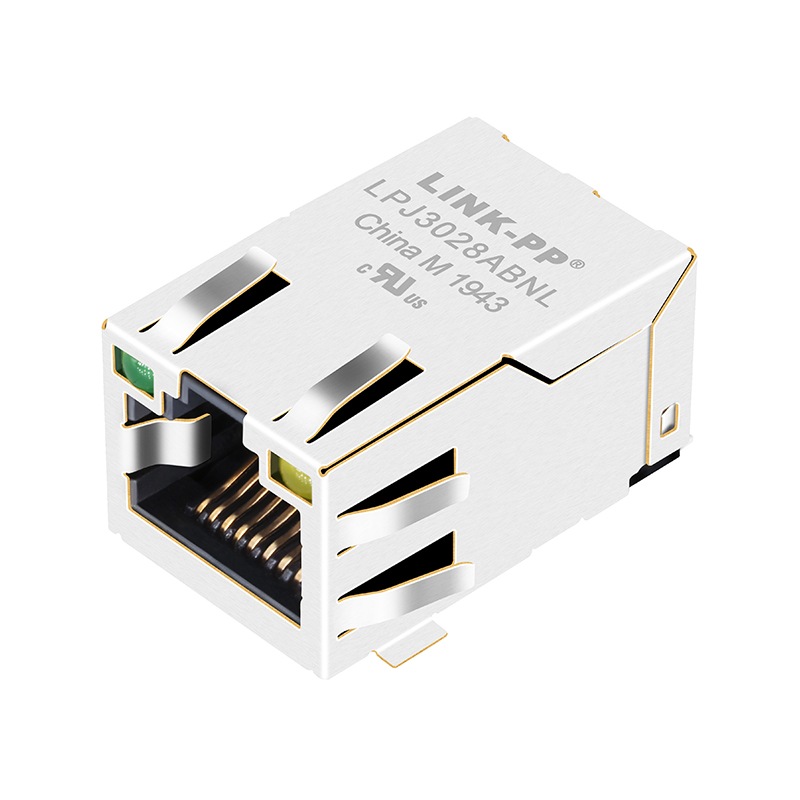

Detail 1
Detail 2
Side View
Back View
Internal View
Package View
Product Categories
⚙️Technical Specification & Quality
Drawing 1
Drawing 2
Quality Test 1
Quality Test 2
Certificates
Factory Overview
🏢Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Workshop
Production Line
❓Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though shipping fees are typically covered by the customer.
What is your delivery time?
Items in stock are ready to ship immediately; mass production typically takes 15-30 days.
What after-service can you offer?
We provide a one-year guarantee period and offer technical support online 24 hours a day.
Can you accept OEM/ODM orders?
Yes, we welcome OEM/ODM inquiries. Please contact us for a detailed discussion on your requirements.
What is your core advantage?
With over 19 years of production experience, we have established long-term partnerships with leading industry players globally.
