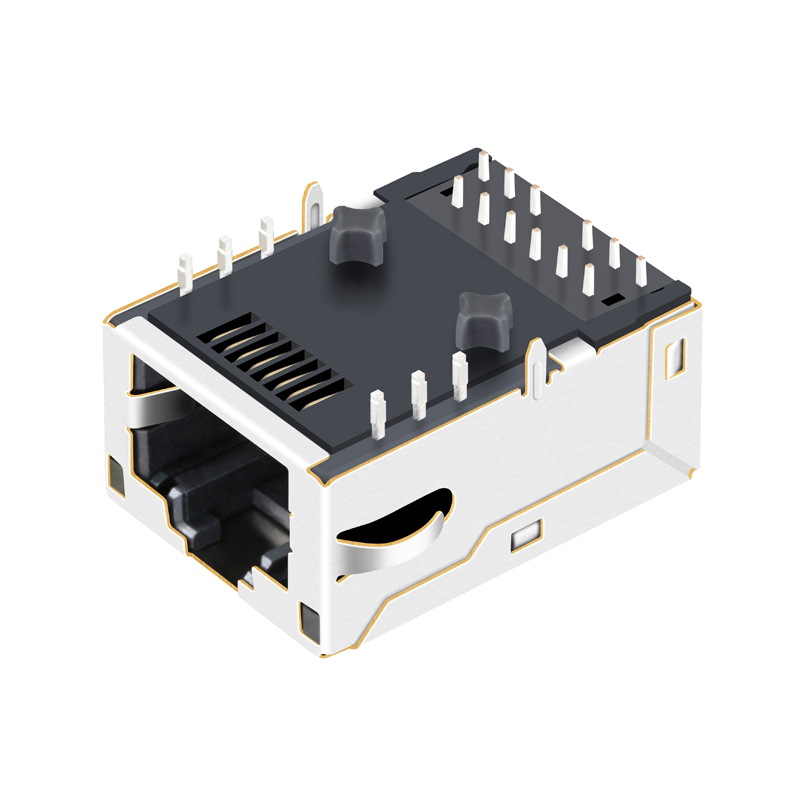

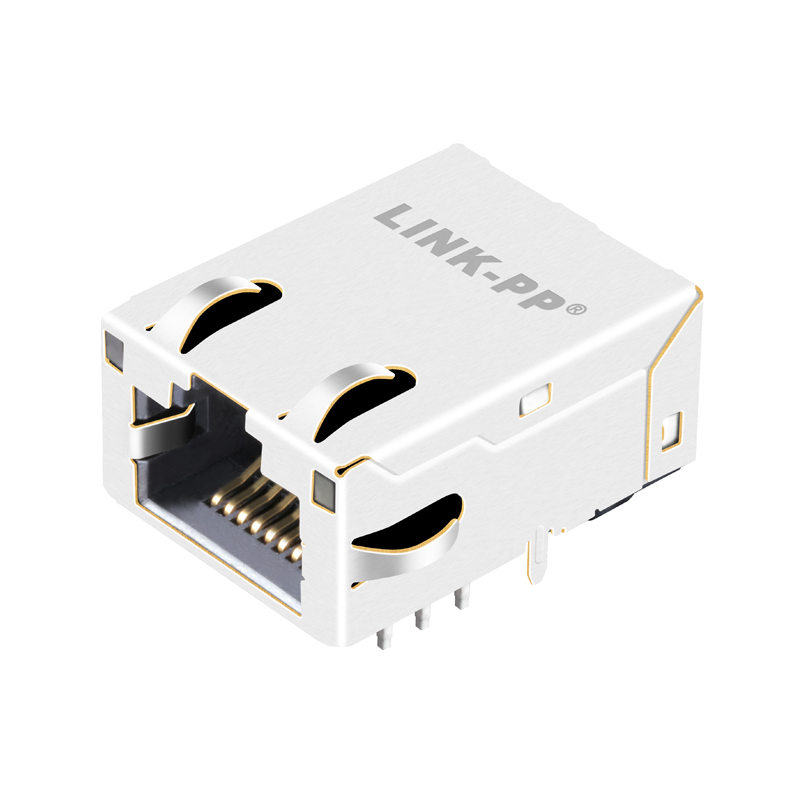

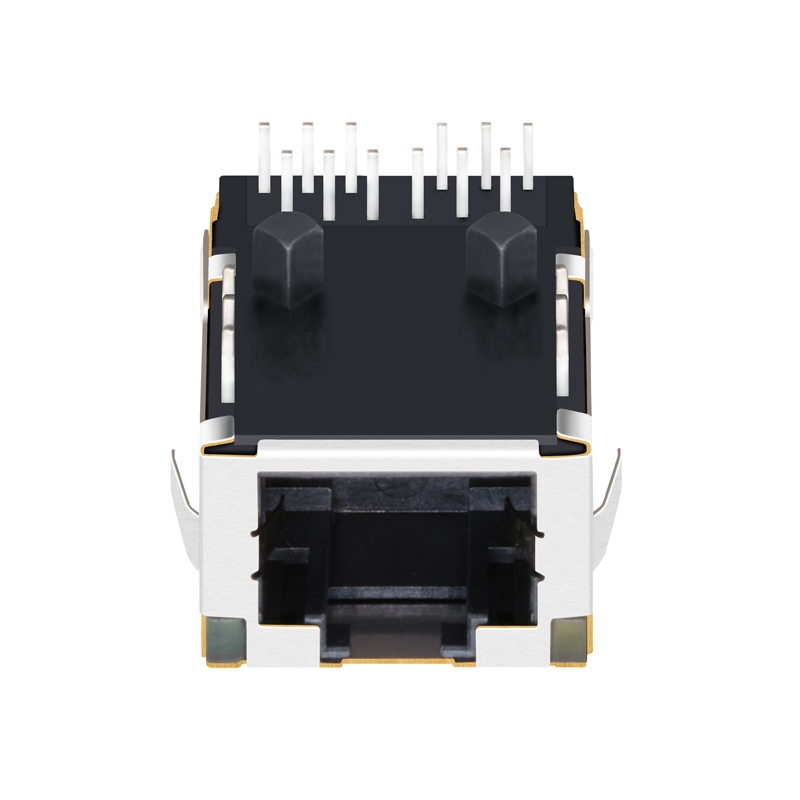

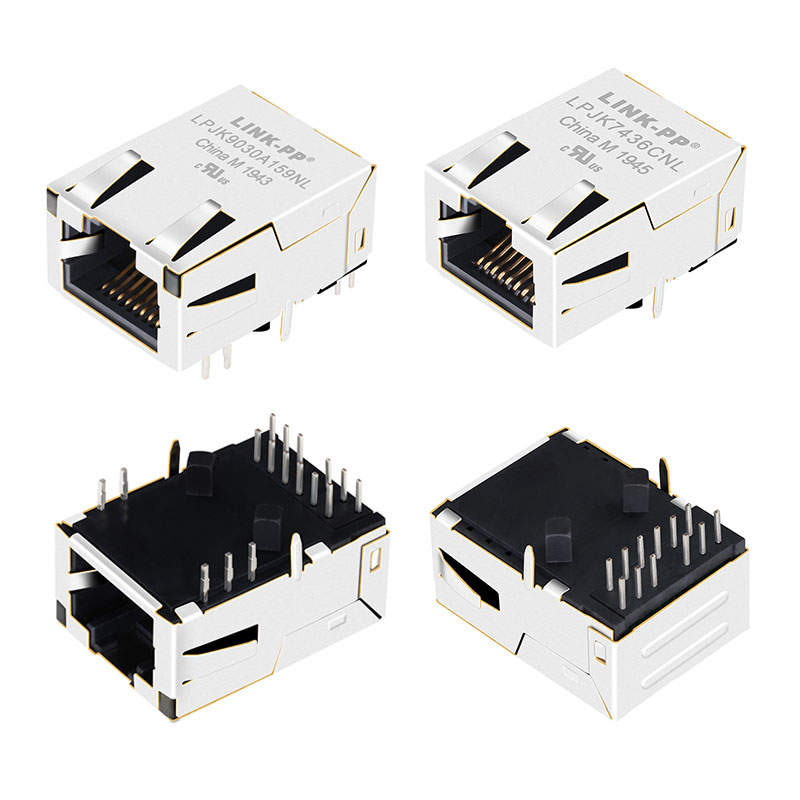

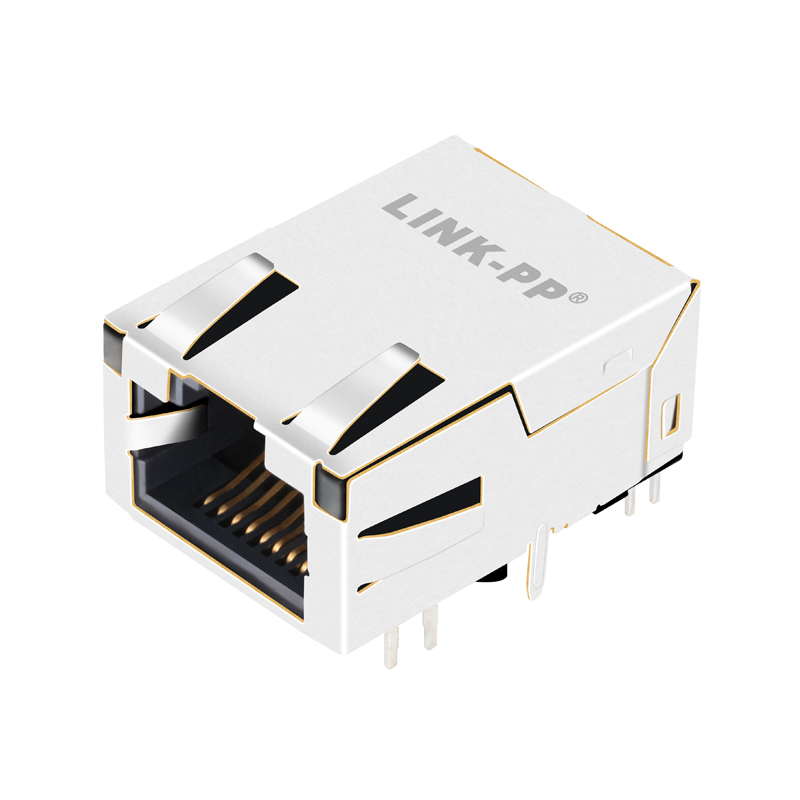

100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
1 / 5
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector

100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector

Send Inquiry

Product Description

Specification

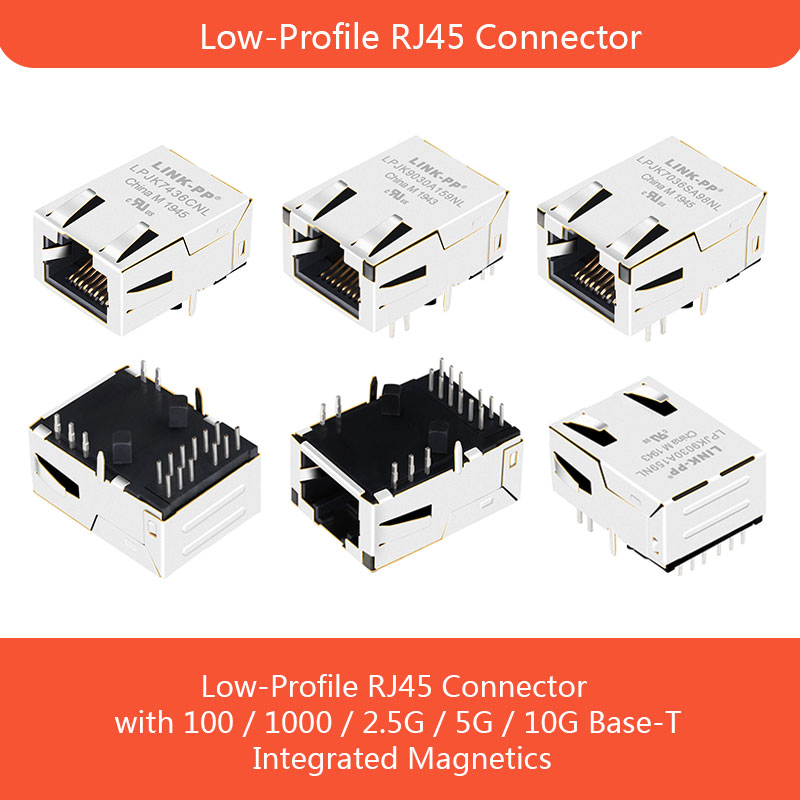

RJ45 Connector with integrated transformer

Characteristics

  • RJ45 Connector with integrated transformer / common mode choke
  • Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
  • Available in SMT, THT and THT with USB
  • Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt
  • HPLE products: Improved Common Mode Rejection due to additional NiZn cores
Item Value
Model Number Low profile rj45 jack
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet (PoE / Non-PoE)
Speed 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack 4 / 6 / 8 / 12
Shielding Shielded, Emi Finger
Number of Ports Single Port
Features Board Guide
Tab Direction Down/Up
Contact Finish Gold
Configuration RX/TX T, C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C / -40°C ~ +85°C

Packing & Delivery

Packaging Details

Package Type: Tray
Carton Size: 40*32*33 cm
Gross Weight (G.W.): 12.3 kg / carton
Quantity: 1200 pcs / carton
Standard Package Quantity (SPQ): 50 pcs
Net Weight (N.W.): 0.01 kg / pcs
Product packaging and shipping setup

Company Profile

Factory Facility View 1 Factory Facility View 2 Factory Facility View 3 Factory Facility View 4 Factory Facility View 5 Factory Facility View 6 Factory Facility View 7

Frequently Asked Questions

Who are we?
We are a specialized manufacturing company based in China, focused on the production of high-quality networking connectors and related hardware since 2012. Our large-scale operations serve standard-setting global clients across North America, South America, Europe, and Asia.
How can we guarantee product quality?
Quality is our core focus. We ensure standards through a comprehensive process: we always create a pre-production sample before launching mass production, and perform strict final inspections before any shipment.
What products can you purchase from us?
We offer a wide selection of networking components, including RJ45 Magnetic connectors, LAN transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
Why choose us over other suppliers?
We bring over 19 years of specialization in manufacturing RJ45 connectors and LAN transformers. Our factories hold certifications including SGS, ISO9001:2008, UL, REACH, and CE. Supported by a robust staff and massive weekly capacity, we consistently fulfill requirements for major global tech companies.
What terms of service and payments do we offer?
We support flexible transaction models. Accepted delivery terms include FOB, CFR, CIF, EXW, DDP, DDU, and Express Delivery. We accept multiple global currencies (USD, EUR, JPY, CAD, HKD, GBP, CNY) through payment methods like T/T, L/C, D/P, PayPal, and Western Union. Support is available in English, Chinese, Spanish, Japanese, and other major languages.
Do these connectors support Power over Ethernet (PoE)?
Yes, our RJ45 Connectors support Power over Ethernet (PoE) up to 50 Watts and transfer speeds up to 10 Gbit/s. They comply with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, and IEEE 802.3at standards.
