Products Description

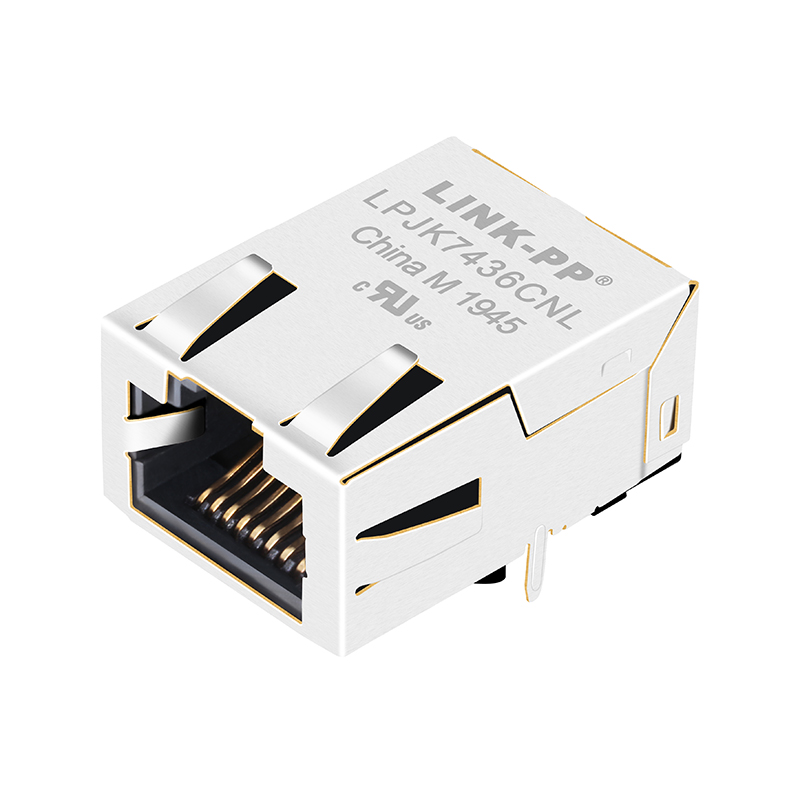

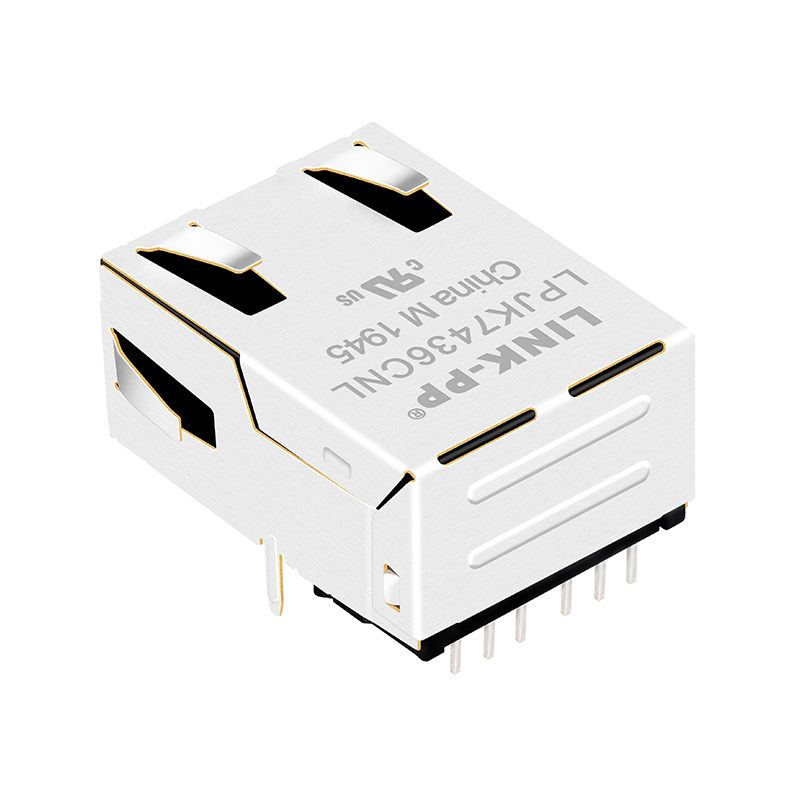

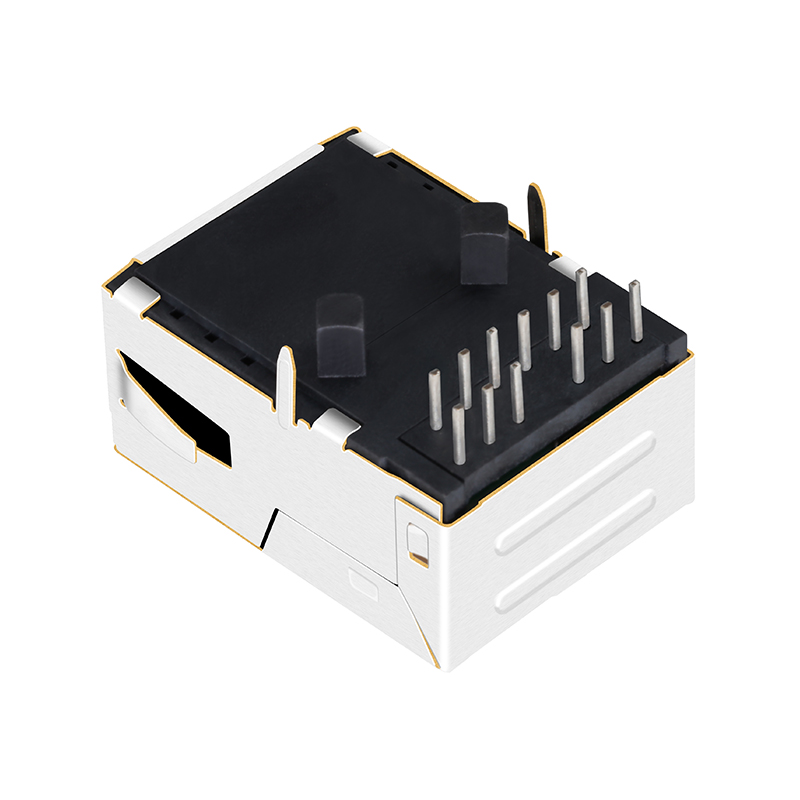

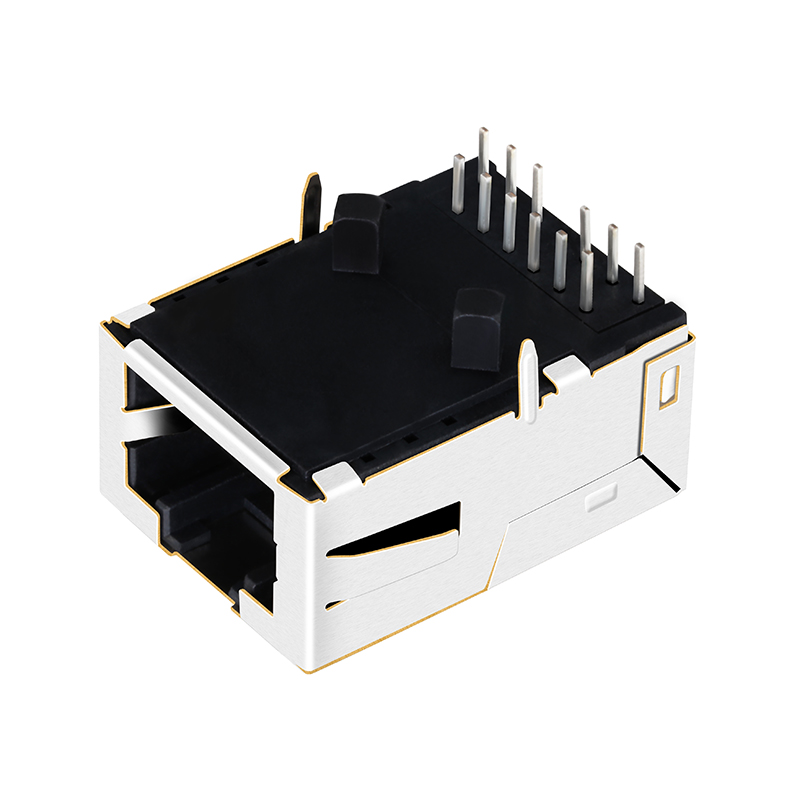

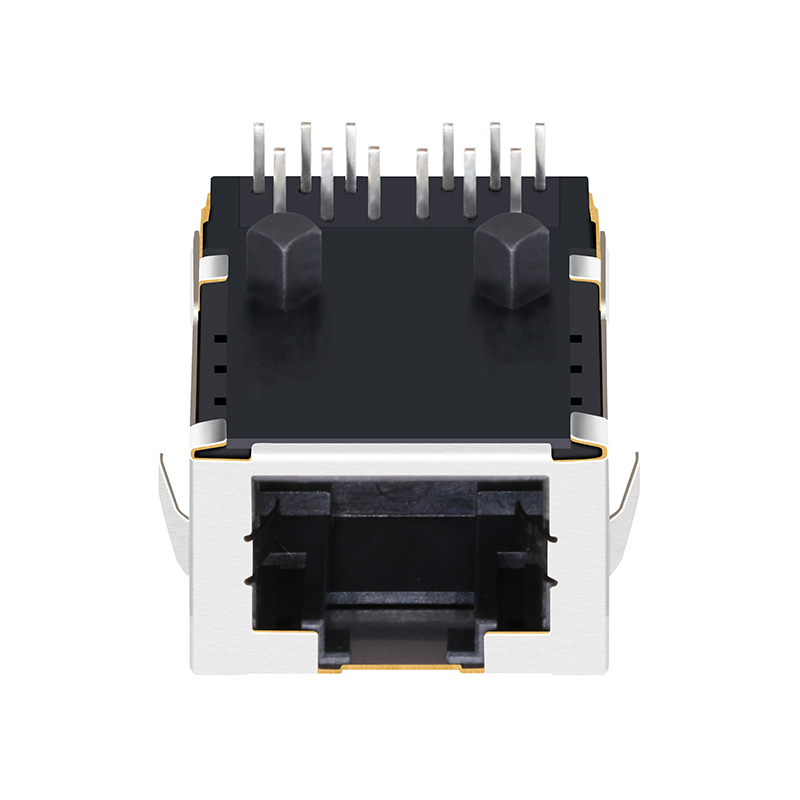

| Item | RJ45 Female Connector |
| Part Number | LPJK7436CNL |
| Compatible With | L8AL-1X1T-32A |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100/1000 Base-T |
| Latch | Up |
| Cores per Port | 8 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Without |
| PCB Material | FR4 |
| PCB Retaining Post | T POST |
| Temperature Range | -40℃ TO 85℃ |
| Bst Circuit | Yes |
| AutoMDIX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
Product Range & Features
Professional Capability
Established in 1997, the professional designer and manufacturer specializes in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, the facility is a global supplier for OEMs and contract manufacturers, supplying more than 10,000+ customers across 200 countries.
Building multi-warehouse systems in key areas and continuously increasing inventory, the commitment remains to be a leading provider of Ethernet RJ45 connectors and LAN transformers worldwide.
