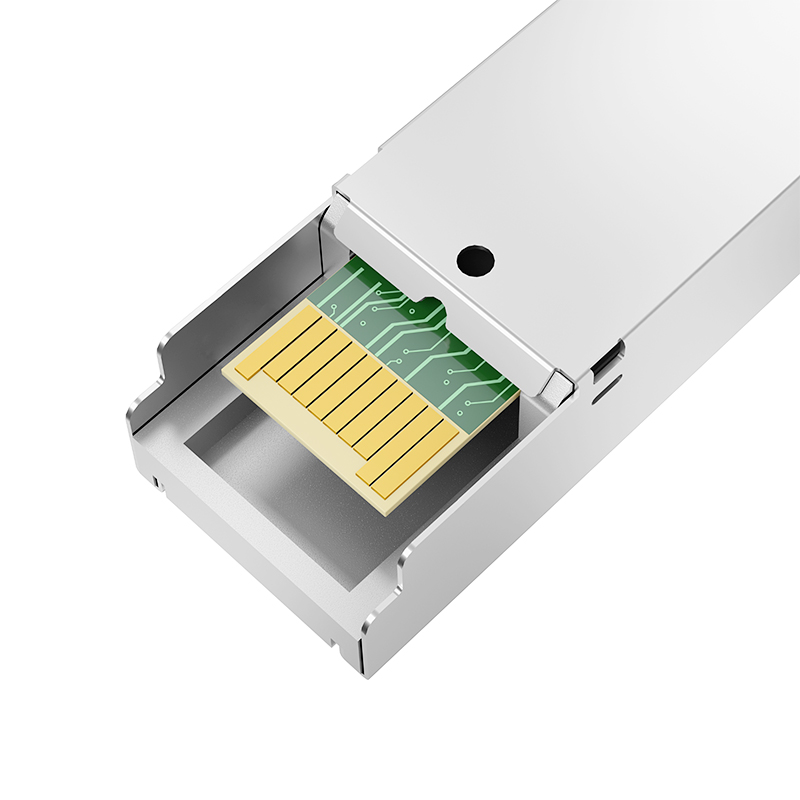

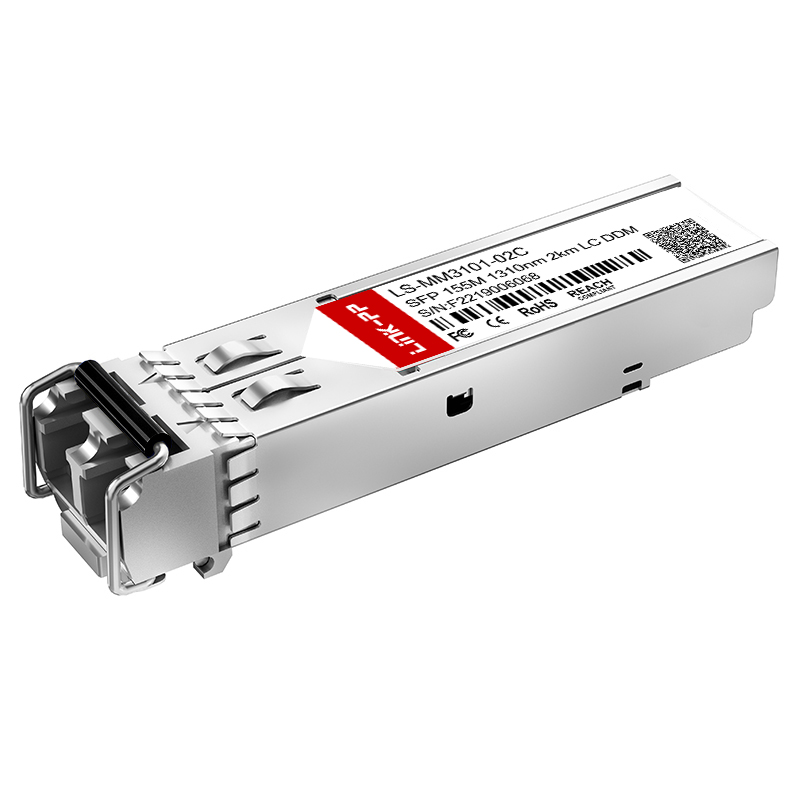

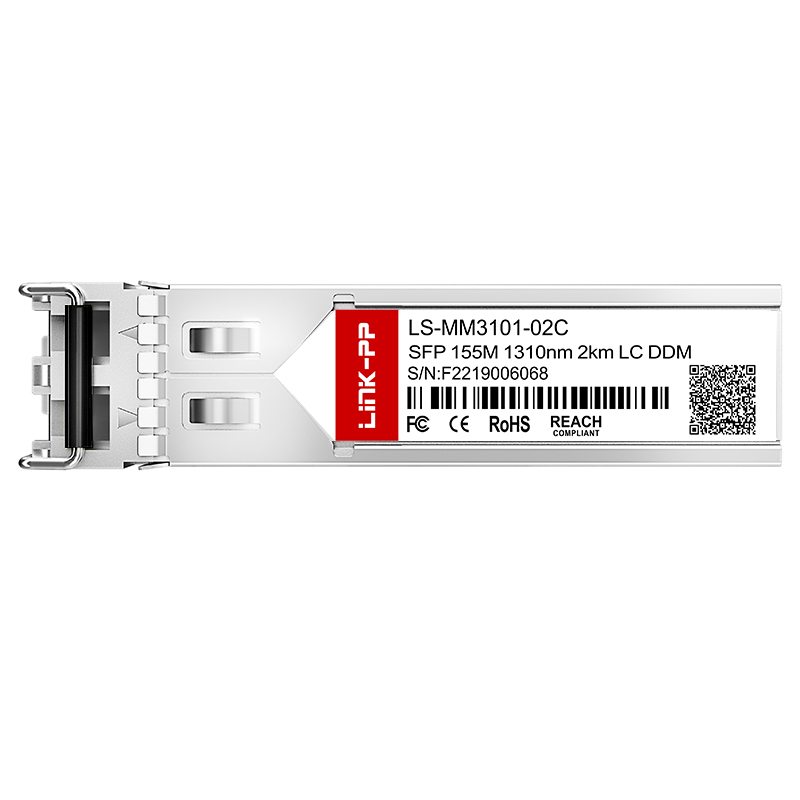

SFP-FE-SX-MM1310 Compatible MMF LC Optical Module Multimode 1310nm 155M SFP Transceiver 2km

Product Description

VIEW OUR SOLUTIONS
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
Providing a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Solutions Overview
Optical Transport Networks
Optical Transport Networks
End-to-end DWDM devices including active modules and optical passive devices, such as optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR.
Cloud and Enterprise
Cloud and Enterprise
High-speed optical modules ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers and mass data transmission.
Wireless
Wireless
High reliability products using mature lasers and mainstream chips. Solutions include Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul for 4G/5G systems.
FTTx
FTTx
Total optical fiber access solutions for global network constructors, covering all-optical and optical-copper combined access products.
Subsystems
Subsystems
Optical cable O&M solutions integrating optical line protection systems (OLP) and optical line monitoring systems (OLM) for stable communication operations.
Product Specifications
SFP-FE-SX-MM1310 Compatible MMF LC Optical Module Multimode 1310nm 155M SFP Transceiver 2km
Form FactorSFP
Max Data Rate155Mbps
Wavelength1310nm
Max Cable Distance2km
ConnectorDuplex LC
MediaMMF
Transmitter TypeFP
Receiver TypePIN
TX Power-15 ~ -8dBm
Receiver Sensitivity< -32dBm
EMC SupportedYes
DDM/DOMSupported
ProtocolsIEEE802.3U, GR-468, MSA Compliant
Temperature Range0 to 70°C / -40 to 85°C
Warranty5 Years
Module Types
100M (155M) SFP Ordering Information
LS-MM8501-S5CSFP 155M, 850nm, 550m, LC, DDM, 0℃-70℃ / -40℃-85℃
LS-MM8501-02CSFP 155M, 850nm, 2km, LC, DDM, 0℃-70℃ / -40℃-85℃
LS-MM3101-02CSFP 155M, 1310nm, 2km, LC, DDM, 0℃-70℃ / -40℃-85℃
LS-SM3101-10CSFP 155M, 1310nm, 10km, LC, DDM, 0℃-70℃ / -40℃-85℃
LS-SM3101-40CSFP 155M, 1310nm, 40km, LC, DDM, 0℃-70℃ / -40℃-85℃
LS-SM5501-80CSFP 155M, 1550nm, 80km, LC, DDM, 0℃-70℃ / -40℃-85℃
Why Choose Us
Capability & Profile
Specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL. Equipped with advanced manufacturing and testing equipment.
With a monthly production capacity of 3000K units, we ensure short delivery times. Our range includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks using latest optoelectronic technologies.
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, and SFP modules.
Can I get a sample before mass production?
Yes, we offer free samples for quality testing; however, the shipping fee is responsibility of the requester.
What is the standard delivery time?
Stock items are ready to ship immediately, while mass production typically takes 15-30 days.
What after-sales service is provided?
We provide a one-year guarantee period along with 24-hour online technical support.
Do you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries for detailed discussion and custom solutions.
What are your core advantages?
We have nearly 20 years of production experience and maintain long-term partnerships with major industry leaders.
