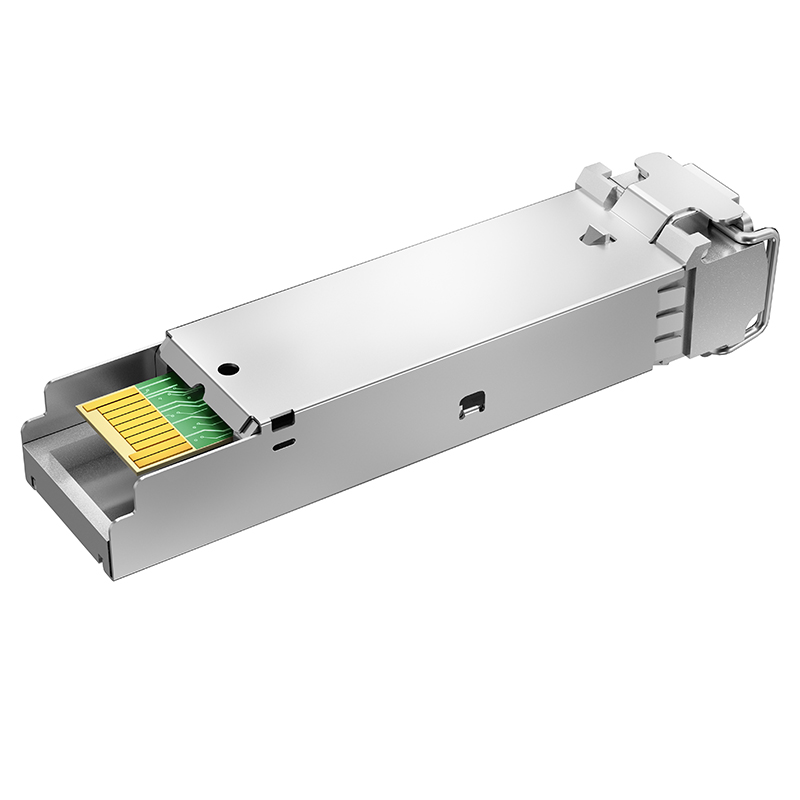

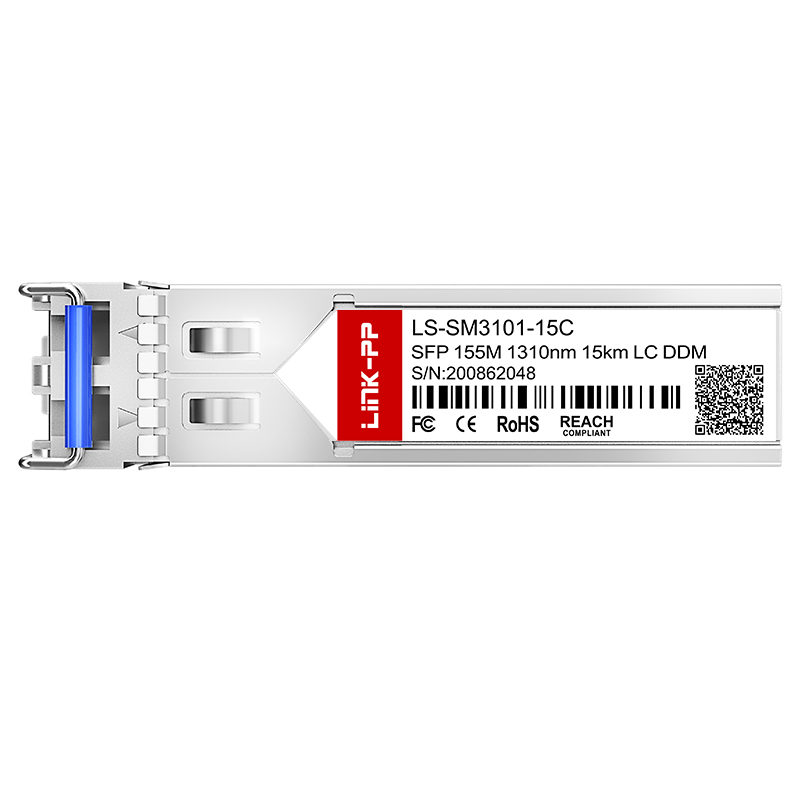

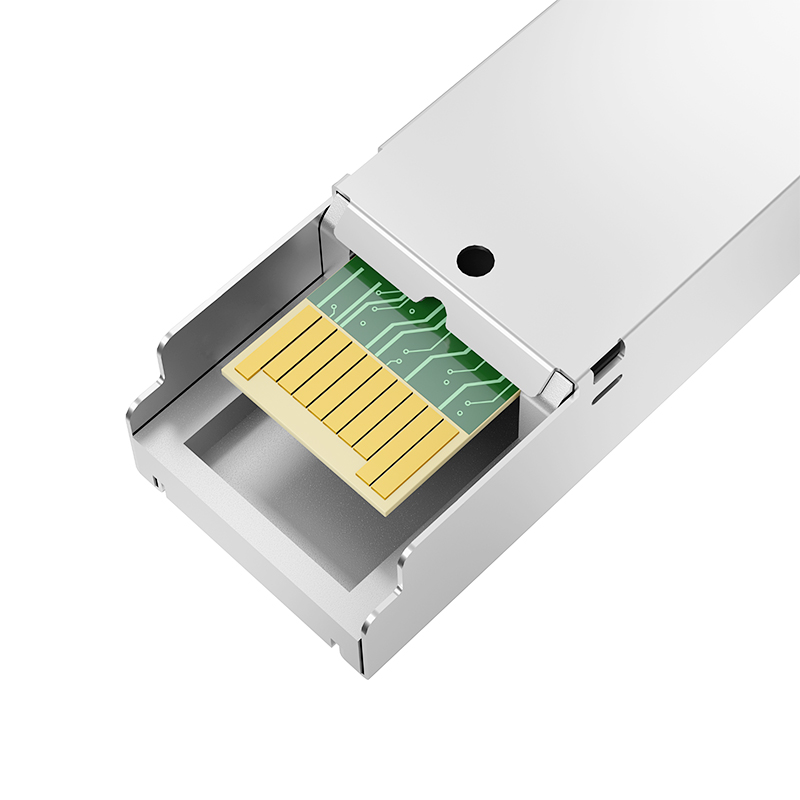

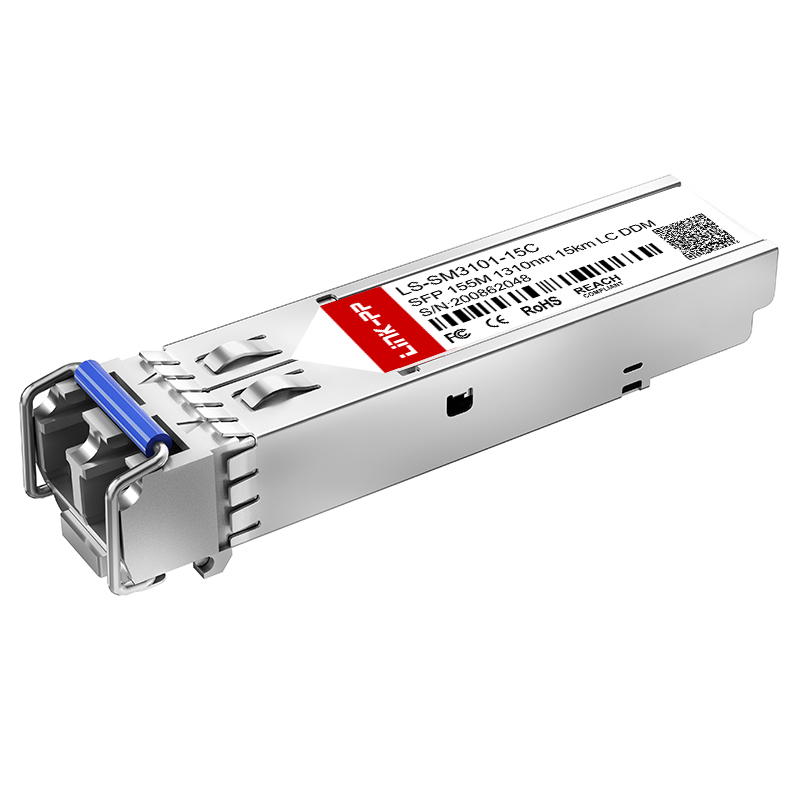

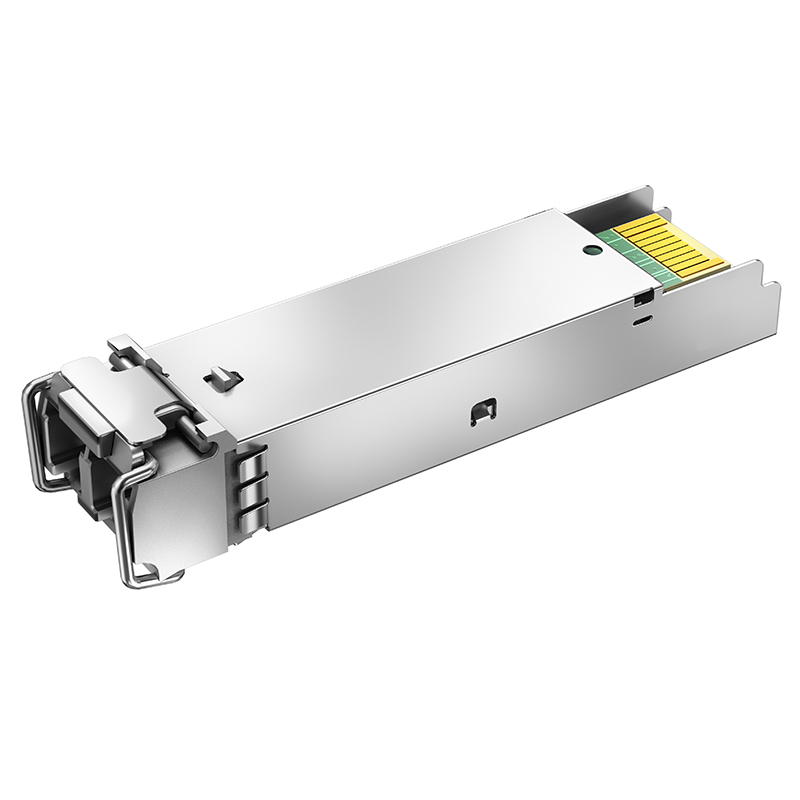

100BASE-LX Dual LC Single Mode SFP 1310nm 15km SMF Optical Transceiver Module
100BASE-LX Dual LC Single Mode SFP 1310nm 15km SMF Optical Transceiver Module
100BASE-LX Dual LC Single Mode SFP 1310nm 15km SMF Optical Transceiver Module
100BASE-LX Dual LC Single Mode SFP 1310nm 15km SMF Optical Transceiver Module
100BASE-LX Dual LC Single Mode SFP 1310nm 15km SMF Optical Transceiver Module
1 / 5
100BASE-LX Dual LC Single Mode SFP 1310nm 15km SMF Optical Transceiver Module
100BASE-LX Dual LC Single Mode SFP 1310nm 15km SMF Optical Transceiver Module
100BASE-LX Dual LC Single Mode SFP 1310nm 15km SMF Optical Transceiver Module
100BASE-LX Dual LC Single Mode SFP 1310nm 15km SMF Optical Transceiver Module
100BASE-LX Dual LC Single Mode SFP 1310nm 15km SMF Optical Transceiver Module

100BASE-LX Dual LC Single Mode SFP 1310nm 15km SMF Optical Transceiver Module

Send Inquiry

Product Description

100BASE-LX Dual LC Single Mode SFP 1310nm 15km SMF Optical Transceiver Module

Products Description

Item Specification Details
Item 100BASE SFP
Part Status Active
Form Factor SFP
Max Data Rate 100Mbps
Wavelength 1310nm
Max Cable Distance 15km
Media SMF
Connector Duplex LC
Optical Component FP 1310nm
TX Power -15~-8dBm
Receiver Sensitivity < -32.5dBm
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols IEEE802.3ab, GR-468, MSA Compliant
Warranty 5 Years
Sample Available
Product Overview

VIEW OUR SOLUTION

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Solution Overview
Optical Transport Networks
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Schematic Diagram
Product Process 1
Product Process 2
✦ Related Products SFP Cage ✦
Related Product SFP Cage 1
Related Product SFP Cage 2

Why Choose Us

Feature 1
Feature 2
Feature 3
Feature 4

Frequently Asked Questions

Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, with the shipping fee covered by the client.
What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production orders.
What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion regarding your custom requirements.
What is your advantage?
We bring over 19 years of professional production experience and have established long-term partnerships with leading global technology companies.
