ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack

Product Description

RJ45 Connectors Showcase
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
Products Description
Item RJ45 Female Connector
Manufacturer Part Number LPJ19201BGNL
Bothhand Part Number ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

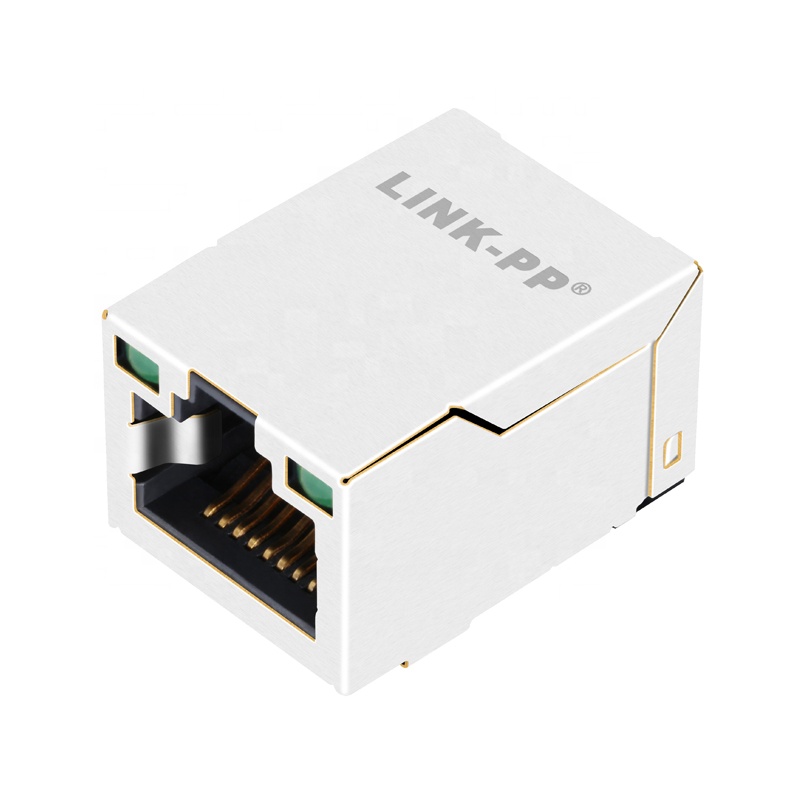

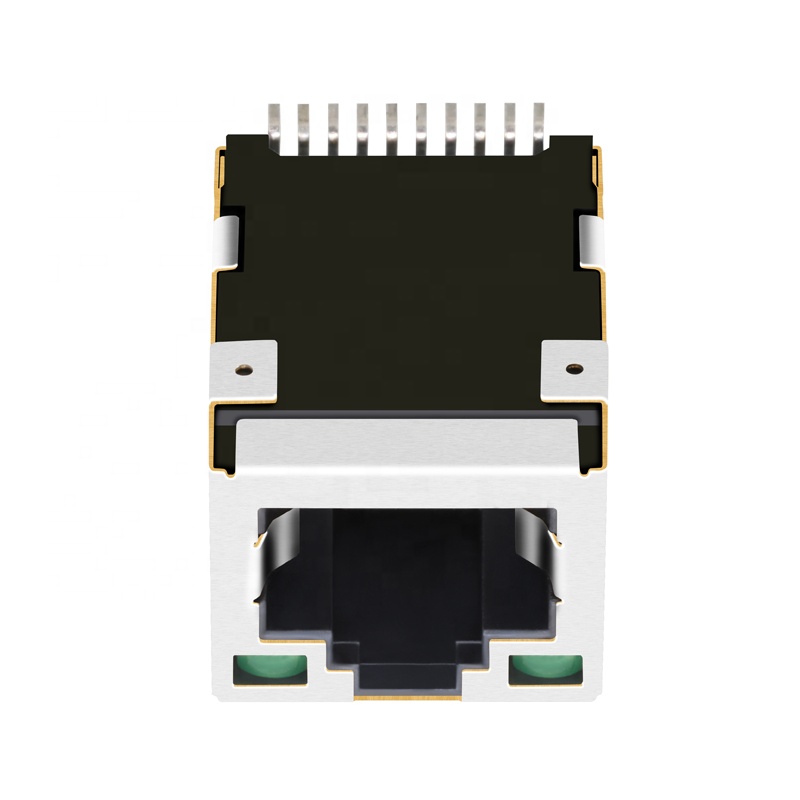

RJ45 SMT Connector View 1

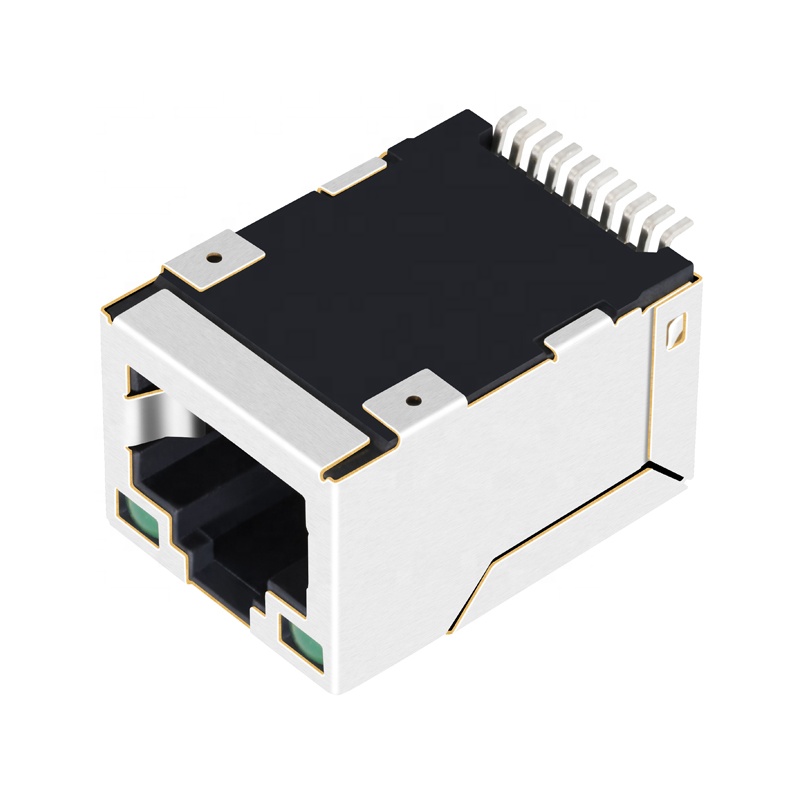

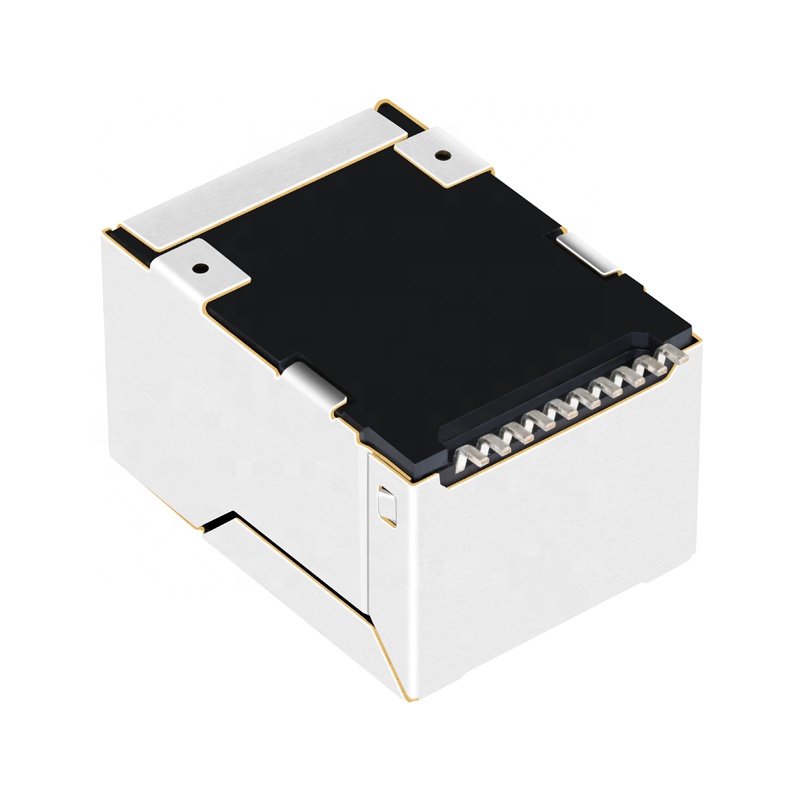

RJ45 SMT Connector View 2
Dimensional Drawing 1
Dimensional Drawing 2
Schematic Diagram
PCB Layout Recommendation
