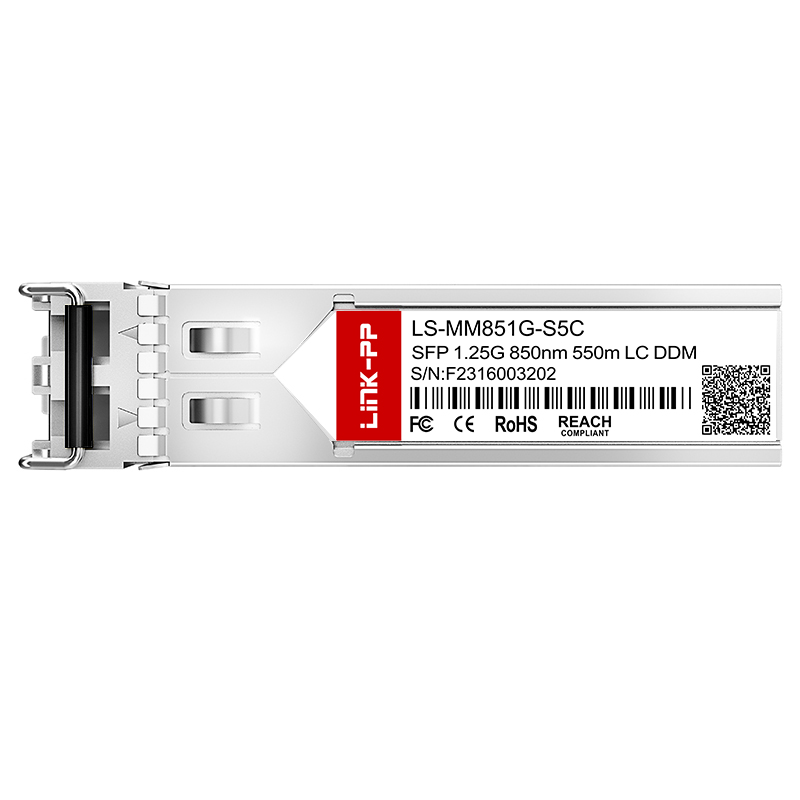

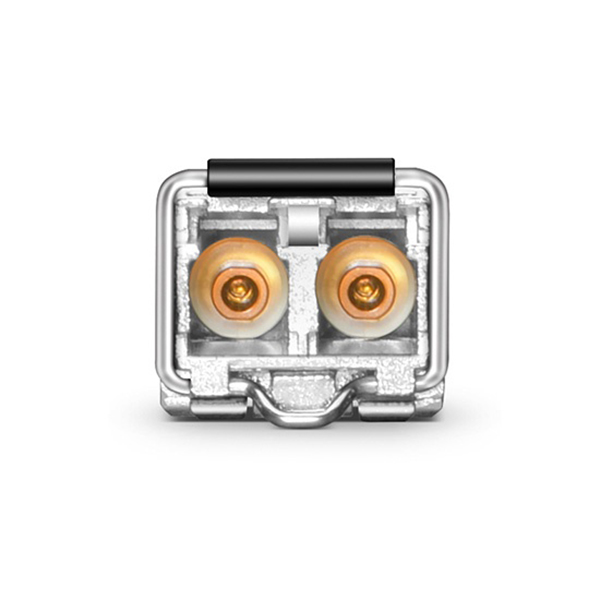

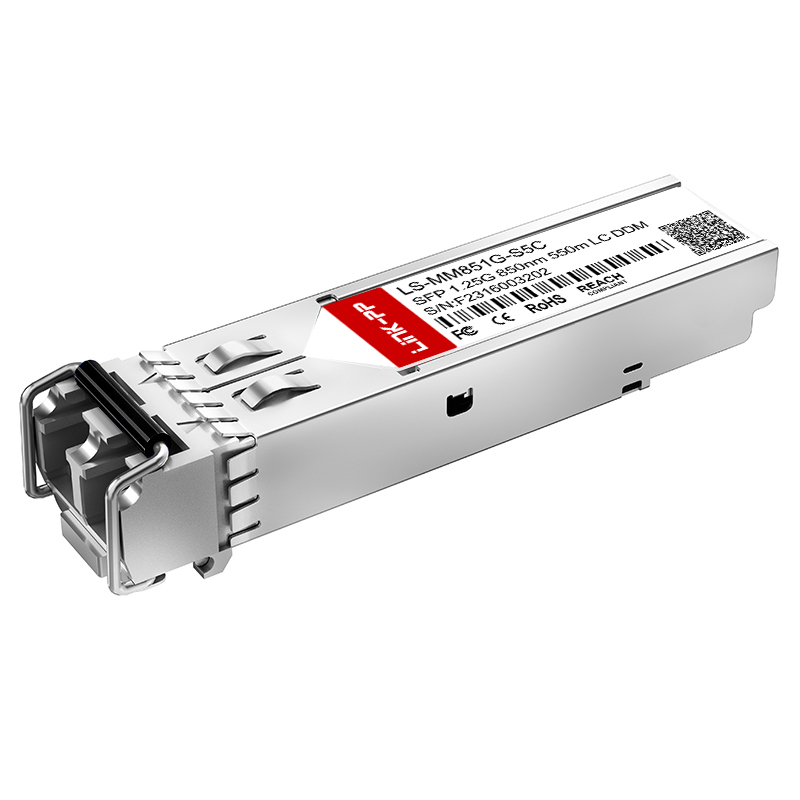

Multimode Dual LC Optical Transceiver MMF 850nm 1.25G SFP Fiber Optic Module 550m
| Item | 1.25G SFP Module |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 1.25Gbps |
| Max Cable Distance | 550m |
| Wavelength | 850nm |
| Connector | Duplex LC |
| Media | MMF |
| Optical Component | VCSEL/PIN |
| TX Power | -9.5 ~ - 3dBm |
| Receiver Sensitivity | < -17dBm |
| Receiver Overload | -3dBm |
| Power Consumption | ≤0.8W |
| DDM/DOM | DDM Supported |
| Commercial Temperature | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3z, SFF-8472, SFP MSA Compliant |
| Warranty | 5 Years |
| Sample | Available |
We provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with rates ranging from 10G to 800G, providing high-quality optical interconnection solutions.
High reliability and performance products with mature and efficient lasers and mainstream chip solutions. Solutions include Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.
Total optical fiber access solutions covered from all-optical or optical copper combined access solutions and products for global communication network constructers.
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing and test equipment imported from abroad. With a monthly productive capacity of 3000K, we ensure short delivery times and high-quality optical interconnection solutions for cloud computing and ultra-broadband networks.
