Dynafiber
Dynafiber

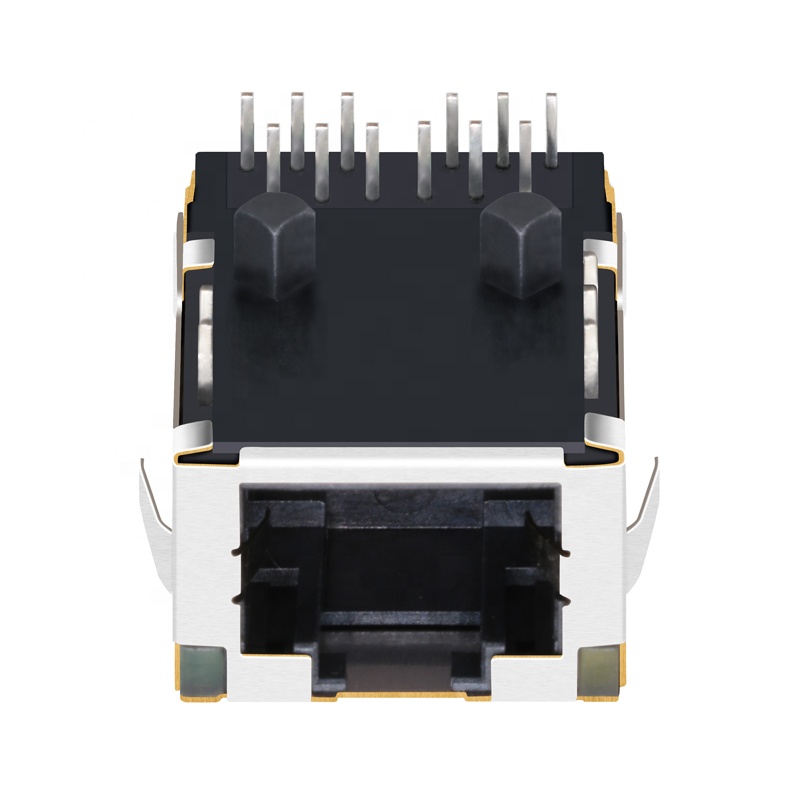

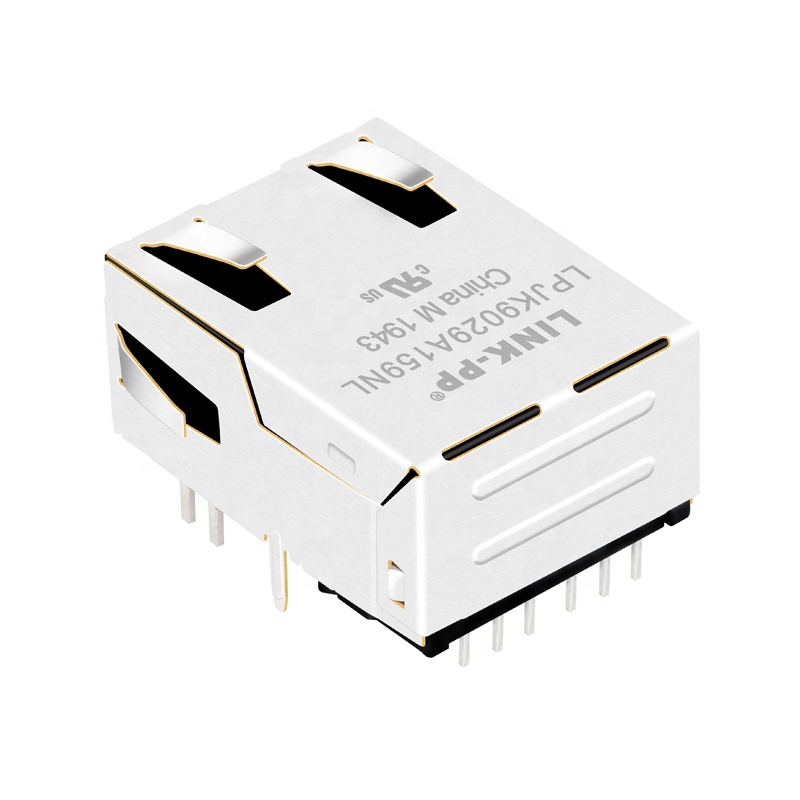

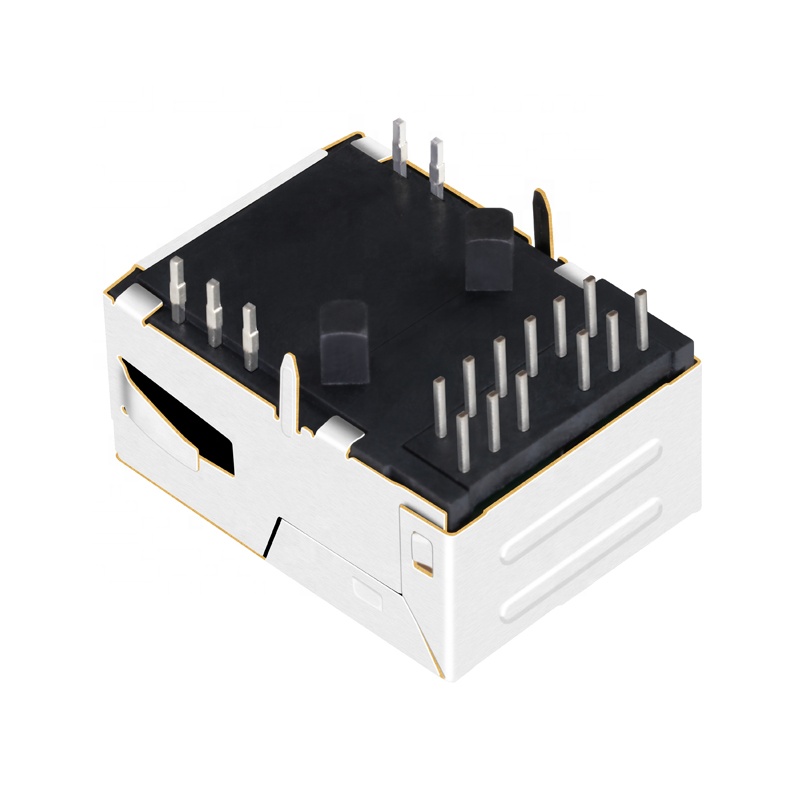

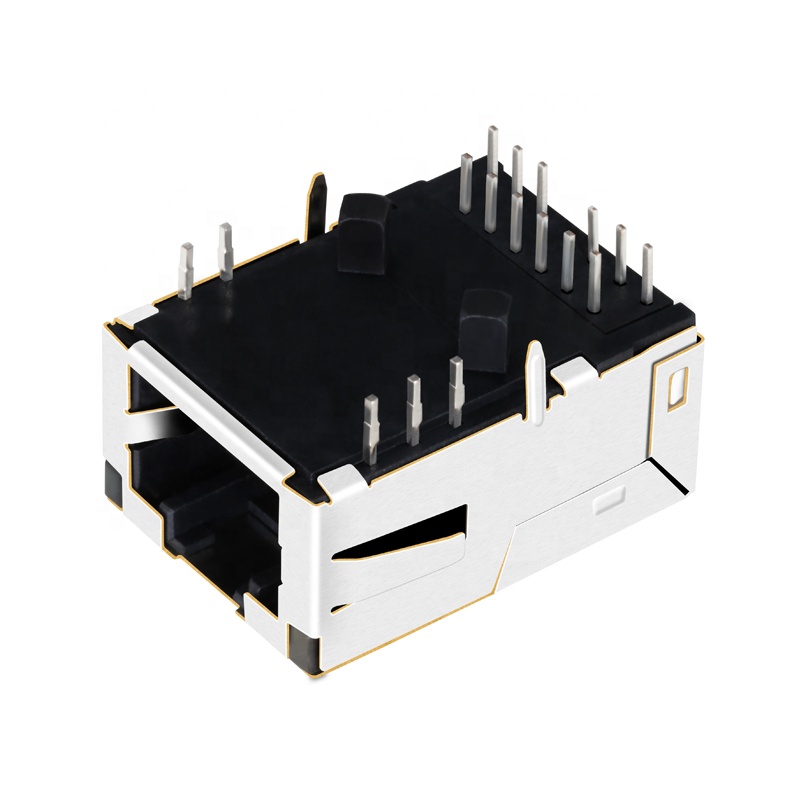

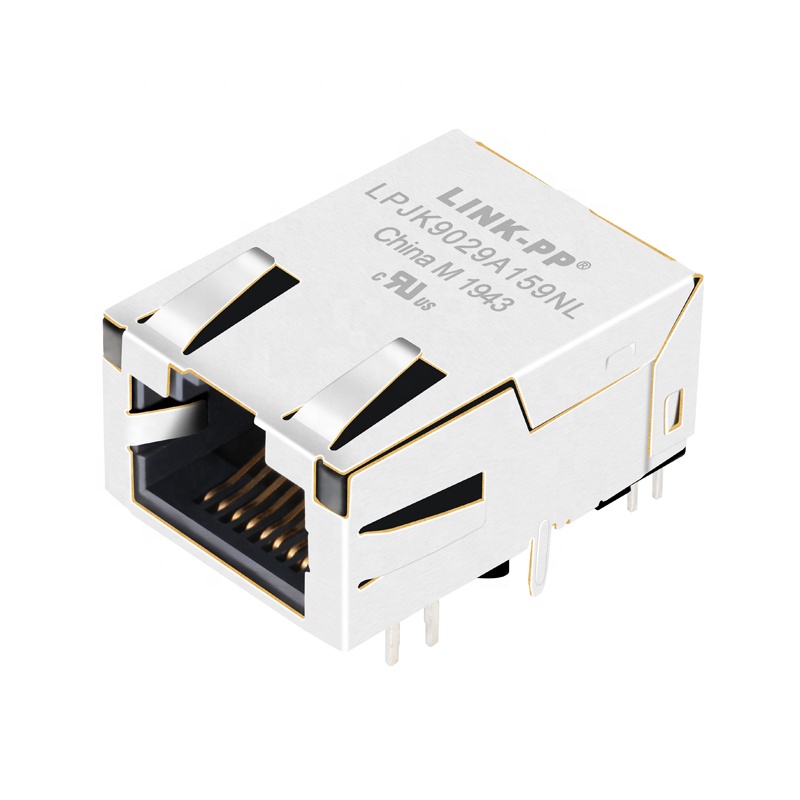

| Model Number | LPJK9029A159NL |
| Part Status | Active |
| Connector Type | RJ45 |
| Applications-Lan | 5G Base-T, AutoMDIX |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| LED Color | Yellow&Green - Yellow |
| Number of Cores per Jack | 8 |
| Shielding | Shielded |
| Number of Ports | Single Port |
| Features | Board Guide |
| Tab Direction | Down |
| Contact Finish | Gold |
| Configuration RX/TX | T,C |
| Turns Ratio RX/TX | 1CT:1CT |
| Operating Temperature | 0°C ~ 70°C |
Integrated Functionality: RJ45 Connector with integrated transformer / common mode choke.
High Speed Performance: Supports Power over Ethernet (PoE) up to 50 Watt and speeds up to 10 Gbit/s.
Versatile Mounting: Available in SMT, THT and THT with USB options.
Standard Compliance: Fully compliant with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and upcoming IEEE 802.3bt.
Superior Signal Integrity: HPLE products feature improved Common Mode Rejection due to additional NiZn cores.
Specialized in magnetic telecom and networking components with certifications including ISO9001:2000, ROSH, REACH, CE, and UL. Facilities include advanced manufacturing and testing equipment for high-reliability components.
