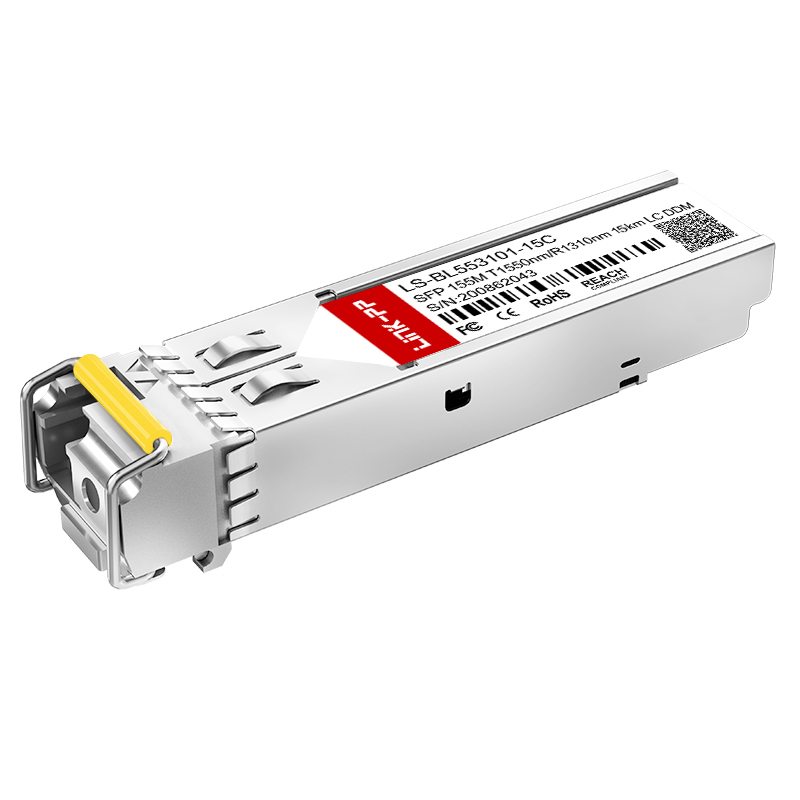

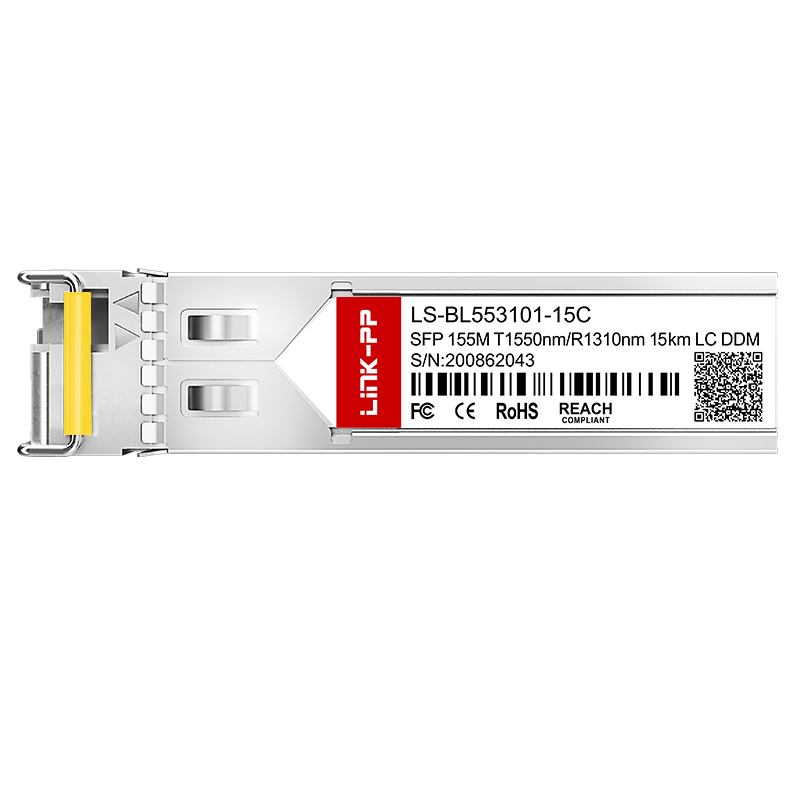

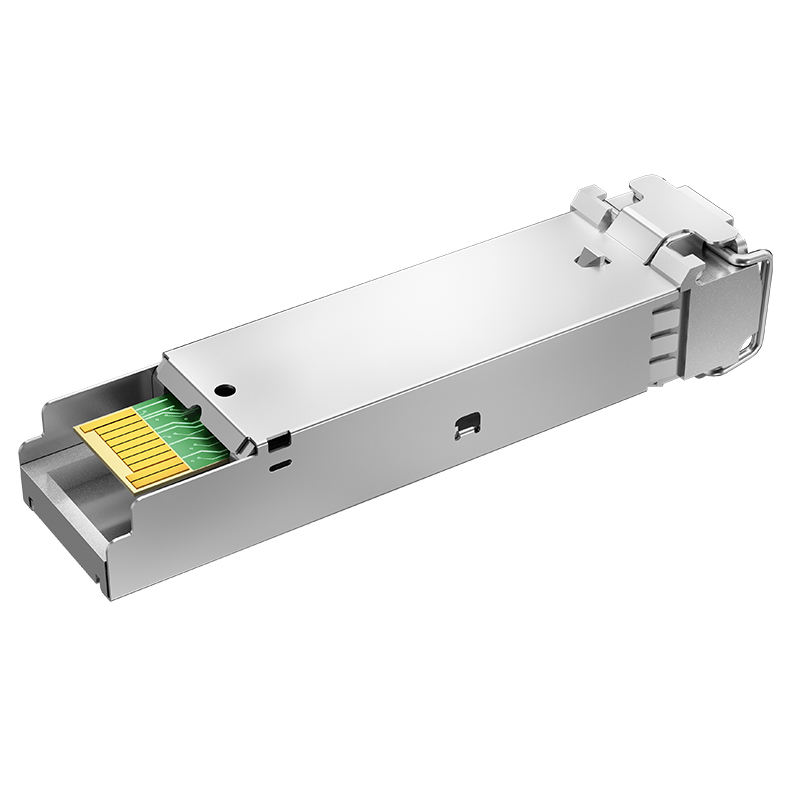

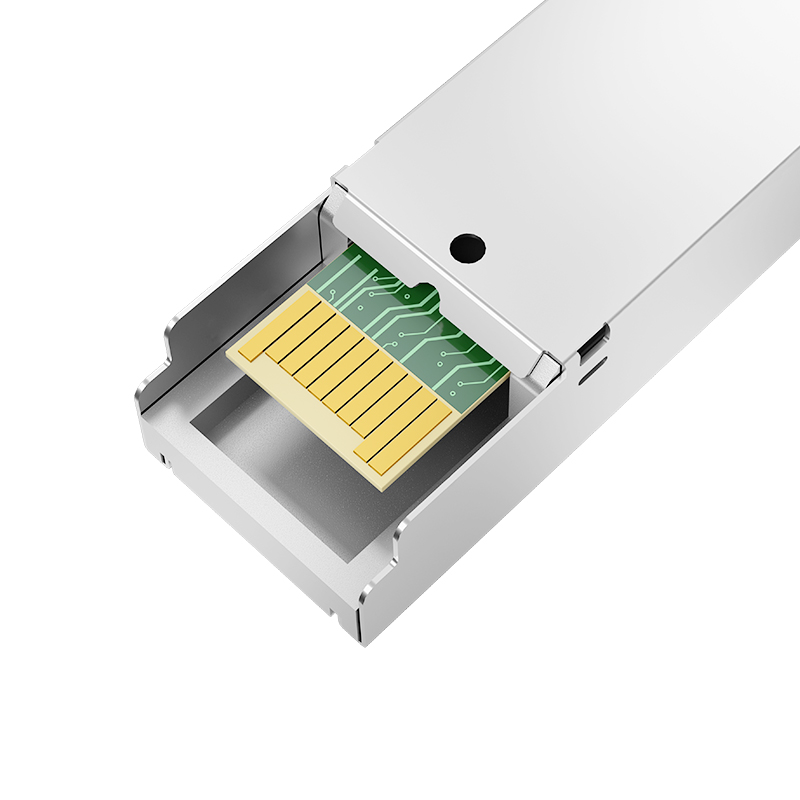

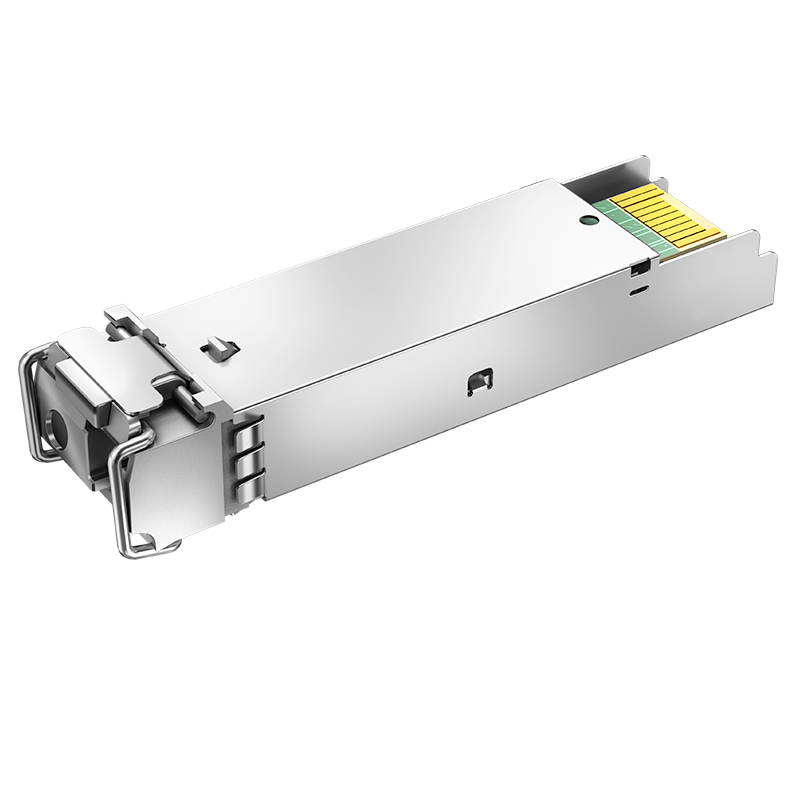

1550nm-TX/1310nm-RX Simplex LC SMF SFP 155M Bidi 15km DDM Optic Transceiver Module

Product Description

Key Specifications

Form Factor SFP Max Data Rate 155Mbps
Wavelength 1550nm-TX/1310nm-RX Max Cable Distance 15km
Connector Simplex LC Media SMF
Transmitter Type FP Receiver Type PIN
TX Power -15 ~ -8dBm Receiver Sensitivity < -30dBm
EMC Support Supported DDM/DOM Supported
Protocols Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C Warranty 5 Years
Sample Available
View Our Solutions

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

SFP Module Product Interface
Support Full Range Of 155M BiDi SFP
Part Number Data Rate Wavelength Distance Components DDM
LS-BL315501-10C 155Mbps 1310nm-TX/1550nm-RX 10km FP/PIN Yes
LS-BL553101-10C 155Mbps 1550nm-TX/1310nm-RX 10km FP/PIN Yes
LS-BL315501-15C 155Mbps 1310nm-TX/1550nm-RX 15km FP/PIN Yes
LS-BL553101-15C 155Mbps 1550nm-TX/1310nm-RX 15km FP/PIN Yes
LS-BL315501-20C 155Mbps 1310nm-TX/1550nm-RX 20km FP/PIN Yes
LS-BL553101-20C 155Mbps 1550nm-TX/1310nm-RX 20km FP/PIN Yes
LS-BL315501-40C 155Mbps 1310nm-TX/1550nm-RX 40km FP/PIN Yes
LS-BL553101-40C 155Mbps 1550nm-TX/1310nm-RX 40km FP/PIN Yes
LS-BL315501-80C 155Mbps 1310nm-TX/1550nm-RX 80km FP/PIN Yes
LS-BL553101-80C 155Mbps 1550nm-TX/1310nm-RX 80km FP/PIN Yes
LS-BL495501-80C 155Mbps 1490nm-TX/1550nm-RX 80km DFB/PIN Yes
LS-BL554901-80C 155Mbps 1550nm-TX/1490nm-RX 80km DFB/PIN Yes
Optic Transceiver Solutions Overview
SFP Module Products Showcase
Network Application Scenarios
Optical Transport Networks

Optical Transport Networks

End-to-end DWDM device solutions with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.

Cloud and Enterprise

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, high-speed optical modules ranging from 10G to 800G have been developed, providing high-quality optical interconnection solutions for data centers.

Wireless Networks

Wireless

High reliability and performance products designed with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul matching the requirements of 4G/5G systems.

FTTx Access Solutions

FTTx

Targeting global communication network constructers, FTTx optical fiber access total solutions are available, covering all-optical or optical copper combined access solutions and products.

Subsystems & Protection

Subsystems

To ensure the normal operation of the communication line, optical cable O&M solutions are offered integrating an optical line protection system (OLP) and an optical line monitoring system (OLM).

Related Products SFP Cage
SFP Cage Design
Why Choose Us
Quality Standard Certifications
Quality Testing Processes
Advanced Equipment
Global Delivery Logistics
Profile Overview

As a specialized manufacturer of magnetic telecom and network components certified by ISO9001:2000, RoHS, REACH, CE, and UL, the enterprise operates with advanced manufacturing and testing equipment imported from abroad. Established in 1997 with a substantial production capacity of 3000K per month, fast-tracked deliveries are ensured.

In addition, a complete series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, products are designed, manufactured, and sold worldwide.

Manufacturing Center Showcase
Testing Lab Facilities
Frequently Asked Questions

1. Are you a manufacturer?

Yes, we are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

2. Can I get a sample before placing a bulk order?

Yes, free samples are available to test quality, with the shipping cost covered by the customer.

3. What is the typical delivery timeline?

In-stock products are ready to ship immediately, while bulk mass production typically takes between 15 to 30 days.

4. What kind of after-sales service and support is provided?

We offer a one-year warranty period along with 24-hour online technical support.

5. Do you support OEM/ODM customized orders?

Yes, we welcome OEM and ODM custom specifications. Please send us your inquiries for detailed discussions.

6. What are the key advantages?

We possess over 19 years of dedicated manufacturing experience, establishing long-standing partnerships with industry leaders.
