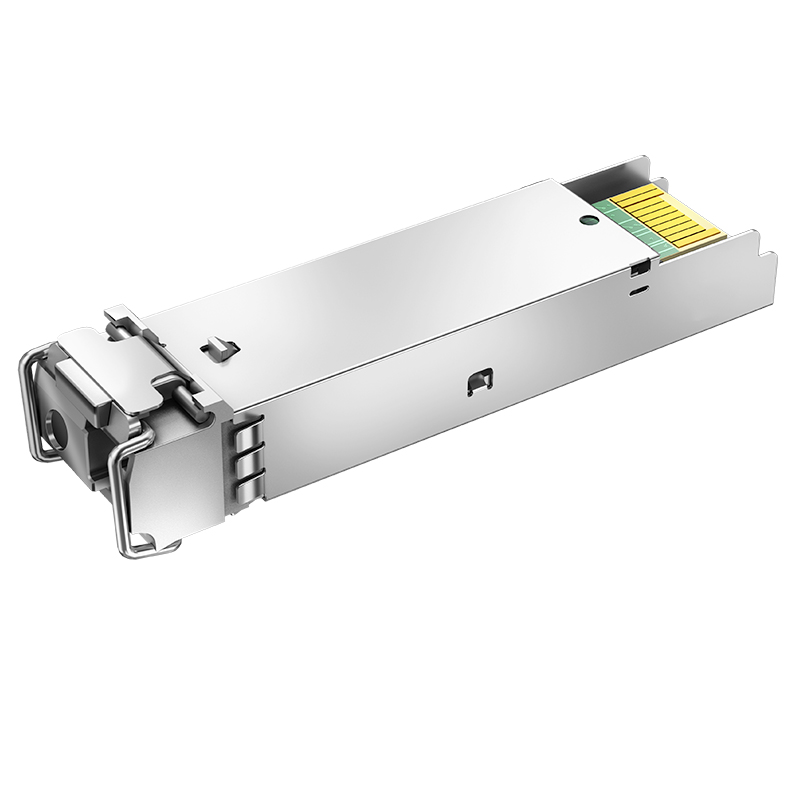

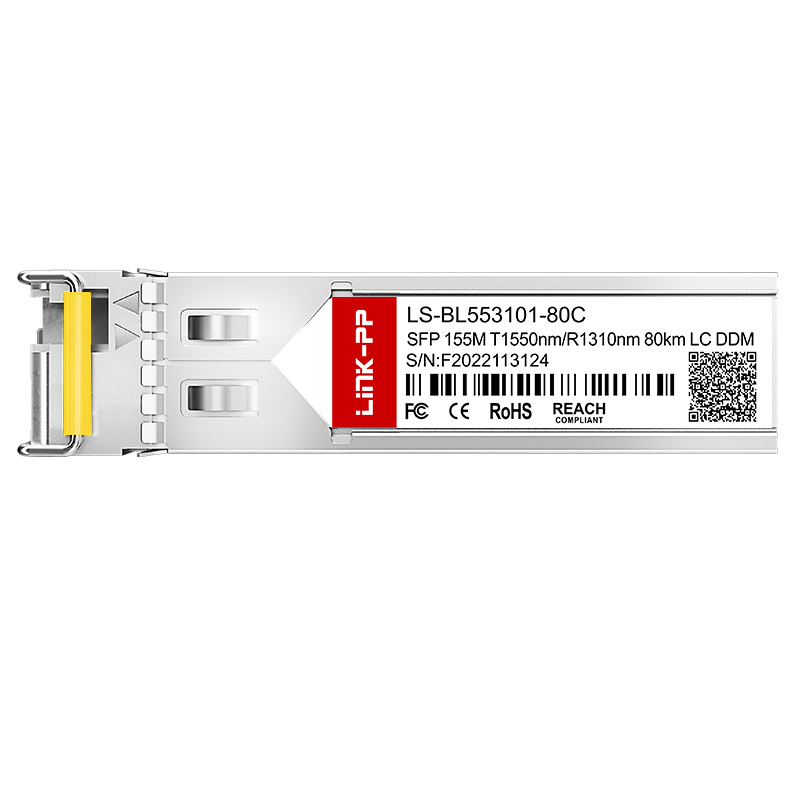

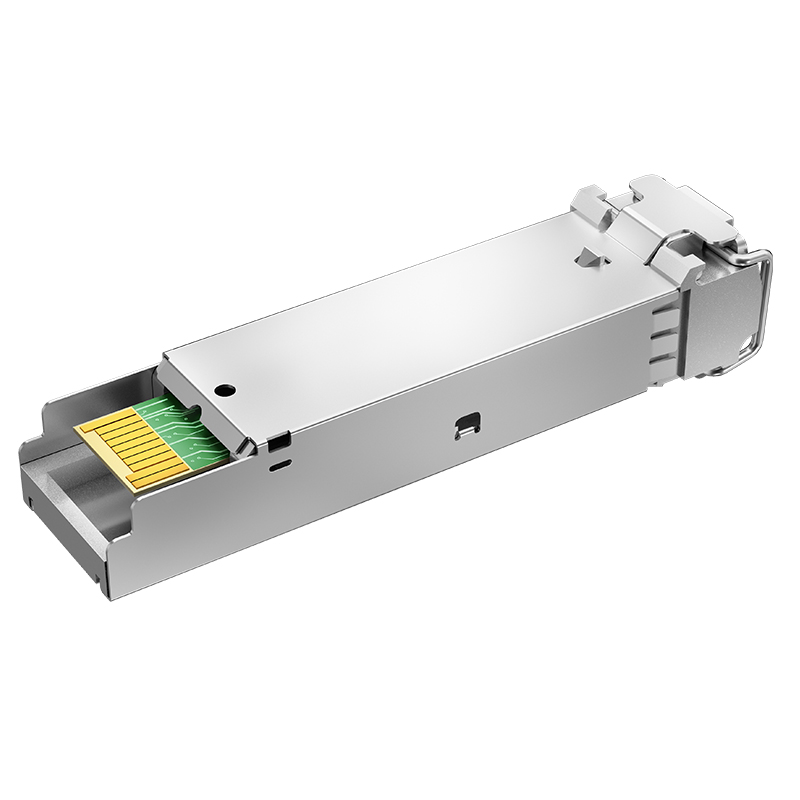

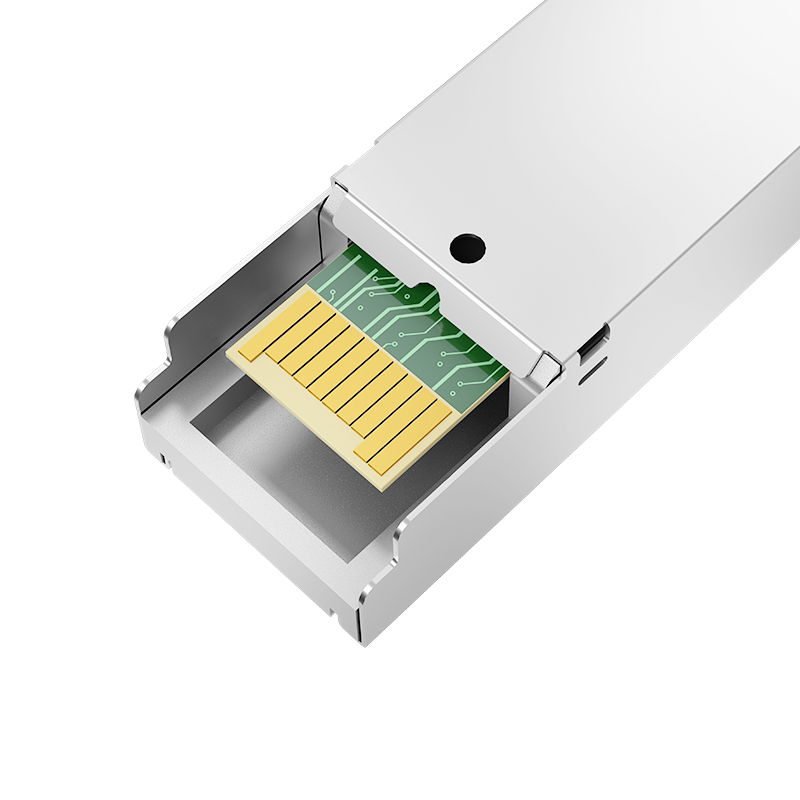

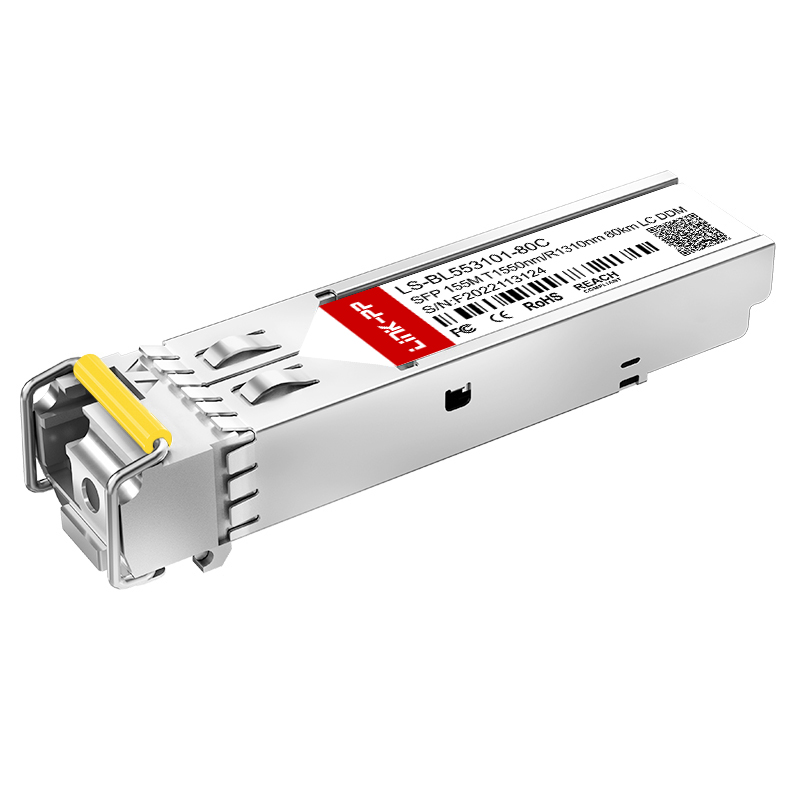

1550nm-TX/1310nm-RX Bidirectional SFP 155M Bidi 80km SMF LC Optic Transceiver Module

Product Description

1550nm-TX/1310nm-RX Bidirectional SFP 155M Bidi 80km SMF LC Optic Transceiver Module
Technical Specifications
Part No.LS-BL553101-80C
Form FactorSFP
Max Data Rate155Mbps
Wavelength1550nm-TX/1310nm-RX
Max Cable Distance80km
ConnectorSimplex LC
MediaSMF
Transmitter TypeFP
Receiver TypePIN
TX Power-5 ~ 2dBm
Receiver Sensitivity< -32dBm
EMC SupportedYes
DDM/DOMSupported
ProtocolsSFP MSA and SFF-8472
Temperature Range0 to 70°C / -40 to 85°C
Warranty5 Years
VIEW OUR SOLUTIONS

With over 10 years of experience in chips and modules, we integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Optical Module
Support Full Range Of 155M BiDi SFP
Part Number Data Rate Wavelength Distance Components DDM
LS-BL315501-10C155Mbps1310nm-TX/1550nm-RX10kmFP/PINYes
LS-BL553101-10C155Mbps1550nm-TX/1310nm-RX10kmFP/PINYes
LS-BL315501-15C155Mbps1310nm-TX/1550nm-RX15kmFP/PINYes
LS-BL553101-15C155Mbps1550nm-TX/1310nm-RX15kmFP/PINYes
LS-BL315501-20C155Mbps1310nm-TX/1550nm-RX20kmFP/PINYes
LS-BL553101-20C155Mbps1550nm-TX/1310nm-RX20kmFP/PINYes
LS-BL315501-40C155Mbps1310nm-TX/1550nm-RX40kmFP/PINYes
LS-BL553101-40C155Mbps1550nm-TX/1310nm-RX40kmFP/PINYes
LS-BL315501-80C155Mbps1310nm-TX/1550nm-RX80kmFP/PINYes
LS-BL553101-80C155Mbps1550nm-TX/1310nm-RX80kmFP/PINYes
Feature Showcase
Product Series
Application Scenarios
📡
Optical Transport Networks
End-to-end DWDM devices including active modules and passive devices like EDFA, Mux/Demux, ROADM, and OLP.
Transport Networks
☁️
Cloud and Enterprise
High-speed interconnection solutions for data centers ranging from 10G to 800G.
Cloud Enterprise
📶
Wireless Networks
Mature laser and chip solutions for 4G/5G systems including Dark Fiber, WDM, and High-Speed Back-haul.
Wireless
🏠
FTTx Solutions
Total fiber access solutions covered from all-optical or optical copper combined access.
FTTx
Manufacturing and Quality

We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL. With advanced manufacturing and testing equipment, we deliver high-quality optical interconnection solutions globally. Our production capacity reaches 3000K per month, ensuring short lead times for cloud computing and ultra-broadband network products.

Frequently Asked Questions
1. Are you a manufacturer or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including SFP modules and various connectors.
2. Can I get a sample before placing a mass order?
Yes, we can offer free samples for quality testing purposes, though shipping costs are typically covered by the customer.
3. What is the standard delivery time?
Stock items are ready to ship immediately. For mass production orders, the lead time is generally between 15 to 30 days.
4. What kind of after-sales service and warranty do you provide?
We offer a comprehensive guarantee period and provide 24-hour online technical support to ensure seamless operation.
5. Do you accept OEM or ODM orders?
Yes, we fully support OEM and ODM services. Please contact our team for a detailed discussion on your specific requirements.
6. What are the advantages of choosing your products?
With nearly 20 years of production experience and high-standard certifications, we provide high-reliability performance using mainstream chip solutions.
