Dynafiber
Dynafiber

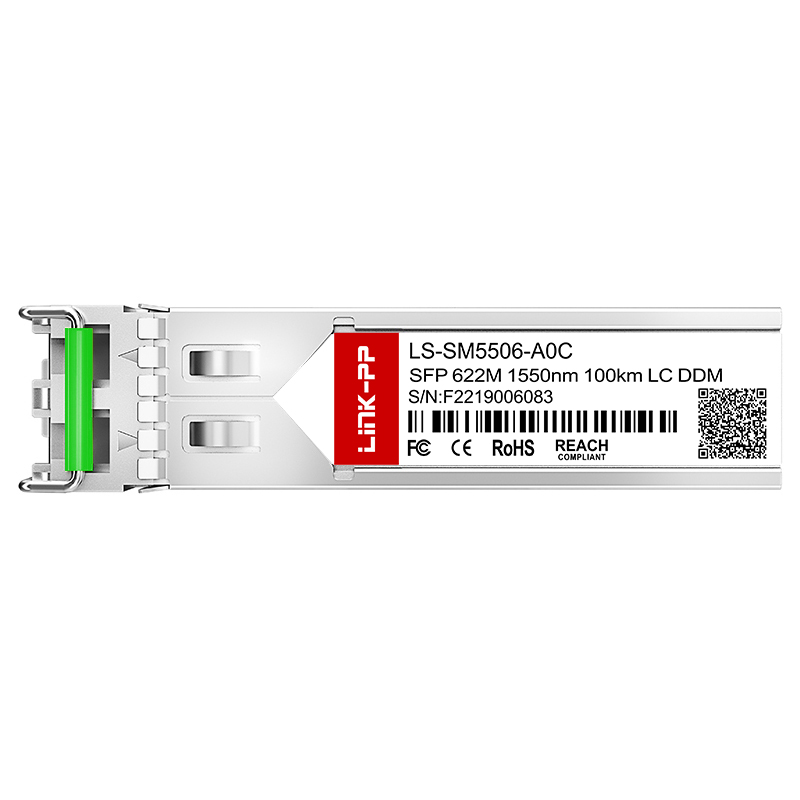

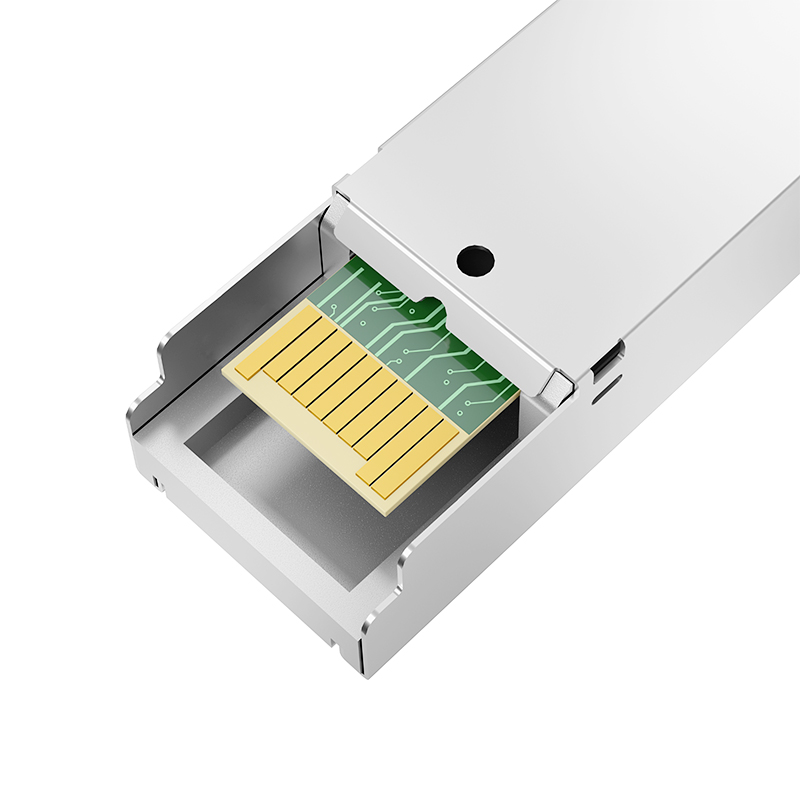

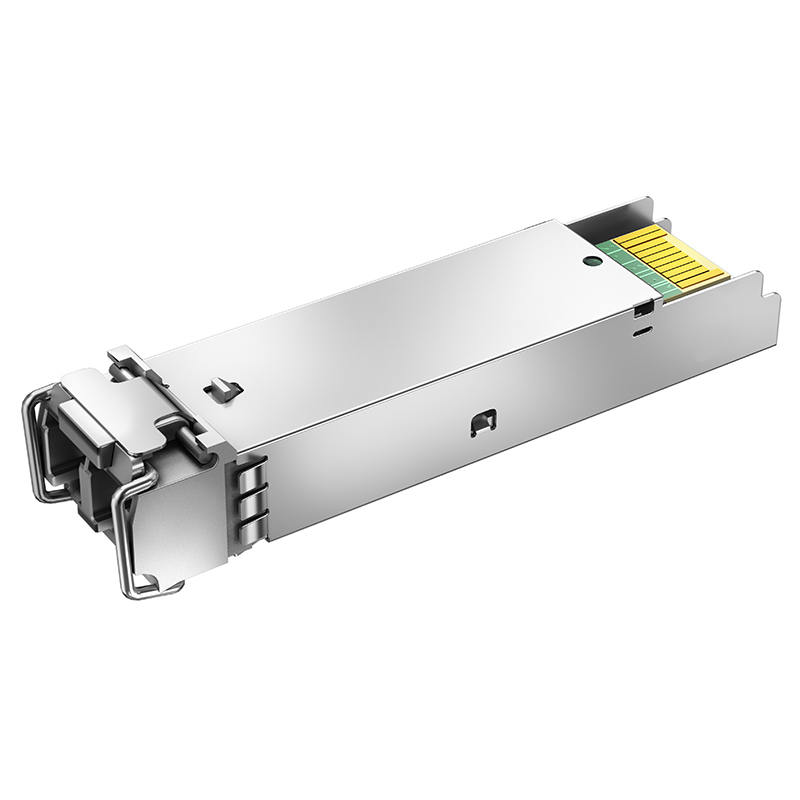

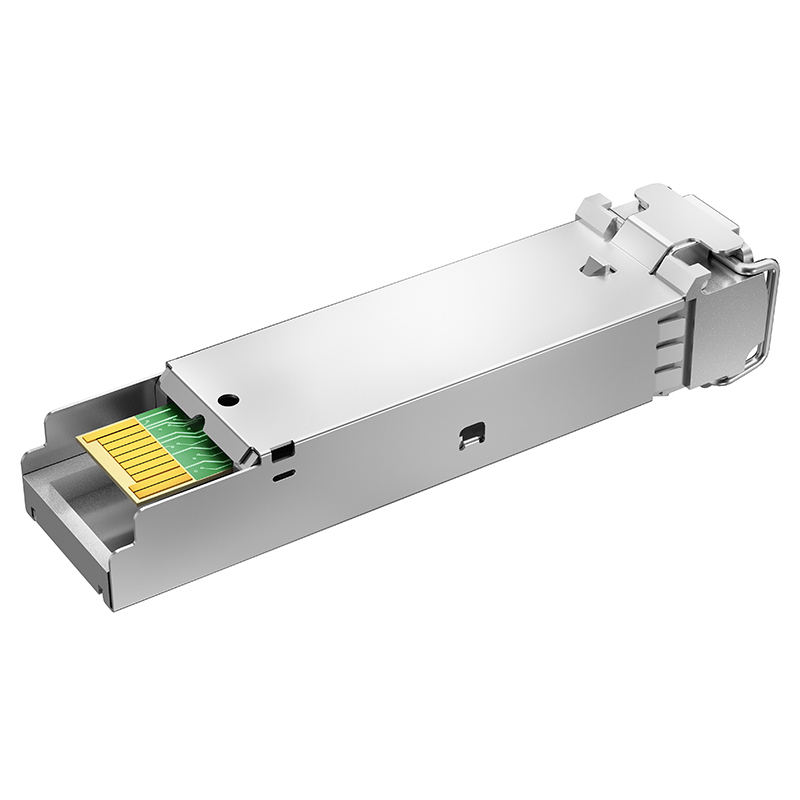

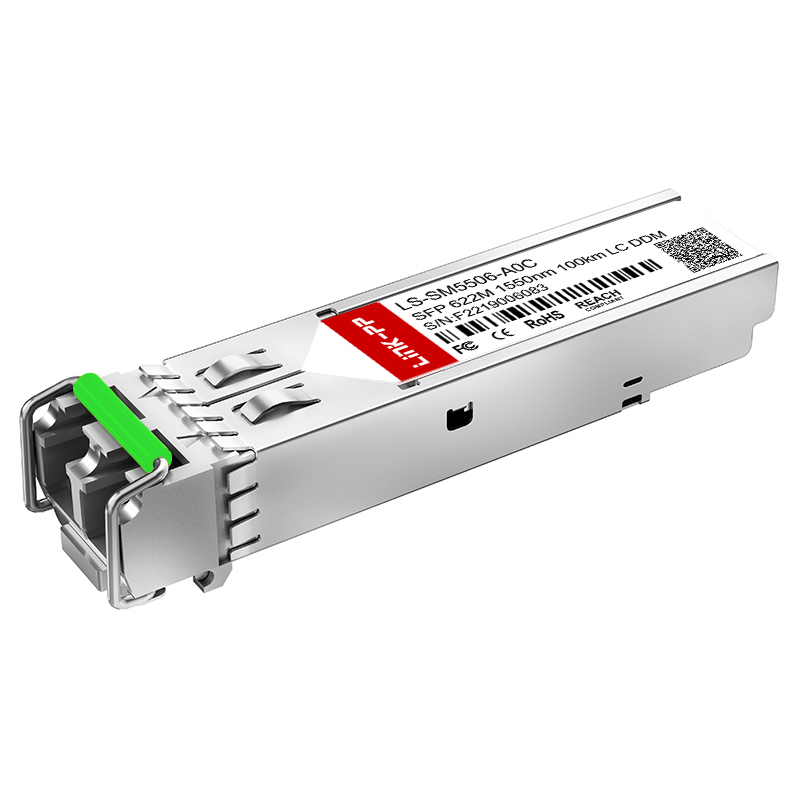

| Part No. | LS-SM5506-A0C |
| Form Factor | SFP |
| Max Data Rate | 622Mbps |
| Wavelength | 1550nm |
| Max Cable Distance | 100km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| EMC Supported | Yes |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
Drawing on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM8506-S5C | 622Mbps | 850nm | 500m | Multi-mode | Yes |
| LS-SM3106-S5C | 622Mbps | 1310nm | 500m | Single Mode | Yes |
| LS-SM3106-02C | 622Mbps | 1310nm | 2km | Single Mode | Yes |
| LS-MM3106-02C | 622Mbps | 1310nm | 2km | Multi-mode | Yes |
| LS-SM3106-20C | 622Mbps | 1310nm | 20km | Single Mode | Yes |
| LS-SM3106-40C | 622Mbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM5506-80C | 622Mbps | 1550nm | 80km | Single Mode | Yes |
| LS-SM5506-A0C | 622Mbps | 1550nm | 100km | Single Mode | Yes |
| LS-SM5506-A2C | 622Mbps | 1550nm | 120km | Single Mode | Yes |
End-to-end DWDM devices including active modules, optical passive devices, amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR.
High-speed optical modules ranging from 10G to 800G, providing high-quality interconnection solutions for data centers.
High reliability products with mature laser and chip solutions covering Dark Fiber, WDM, Radio over Fiber, High Speed, and Back-haul for 4G/5G systems.
Total fiber access solutions covering all-optical or optical-copper combined access products for global communication constructors.
As a specialized manufacturer of magnetic telecom and network components, our facility is certified by ISO9001:2000, ROSH, REACH, CE and UL. We utilize advanced manufacturing and testing equipment to ensure abundant production capacity of 3000K per month, enabling short delivery times for all optical interconnect solutions.
