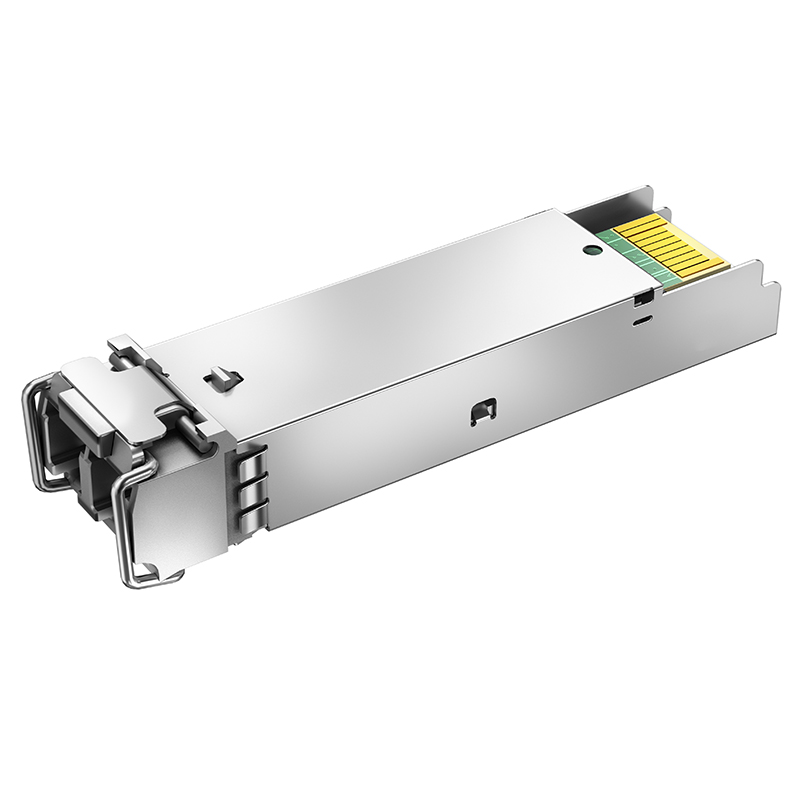

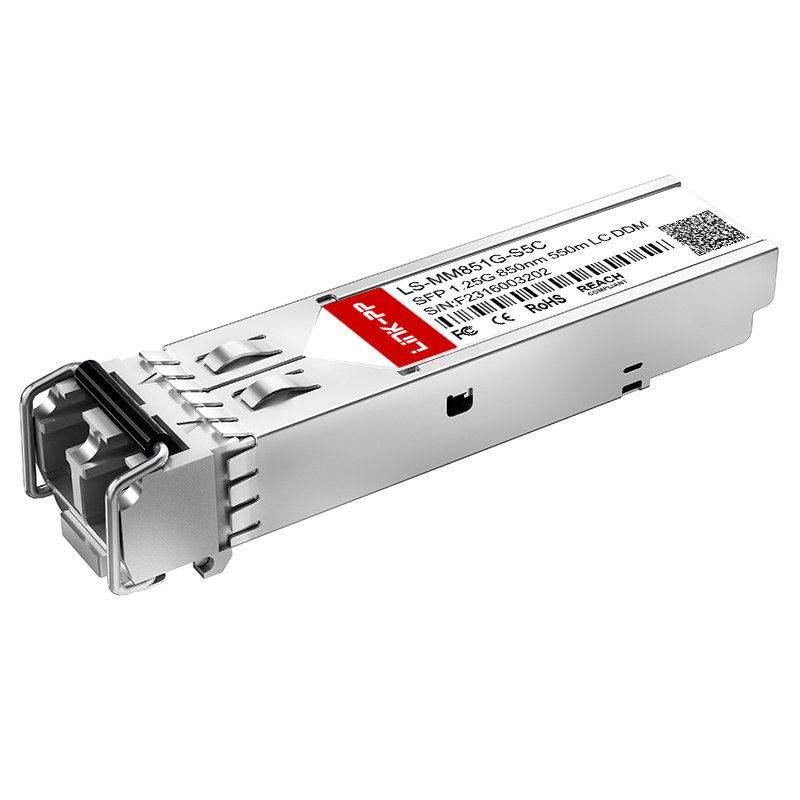

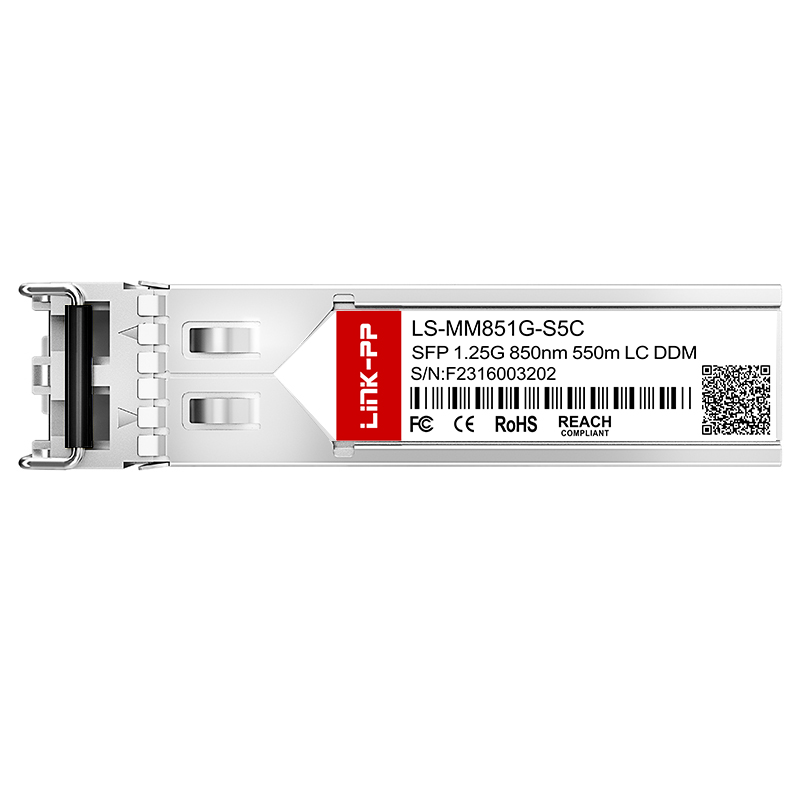

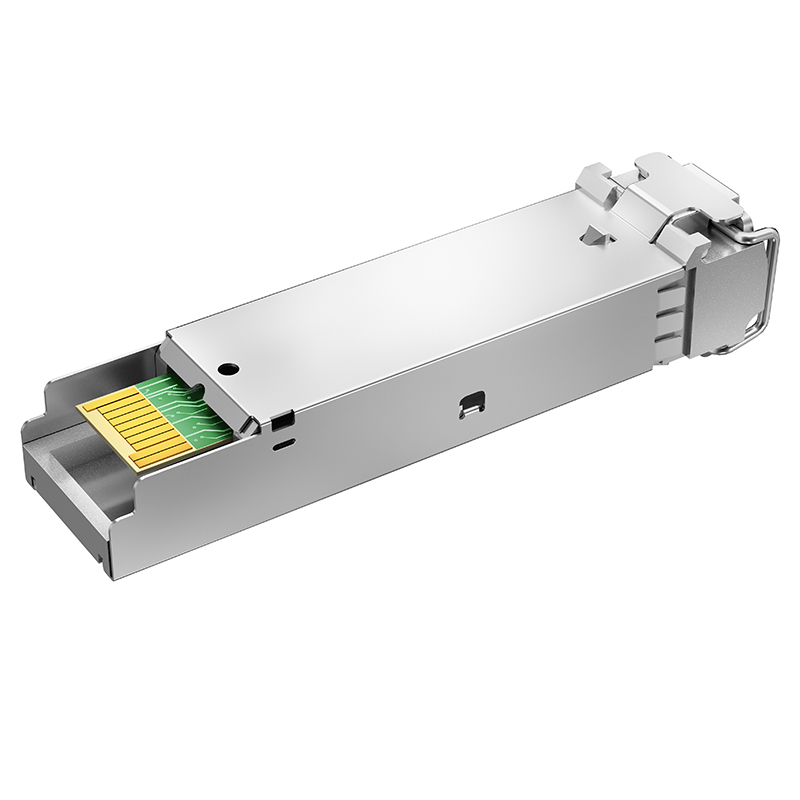

1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
Products Description
| Item | SFP Module |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 1.25Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 550m |

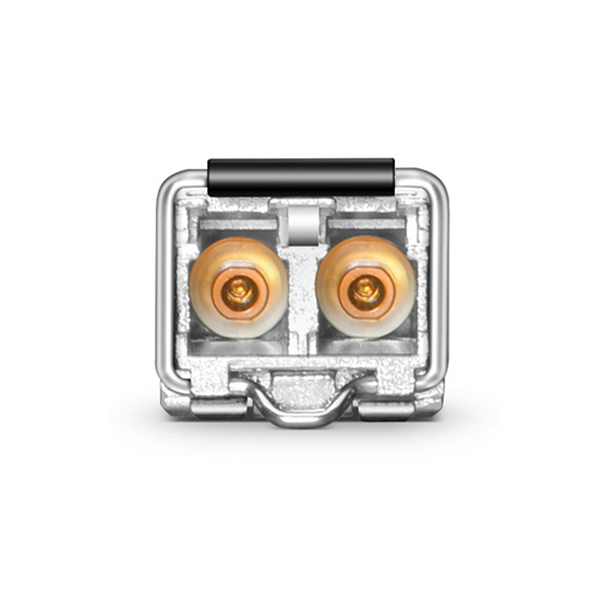

| Connector | Duplex LC |
| Media | Multimode (MMF) |
| Optical Component | VCSEL/PIN |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -9.5 ~ - 3dBm |
| Receiver Sensitivity | < -17dBm |
| Typical Power Consumption | ≤0.8w |
| Receiver Overload | -3dBm |
| Bit Error Ratio (BER) | 1E-12 |
| Extinction Ratio | >9dB |
| EMC (Electro Magnetic Compatibility) | Supported |
| MTBF (SX) | 2,457,002 Hours |
| Protocols | IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant |
| Warranty | 5 Years |
| Sample | Available |
VIEW OUR SOLUTION
With over 10 years of experience in chips and modules, we integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transport Networks
End-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
High-speed optical modules with rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers and mass data transmission demands.
Wireless
Reliability and performance products with mature lasers and chip solutions including Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.
FTTx
Total optical fiber access solutions covering all-optical or optical copper combined access solutions and products for global communication network constructors.
Subsystems
Optical cable O&M solutions integrating optical line protection systems (OLP) and optical line monitoring systems (OLM) to ensure normal operation of communication lines.
Related Products SFP Cage
Why Choose Us
Company Profile
As a specialized manufacturer of magnetic telecom and networking components, we are certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facilities feature advanced manufacturing and test equipment. With an abundant monthly productive capacity, we ensure delivery within short timeframes. We provide a full series of optical modules and high-speed interconnection solutions for cloud computing and ultra-broadband networks globally.
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, and SFP modules.
Can I request a sample before placing a mass production order?
Yes, we can offer samples to test quality. Please contact us regarding shipping arrangements for sample delivery.
What is the typical delivery time for orders?
Stock items are ready to ship immediately, while mass production typically requires 15 to 30 days.
What kind of after-sales service and warranty do you provide?
We offer a comprehensive guarantee period and provide 24-hour online technical support to assist with any queries.
Do you accept OEM or ODM orders for specific requirements?
Yes, we accept OEM/ODM orders. Please provide your detailed specifications so we can discuss the requirements.
What are the primary advantages of your products?
With nearly two decades of production experience, we maintain high industry standards and long-term partnerships with leading global technology firms.
