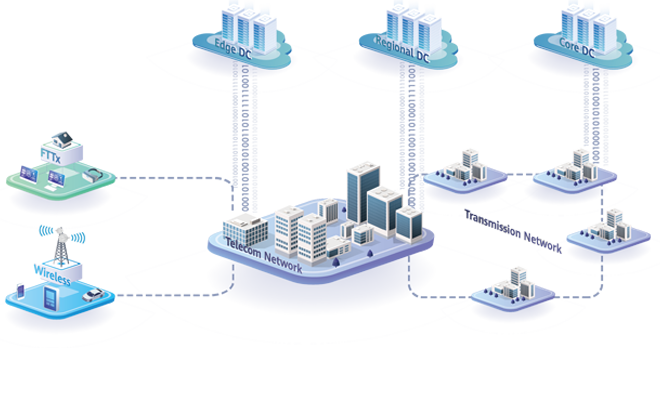

High reliability and performance products with mature and efficient lasers and mainstream chip solutions. Solutions include Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.
Aimed at global communication network constructors, providing FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Ensuring normal operation of communication lines with optical cable O&M solutions that integrate optical line protection systems (OLP) and optical line monitoring systems (OLM).

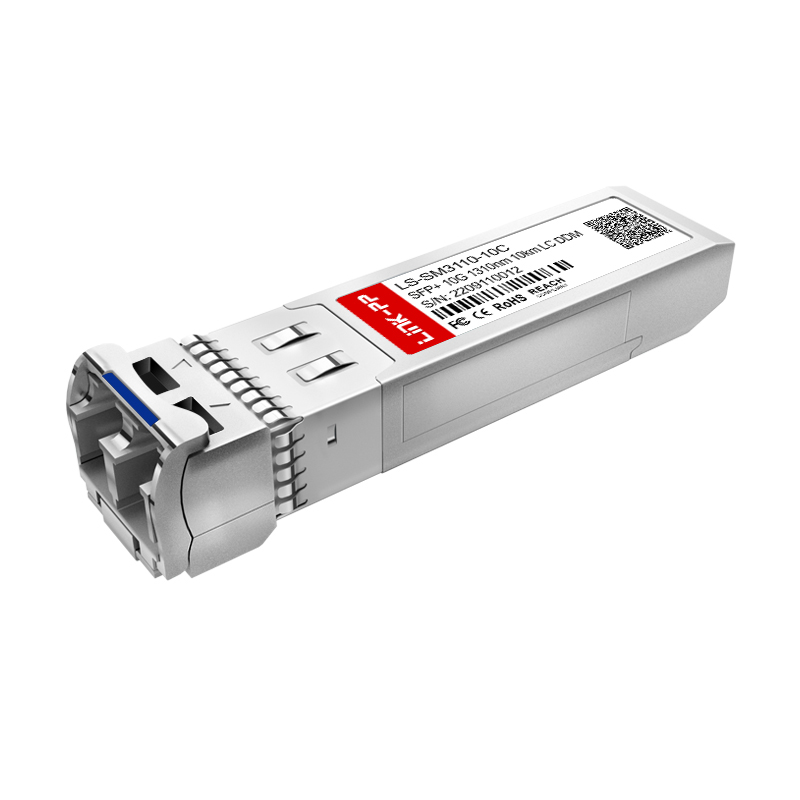

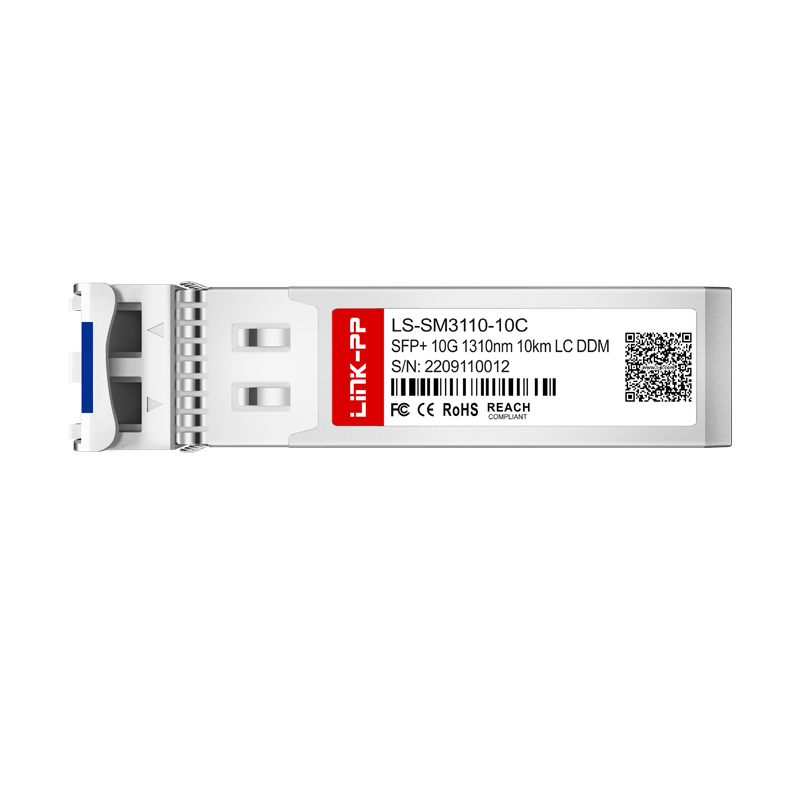

Compatible Single Mode 1310nm SFP+ 10G 10km LC Optical Transceiver Module
| Form Factor | SFP+ |
| Max Data Rate | 10Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 10km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| TX Power | -8.2~0.5dBm |
| Receiver Sensitivity | <-14.4dBm |
| Typical Power Consumption | ≤1w |
| DDM/DOM | Supported |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
