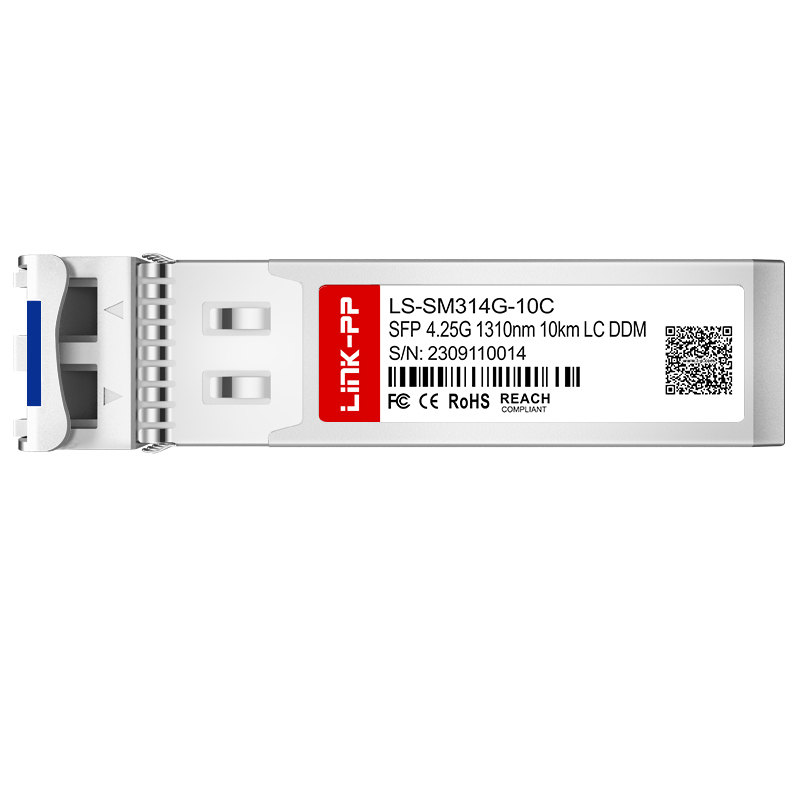

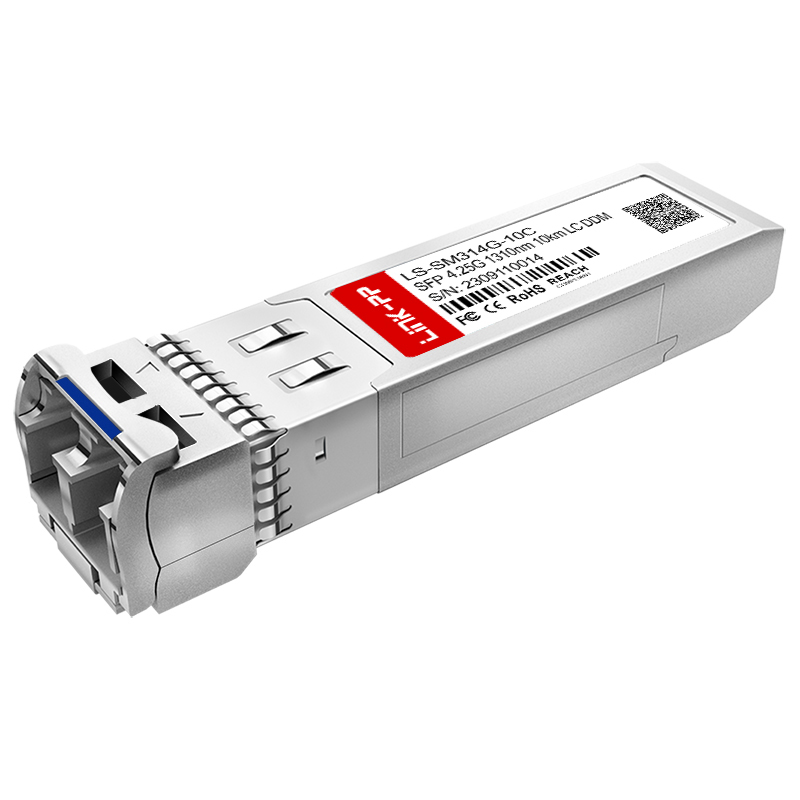

| Part No. | LS-SM314G-10C | Form Factor | SFP |
| Max Data Rate | 4.25Gbps | Wavelength | 1310nm |
| Max Distance | 10km | Connector | Duplex LC |
| Media | SMF | Transmitter Type | DFB |
| Receiver Type | PIN | TX Power | -8 ~ -1dBm |
| Sensitivity | < -18dBm | DDM/DOM | Supported |
| Protocols | MSA Compliant | Warranty | 5 Years |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM854G-S1C | 4.25Gbps | 850nm | 150m | Multi-mode | Yes |
| LS-MM852G-S3C | 4.25Gbps | 850nm | 300m | Multi-mode | Yes |
| LS-MM854G-S5C | 4.25Gbps | 850nm | 500m | Multi-mode | Yes |
| LS-SM314G-02C | 4.25Gbps | 1310nm | 2km | Single Mode | Yes |
| LS-SM314G-04C | 4.25Gbps | 1310nm | 4km | Single Mode | Yes |
| LS-SM314G-10C | 4.25Gbps | 1310nm | 10km | Single Mode | Yes |
| LS-SM314G-40C | 4.25Gbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM554G-40C | 4.25Gbps | 1550nm | 40km | Single Mode | Yes |
Optical Transport Networks: End-to-end DWDM solutions from active modules to passive devices including amplifiers (EDFA & RFA), Mux/Demux, and ROADM.
Cloud and Enterprise: High-speed optical modules ranging from 10G to 800G to meet mass data transmission demands in modern data centers.
Wireless Systems: High reliability products for 4G/5G systems including Dark Fiber, WDM, and Radio over Fiber for Mid-haul and Back-haul.
FTTx: Total fiber access solutions covering all-optical and combined copper-optical combined access products.
Subsystems: Optical cable O&M solutions integrating line protection (OLP) and monitoring systems (OLM).
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, lan transformers, and SFP modules.
Yes, we provide samples to test the quality. Please contact our team to arrange for sample delivery.
Items in stock are ready to ship immediately. For mass production orders, the delivery time is generally between 15 to 30 days.
We offer a comprehensive warranty period (up to 5 years for specific modules) and provide 24-hour online technical support.
Yes, we accept OEM/ODM orders to meet specific project requirements. Please send your inquiries for a detailed discussion.
Our manufacturing processes and products are certified by ISO9001:2000, RoHS, REACH, CE, and UL standards.
