Dynafiber
Dynafiber

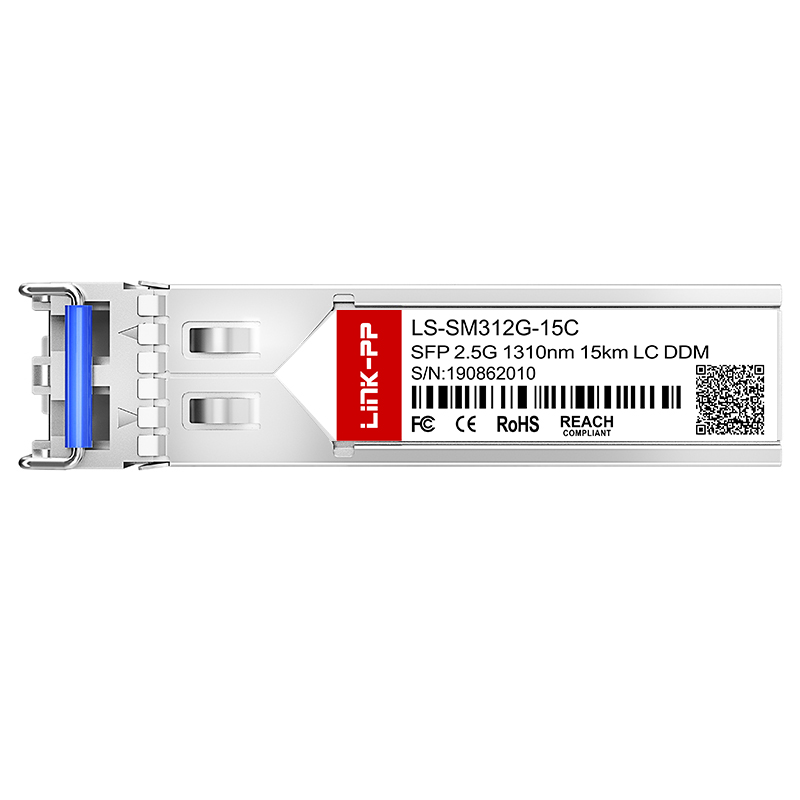

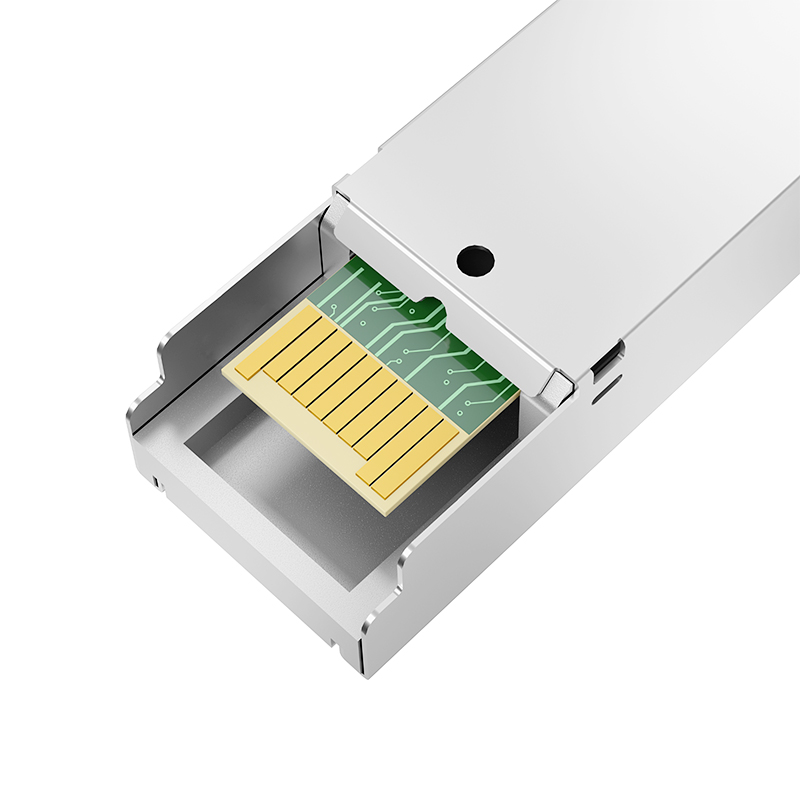

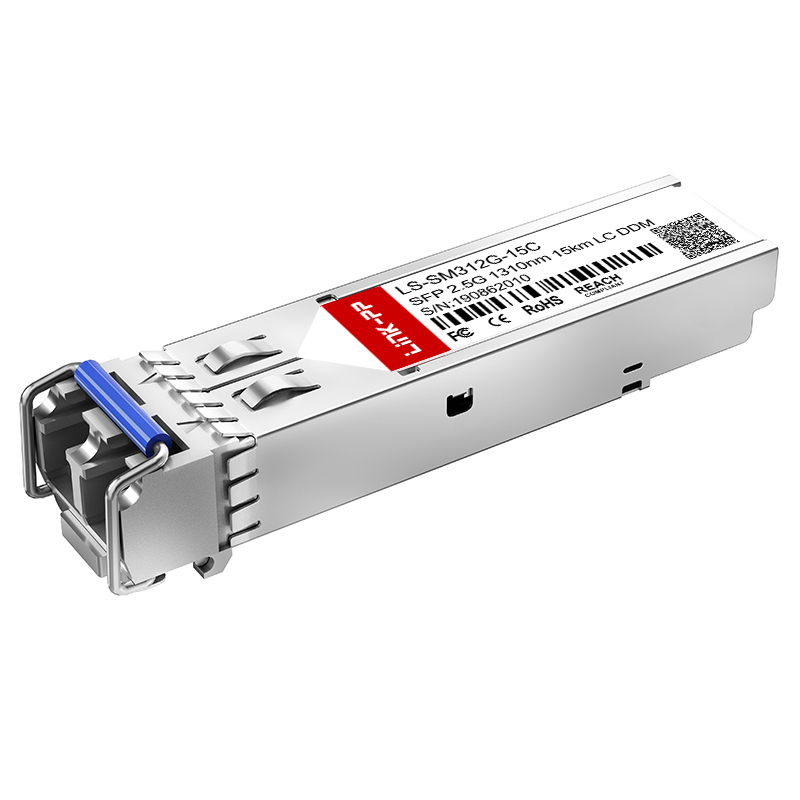

2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km Duplex LC SMF Optical Transceiver Module
| Item | 2.5G SFP |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 2.5Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 15km |
| Media | SMF |
| Connector | Duplex LC |
| Optical Component | DFB/PIN |
| TX Power | -5~0dBm |
| Receiver Sensitivity | <-18dBm |
| Receiver Overload | 0dBm |
| Power Consumption | 1W |
| Extinction Ratio | >8.2dB |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0, SFF-8472 v9.5 Compliant |
| Warranty | 5 Years |
| Sample | Available |
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE and UL. Our facilities include advanced manufacturing and testing equipment. Established in 1997, we currently employ around 2000 staff members. With a monthly production capacity of 3000K, we ensure short delivery times and provide professional solutions and technical support for magnetic components.
Main Products include: 10/100/1000M LAN pulse transformers and filters, RJ45 connectors with magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformers, and SFP modules. Our products are widely used in networking and communication equipment such as HUBs, switches, routers, IP phones, and xDSL modems. We export to more than 30 countries, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
