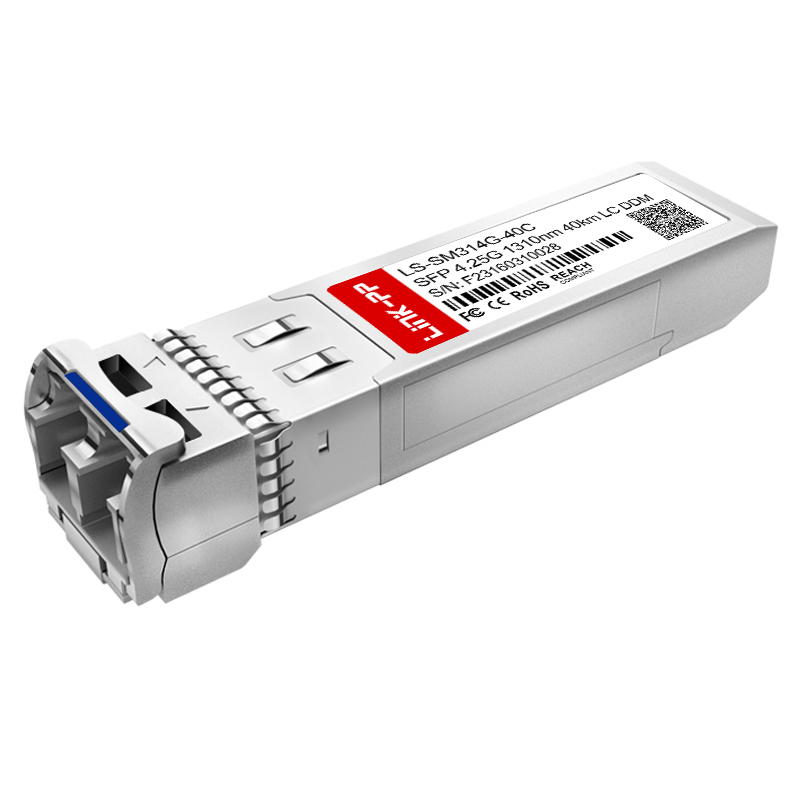

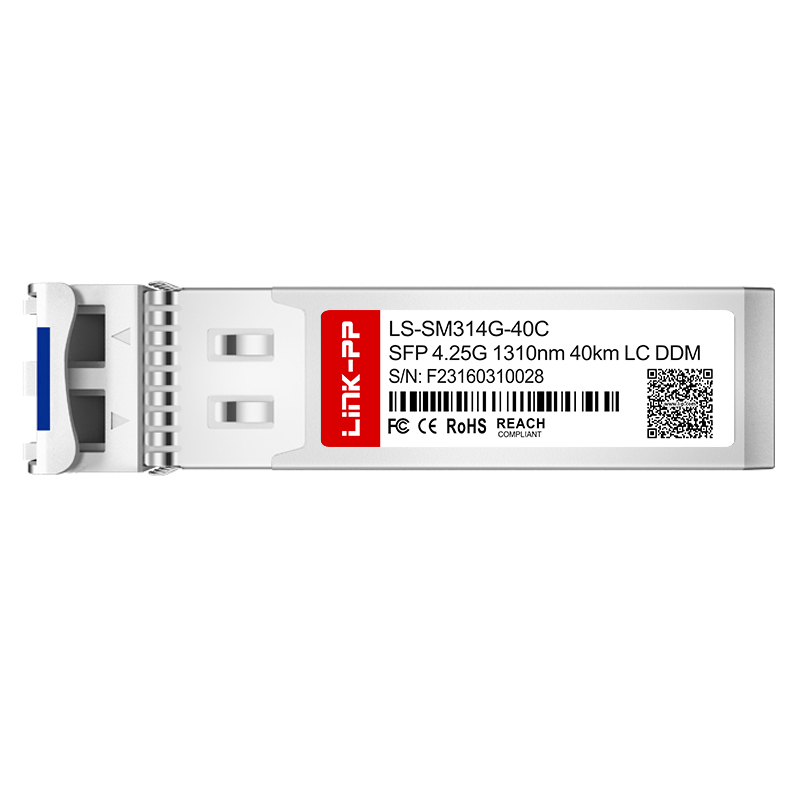

Dynafiber
Dynafiber
| Form Factor | SFP |
| Max Data Rate | 4.25Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 40km |
| Connector | Duplex LC |
| Media | SMF (Single Mode Fiber) |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| EMC Supported | Yes |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
Drawing on over 10 years of experience in chips and modules, we integrate fast speeds, small size, power savings, and high performance into every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM854G-S1C | 4.25Gbps | 850nm | 150m | Multi-mode | Yes |
| LS-MM852G-S3C | 4.25Gbps | 850nm | 300m | Multi-mode | Yes |
| LS-MM854G-S5C | 4.25Gbps | 850nm | 500m | Multi-mode | Yes |
| LS-SM314G-02C | 4.25Gbps | 1310nm | 2km | Single Mode | Yes |
| LS-SM314G-10C | 4.25Gbps | 1310nm | 10km | Single Mode | Yes |
| LS-SM314G-40C | 4.25Gbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM554G-40C | 4.25Gbps | 1550nm | 40km | Single Mode | Yes |
End-to-end DWDM solutions including active modules and passive devices like optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, and OTDR.
High-speed optical modules ranging from 10G to 800G designed for mass data transmission in modern data centers.
Solutions for WDM, Radio over Fiber, and Back-haul systems using mature laser and mainstream chip solutions.
Total optical fiber access solutions and line protection systems (OLP/OLM) to ensure communication stability.
Our specialized manufacturing facility is certified by ISO9001:2000, RoHS, REACH, CE, and UL. We utilize advanced manufacturing and testing equipment to ensure the highest reliability.
