Dynafiber
Dynafiber
| Form Factor | SFP | Max Data Rate | 4.25Gbps |
|---|---|---|---|
| Wavelength | 850nm | Max Distance | 150m |
| Connector | Duplex LC | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -9 ~ 0dBm | Receiver Sensitivity | < -20dBm |
| DDM/DOM | Supported | Protocols | MSA Compliant |
| Temperature | 0 to 70°C / -40 to 85°C | Warranty | 5 Years |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|

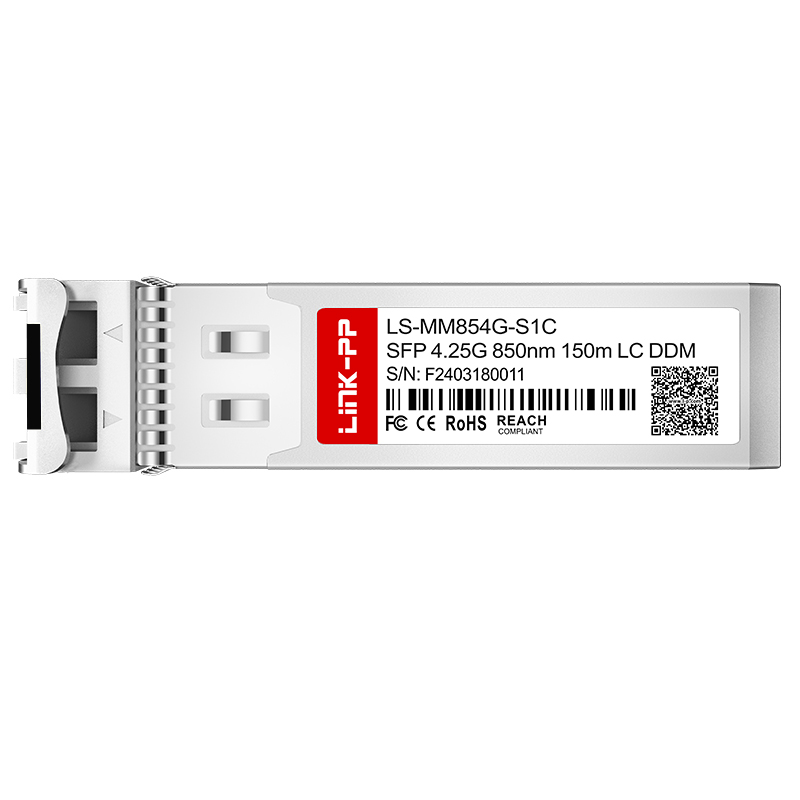

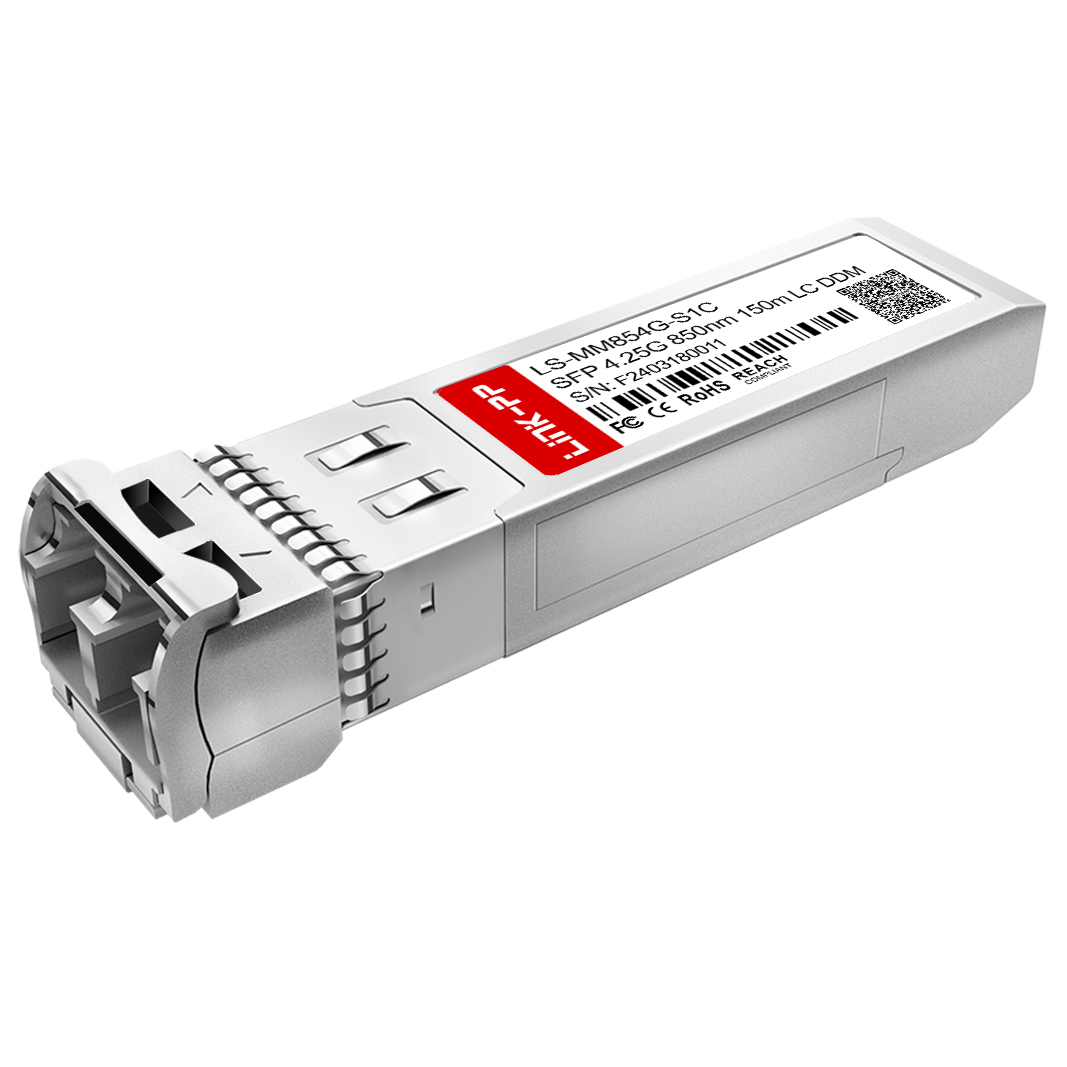

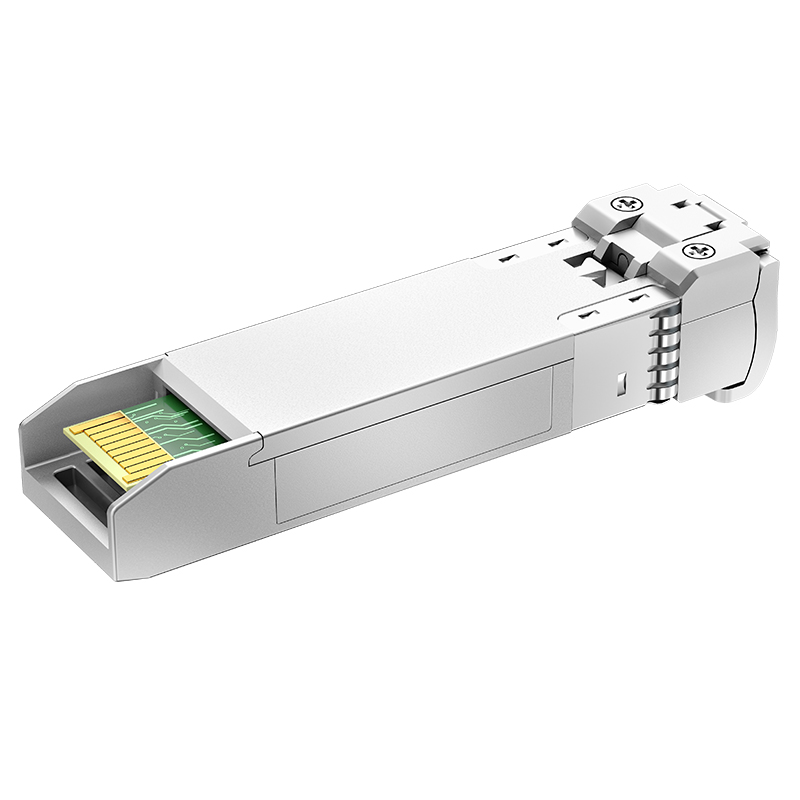

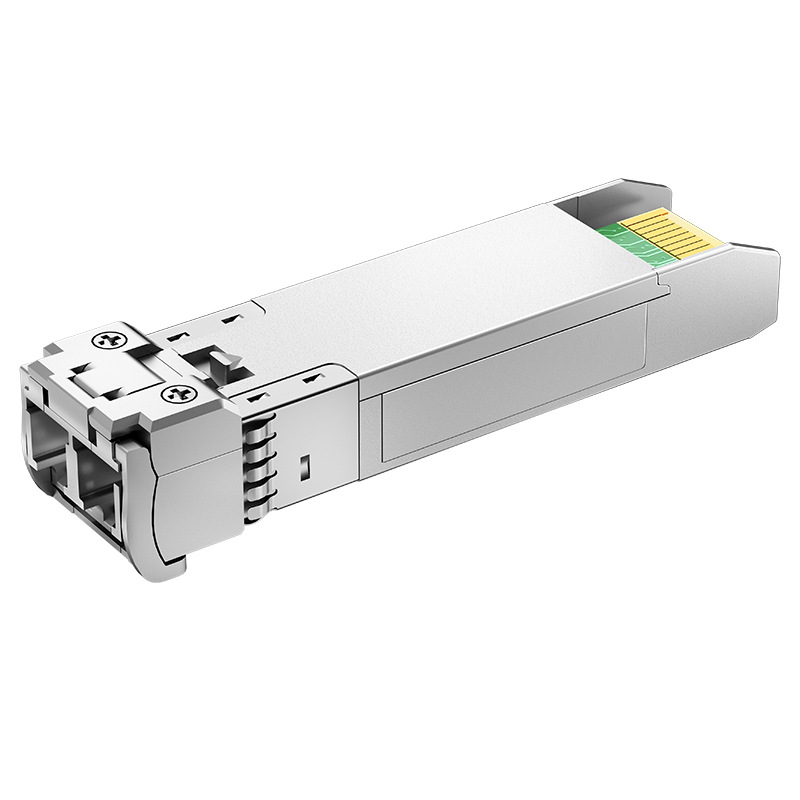

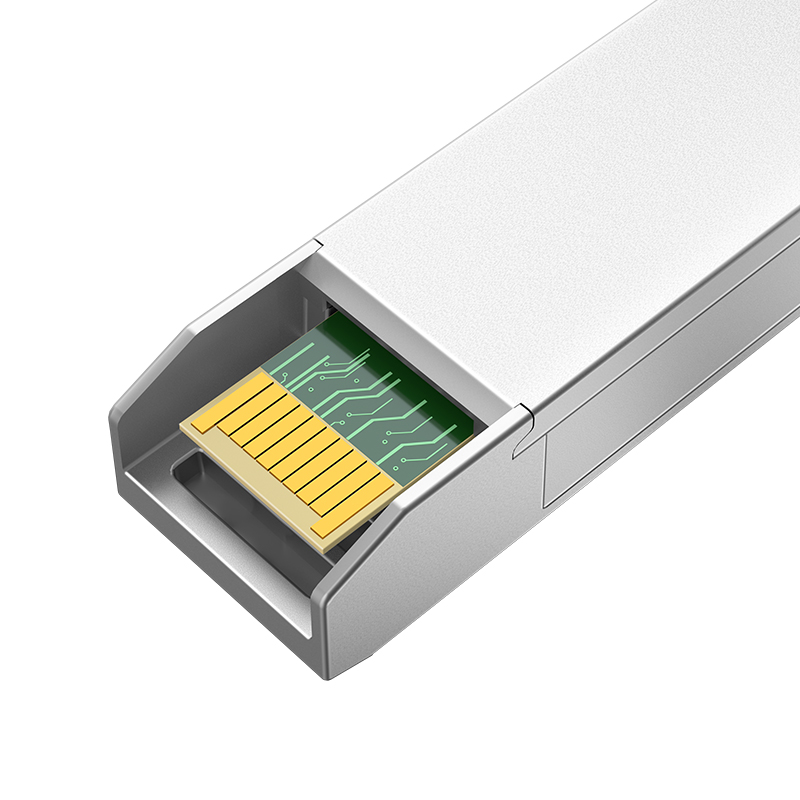

| LS-MM854G-S1C | 4.25Gbps | 850nm | 150m | Multi-mode | Yes |
| LS-MM852G-S3C | 4.25Gbps | 850nm | 300m | Multi-mode | Yes |
| LS-MM854G-S5C | 4.25Gbps | 850nm | 500m | Multi-mode | Yes |
| LS-SM314G-02C | 4.25Gbps | 1310nm | 2km | Single Mode | Yes |
| LS-SM314G-04C | 4.25Gbps | 1310nm | 4km | Single Mode | Yes |
| LS-SM314G-10C | 4.25Gbps | 1310nm | 10km | Single Mode | Yes |
| LS-SM314G-40C | 4.25Gbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM554G-40C | 4.25Gbps | 1550nm | 40km | Single Mode | Yes |
We provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with rates ranging from 10G to 800G, providing high-quality interconnection solutions.
Our solutions include Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems using mature and efficient lasers.
For global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access products.
As a specialized manufacturer of magnetic telecom and network components, we are certified by ISO9001:2000, ROSH, REACH, CE and UL. With advanced manufacturing and testing equipment, we have an abundant production capacity of 3000K per month, enabling short delivery times. We design, manufacture and sell high-speed optical interconnect solutions worldwide using the latest optoelectronic technologies.
