Dynafiber
Dynafiber
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

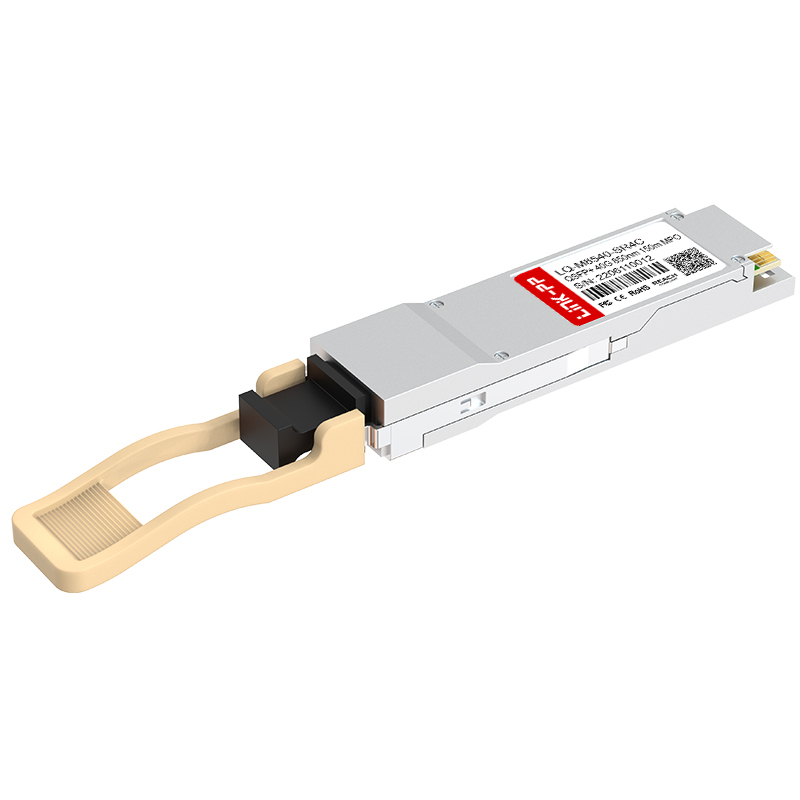

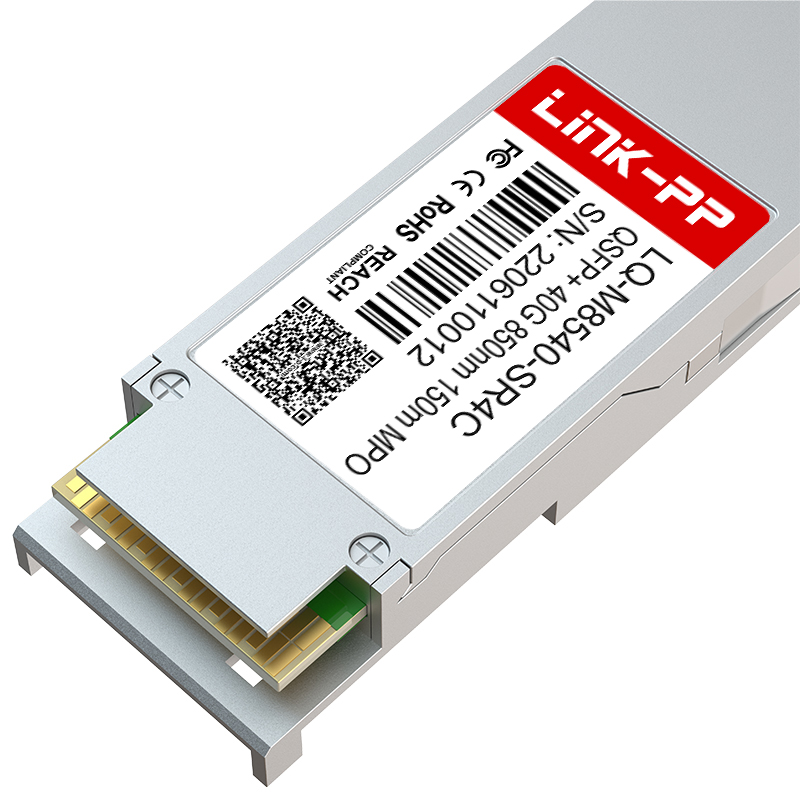

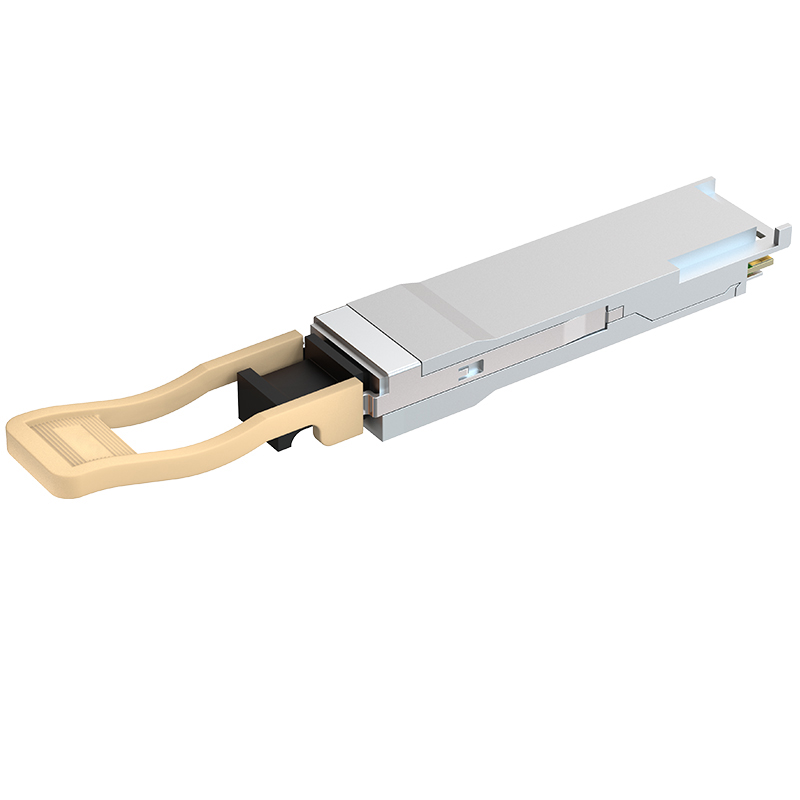

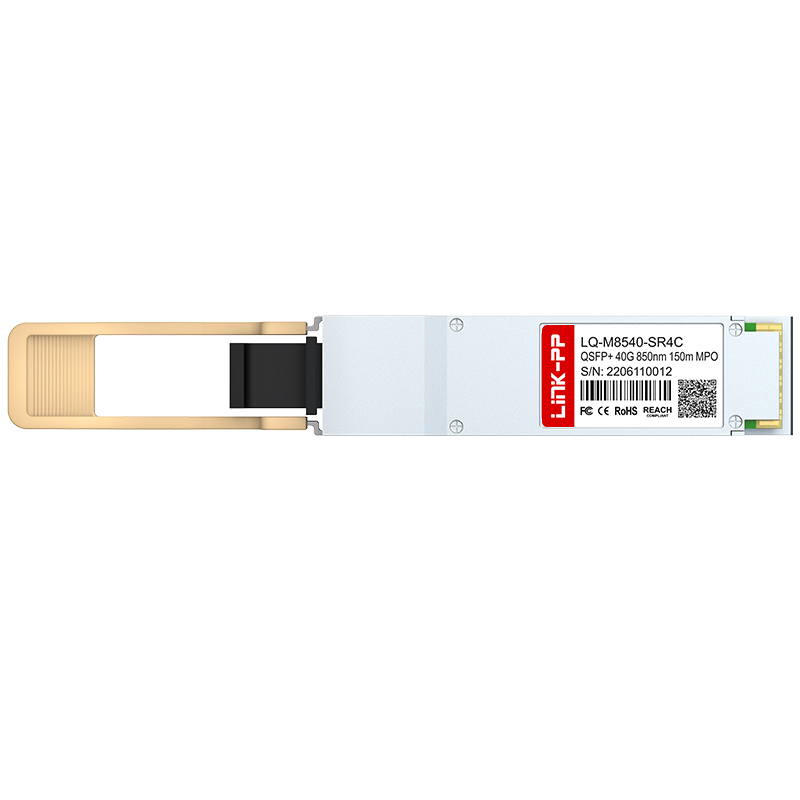

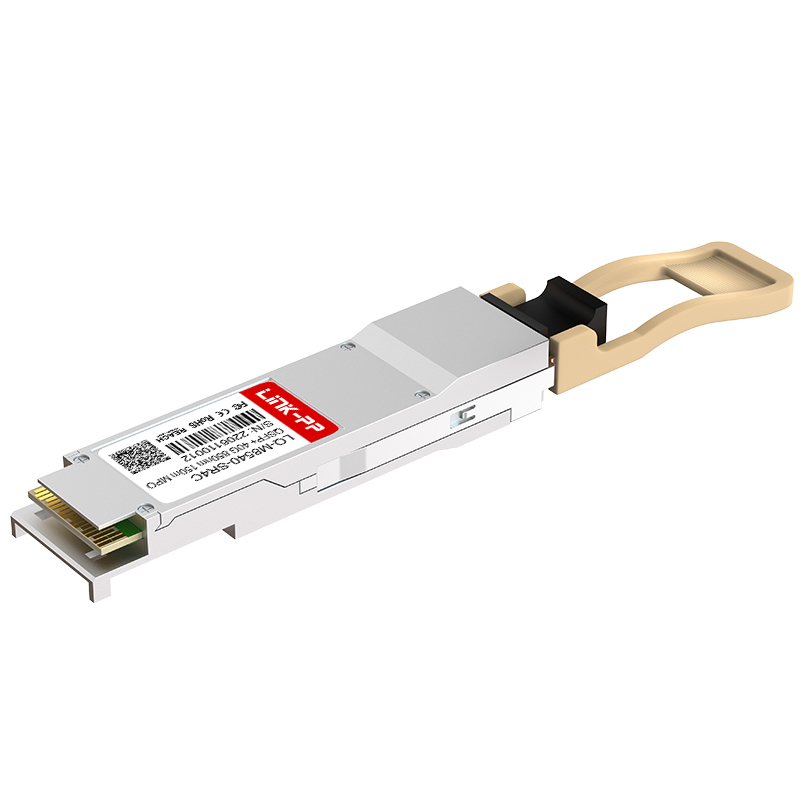

| Item | 40G Optical Modules |
| Vendor Name | Professional Manufacturer |
| Replaceable Part | Cisco, HW, Arista, Juniper, Brocade, Intel, etc |
| Part Status | Active |
| Form Factor | QSFP+ |
| Max Data Rate | 41.25Gbps (4x 10.3125Gbps) |
| Wavelength | 850nm |
| Max Cable Distance | 150m@OM4 / 100m@OM3 |
| Media | MMF |
| Connector | MTP/MPO-12 Male |
| Optical Component | VCSEL/PIN |
| TX Power | -7.1~1.9dBm |
| Receiver Sensitivity | < -10.3dBm |
| Power Budget | 3.5dB |
| Receiver Overload | 2.4dBm |
| Power Consumption | ≤1.5W |
| Extinction Ratio | >3dB |
| DDM | Supported |
| Commercial Temperature | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636 |
| Warranty | 5 Years |
End-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, high-speed optical modules with rates ranging from 10G to 800G have been developed, providing high-quality optical interconnection solutions.
High reliability and performance products with mature and efficient lasers. Solutions include Dark Fiber, WDM, Radio over Fiber, and total FTTx optical fiber access solutions.
Our facility is a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, we currently have a large dedicated staff. With an abundant productive capacity of 3000K per month, we are able to deliver products within a short time. We offer high-speed optical interconnection solutions for cloud computing and ultra-broadband networks globally.
